Home Net Controller (HNC) is an open-source network management, policy control, and device visibility application designed for home and lab environments. It provides administrators with visibility into connected LAN devices, real-time traffic statistics, policy-based internet access controls, and local domain blocking.

Built on an architectural Dual-Mode Foundation, HNC provides:

1. Gateway-Native Enforcement: The Windows controller connects to remote routers (OpenWrt nftables, Linux router kernel, or MikroTik RouterOS 7 REST API) to manage forwarding-path filters with IPv6 parity and token-bucket QoS.
2. Windows LAN Off-Path Fallback: Runs directly on the Windows network adapter via Layer-2 ARP packet redirection on local unmanaged networks when router SSH or management APIs are unavailable, guarded by strict self-exclusion invariants.

• Key Features
• Feature Support Matrix
• Technical Limitations & Operational Caveats

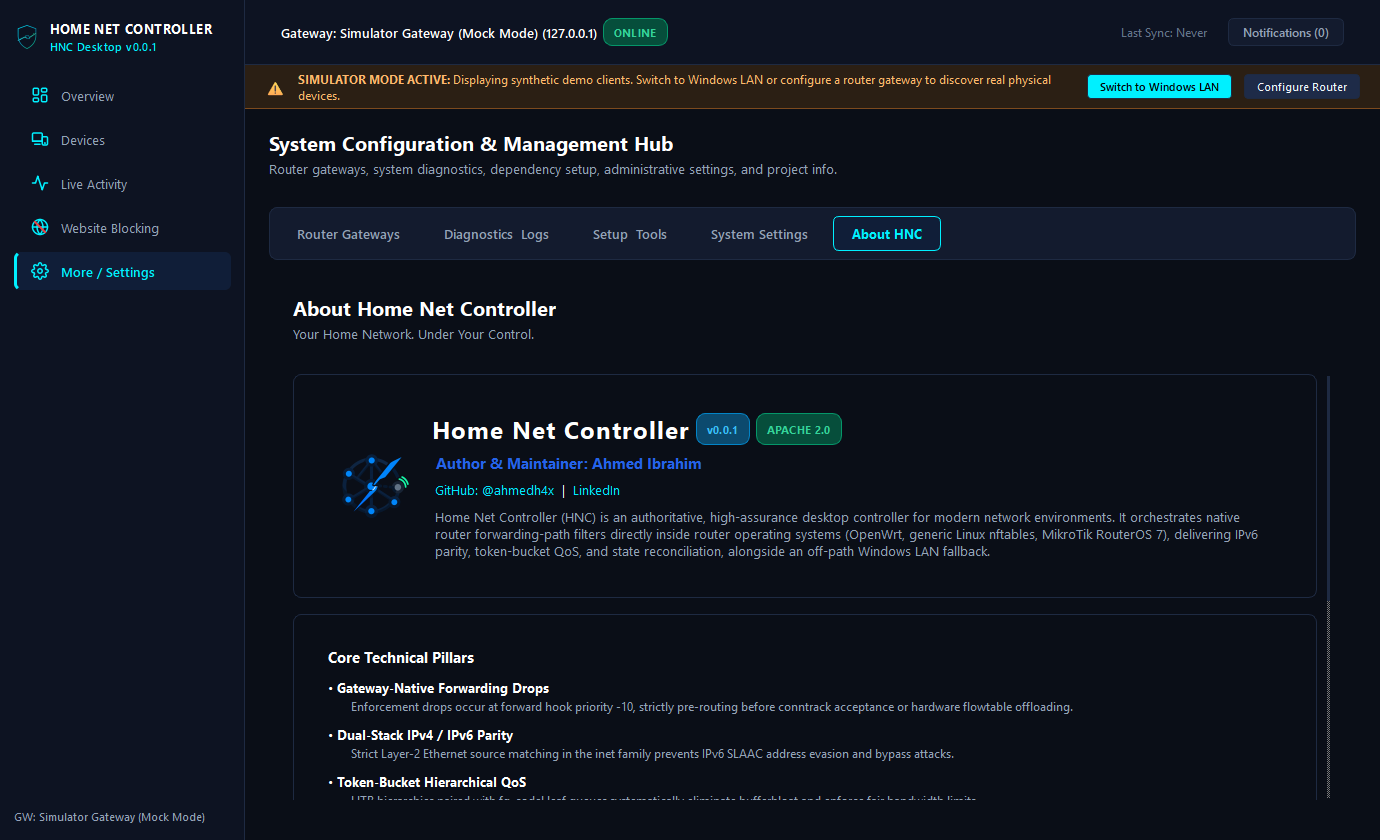

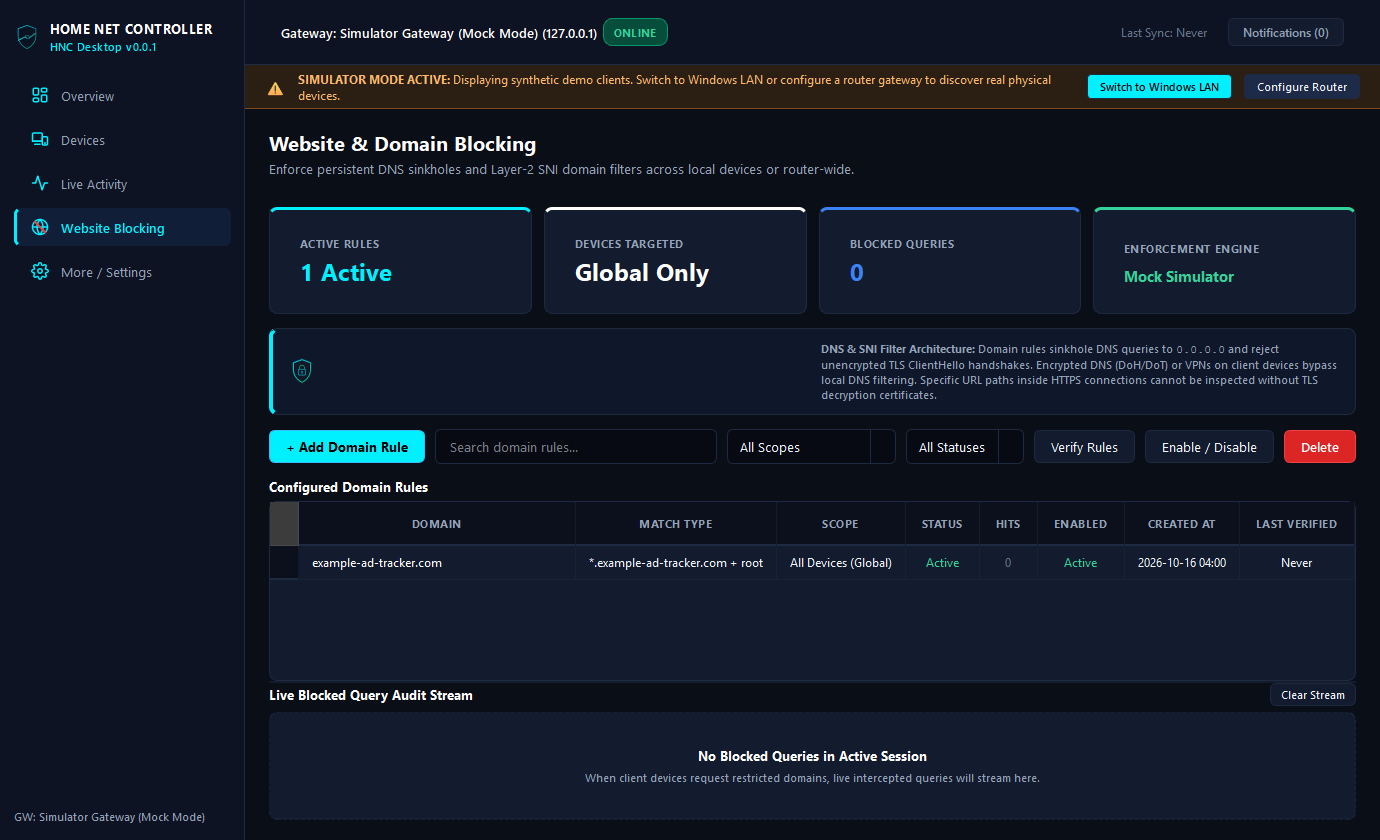

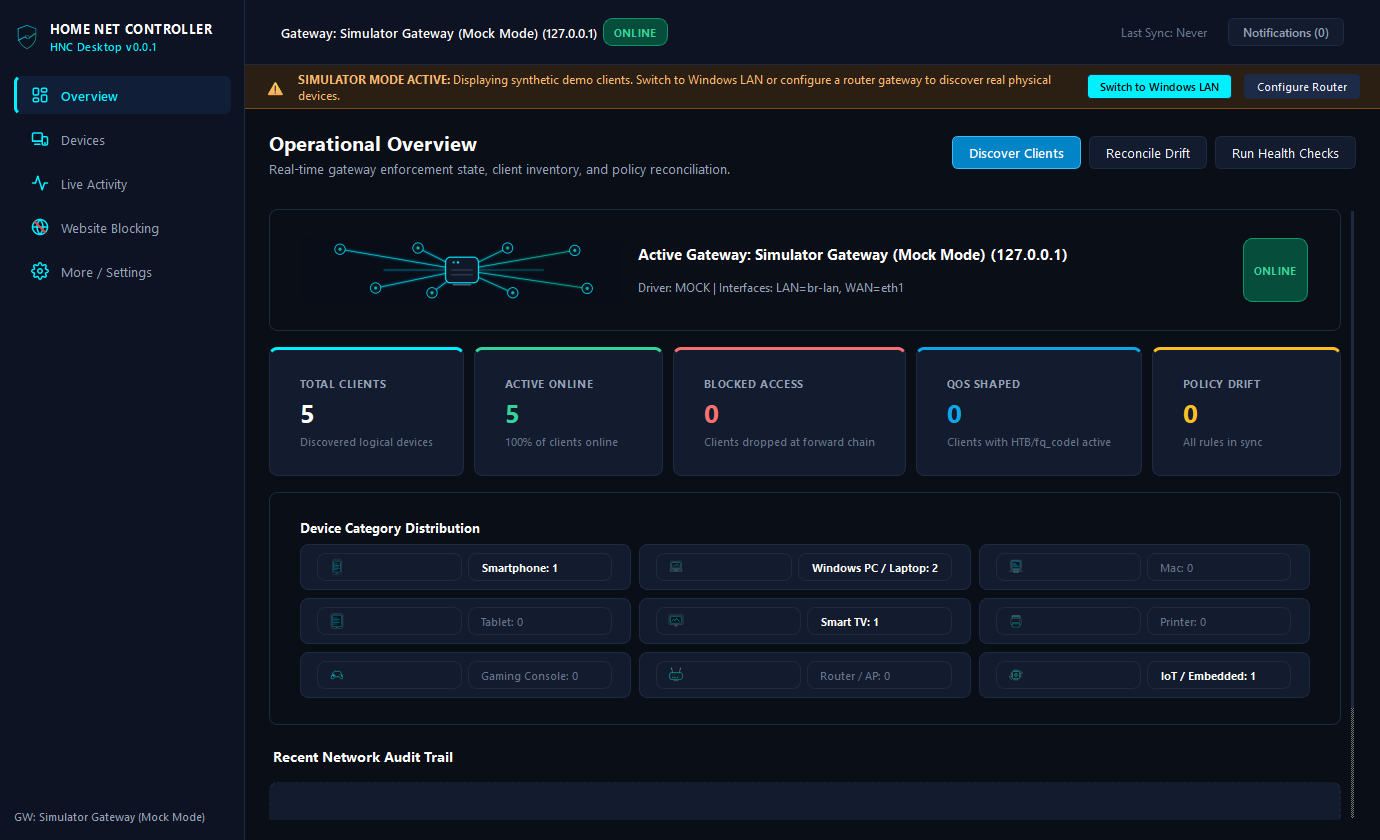

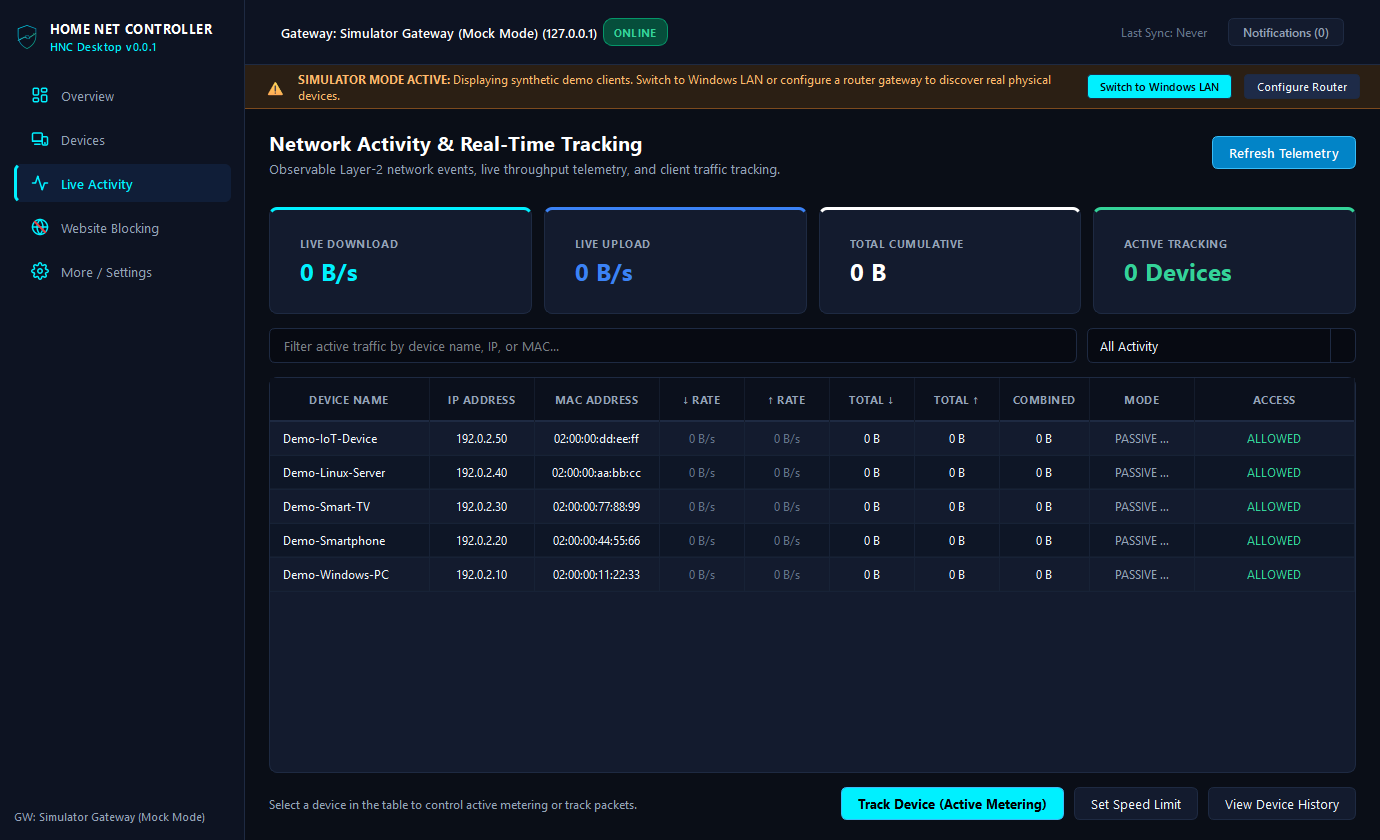

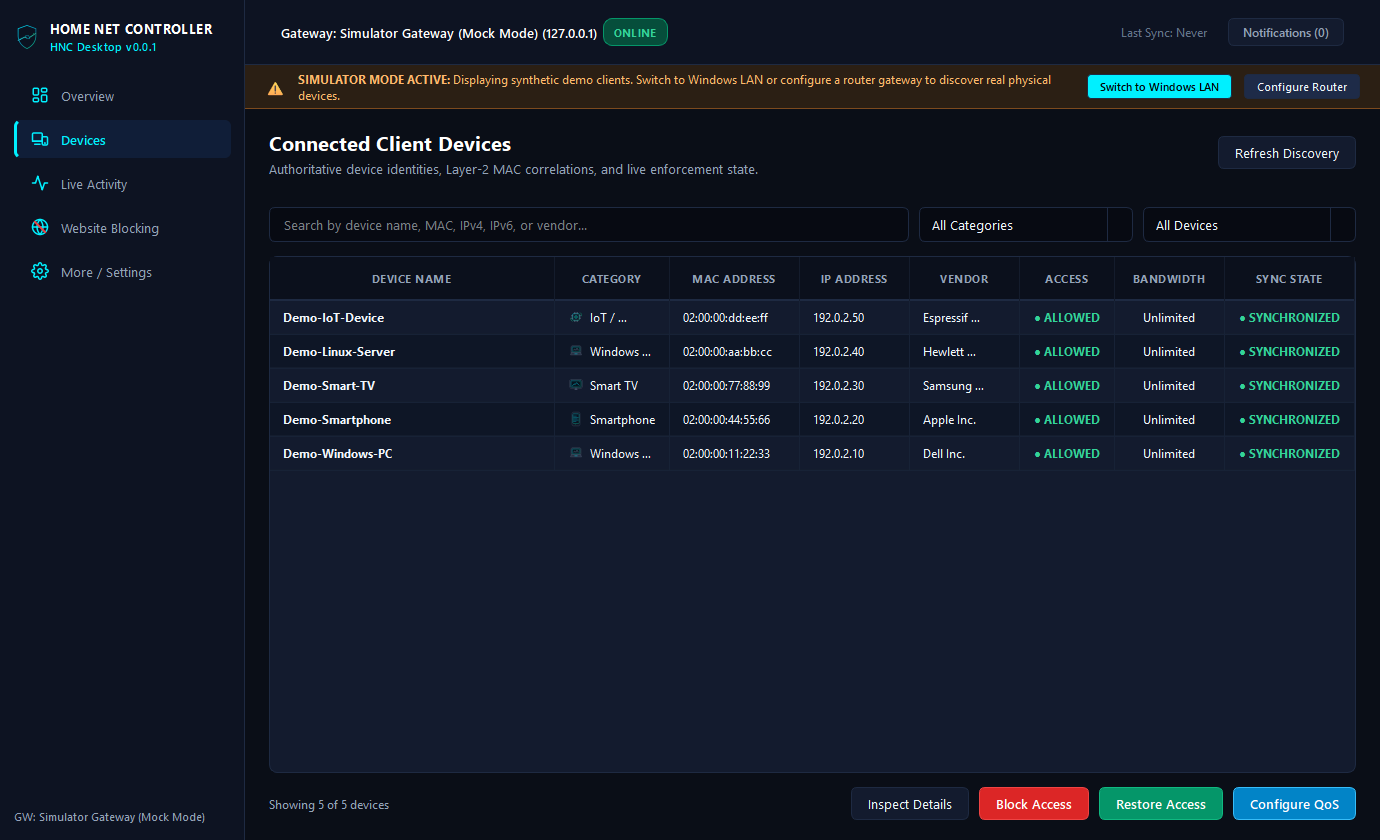

• Application Screenshots
• Architecture Overview
• Technology Stack
• Installation & First Run (Windows)
• Command-Line Interface (CLI)
• Permissions & System Requirements
• Privacy & Sanitization Model
• Testing & Quality Verification
• AI-Assisted Development & Vibe Coding
• License & Dependencies
• Author & Credits

• Dual-Binary Distribution: Built as a native windowed desktop application (HomeNetController.exe) with zero black command prompt windows, alongside a dedicated scriptable console binary (hnc-cli.exe).
• Modern Obsidian Visual Interface: Crafted with high-contrast Cyan (#00f0ff) and Emerald (#10b981) accent indicators, dark card surfaces, responsive layouts, and unclipped data tables.
• Multi-Tier Device Intelligence: 4-tier evidence hierarchy categorizing discovered nodes across 10 hardware types (Smartphones, PCs, Macs, Smart TVs, Gaming Consoles, Routers, IoT) with vendor OUI lookup and randomized MAC detection.
• Website & Domain Blocking: Flexible DNS interception rules for specific devices, custom device groups, or entire subnets with wildcard domain support (*.example.com).
• Real-Time Per-Device Traffic Accounting: Live byte and packet counters tracking upload and download bandwidth rates with exponential smoothing.
• Continuous State Reconciliation: Background engine audits router kernel tables every 30 seconds to restore desired state against unexpected reboots or external drift.
• Host-Bound Encrypted Secret Vault: Machine-bound AES-GCM-256 authenticated encryption for router credentials with strict OS-level access control lists.
• Sanitized Crash Reporting: Global unhandled exception handlers redacting passwords and secret tokens before writing diagnostic support bundles.

When deploying and using Home Net Controller, administrators should be aware of the following architectural boundaries and protocol limitations:

1. DNS-over-HTTPS (DoH) & Encrypted DNS (DoT / DoQ):
   Domain blocking rules in Windows LAN mode and router-assisted DNS intercept rely on traditional unencrypted DNS (UDP/TCP port 53) and router DNS daemon configuration (dnsmasq / RouterOS DNS). Clients configured with encrypted DNS protocols (DoH, DoT, or DNSCrypt) bypass Layer-2 DNS sinkholing unless encrypted DNS endpoints are explicitly blocked via firewall IP/port rules on the router.
2. Virtual Private Networks (VPNs) & Encrypted Tunnels:
   Clients operating full-tunnel VPNs (WireGuard, OpenVPN, IPsec) or encrypted proxies encapsulate all application traffic. Router-level firewall rules can block outbound VPN handshakes by IP/port, but off-path domain inspection cannot inspect SNI or DNS within encrypted tunnels.
3. MAC Address Randomization:
   Modern operating systems (iOS, Android, Windows 11) enable randomized (locally administered) MAC addresses by default on Wi-Fi networks. HNC flags private MACs in the inventory and provides warnings; however, if a client rotates its MAC address upon reconnection, MAC-targeted policies will not apply until the new identity is cataloged.
4. Client Isolation & Private VLANs:
   On networks where Wi-Fi Access Points enforce Wireless Client Isolation or managed switches enforce private VLANs / port isolation, off-path Layer-2 ARP packets from the controller cannot reach peer endpoints. In these environments, Gateway-Native mode (OpenWrt or MikroTik installed on the physical router) is strictly required.
5. Off-Path QoS Limitation:
   The Windows LAN interceptor operates off-path via Layer-2 ARP manipulation. It is technically impossible to perform reliable token-bucket QoS bandwidth rate-limiting off-path without router hardware cooperation. Bandwidth shaping is exclusively available in Gateway-Native mode.
6. Simulated vs. Physical Router Environments:
   Automated test suites run against deterministic Linux network driver mocks and synthetic test harnesses. While validated on physical router hardware, variations in third-party firmware, custom firewall chains, and hardware-accelerated FastPath/Flow Offloading may require customized firewall hooks.

flowchart TD
    subgraph UI ["User Interface Layer"]
        GUI["HomeNetController.exe (PySide6 / Qt 6)"]
        CLI["hnc-cli.exe (argparse / JSON API)"]
    end

    subgraph Core ["Application Core & Domain Layer"]
        DS["DeviceService & IdentityEngine"]
        PS["PolicyService & StateEngine"]
        DB["DomainBlockingService"]
        TA["TrafficAccountingService"]
        RE["ReconciliationEngine"]
        HS["HealthMonitoringService"]
    end

    subgraph Storage ["Host Security & Persistence"]
        DBStore[("SQLite (Local AppData)")]
        Vault["SecretStore (AES-GCM-256 Vault)"]
    end

    subgraph Drivers ["Backend Gateway Abstraction"]
        Native["GatewayNativeBackend (OpenWrt / Linux nftables)"]
        MT["MikroTikBackend (RouterOS 7 REST)"]
        WinLAN["WindowsLanInterceptor (Layer-2 ARP Engine)"]
    end

    GUI --> Core
    CLI --> Core
    Core --> Storage
    Core --> Drivers

• Primary Language: Python 3.10+ (Tested against Python 3.14 x64)
• GUI Desktop Framework: PySide6 / Qt 6.12
• Network & Low-Level Packets: Scapy (Layer-2 ARP manipulation & traffic accounting)
• Router Management: Paramiko (SSH client for Linux/OpenWrt), Requests (RouterOS REST API)
• Security & Encryption: Cryptography (AES-GCM-256 authenticated encryption)
• Packaging: PyInstaller (Dual-binary windowed & console distribution)
• Testing: Pytest, pytest-qt

• Operating System: Windows 10 (version 1809 or higher) or Windows 11 (64-bit).
• Administrative Privileges: Administrator approval is required for raw network socket access, packet inspection, and local ARP redirection.
• Npcap Driver (Recommended): Download and install Npcap with the "Install Npcap in WinPcap API-compatible Mode" option checked. Npcap enables low-overhead packet injection on Windows network interfaces.
• Visual C++ Runtime: Requires the Microsoft Visual C++ 2015-2022 Redistributable (x64).

1. Download HomeNetController-v0.0.1-windows-x64.zip and SHA256SUMS.txt from the GitHub Releases.
2. Open PowerShell and verify the archive checksum:

   Get-FileHash .\HomeNetController-v0.0.1-windows-x64.zip -Algorithm SHA256

   Compare the resulting hash against the value published in SHA256SUMS.txt.
3. Extract the ZIP archive:

   Expand-Archive .\HomeNetController-v0.0.1-windows-x64.zip -DestinationPath .\HomeNetController\

4. Right-click HomeNetController.exe and select Run as administrator.

# 1. Clone the repository
git clone https://github.com/ahmedh4x/home-net-controller.git
cd home-net-controller

# 2. Create and activate a 64-bit virtual environment
python -m venv .venv
.\.venv\Scripts\Activate.ps1

# 3. Upgrade build tools and install dependencies
python -m pip install --upgrade pip setuptools wheel
pip install -e ".[dev]"

# 4. Launch the PySide6 Desktop GUI as Administrator
python main.py

The CLI executable (hnc-cli.exe or python main.py) provides headless automation with structured --json output:

# Display CLI version and help
hnc --version
hnc --help

# List discovered devices in JSON format
hnc devices --refresh --json

# Block internet access for a device
hnc block 02:00:00:00:15:4d

# Restore internet access
hnc unblock 02:00:00:00:15:4d

# Add a domain blocking rule
hnc domains add example.com --scope all

# Run health diagnostics
hnc diagnostics --json

Home Net Controller is built with privacy-first principles:

• Local Storage by Default: Device inventory, traffic history, and policy rules are stored strictly on the local workstation in %LOCALAPPDATA%\HomeNetController\ (with backwards compatibility for %LOCALAPPDATA%\NetCutter\).
• No Analytics or Cloud Telemetry: HNC does not collect, track, or transmit usage analytics or telemetry to any external servers.
• Opt-In AI Assistant with Data Minimization: AI diagnostic features default to an offline, deterministic local rule engine requiring 0 network egress. External LLM connectivity can be explicitly enabled via HNC_ENABLE_AI_EGRESS=1. When enabled, the context payload is automatically pseudonymized and sanitized—private IP addresses, MAC addresses, and credentials are fully redacted before transmission.
• Sanitized Support Bundles: The diagnostic support bundle generator strips passwords, API tokens, and private keys before exporting diagnostic archives.
• Demonstration Data: All screenshots and documentation examples use synthetic RFC 5737 test addresses (192.0.2.0/24) and randomized MAC prefixes (02:00:00:...).

Home Net Controller maintains a verified test suite with 111 automated tests covering unit logic, driver abstractions, GUI models, and security invariants:

# Run complete test suite
python -m pytest -v

====================== 111 passed, 1 warning in 7.04s =======================

In accordance with transparent engineering disclosure, parts of Home Net Controller were developed using an AI-Assisted Pair Programming & Vibe Coding Workflow:

• Role of AI Tools: Automated code refactoring, test fixture design, vector SVG asset generation, and documentation drafting were conducted with the assistance of Google DeepMind's Antigravity (AGY) and OpenAI's Codex CLI.
• Human Oversight: All architecture invariants, security self-exclusion rules, hardware validation on real routers, and code reviews were directed and verified by the author, Ahmed Ibrahim.

Home Net Controller source code is licensed under the Apache License 2.0.

Home Net Controller utilizes several third-party libraries:

• PySide6 / Qt 6: Licensed under LGPLv3 / Commercial (The Qt Company). Dynamically loaded shared libraries. Source code for Qt is available at https://www.qt.io.
• Scapy 2.7.0: Licensed under GNU General Public License v2 (GPLv2). Used as an external packet manipulation tool for Windows LAN off-path redirection in src/netcutter/backends/windows_lan.py. In compliance with GPLv2 Section 3, complete machine-readable source code for this project is provided in this repository, and Scapy source is available at https://github.com/secdev/scapy.
• Paramiko: Licensed under LGPLv2.1 (SSH router gateway driver). Source is available at https://github.com/paramiko/paramiko.
• Cryptography & Requests: Licensed under Apache 2.0 / BSD.

See NOTICE for full third-party notices and details.
