Clean, typed, object-oriented Python driver for the Gigahertz-Optik CSS45 compact spectrometer (MSC15 device family, 288-pixel spectral unit). It speaks the device's ASCII protocol directly over USB HID - reverse-engineered from the vendor's DLLs and verified on live hardware - so it runs on Linux, macOS and Windows with no vendor DLL.

• Cross-platform: hidapi for USB HID, pyserial for RS232/RS485.
• Small: one module; numpy, pyserial and hidapi are the only deps.
• Typed: full type annotations, frozen dataclasses, no implicit global state.
• Errors, not return codes: device errors raise Css45Error with the vendor's error-code table; a context manager closes the device.
• Hardware-free tests: 30 tests run on any OS without a device attached.

Vibe Code Alert: This project was implemented by Mistral Vibe!

pip install .

For the GUI too, install the pinned environment first:

pip install -r requirements.txt
pip install .

from pycss45 import CSS45

with CSS45() as css:               # auto-discovers the CSS45 over USB HID
    print(css.get_serial_number(), css.get_firmware_version())
    m = css.measure()              # auto integration time
    print(m.cct)                   # K
    print(m.photopic, m.par)

Without the with block, close the connection yourself:

from pycss45 import CSS45

css = CSS45()                      # auto-discovers the CSS45 over USB HID
print(css.get_serial_number(), css.get_firmware_version())
m = css.measure()                  # auto integration time
print(m.cct)                       # K
print(m.photopic, m.par)
css.disconnect()                   # release the device

The spectrum is a plain numpy array, so plotting is one line:

import matplotlib.pyplot as plt

plt.plot(m.wavelengths, m.spectrum)   # nm vs W m^-2 nm^-1
plt.xlabel("wavelength (nm)")
plt.show()

Units are SI: nm, s, K, deg C, ms.

measure() returns a frozen Measurement dataclass; the get_* methods re-query the device individually.

Methods with no wire command - set_dynamic_dark_mode, get_offset_time, the pulse family (measure_pulse, dequeue_pulse, abort_pulse), the detector info (get_detector_type, get_detector_serial_number) and get_dll_version

• are not available on this protocol.

• Transports: "hid" (default) speaks the device's ASCII protocol directly over USB HID via hidapi - Linux, macOS, Windows. "serial" uses pyserial for RS232/RS485 (framing defaults are conservative and vendor-config-unverified). Some methods (set_dynamic_dark_mode, get_offset_time, the pulse family, detector info) have no decoded wire command and are not available on this protocol.
• VID/PID: the CSS45 enumerates as USB VID 0x0C49, PID 0x0010 (hardware-observed). VID/PID are fixed in the device firmware, so they are identical on every OS, but they are not guaranteed across device variants - pass CSS45(vid=..., pid=...) / CSS45.find(vid=..., pid=...) for other MSC15-family devices. On Linux the HID device may need a udev rule or root.
• Hardware-verified: connect/identity, auto and manual measurement, the 288-pixel spectrum blocks, interpolated reads, CCT/photopic/PAR, wavelength borders (360-830 nm) all verified on a live CSS45 (fw 1.58, macOS); the remaining unknowns are listed in PROTOCOL.md.
• Integration time is automatic by default (measure()). Use measure_manual(IntegrationTime.MS10) for a fixed index 0-18 (12 us to 2.56 s, table in PROTOCOL.md).
• Dark offset: measure_dark_offset() measures the dark offset; is_offset_invalid() tells you when a stored offset must be re-measured. Check get_status()/Css45Error for warnings such as overload (25023)
  • positive codes never raise.

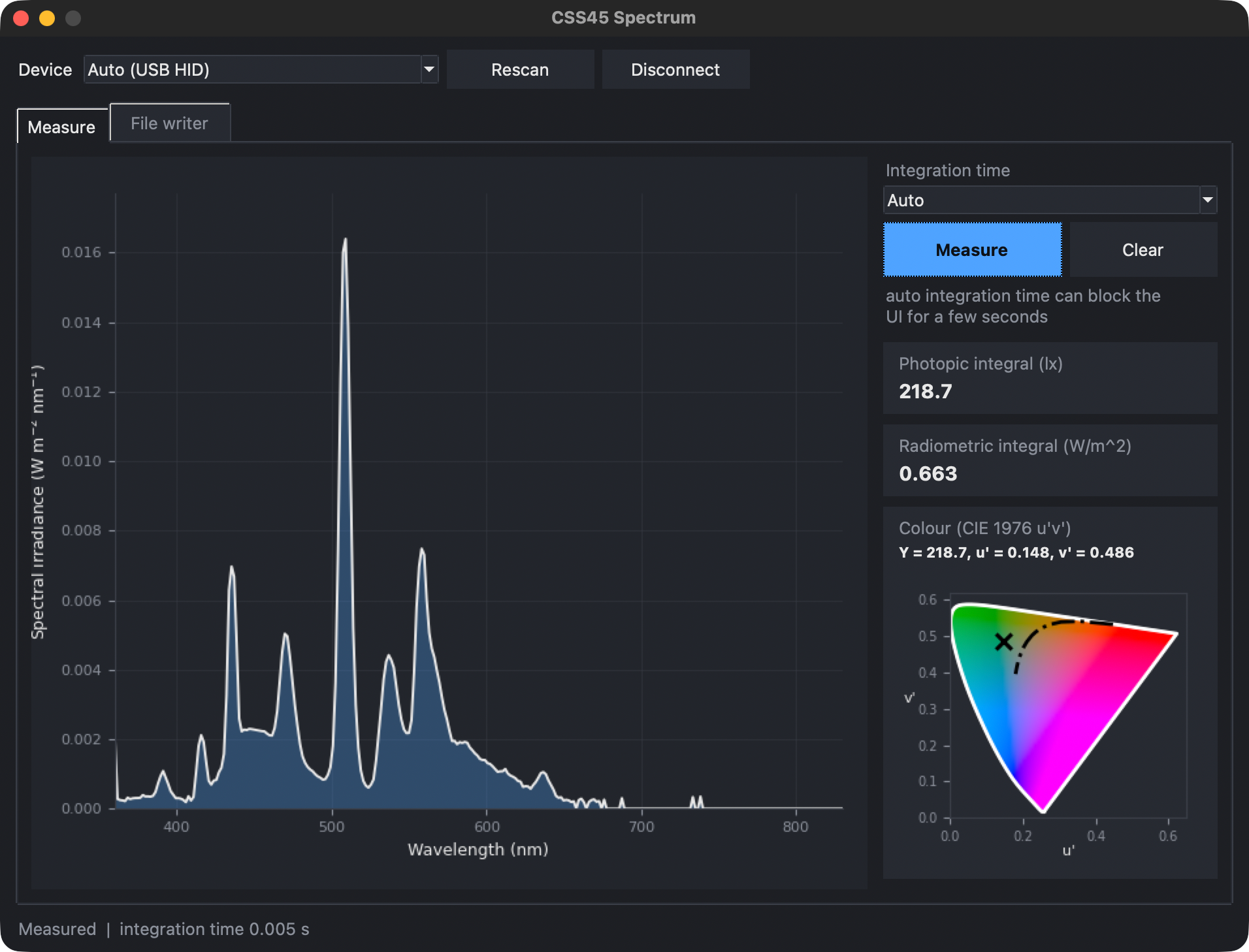

pycss45-gui (or python -m pycss45_gui) is a minimal spectral viewer: the device box lists the CSS45s found over USB HID (Rescan refreshes it), an integration-time box offers Auto or any of the 19 fixed times (12 us to 2.56 s), and Measure plots the spectrum with the photopic integral (lx), radiometric integral (W/m²), the CIE 1976 colour (Y, u′, v′) and its position (×) in the u′v′ chromaticity diagram; Clear resets plot and values. The File writer tab appends every measurement to a CSV file (one row per measurement: timestamp, integration time, integrals, Y/u′/v′, then one column per wavelength). The colour math is done with luxpy from the measured spectrum, not from the device. There is no gain control - the device auto-ranges (see PROTOCOL.md).

pip install matplotlib luxpy    # extra deps for the GUI; Tk comes with Python
pycss45-gui

Pick Demo as the device to try the viewer without hardware. Measurement is single-shot on the UI thread; the auto integration time can block it for a few seconds. Tested with luxpy 1.11.4, which needs numpy < 1.25 at import time - with numpy 2.x the luxpy import fails inside its own bundled tables.

For a scripted one-off measurement and plot there is measure_spectrum.ipynb (needs jupyter).

python3 -m unittest -v test_pycss45   # no hardware needed

PROTOCOL.md documents the reverse-engineered SDK surface: the DLL inventory, all 99 exports and their signatures, error and warning codes, the integration-time table, transports, and the bugs found in the vendor Python wrapper.

The SDK surface was reverse-engineered from the vendor DLLs; the wire protocol is hardware-verified (see above). Written with AI assistance.

MIT, see LICENSE. Not affiliated with or endorsed by Gigahertz-Optik. "Gigahertz-Optik", "CSS45" and "MSC15" are their trademarks. The SDK surface was worked out from the vendor's DLLs and Python example.
