Authentication method mapper for Microsoft Entra ID

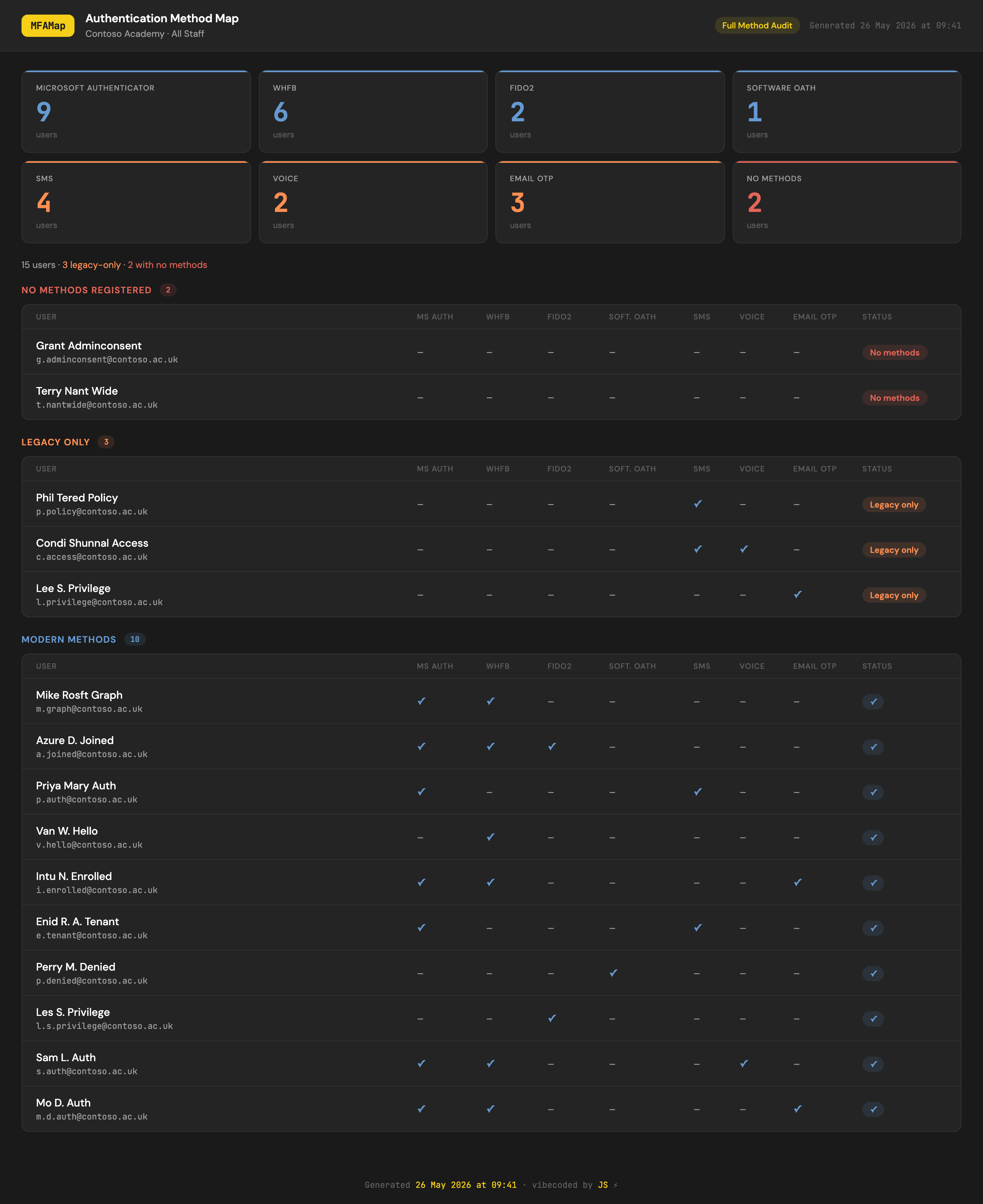

MFAMap generates a self-contained HTML dashboard showing authentication method registration across a target Entra group. Run the script, pick a mode, save the file. Open it in any browser, share it with anyone — no server, no login, no dependencies.
- 🎛️ Five tracking modes — pick what to track at runtime
- 📊 Delta reports — run monthly and MFAMap auto-generates a comparison report showing who enrolled, who lapsed, and progress over time
- 💾 Native save dialog — file picker on Windows and macOS; falls back to auto-naming
- 📄 PDF export — Save as PDF button in every report; dark theme preserved in output
- 🏷️ Branded reports —
-Brandedflag produces a REDACTED branded version for client use - 🧪 Demo mode — preview any report layout without connecting to Microsoft Graph
- 🔑 No app registration — authenticates via
Connect-MgGraphwith your existing admin account - 🗂️ Single output file — fully self-contained HTML, shareable with no dependencies
- 🔍 Risk filters — Mode 5 includes SMS Only, Voice Only, and Legacy Only buttons that instantly show which users would be locked out if a legacy method were disabled
- 📥 CSV export — export any filtered view as a Name + UPN CSV, ready to paste into an Entra group import
- 🔌 Auto-disconnect — disconnects from Microsoft Graph automatically on completion
| Mode | Tracks | Used for |
|---|---|---|
| 1 | Microsoft Authenticator + Windows Hello for Business | Full enrolment tracking with partial enrolment detection |
| 2 | Windows Hello for Business only | WHfB rollout |
| 3 | Microsoft Authenticator only | Authenticator rollout |
| 4 | Passkey | FIDO2 keys or Authenticator device-bound passkeys |
| 5 | Full method audit | All seven authentication methods per user |
Modes 2–4 are binary — registered or not. Mode 1 adds a Partially Enrolled section for users who have one method but not both. Mode 5 groups users into Modern Methods, Legacy Only, and No Methods.
| Parameter | Required | Description |
|---|---|---|
-GroupId |
Yes (unless -Demo or -AllUsers) |
Object ID of the target Entra group |
-AllUsers |
No | Audit every enabled member user in the tenant instead of a group (guests excluded). Cannot be combined with -GroupId |
-Mode |
No | Skip the mode prompt — pass 1 through 5 |
-OutputPath |
No | Override the output file path and skip the save dialog |
-Branded |
No | Produce a REDACTED branded report |
-Demo |
No | Run without a Graph connection using synthetic data |
Keep a folder per client or per group. MFAMap writes a JSON snapshot alongside each HTML report and automatically finds it the next time you run — no configuration needed. As long as you save consistently to the same folder, delta reports generate themselves.
Reports/
Contoso/
mfamap_AllStaff_Mode1_2026-05-01_0900.html
mfamap_AllStaff_Mode1_2026-05-01_0900.json
mfamap_AllStaff_Mode1_2026-06-01_0900.html ← compared vs May automatically
mfamap_AllStaff_Mode1_2026-06-01_0900.json
mfamap_AllStaff_Mode1_2026-06-01_0900_delta.html ← progress since May
FabrikamLtd/
...
1. Install the Microsoft Graph module (one-time)
Install-Module Microsoft.Graph -Scope CurrentUser -Force2. Get your group's Object ID
In entra.microsoft.com → Groups → find your group → copy the Object ID from the Overview page.
3. Run the script
# Interactive — choose mode at the prompt
.\MFAMap.ps1 -GroupId "your-group-object-id"
# Skip the mode prompt
.\MFAMap.ps1 -GroupId "your-group-object-id" -Mode 1
# REDACTED branded report
.\MFAMap.ps1 -GroupId "your-group-object-id" -Branded
# Tenant-wide — every enabled member user, no group needed
.\MFAMap.ps1 -AllUsers
# Preview without credentials
.\MFAMap.ps1 -Demo -Mode 1
.\MFAMap.ps1 -Demo -Mode 5 -Branded4. Open the report
Report saved to: .\mfamap_Staff_Mode1-Auth-WHfB_2026-06-01_0930.html
Double-click the file or open it in any browser.
| Registered | Status |
|---|---|
| Both Authenticator and WHfB | ✅ Fully Enrolled |
| One method only | 🟡 Partially Enrolled |
| Neither | ❌ Not Registered |
Software OATH / TOTP tokens count as Authenticator. Mode 3 shows a "TOTP only" badge to distinguish them.
Binary — registered or not. Mode 3 shows a TOTP badge for software OATH tokens.
| Section | Criteria |
|---|---|
| Modern Methods | At least one of: Authenticator, WHfB, FIDO2, Software OATH |
| Legacy Only | Only SMS, Voice, and/or Email OTP |
| No Methods | Nothing registered |
The report includes a Risk filters strip with three buttons — SMS Only, Voice Only, and Legacy Only — that filter the table down to users in that exact situation. When a filter is active, Copy UPNs and Download CSV appear in the filter bar so you can export the list straight into an Entra group import.
MFAMap uses delegated permissions — it authenticates as you. No app registration required.
| Scope | Why |
|---|---|
Organization.Read.All |
Tenant display name |
Group.Read.All |
Group display name |
GroupMember.Read.All |
Group membership |
User.Read.All |
Resolve member display names and UPNs |
UserAuthenticationMethod.Read.All |
MFA registration status |
All read-only. MFAMap cannot make any changes.
- PowerShell 7+ (recommended) or Windows PowerShell 5.1
- Microsoft.Graph PowerShell module
- At least Authentication Administrator or Global Reader role in the target tenant
No data leaves your machine. The script queries Microsoft Graph directly and writes output locally. No telemetry, no logging endpoints.
Google Fonts. The HTML report loads fonts from fonts.googleapis.com at open time — no user data sent, just a font request. Falls back to system fonts in restricted environments.
The output file contains real user data. Names, email addresses, and MFA status. Treat it as internal data and share accordingly. The JSON snapshot files contain the same data.
| Module | Used for |
|---|---|
| Microsoft.Graph.Authentication | Connect-MgGraph, Invoke-MgGraphRequest |
| Microsoft.Graph.Groups | Get-MgGroupMember |
vibecoded by JS ⚡
