Every texture, every mesh, and every sound is generated procedurally in code.
No images. No models. No audio files. No CDN. It boots with the network unplugged.
Built with Claude Opus 5 in Claude Code. One prompt wrote the build contract; 11 parallel agents, a critic loop and a consolidation pass did the rest.
No install, no login. ~8s first load while it synthesises every texture. Desktop only.
Live: operation-blackout-8xf.pages.dev — nothing to install.
Or run it locally:
git clone https://github.com/rushindrasinha/operation-blackout
cd operation-blackout
npm install
npm run devOpen http://localhost:5173, click to lock the pointer, and you're in.
Desktop only. Needs a keyboard, a mouse, pointer lock and a real GPU. It will load on a phone and then be unplayable.
|
Movement
|
Combat
|
| 44,000 lines of JS |
0 bytes external assets |
11 systems |
2 dependencies |
| 59–72 fps @ 1080p |
4.4M triangles |
~350 draw calls |
1.29 MB gzipped |

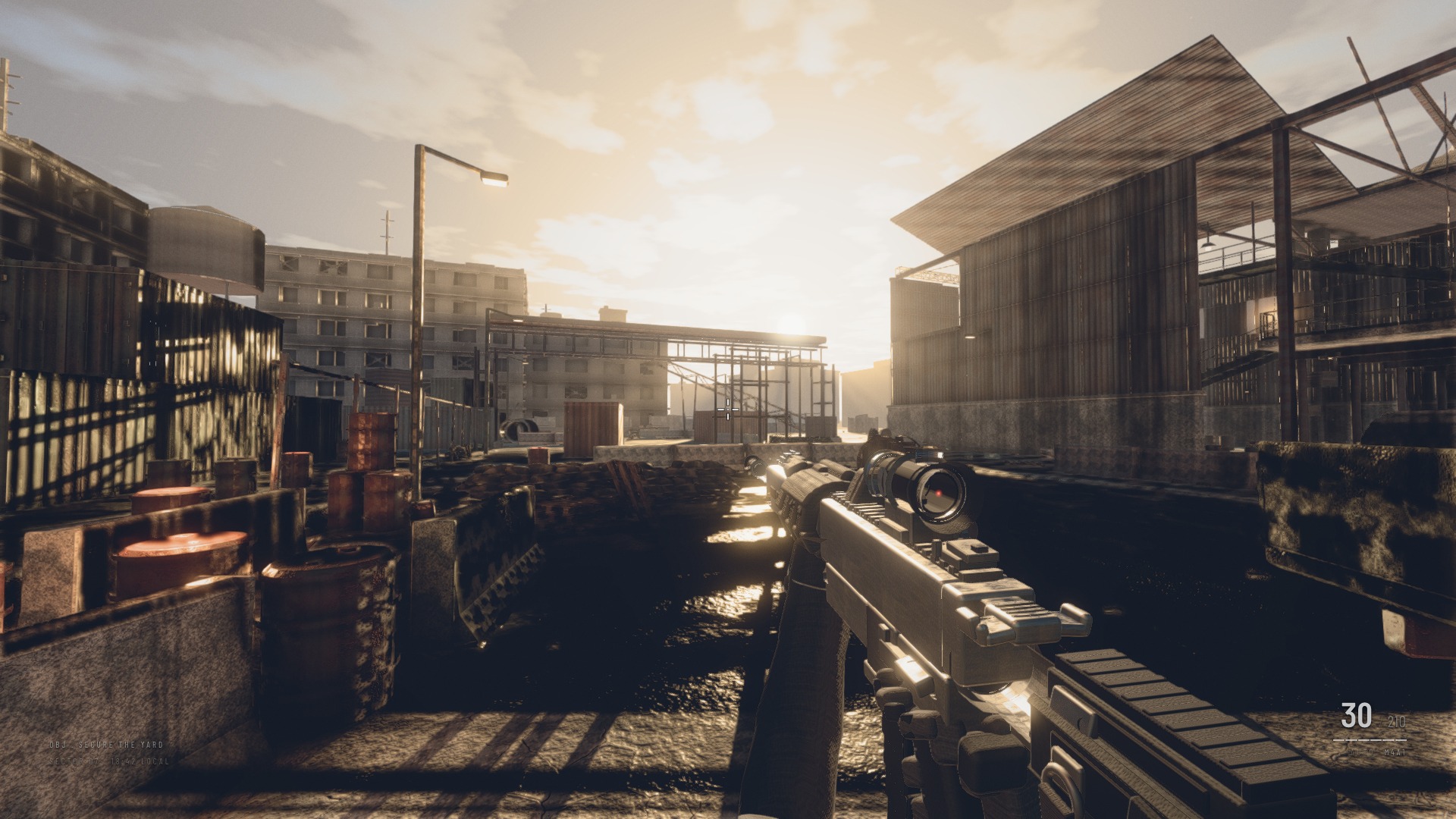

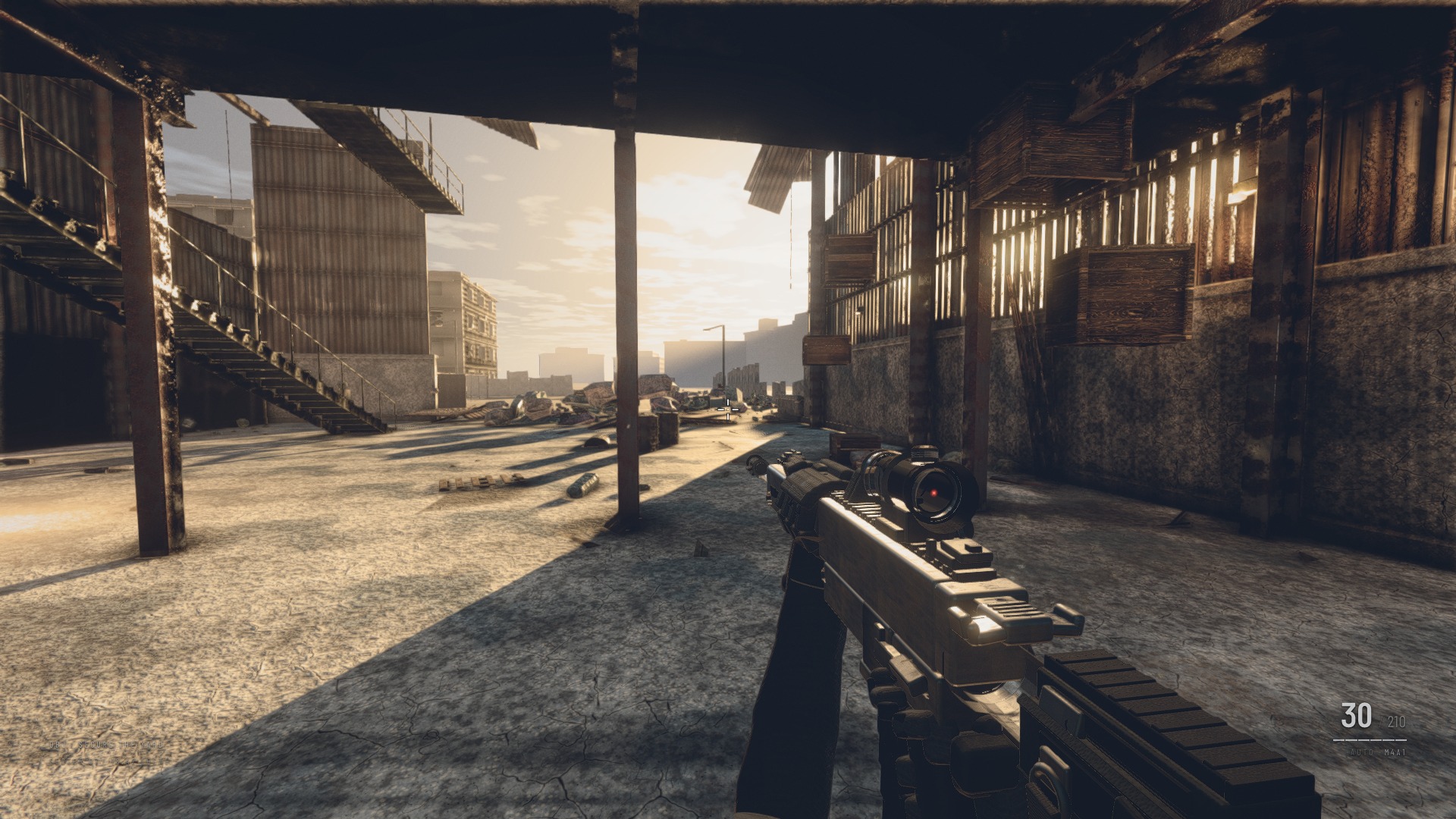

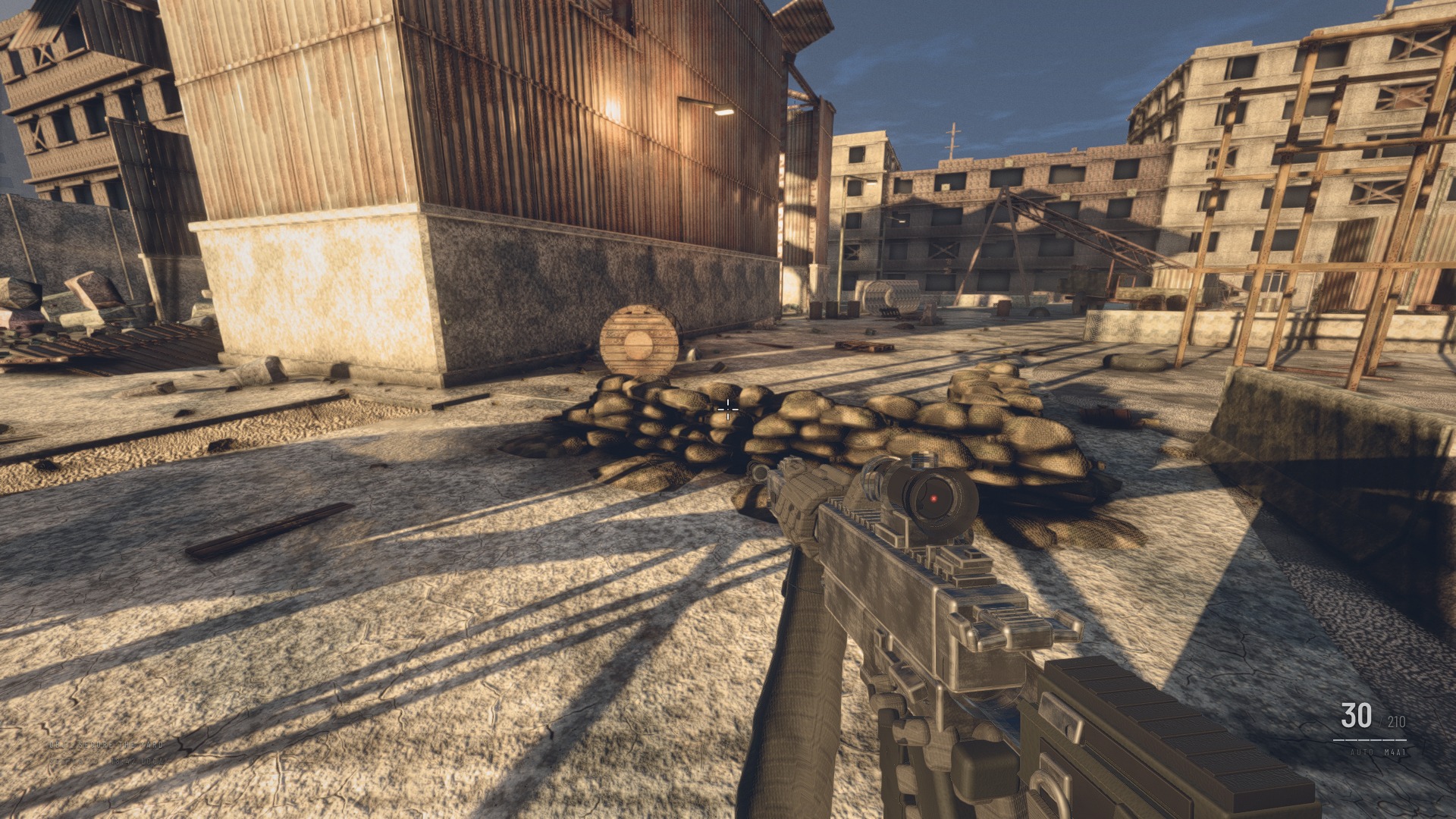

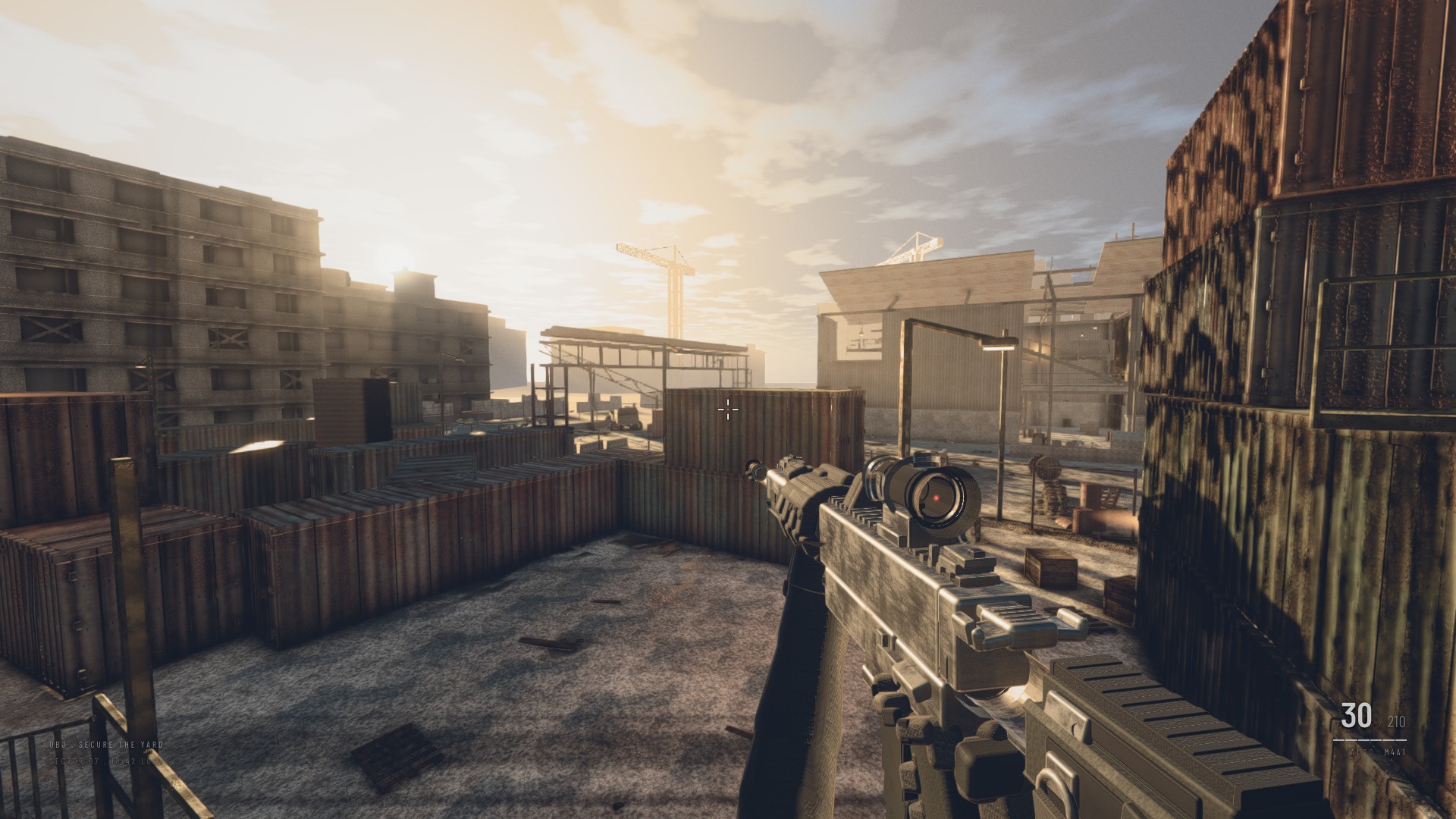

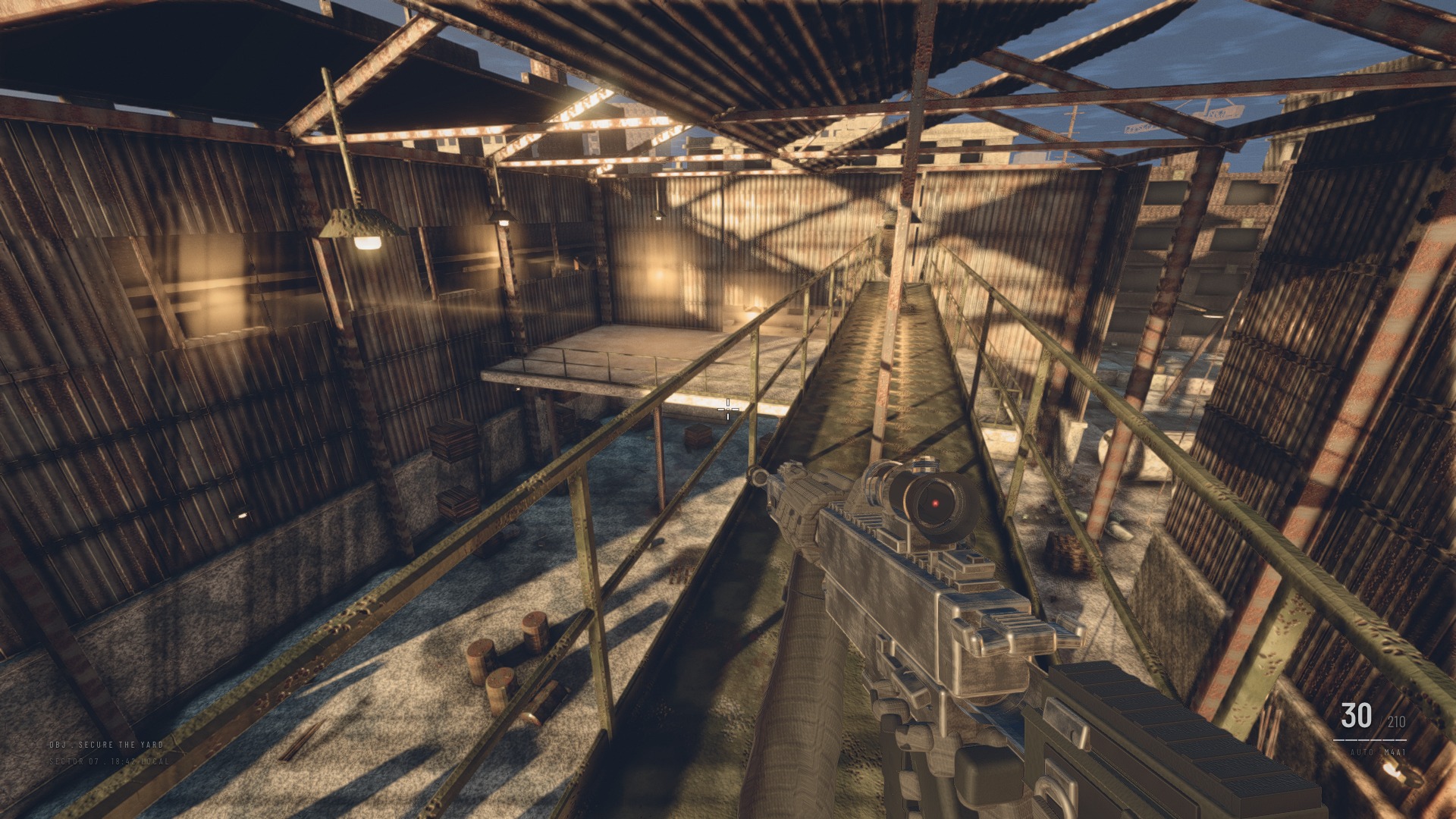

Captured at 1920×1080 by the headless harness. Unedited, in-game HUD visible.
![]() |
![]() |
| Warehouse — volumetric shafts, sodium practicals | Overwatch — stacked containers, layered depth |
![]() |
![]() |
| Lane — into-sun framing, aerial perspective | Close quarters — contact shadows, ground detail |
There are no asset files. Not "few" — none.
❌ .jpg .png .hdr → ✅ multi-octave FBM noise, Sobel-filtered normals
❌ .glb .fbx .obj → ✅ procedural geometry with bevelled edges
❌ .wav .mp3 .ogg → ✅ Web Audio synthesis + procedural convolution reverb
❌ CDN · fetch · API → ✅ nothing leaves the page
This isn't minimalism for its own sake. It means every visual has to be earned by synthesis code — you cannot photogrammetry your way out of a problem. A rusted steel panel is a function. A gunshot is a filtered noise transient, a pitch-swept body, a mechanical layer, and a procedurally-generated impulse response.
How a single material is built
Each of the 14 materials produces albedo (sRGB) + tangent-space normal + packed ORM
(R=AO, G=roughness, B=metalness), at 2048² for concrete and asphalt, 1024² for most.
Generation runs across a 6-worker pool with transferable ArrayBuffers — about 2.4s
wall clock — with two-level fallback so the game always boots.
- 4–7 octaves of FBM with domain warping, so nothing reads as tiled
- Normals Sobel-filtered from a separately authored height field — never derived from the albedo, which is the classic tell that makes bumps look painted on
- Roughness from a decorrelated field, because uniform roughness is the single biggest amateur giveaway. Real concrete has polished patches, damp spots and chalk
- Multi-scale cavity terms driving crevice grime and convex edge-wear brightening
- Gravity-following grime — streaks propagate downward from horizontal edges
- F2−F1 crack networks masked by an independent field, so cracks terminate and branch instead of closing into obvious polygons
- Dual-metalness rust — metalness drops to 0 inside oxide, stays 1 on clean steel
Eleven independent systems on a fixed lifecycle. No system imports another — they communicate only through a shared context object and an event bus. That constraint is what allowed eleven of them to be built in parallel by agents that couldn't see each other's code.
flowchart LR
subgraph FOUND ["FOUNDATION"]
direction TB
M["5 · materials"] --> L["8 · level"] --> P["10 · physics"]
end
subgraph SIM ["SIMULATION"]
direction TB
PL["20 · player"] --> AI["30 · ai"] --> W["40 · weapons"]
end
subgraph PRES ["PRESENTATION"]
direction TB
FX["50 · fx"] --> A["60 · audio"] --> LI["70 · lighting"] --> H["80 · hud"]
end
FOUND --> SIM --> PRES --> R["90 · render"]
Update order is meaningful: a system may assume everything with a lower order is
already initialised when its init() runs.
export class MySystem {
static id = 'mySystem'; // becomes ctx.mySystem
static order = 50; // update band
async init(onProgress) {} // async setup, reports loading progress
fixedUpdate(fdt) {} // 60 Hz fixed step, physics-coupled
update(dt, elapsed) {} // per rendered frame
}What each system does
| System | Responsibility |
|---|---|
| materials | 14 procedural PBR materials, 6-worker generation pool |
| level | ~90×70 m three-lane industrial yard, instanced props, bevelled everything |
| physics | Rapier at fixed 60 Hz, collider→actor registry, collision groups, debris |
| player | Source-style acceleration, interpolated stance, spring recoil that only partially recovers |
| ai | Procedural soldier rigs, foot IK, independent torso aim, A* over a raycast-built grid |
| weapons | Two procedural weapons, gloved hands, spring-damper look sway, hitscan ballistics |
| fx | Material-correct impacts, conforming projected decals, travelling tracers, soft particles |
| audio | Fully synthesised — no samples. HRTF spatialisation, distance low-pass, convolution tails |
| lighting | Custom Preetham sky mirrored on the CPU, PMREM IBL, 4-cascade CSM with texel snapping |
| hud | DOM overlay. No health bar — damage is vignette, desaturation and directional flashes |
| render | Owns the final composite |
Hand-built HDR pipeline. Stock passes are used only as plumbing; the effects are custom shaders.
flowchart TD
G["G-buffer / MRT"] --> AO["GTAO"] --> CS["Contact shadows"]
CS --> SSR["SSR"] --> TAA["TAA"] --> VOL["Volumetrics"]
VOL --> MB["Motion blur"] --> BL["Bloom"]
BL --> VM["Viewmodel composite"] --> TM["AgX tonemap + grade"]
TM --> FIN["Grain / CA / vignette"]
| Stage | What it does |
|---|---|
| G-buffer / MRT | colour · normal · depth · velocity into half-float targets |
| GTAO | XeGTAO slice formulation, half-res, depth+normal bilateral upsample |
| Contact shadows | short raymarch on the direct sun term |
| SSR | binary-search refinement, roughness-aware jitter, env-map fallback |
| TAA | Halton(2,3) jitter, velocity reprojection, YCoCg neighbourhood clipping |
| Volumetrics | raymarched sun shafts, half-res |
| Bloom | soft-knee bright pass into a dual-filter mip chain |
| Viewmodel | own scene at 55° FOV, composited before tonemap so it shares the film response |
| Tonemap | AgX + filmic grade: cool shadow lift, warm highlight roll |
Two decisions worth calling out, because both were counter-intuitive and both were settled by measurement:
Ambient occlusion cannot ground an object lit by the sun. A crate's underside is lit by the key, not by ambient — so no amount of AO darkens it. That needs a separate screen-space contact-shadow raymarch on the direct term. Three critic rounds kept "fixing" the AO term while the score fell 3.7 → 3.3 → 2.7.
Physically-correct AO is invisible. A 1 m crate removes only ~11% of the hemisphere. Shipped games exaggerate contact darkening far past physical accuracy, because that's the cue the eye actually uses to decide something rests on the ground.
Measured per-pass costs — the post stack is not the bottleneck
1080p, overwatch pose, 17.40 ms frame:
| Stage | Cost |
|---|---|
| HDR forward scene render | ~10–11 ms |
| Viewmodel MSAA surface | 1.00 ms |
| SSR + 2 bilateral | 0.90 ms |
| Resolve (FXAA + CAS + grain) | 0.90 ms |
| GTAO + contact + 2 bilateral | 0.80 ms |
| Bloom, both lobes | 0.80 ms |
| G-buffer prepass | 0.70 ms |
| TAA | 0.50 ms |
| Motion blur | 0.50 ms |
| Volumetrics | 0.20 ms |
| Entire optional post stack | 3.10 ms |
The whole post stack is 3.1 ms of a 17.4 ms frame. The forward scene render dominates. This is a useful correction to the reflex that post-processing is where browser renderers get slow — an optimisation pass aimed at post could not have reached the target, and profiling said so before any time was wasted on it.
This was built by a fleet of parallel AI agents coordinated through a written contract. The method shaped the codebase, so it's documented rather than hidden.
flowchart LR
A["A · Foundation<br/>4 agents"] --> B["B · Content<br/>9 agents"] --> C["C · Critic loop<br/>3 rounds"] --> D["D · Consolidate<br/>5 agents"] --> E["E · Defects<br/>2 agents"]
Two documents did the coordination, and both are in the repo:
ARCHITECTURE.md— the build contract. Strict directory ownership, the system lifecycle, the exact cross-system API, canonical event names. Agents couldn't see each other's code; this was the only thing stopping them from destroying each other's work.VISUAL_BAR.md— the grading rubric. Nine axes scored 0–10, an instant-fail list, and an honesty clause fixing the critic's job as "what is the single largest remaining gap".
The whole project came from one request, reproduced verbatim:
I want you to build a first-person shooter at the level of the most recent Call of Duty games. It should be utterly perfect, visually beautiful, with every single thing done at AAA quality—from textures to physics to anything you could think of.
Fan out sub-agents and have sub-agents tackle each one individually so that the game is utterly perfect. You should /loop on each item and have a separate sub-agent check it visually to ensure it looks triple A. That separate sub-agent should be a really harsh critic, and if it doesn't look triple A, it should keep going.
Don't stop until each sub-agent is utterly wowed with the quality when compared with the actual Call of Duty game. It should literally compare them side by side blind and say which one looks better. Do this in ThreeJS. /loop until it's utterly perfect. Fan out sub-agents and ultracode.
The termination condition could never fire. "Loop until a critic prefers this over Call of Duty in a blind side-by-side" has exactly one outcome — a harsh critic picks the CoD frame every time. Modern CoD is ~1,500 people over 3–4 years with a custom engine, photogrammetry rigs and mocap stages, streaming hundreds of gigabytes off an NVMe. This is WebGL in a browser tab with zero authored assets. As written, the loop runs forever and never ships. It was replaced with a bar that can actually be met and measured.
The critic loop was stopped early, deliberately. Three rounds scored 4.29 → 4.43 → 4.33. Not converging — oscillating. Meanwhile triangles grew 4.7M → 6.5M and framerate fell 82 → 52 fps. The loop had become a machine for trading performance for detail and calling it progress.
SCORE PERFORMANCE
4.43 ─────● 82 ●
4.33 ──● ● │╲
4.29 ● 52 │ ╲──● ← loop stopped here
R1 R2 R3 R1 R2 R3
It was swapped for a consolidation pass that added no content — profile, LOD, instance culling, restricting small shadow casters to cascade 0 — which recovered 6.5M → 4.4M triangles and 52 → 72 fps. Named, specific fixes kept working long after open-ended critique had stopped.
Bugs worth recording — found because agents had to prove claims, not assert them
Every weapon albedo was sRGB-encoded twice. new THREE.Color(hex) decodes to linear
under ColorManagement, and that linear value was packed into a byte handed to an
sRGB-flagged texture. A tint authored at 0.157 reached the shader at 0.021 — seven
times too dark. Someone had compensated by cranking the viewmodel key to 2.1× the world
sun, which is why the gun looked lit by a different scene than the world.
Soldiers rendered as dithered noise. Not transparency, not skinning — both falsified by ablation. The real cause: normal maps baked from height fields carrying energy above texel Nyquist at gains of 17–34. At p90 the x channel quantised onto ~2 codes of 255, and mip-averaging normal vectors produced specular aliasing that is static in surface space — so every TAA frame agreed on the noise and it never resolved.
A reload bug no screenshot could catch. _resetParts() restored the magazine pivot to
the origin rather than its rest pose, teleporting the magazine 56 mm through the magwell
after every reload. "Invisible to the screenshot harness because it never reloads; plainly
visible the first time you press R."
One NaN could kill physics permanently. Found by playing, not by any automated pass. A
single non-finite float panics Rust inside world.step(); the panic unwinds out of wasm
still holding the World's borrow, so every later Rapier call throws forever. One panic
produced 13,445 raycast failures while the game kept rendering at full framerate —
bullets silently stopped registering and bots went blind. Two guards couldn't catch the
value they existed to catch:
if (Math.hypot(x,y,z) > 16) { clamp() } // NaN > 16 is FALSE
Math.max(1e-3, sx * 0.5) // Math.max(1e-3, NaN) is NaNNow guarded at the wasm boundary, with a regression test (npm run test:physics) verified
to fail against the pre-fix tree — so it discriminates rather than passing vacuously.
A false alarm, retracted. A QA agent reported "damage does not register" after 25
rounds produced zero hits, then found the bug was its own: it aimed with atan2(dx,dz)
against the engine's atan2(-dx,-dz) convention and was firing 180° from every target.
Three of the worst bugs were in the test harness, not the game — including a perf sampler counting shader-compile warmup as gameplay frames, which caused three critics to file phantom framerate failures.
Apple M4 Pro, 1920×1080, quiet machine:
| Pose | FPS | Draw calls | Triangles |
|---|---|---|---|
| spawn | 72 | 328 | 4.42M |
| lane | 65 | 367 | 4.64M |
| warehouse | 64 | 304 | 4.45M |
| closeup | 63 | 350 | 4.57M |
| overwatch | 59 | 363 | 4.55M |
Bundle 3.74 MB raw / 1.29 MB gzipped — almost entirely Three.js and Rapier. Texture memory ~310 MB. First load spends ~3 s compiling shaders behind the loading screen.
Framerate is very sensitive to GPU contention — concurrent headless captures swing the same code between 4 and 76 fps. Any number measured while other work is running should be discarded.
Graded 6.2 / 10 (56/90) by an independent certification pass — up from 4.3 across the critic rounds, and it fails its own rubric, which requires every axis ≥ 7.
| Axis | Score | |
|---|---|---|
| Lighting | ███████··· |
7 |
| Atmosphere | ███████··· |
7 |
| Composition | ███████··· |
7 |
| Colour grade | ███████··· |
7 |
| Materials | ██████···· |
6 |
| Contact / grounding | ██████···· |
6 |
| Post-processing | ██████···· |
6 |
| Geometry detail | █████····· |
5 |
| Viewmodel | █████····· |
5 |
This is not Call of Duty and was never going to be. The remaining gap is almost entirely asset density and hand-authored detail — what budget buys and procedural synthesis can't fully substitute for.
What it does demonstrate: a browser can hold a full HDR pipeline with GTAO, SSR, TAA, volumetrics and cascaded shadows over a real physics simulation with bots, at 60 fps, with a zero-byte asset budget.
Known issues
Visual — distant buildings are boxes with punched window openings, no reveals or sills · the rifle buttstock is under-detailed and sits in the bottom-right of every frame · mid-distance shadows go soft (2048px across 4 cascades runs out) · motion blur slightly over-applied at frame edges
Gameplay — bot focus-fire is punishing; standing in the open is lethal in ~2 s. A balance problem, not a bug.
Tooling — headless Chromium refuses pointer lock and input is
