A fast, self-serve spatial-transcriptomics analysis copilot for wet-lab scientists.

You ran a Xenium (or CosMx / MERSCOPE) experiment and got your data back. SpatialScribe takes you from raw output to annotated cell types, spatial insight, and a shareable report - in plain language, without a terminal or R, and without waiting for a bioinformatician. Built for the Built with Claude: Life Sciences hackathon.

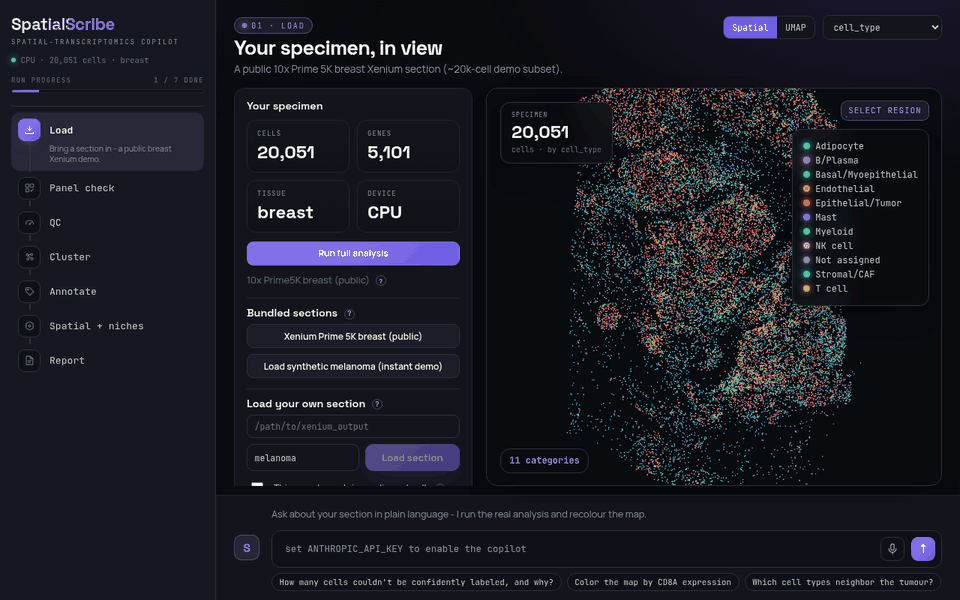

Load a section, run the analysis, then hover a cell type - those cells light up across the tissue.

A three-pane web app (React + FastAPI + deck.gl) over one shared analysis engine:

• Guided rails - a wizard walks you through Load -> Panel check -> QC -> Cluster -> Annotate -> Spatial exploration -> Report, with smart defaults and a plain-language explanation (and the exact code) at every step.
• One-click full run - or skip the wizard: Run full analysis runs the whole spine as one background job and opens a fully-analyzed section.
• Interactive spatial canvas - box-select a region to QC it or exclude it; click a cell type to subcluster it into subtypes; hover a cell type to highlight where it sits in the tissue.
• Claude copilot - ask questions in plain English ("are the T cells excluded from the tumor?") and it runs the real analysis and answers, grounded in the numbers - it can even recolor the canvas for you.

• Panel-adequacy check - tells you which cell types your panel actually can and cannot resolve, before you over-trust an annotation.
• Honest confidence + abstention - a multi-layer annotation-QC funnel (segmentation, a panel-indexed count floor, contamination/purity, panel adequacy, subsampling stability, spatial coherence) fused into a per-cell confidence call that abstains rather than emit a confident wrong label.
• Multi-method annotation - marker scoring + Claude, reconciled to a consensus with confidence and flagged disagreements; optional reference transfer (RCTD / SingleR / scANVI / TACCO) when a matched reference is available.
• Tumor & program discovery - marker-based malignant calling (optional CNV / Cancer-Finder paths) and de-novo NMF gene programs, both wired into the copilot.
• Fast & scalable - GPU-accelerated (rapids-singlecell) with a CPU fallback; scales to 10^5-10^6 cell sections.
• Reproducible - exports an annotated .h5ad, a self-contained HTML report, and a re-runnable Python script that regenerates the whole analysis.

The fastest path is Docker - one command, then open your browser:

git clone https://github.com/p-gueguen/spatial-scribe && cd spatial-scribe
export ANTHROPIC_API_KEY=sk-...          # optional: without it the app runs, the copilot is disabled
docker compose up                        # builds + serves on http://localhost:8000

Open http://localhost:8000 and click "Load synthetic demo (instant)" - always works, no data files, no GPU. Or "Load breast example" for the bundled public Xenium Prime 5K section.

# Option A - pixi (manages the scanpy/squidpy stack)
pixi install -e main
PYTHONPATH=.:src pixi run python -m uvicorn backend.app:app --port 8000   # backend
cd webapp && npm install && npm run dev                                   # frontend (vite :5173 -> proxies /api)

# Option B - pip into your own environment
pip install "spatial-anno-metrics @ git+https://github.com/p-gueguen/spatial-anno-metrics"
pip install -e .
PYTHONPATH=.:src python -m uvicorn backend.app:app --port 8000
cd webapp && npm install && npm run build   # then the backend serves webapp/dist single-origin on :8000

The copilot is endpoint-agnostic: Anthropic by default, or any OpenAI-compatible /v1 server (a local vLLM, OpenAI, ...):

export ANTHROPIC_API_KEY=sk-...                       # Anthropic (default; ANTHROPIC_MODEL to override)
# or:
export SPATIALSCRIBE_LLM_BASE_URL=http://localhost:8000/v1 \
       SPATIALSCRIBE_LLM_MODEL=<model-id> SPATIALSCRIBE_LLM_API_KEY=<key>

Your data never leaves your machine - the analysis runs locally; only your plain-language question and the computed numbers are sent to the LLM.

SpatialScribe is one engine driven three ways. The rails, the canvas, and the copilot all call the same capability registry, so the guided flow and the chat can never diverge:

flowchart TD
    D[/"Your Xenium / CosMx / MERSCOPE / .h5ad section"/] --> LOAD["load (platform-agnostic ingestion)"]
    LOAD --> APP

    subgraph APP["SpatialScribe app - one shared engine"]
      direction TB
      RAILS["Guided rails (wizard)"]
      CANVAS["Interactive spatial canvas (deck.gl)"]
      COPILOT["Claude copilot (plain language)"]
      RAILS --- REG(["Capability registry (single source of truth)"])
      CANVAS --- REG
      COPILOT --- REG
    end

    REG --> QC["QC funnel"] --> PANEL["panel-adequacy check"] --> REFM["reference match"] --> GATE{"annotation strategy"}
    GATE --> CLUSTER["cluster"] --> ANNOT["annotate + confidence / abstention"] --> NICHE["spatial niches"] --> MAL["malignant calling (tumour-gated)"]
    MAL --> OUT[/"annotated .h5ad + self-contained HTML report + re-runnable script"/]

The same spine runs headless - one command, folder to report:

python scripts/run.py --demo --out results/                                   # synthetic, no data needed
python scripts/run.py --path <run_dir_or.h5ad> --tissue "human breast" --out results/

Every cell type is computed, never asserted. Coarse lineages are assigned per Leiden cluster; an LLM may name a cluster inside a closed vocabulary but can never invent a label or overrule the marker evidence; and a per-cell confidence gate abstains instead of guessing. When a tissue-matched reference is available, the flow routes to supervised reference transfer instead.

flowchart TD
    C["Leiden clusters"] --> GATE{"Does a tissue-matched reference<br/>resolve the panel?"}
    GATE -->|yes| REF["Reference transfer<br/>RCTD / SingleR consensus<br/>(reference's own vocabulary)"]
    GATE -->|no| MARK["Marker argmax + LLM naming<br/>(closed vocabulary)"]

    MARK --> LLM{"What does the LLM say?"}
    LLM -->|"the marker argmax"| USE["use label"]
    LLM -->|"Novel / unknown"| ABST1["honest abstain"]
    LLM -->|"off-vocabulary (e.g. pDC)"| DISC["discard -> keep marker argmax"]
    LLM -->|"a different valid lineage"| CONF["conflict: keep argmax,<br/>flag, cap at WARN"]

    REF --> CONFID{"Per-cell confidence gate"}
    USE --> CONFID
    DISC --> CONFID
    CONF --> CONFID
    ABST1 --> OUT2
    CONFID -->|pass| CT(["cell_type = lineage"])
    CONFID -->|fail| OUT2(["abstain: one of 6 honest labels"])

Full rationale (each branch fixed a real bug and is pinned by a test): docs/ANNOTATION_SCHEME.md.

SpatialScribe is built to be operated by Claude, not just by a human clicking:

• Bundled skill - .claude/skills/spatialscribe/ teaches a Claude Code agent to drive the whole engine (headless run, the copilot, the panel/QC/reference checks) grounded in the computed numbers. It works on your own data, compute, and key.
• HTTP API - the FastAPI backend exposes a small, documented REST surface (load a section, run any capability, ask the copilot, recolor the map). Any agent can drive it by curl. See docs/API.md.

Public, CC BY 4.0: 10x FFPE Human Breast (Xenium Prime 5K), shipped downsampled at data/demo_public.h5ad. An instant synthetic melanoma section is built in and needs no data at all. See docs/DATASETS.md.

SpatialScribe's QC and annotation logic is grounded in a documented, cited evidence base (a literature + adversarial-verification research pass), not ad-hoc defaults. The annotation-quality scores are computed through the standalone spatial-anno-metrics package. Start with docs/research/cell-annotation-qc.md and docs/research/annotation-method-selection.md.

See docs/ARCHITECTURE.md and CONTRIBUTING.md.

SpatialScribe orchestrates a lot of open-source science (scanpy, squidpy, CellTypist, TACCO, RCTD, SPLIT, deck.gl, ...) and a public 10x CC-BY demo section - see CREDITS.md.

MIT. Built with Claude Code.
