ff-unmute

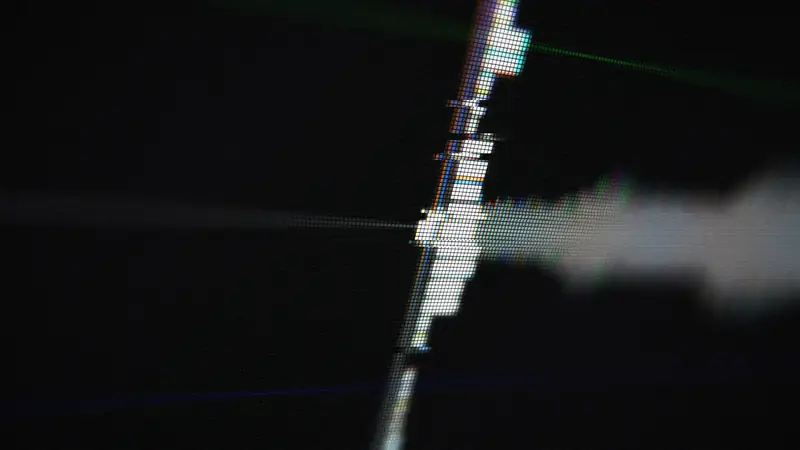

This one, you can unmute. A camera flies over a DAW timeline in one 16-second shot, and a tracker locks onto every beat the playhead touches.

The music is composed and synthesized in code. Every number on screen is measured from the audio. All of it renders with fframes.

🔊 Full 1080p with sound (the preview above is silent) · On X · How it works · Quick start

_{fframes studies · #1 ff-tracking · #2 ff-unmute}

ff-tracking got a generous quote from the author of fframes: "what a fire … BUT DO NOT UNMUTE". He was right. That sound was measured and never listened to. So this one starts from the sound. A score in code renders the track. The track is measured. The picture is cut, lit and tracked from those measurements.

• A real timeline. The master waveform is drawn from the peaks of music.wav. The lanes hold the score's actual events: kick, clap and hats, a bass piano roll, chord blocks, and the agent's own lane of bleeps and tokens. Clips light up as the playhead passes them.
• Locks on the beat. Each of the 19 kicks locks a red box at the playhead on its exact frame. Bleeps and tokens get boxes too, labelled with what was measured: kick 55.7 Hz, bleep 1762.6 Hz, token #19.
• A live FFT at the playhead. fframes' own visualize_audio_frame reads music.wav and draws the spectrum strip next to the playhead.
• One shot, no cuts. The camera flies from the waveform to the kick lane, the bass and the agent lane, then pulls back. Palettes blend into each other over half a second.
• An ending made of its own data. There is no closing card. After the impact the view zooms out until the whole track fits the screen, so the last frame is this track's waveform, notes and locks. The one marker that stays bright is picked from the measurements: the loudest moment (loudest -9.9 dBFS @ 4.500 s). Another score ends on another picture.
• Measured, not copied. The agent's markers on the ruler (onset 4.000 s, tempo 120.0 BPM, bass 54.8 Hz, tokens 54, -14.0 LUFS) come from music/analyze.py. The analysis listens to the rendered stems, not to the score.

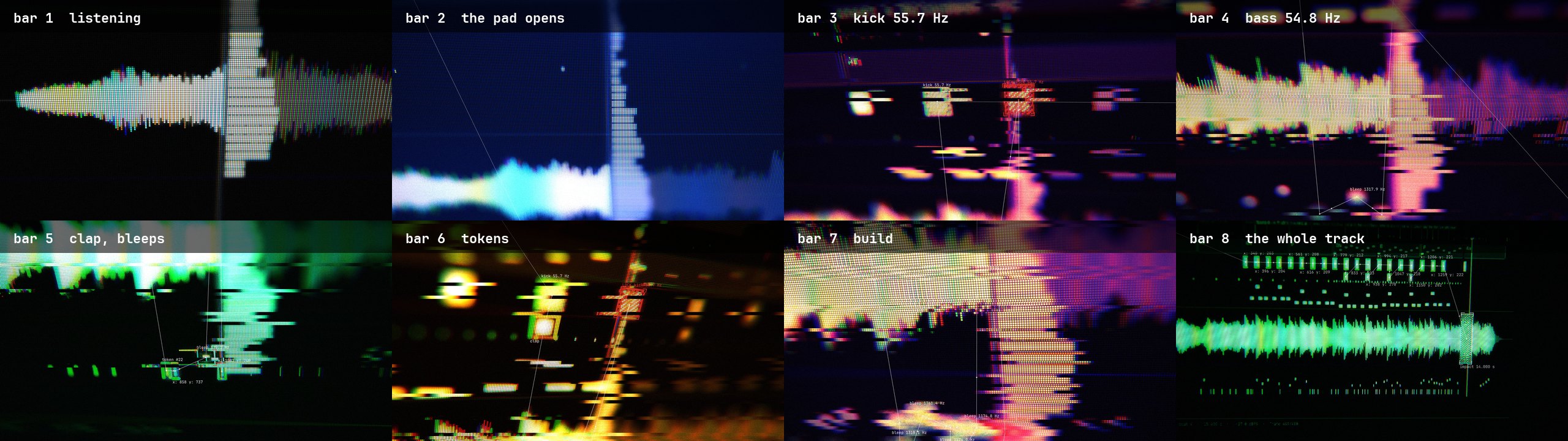

16 s, 8 bars at 120 BPM in A minor. Dark, dithered and a little agentic.

Everything is synthesized in music/synth.py with numpy and scipy. That covers band-limited saws (polyBLEP), FM bleeps, noise claps, a stereo reverb from a synthetic impulse response, bit crushing with TPDF dither and buffer-repeat stutters. No samples, no third-party audio.

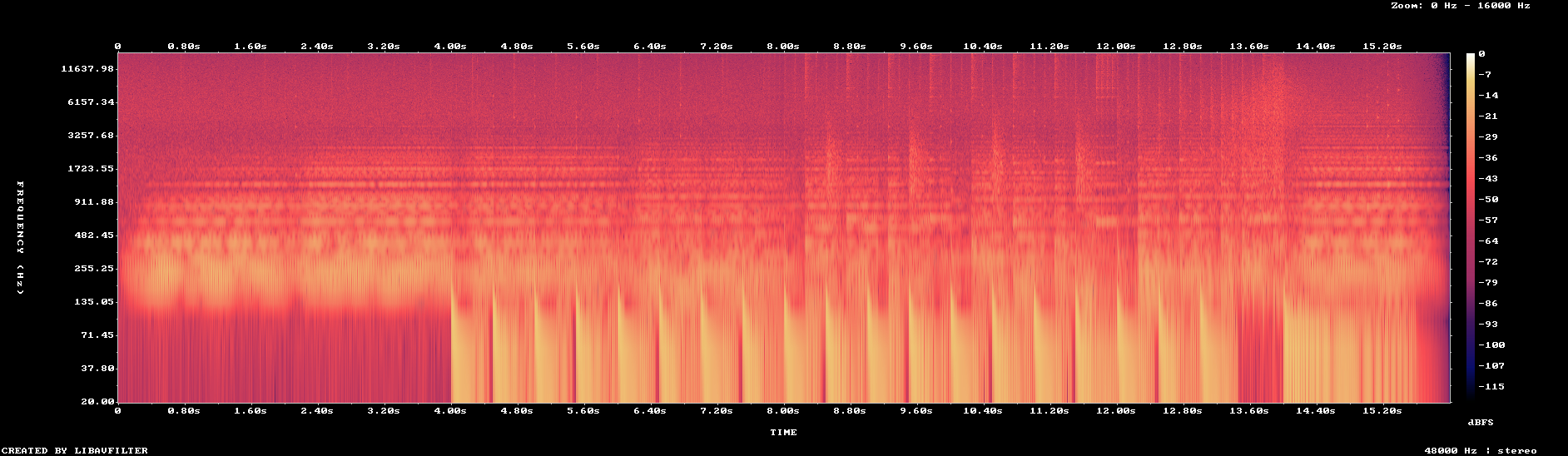

What music/analyze.py measured on the rendered track and its stems:

music/score.py ─► music/synth.py ─► out/pass/music.wav + out/events.json + out/stems/*.wav
                                 └► music/analyze.py ─► out/measured.json
                                 └► music/gen_hud.py ─► hud/src/generated.rs  (constants, compile-time sync)

hud ──► flat   pass 1: the DAW timeline in SVG, 3840×2160 ──► out/pass/flat.mp4 ──┐ iChannel0
 │                                                                                 ▼
 └────► lens   pass 2: one SkSL shader + the camera tracker ──► out/unmute.mp4 (+ music.wav)

• hud is the single source of truth, with no fframes dependency. It holds the timeline layout (lanes, time_x, the playhead at x = 960), the events the tracker can lock onto, the camera's keyframes (Catmull-Rom over 12 keys), the palette blend and project(), the CPU copy of the shader's camera.
• flat draws the DAW the way a DAW would: ruler with bars and beats, markers, lanes, waveform, the FFT strip and the tracker boxes. White on black, with pure red marking a lock.

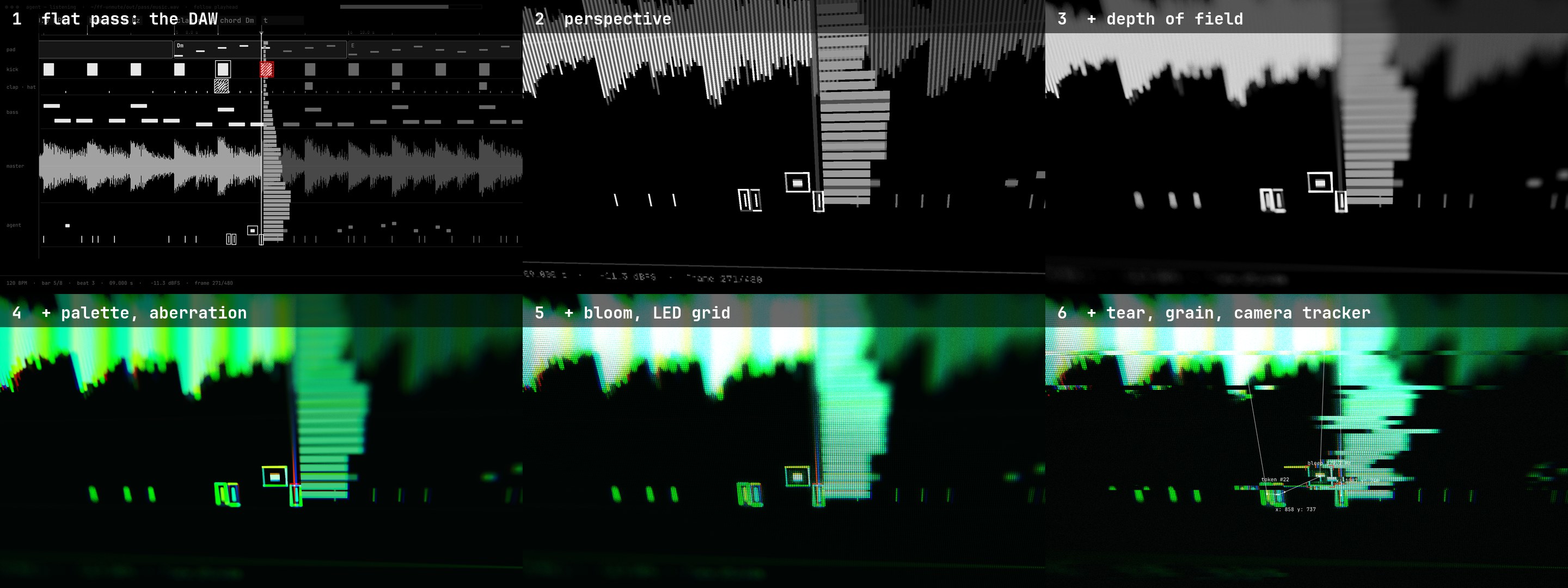

• lens films it through the same SkSL shader as ff-tracking. A kick drives a zoom punch and the bloom. Claps and stutters tear the rows. Then it draws a sharp camera-space tracker whose labels carry the measured values.

Requirements: macOS with Apple silicon (Skia on Metal), Rust, ffmpeg, Python 3 with numpy and scipy. The README images also need Pillow and img2webp.

git clone https://github.com/mrsarac/ff-unmute && cd ff-unmute
tools/render.sh            # music → measurements → hud constants → flat → lens → out/unmute.mp4

It takes about 1 min 45 s on an M3 Pro, plus the first build.

python3 -I music/synth.py && python3 -I tools/audio_check.py   # change the music, read its band balance
cargo test -p hud                                              # every kick locks, focus stays in frame
target/release/lens frame 270 -o frames                        # one full-size frame
LENS_STAGE=1 target/release/lens frame 270                     # stop the shader after a step (0-3)
python3 -I tools/readme_media.py                               # rebuild the images in this README

• Change the music in music/score.py: tempo, progression, voicings, drum patterns. Then run tools/render.sh. The picture follows, because the timeline, locks, labels and camera all read the regenerated hud/src/generated.rs.
• Change the flight in KEYS in hud/src/lib.rs. Each key is time, look height, zoom, tilt, roll, offset and blur. PALETTES sets the color story.
• Change the look in lens/shaders/lens.sksl, or start from ff-tracking if you want the terminal instead of the DAW.
• Or change the prompt. docs/PROMPT.md is the prompt that makes this video with Claude Code. Edit the brief and get your own version.

• v1.1.0: the ending is drawn from the data (zoom out to the whole track, last marker picked from the measurements) instead of an "✓ unmuted" pill. The music is bit-identical. The video on X is v1.0.0.
• v1.0.0: first release.

• An agent can't hear. Measure the music before the picture: band balance per section, loudness, harsh 2–5 kHz energy. A person listens before the picture work starts. The first draft here had almost all its energy under 120 Hz, which tells you nothing until you measure it.
• Measure each part on its own stem. On the full mix, bass notes read as kicks and the pad masks the bleeps.
• Don't let a stem change the random sequence. A second token_click() call shifted every later random number, and the approved music changed. The fix renders each click once and places it twice. The final track is bit-identical to the approved draft.
• fframes hands its FFT 1024 contiguous samples from each frame's start (bin k = k × 46.9 Hz at 48 kHz), so log bands are grouped from those bins.

• Built on fframes by Dmitriy Kovalenko, rendering with Skia, encoding with FFmpeg. The visual DNA comes from ff-tracking, inspired by @mnowakdesign.
• Font: JetBrains Mono (SIL OFL 1.1, see licenses/JetBrainsMono-OFL.txt).
• Made with Claude Code. docs/PROMPT.md is the prompt, and the design is in docs/superpowers/specs/.

MIT © 2026 Mustafa Saraç. The font keeps its own license.
