C4thedral is a local desktop workbench for describing, reviewing, and evolving software architecture with the C4 model. Its language and compiler are called C4ML.

You write an architecture once, select the views that different audiences need, and keep the source beside a live diagram. C4thedral validates the model, lays out the diagram, and exports deterministic SVG and PNG files. When automatic layout is not enough, you can adjust placement and routing without turning the diagram into an unrelated drawing.

Current release: v0.1.0-beta.8 — public source beta. This is working software rather than an early scaffold: the desktop application and CLI compile all seven C4 view types, and the native workflows have been exercised on macOS, Windows, and Ubuntu. Beta means that the author-facing C4ML syntax and CLI compatibility may still change, and signed public installers are not available yet. See the project status for the precise maturity and remaining release boundaries.

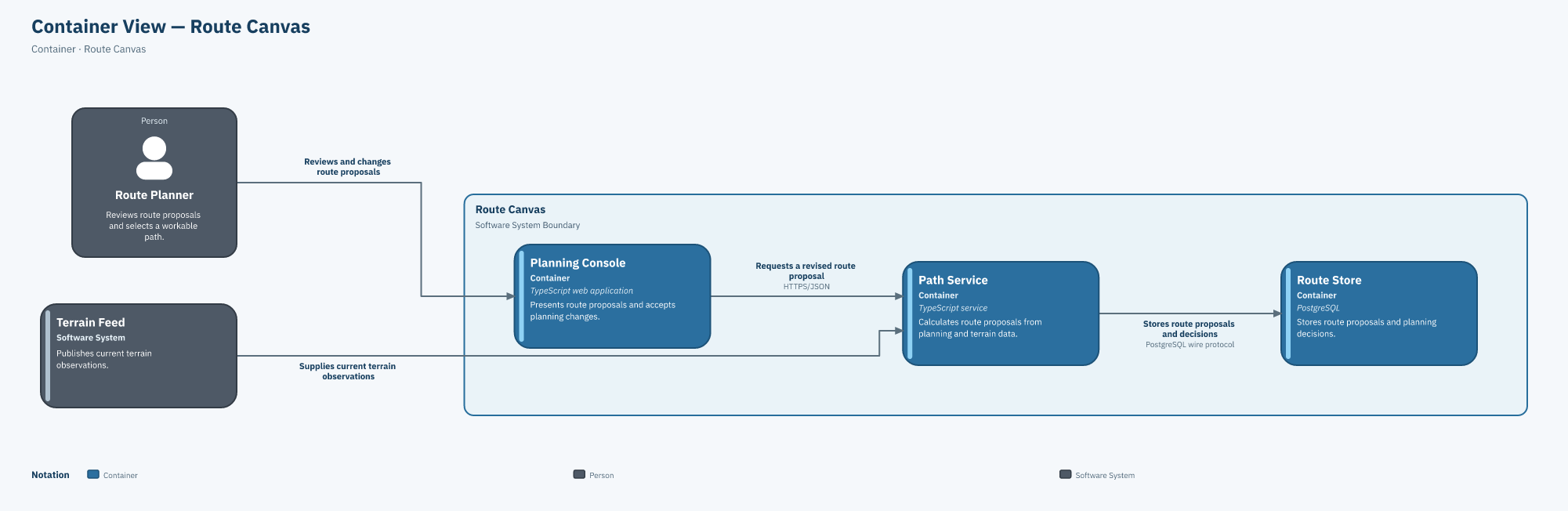

C4thedral turns one textual architecture model into audience-specific, reviewable diagrams. This Container View is generated directly from the repository's executable hello-container.c4ml example:

• Software architects and development teams who want architecture definitions to live beside their code and remain useful in source control.
• C4 practitioners who need several zoom levels from one model rather than a collection of unrelated drawings.
• Authors who value automatic layout but still need precise, reviewable control over placement and relationship routing.

Use Node.js 24.15.0 or a newer 24.x release and the pnpm version pinned in package.json:

git clone https://github.com/indianerbande/c4ml.git
cd c4ml
corepack enable
corepack prepare pnpm@11.24.0 --activate
pnpm install --frozen-lockfile
pnpm run desktop:start

The application opens with an empty workspace. Open one of the runnable examples under examples/draft, or start a new model with the Assistant. The complete build, verification, ZIP-download, and native packaging instructions are in Build C4thedral from source.

• Models People, Software Systems, Containers, Components, Code Elements, deployment environments, infrastructure, instances, and directed relationships in text.
• Produces System Landscape, System Context, Container, Component, Code, Dynamic, and Deployment views from the same architecture model.
• Shows C4ML source, diagnostics, and a live graphical preview in one desktop workbench.
• Keeps source authoritative: graphical authoring proposes reviewable C4ML changes and applies them as one undoable edit.
• Combines automatic layout with relative placement, alignment, equal spacing, nudges, exact pins, selectable ports, waypoints, avoidance areas, route corridors, and fixed routes.
• Navigates in both directions between source declarations and diagram objects, including relationships and their effective routes.
• Exports standalone SVG and PNG with controlled local fonts and reproducible geometry.
• Opens a single .c4ml file or an explicit multi-file project with project-wide references and diagnostics.
• Compares architecture revisions by stable identity, shows impact paths, and creates offline migration reviews without reducing changes to text or pixel diffs.
• Evaluates architecture quality, project policies, and attributed observations without modifying the authored model.
• Provides English and German application UI, native menus, dialogs, settings, and an offline handbook.
• Works locally after installation. Normal use requires no account, cloud service, Python process, or compiler server.

The Electron application provides Files, Source Control, Diagrams, Output, and Help areas around an Angular and Monaco editor. It supports native open and save flows, several source files per project, unsaved-change protection, SVG/PNG export, and explicit local Git stage, unstage, commit, and push actions.

The preview can fill the main workbench or detach into a second native window. The detached preview receives only the rendered projection and interaction state; it has no source, filesystem, compiler, save, or export authority.

Editing, compilation, layout, rendering, and Git access remain separated behind small contracts. The desktop application uses the same portable compiler as the command-line interface, so a model does not acquire different semantics in the UI.

C4ML source keeps model, views, presentation, layout, and routing distinct. A diagram can begin with automatic layout and then gain only the controls it needs. Those controls remain reviewable in source control and never become fake architecture relationships or hidden editor state.

SVG is the canonical render output. PNG is derived from the same SVG geometry and text layout rather than from a browser screenshot.

C4ML source
  -> validated C4 model
  -> selected view
  -> automatic layout plus authored intent
  -> routed, renderer-neutral scene
  -> SVG
  -> PNG

C4thedral was vibe-coded—deliberately, transparently, and under experienced human engineering direction. Conversational AI accelerated implementation, exploration, refactoring, tests, and documentation. It did not own the architecture or lower the evidence required for a change.

This approach is useful only when the person directing it can design the system, understand and reject generated code, judge security and maintenance consequences, and recognize where automated checks are insufficient. The project's specifications, source, reviews, test gates, and native evidence remain authoritative. See Vibe coding with engineering ownership for the benefits, limits, and working rules behind that statement.

After installing the dependencies, pnpm run check executes the complete source gate. For native packages, platform prerequisites, Linux sandbox handling, and the complete reproducible procedure, follow Build C4thedral from source. Self-built macOS and Windows packages do not carry future C4thedral publisher signatures. A GitHub source ZIP is explicitly supported; the build and complete source gate do not require a .git directory. The all-seven-view signal-garden.c4ml demonstration and the smaller runnable examples remain under examples/draft.

The repository includes an experimental local CLI that uses the same language and compiler packages as the desktop application:

# Validate a model.
pnpm run c4ml -- check examples/draft/hello-context.c4ml

# Render one view as SVG and PNG.
pnpm run c4ml -- render examples/draft/hello-static-zoom.c4ml \
  --view arrangement-engine-code \
  --format svg,png \
  --output build/diagrams

# Validate a multi-file project.
pnpm run c4ml -- check examples/projects/garden-pulse-multifile

# Compare a Git revision with the working project without checking it out.
pnpm run c4ml -- diff path/to/project \
  --before-ref main \
  --after-ref working \
  --diagnostics json

The CLI also supports analysis, graph queries, semantic and visual comparison, one-view or all-view rendering, multiple PNG scales, and human-readable or JSON diagnostics. Its commands remain provisional during the beta and it is not yet published as a standalone package.

The syntax used by the runnable examples is real and executable. What is not yet promised is long-term source compatibility: keywords, formatting rules, and some advanced presentation constructs may change before the first stable language release. There is not yet a general C4ML formatter.

Built-in and project-file themes work today. The unfinished item is a possible future syntax for declaring themes directly inside .c4ml, not the existence of theming itself. Likewise, the current layout and routing controls cover the normal automatic-plus-manual workflow; additional constraint types are planned for more specialized diagrams.

Signed, notarized public downloads for macOS and signed installers for Windows are still outstanding. The beta is therefore distributed as source. These and the smaller editor and language gaps are tracked in plain language in the project status; detailed engineering work remains in the engineering roadmap.

The English documentation index is the best entry point.
