Weekend Vibe-Coded CAD — an experimental parametric 2D mechanical sketcher. Internal units are millimetres. The sketch model is the source of truth; React is a view only.

Not a production CAD product. No affiliation with Autodesk, Dassault Systèmes, Siemens, PTC, or other commercial CAD vendors. Icons and chrome are original — not copied from proprietary products.

npm install
npx playwright install chromium   # once, for E2E
npm run dev
npm run typecheck
npm run test
npm run test:e2e
npm run lint
npm run build
npm run tauri:dev    # desktop window (needs Rust + WebView2)
npm run tauri:build  # Windows NSIS/MSI installer

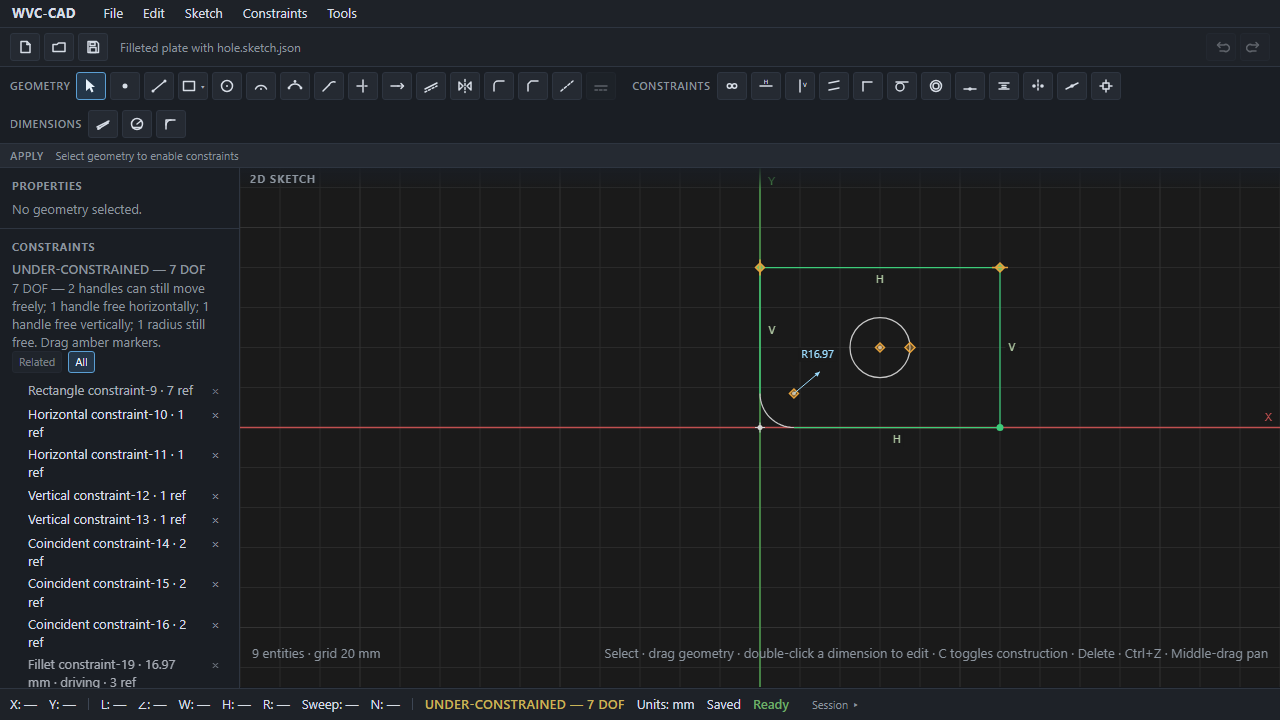

1. npm run dev → open the app → dismiss the first-run tip (or keep it as a reminder).
2. Fastest path: File → Sample: Anchored rectangle (also under public/samples/).
3. Or draw: shape flyout (▾) → Rectangle → click two opposite corners.
4. Distance / Size to drive lengths; double-click a dimension (or edit in the Constraints panel).
5. Open Sketch Analysis — look for “Ready for pad” when the outer profile is closed.
6. File → Save (or Export DXF… for geometry-only interchange).

Other samples: filleted plate with hole, capsule slot, L-bracket, over-constrained line.

See ROADMAP.md for near-term priorities.

Menus: File | Edit | Sketch | Constraints | Tools, plus geometry/constraint toolbars.

• Select — click to select; drag points, line ends/body, rect corners/edges, circle/arc centers or rims; Delete/Backspace to remove
• Point — click to place; Escape → Select
• Line — click start → end (L/∠); continues from the end; Escape cancels unfinished segment; perfect H/V lines get Horizontal/Vertical constraints
• Rectangle / Polygon / Slot — click the shape flyout (▾) to pick rectangle, N-gon, or capsule slot
• Circle — click center → click radius (R); drag center to move; drag rim to resize
• Arc — center → start → end (CCW sweep; R + Sweep); drag center to move; drag arc to resize
• 3-pt Arc — start → through → end (circle through three points)
• Tangent Arc — near a line end → arc end
• Trim — click the portion of a line to remove (needs a crossing line or world axis)
• Extend — click near a line end to grow to the nearest crossing line or world axis
• Offset — parallel offset of a line, open chain, closed loop, or concentric circle
• Mirror — select geometry, then click a line or world axis; copies geometry + remappable constraints
• Fillet — click two lines (or adjacent rectangle edges), then click to set fillet radius
• Chamfer — click two lines (or adjacent rectangle edges), then click to set chamfer distance
• Construction — toolbar toggle creates dashed reference geometry; Toggle Constr. / C (with selection) flips selected entities
• Coincident — pick first point/endpoint/center, then second point or a line; partners stay together when dragged
• Horizontal / Vertical — click a line, or two points/endpoints/centers; stays H/V while dragging; conflicting constraints are rejected
• Parallel / Perpendicular / Tangent / Concentric / Midpoint / Equal / Symmetric / Point on object / Fix — constraint tools (Constraints menu / toolbar)
• Dimensions — Distance (smart), Size (circle ⌀ / Shift=R; arc R), Angle. Edit in the Constraints panel or double-click a canvas label
• File — New (Ctrl+N), Open (Ctrl+O), Save / Save As, Open recent, Sample: …, Export DXF…
• Autosave — dirty sketches autosave to a local recovery slot; restore prompt after crash/reload
• Undo / Redo — Ctrl+Z / Ctrl+Y (or Ctrl+Shift+Z)
• Snaps: grid, origin, endpoints/points, midpoints, centers, intersections, on-entity; temporary H/V (+ grid compose)
• Middle-drag or Alt+left-drag pans · wheel zooms around the cursor
• Sketch Analysis — closed profiles + “Ready for pad” topology gate (does not fake DOF)

Tauri 2 scaffold in src-tauri/ (not Electron). Needs Rust for tauri:dev / tauri:build. Details: PACKAGING.md.

• Offset of mixed line+arc closed profiles falls back to single-segment / is skipped for polyline rebuild
• DXF is export-only (no import; constraints not in DXF)
• Dense solver is comfortable for tens–low hundreds of constraints (see ARCHITECTURE.md)
• Residual/column scaling deferred (ADR-052); see PROGRESS.md and assessments.md
• Tauri installer requires a local Rust toolchain; Windows builds are unsigned until code signing is configured (see PACKAGING.md)

MIT — see LICENSE. Third-party notices: THIRD_PARTY.md.
