Open the viewer

An interactive 3D explorer of what things are made of. Start with something you could hold (a snowflake, a grain of salt, a Z80 processor) and zoom in: its material, its molecules, their atoms, the nucleus, a proton's quarks, and finally the Planck length. Thirty-two powers of ten in one continuous zoom, with the scale kept human all the way down.

Molecules as electron clouds	An atom's orbitals	A proton's quarks

The periodic table	The particle zoo	Inside a Z80

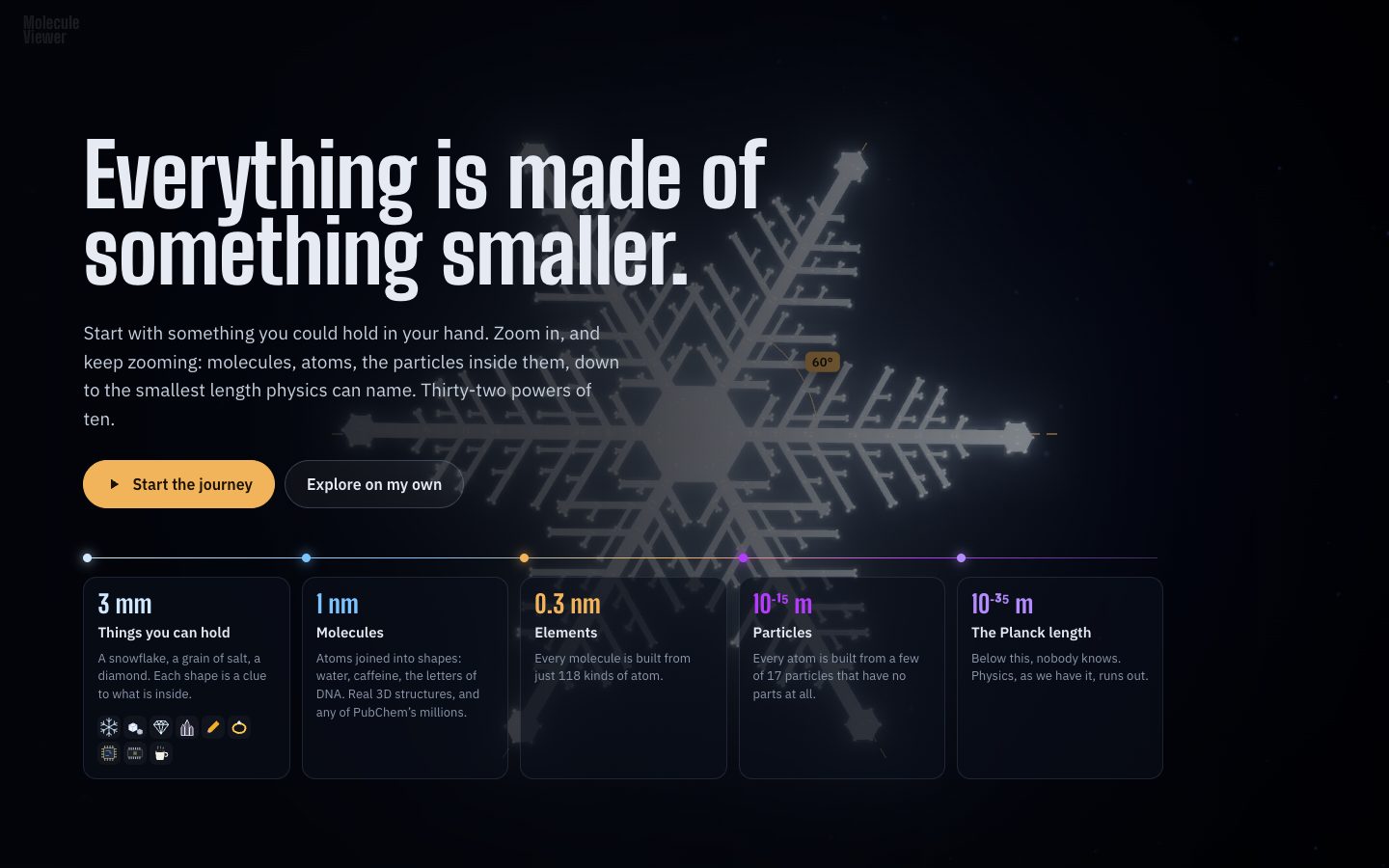

• A story to follow. The landing page lays out five chapters along the scale (things you can hold, molecules, elements, particles, the Planck length). Start the journey is a captioned descent from a snowflake to the bottom of physics that shows why snowflakes have six arms.
• Journeys from real things. A snowflake, a grain of salt, a diamond, a quartz crystal on its rock, pencil lead, a gold ring, a modern computer chip, a Zilog Z80 and a cup of coffee, lit as studio objects. Composite things carry labelled hotspots: zoom into the chip's bond wire and land in gold, the coffee's spoon and land in iron.

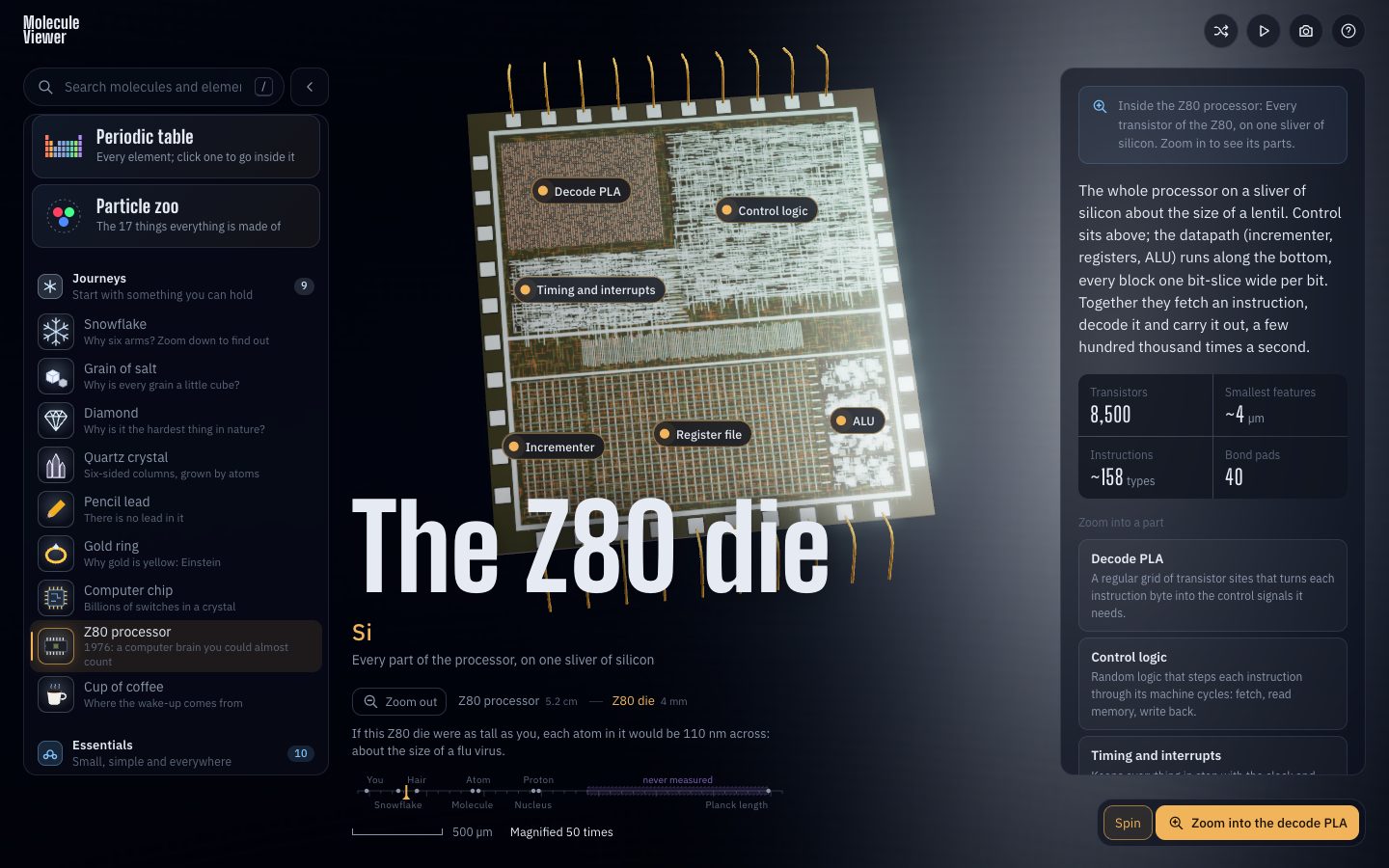

• The Z80, all the way down. The 40-pin package, then the die with its blocks labelled (decode PLA, control, timing, incrementer, register file, ALU), then one NMOS transistor cut open and switching, then each of its materials.

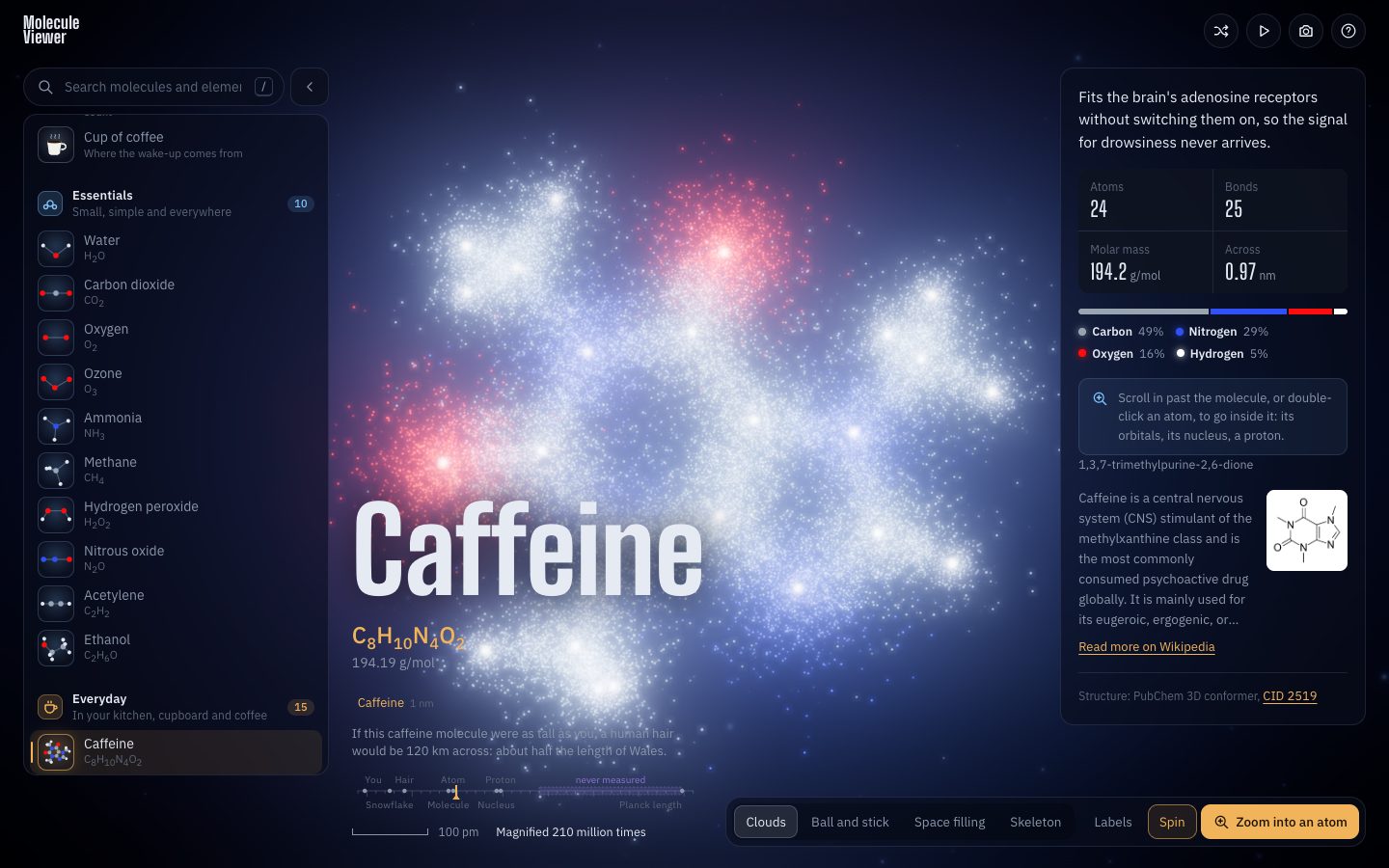

• Real molecules. 53 molecules with PubChem's computed 3D coordinates and 10 crystal lattices built from measured cell parameters, plus live search across PubChem's 100+ million compounds. Draw them as shimmering electron clouds, ball and stick, space filling or skeleton; click atoms to measure distances and angles.

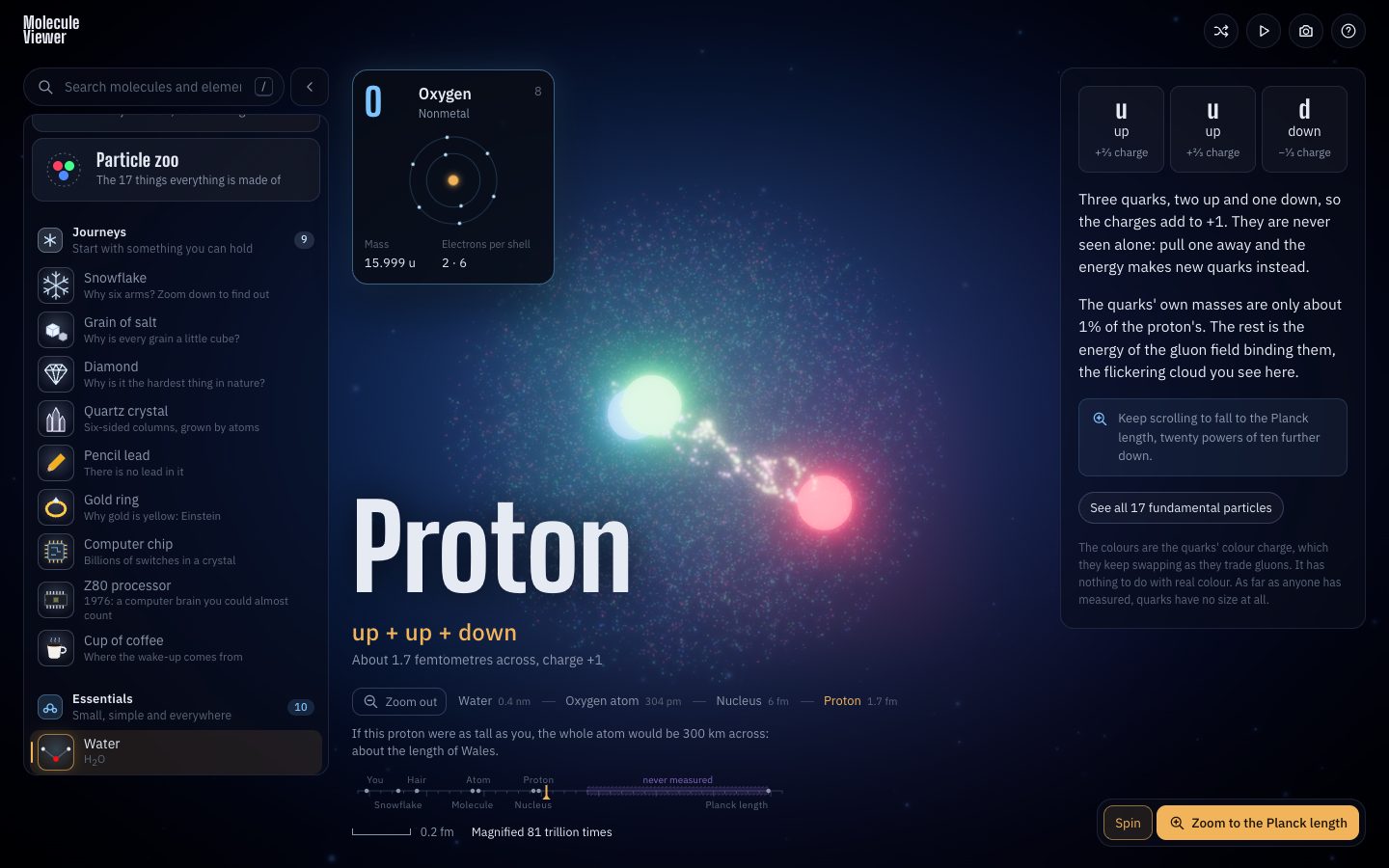

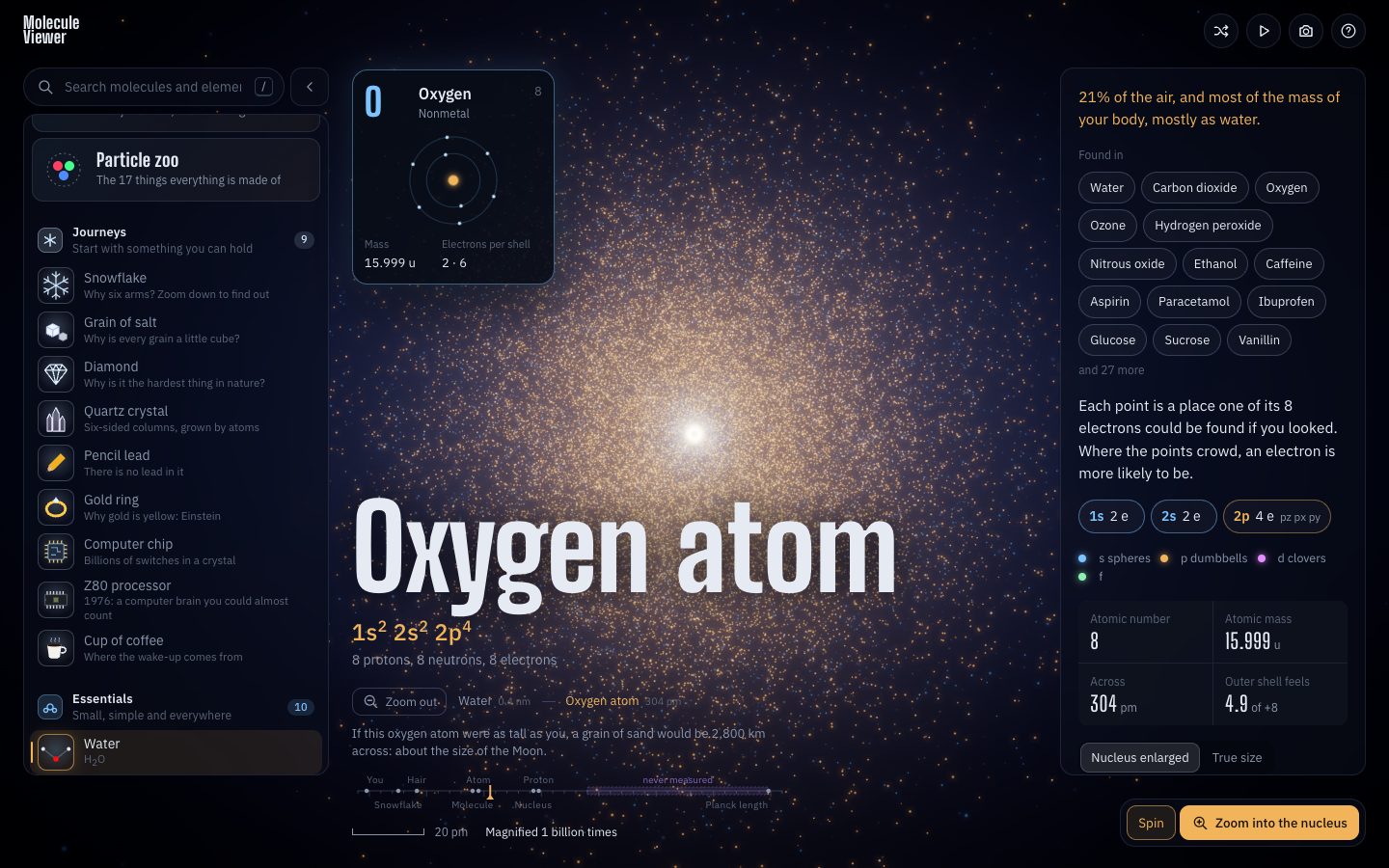

• Below the molecule. Atoms show their real electron configuration as orbitals (hydrogen-like, scaled by Slater's rules), the nucleus its true proton and neutron counts (enlarged, or at true size), nucleons their quarks, electrons their field, and the Planck length Wheeler's quantum foam, labelled as a guess.
• Scale you can feel. A live magnification, a ruler from your height to 10⁻³⁵ m, and comparisons ("if this nucleus were as tall as you, the atom would be 100 km across").

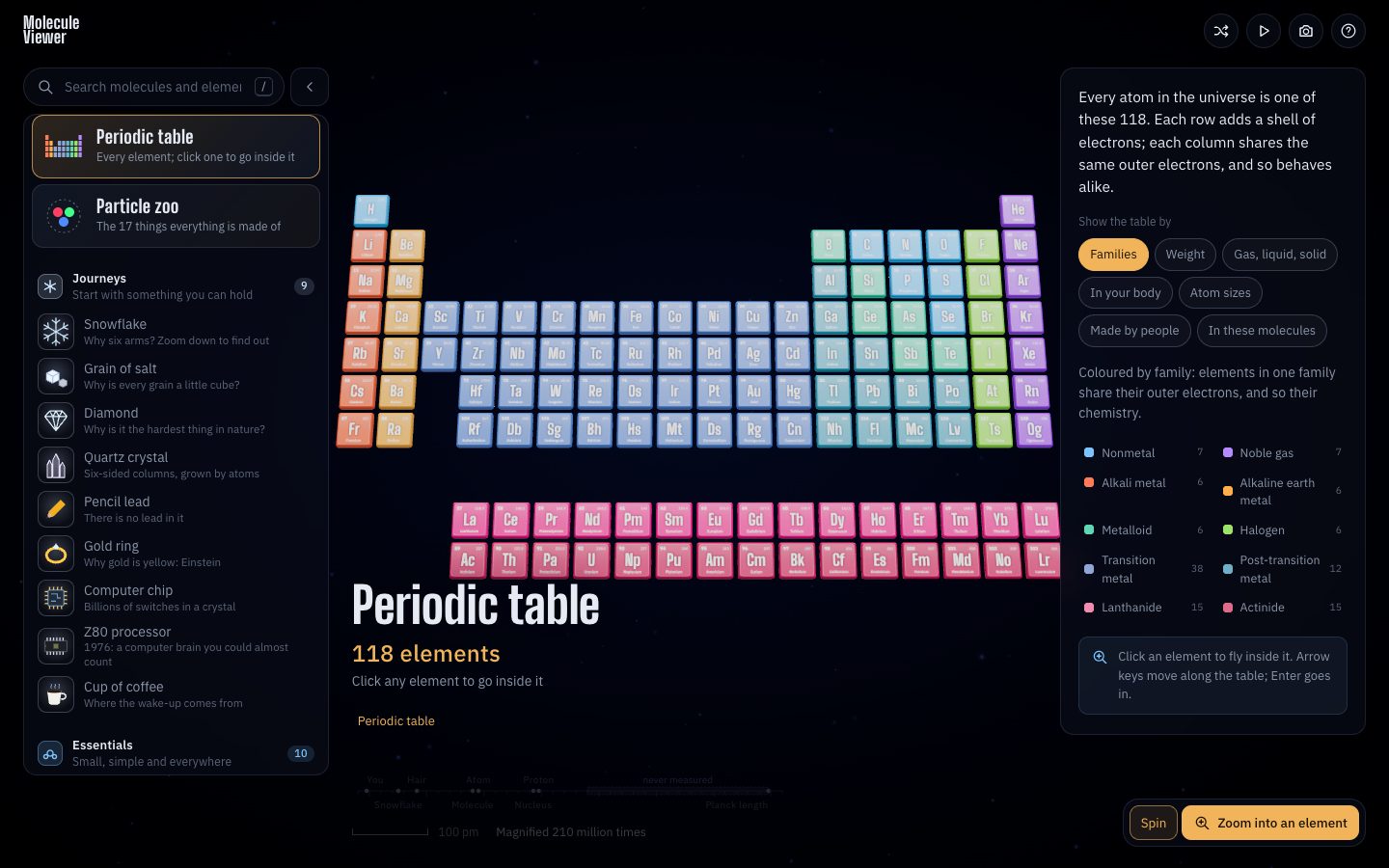

• The periodic table, reimagined. 118 tiles that spiral in, and views that reshape it: weight (tiles rise as bars), gas/liquid/solid, what is in your body, atom sizes (tiles scale to each atom's radius), the library's molecules, elements made by people. Hover for an animated atom card; click to fly inside. Each element links to the molecules it is in and where you meet it.

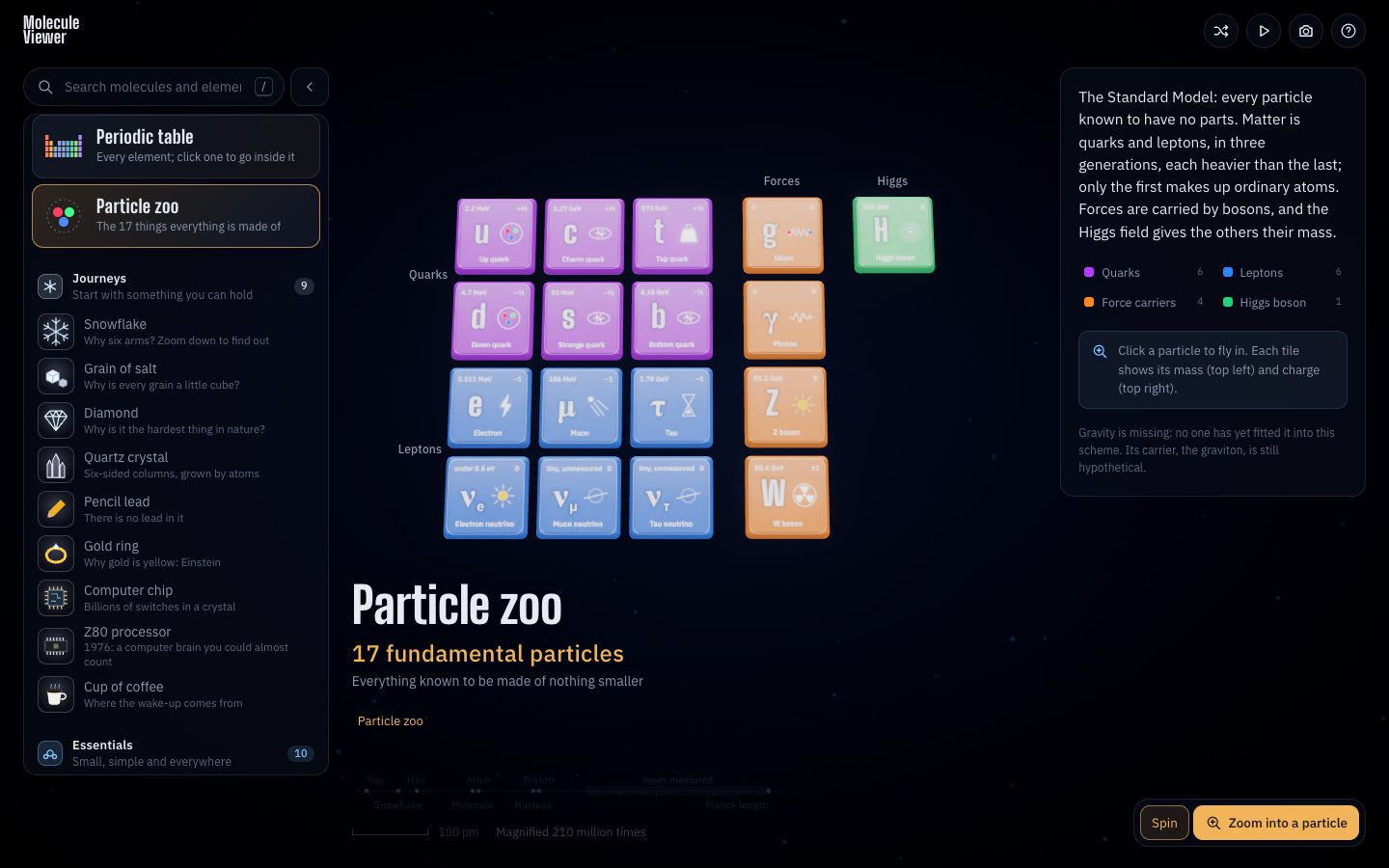

• The particle zoo. The Standard Model's 17 particles, each with mass, charge, spin and an icon.
• Surprise me and Tour jump or tour at random through everything. Keyboard throughout (? lists the keys), phone layout, picture export, and every place has a shareable address (#caffeine, #element-Fe, #particle-mu, #thing-z80, #cid-2519).

A static site with no build step. Serve the folder and open it:

python3 -m http.server 8000

then go to http://localhost:8000. (Opening index.html straight from disk will not work: browsers block ES modules over file://.)

npm install
npx playwright install chromium
npm test

tests/smoke.mjs serves the site and drives it in Chromium: the landing page, every library entry in every style, the full zoom to the Planck length, the periodic table's views and hover, every journey and every composite part, the Z80 chain, the guided journey, search (including live PubChem, skipped when offline), random, tour, and the phone layout. Any console error fails the run.

See docs/architecture.md for the code layout, how levels chain together, and how to add a molecule, a journey or a part.

• Structures: PubChem 3D conformers, fetched by tools/build_library.py (npm run build:library), which writes molecules.js. Buckminsterfullerene has no PubChem conformer, so its geometry is computed there, as are the crystal lattices.
• Crystals: α-quartz (Levien, Prewitt and Weidner 1980), diamond, rock salt, graphene, gold, copper, aluminium, iron (α), silicon and ice Ih, from standard lattice parameters; ice's hydrogens follow the Bernal–Fowler ice rules.
• Elements: Jmol CPK colours; Cordero et al. (2008) covalent and Bondi (1964) / Alvarez (2013) van der Waals radii. Particles: Particle Data Group masses, rounded.
• Z80 die: the datapath layout follows Ken Shirriff's reverse engineering of Z80 die photos (righto.com); the control area is drawn schematically. The journey objects and the transistor are drawn, not photographed.
• Summaries: Wikipedia's REST API, fetched live and shown with attribution; Wikipedia text is CC BY-SA 4.0.
• Software: three.js r170 (MIT). Fonts: Big Shoulders Display and IBM Plex Sans via Google Fonts (SIL Open Font License). Tests use Playwright (Apache 2.0).

This is an experiment in building with AI: I have not written any of the code by hand. The first version came from simple prompts and conversations with GitHub Copilot, Hugging Face Anychat (with DeepSeek) and Google Gemini; this version was rebuilt in conversation with Anthropic's Claude. I know little about chemistry or physics, so checking how accurate the results are has been part of the experiment. The data is sourced and credited above so anyone can check it, and corrections are welcome.

This project is licensed under the MIT License. See the LICENSE file for details.
