Extended flight history and track logging for readsb ADS-B receivers, with a web UI for browsing historical flights and statistics.

Designed to run alongside readsb, tar1090, and feed clients on a Raspberry Pi 4 without overwhelming it.

readsb and tar1090 give you a great live view — readsbstats adds the other half: a persistent SQLite history of every flight, a full-featured browser UI for exploring it, Telegram notifications for military and watchlist aircraft, and a receiver health dashboard backed by months of metrics.

🤖 About this project: readsbstats was entirely vibecoded with Claude Code. Every line of code, test, and configuration in this repository was generated by AI under the maintainer's direction — not a single line was written by hand.

• Screenshots
• Features
• Requirements
• Installation
• Security model
• Resource usage
• Project structure
• Documentation
• Contributing
• License

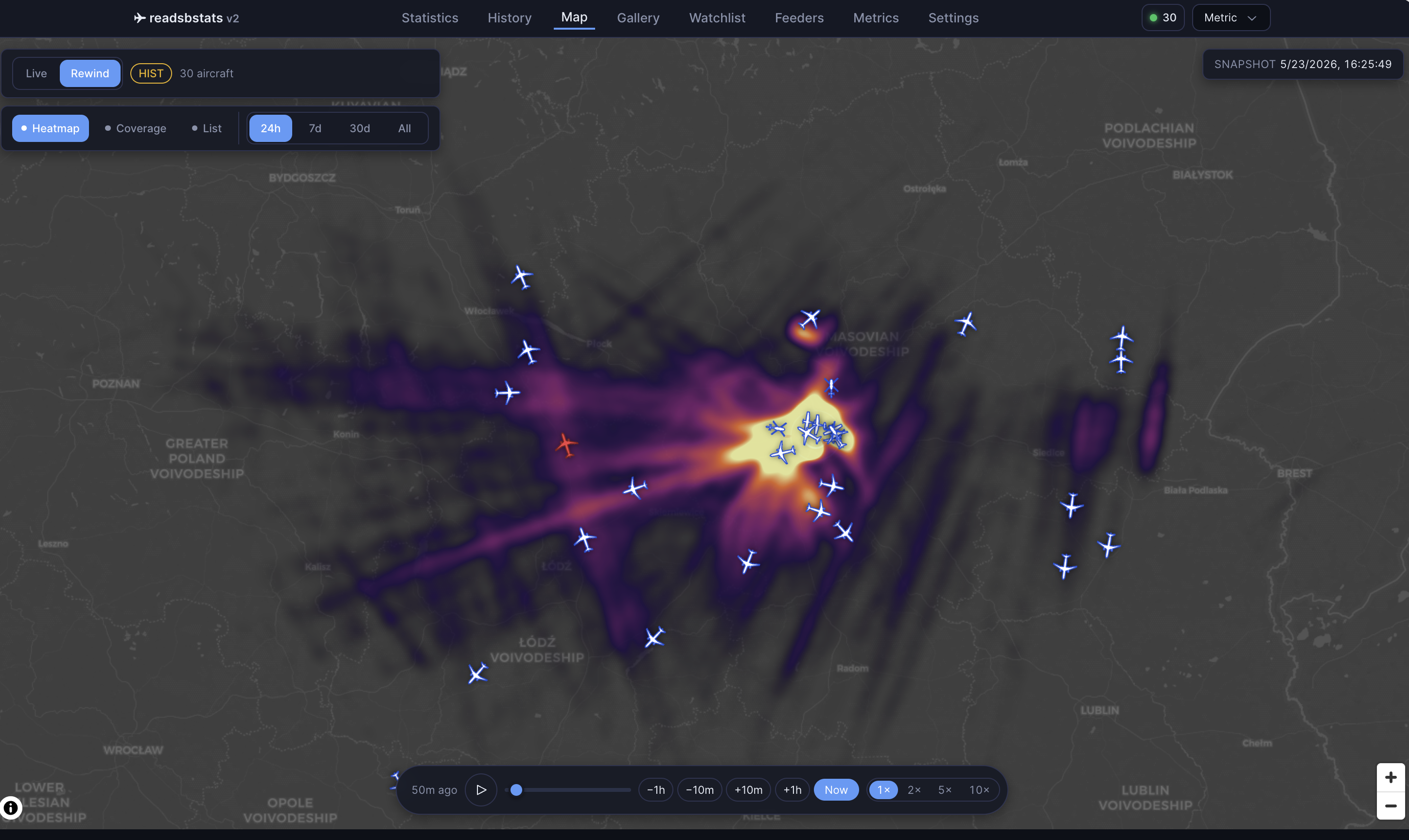

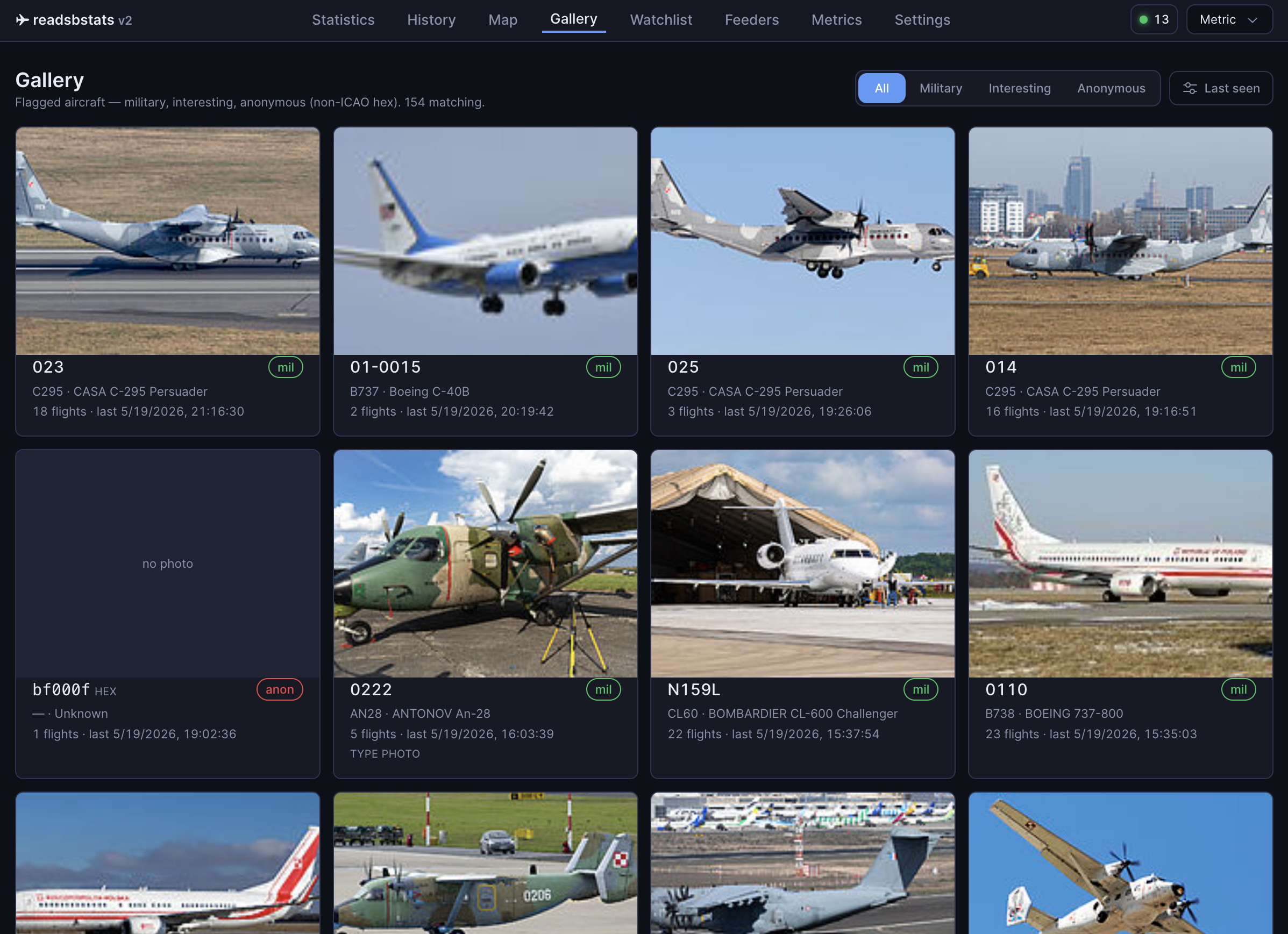

Live map — Live / Rewind / HIST modes, bottom command bar, position heatmap, coverage overlay	Gallery — military, interesting, and anonymous (non-ICAO hex) aircraft with photos

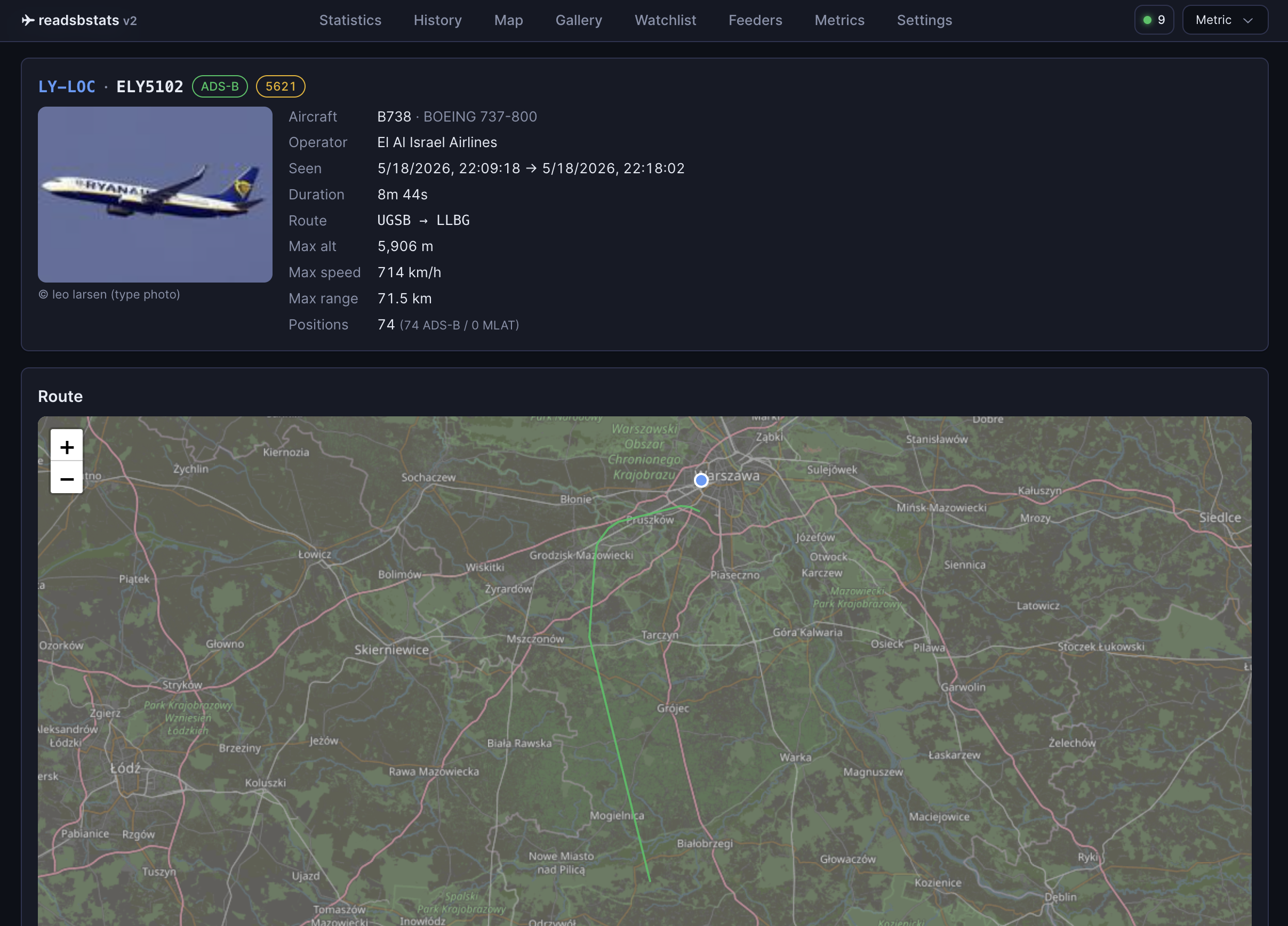

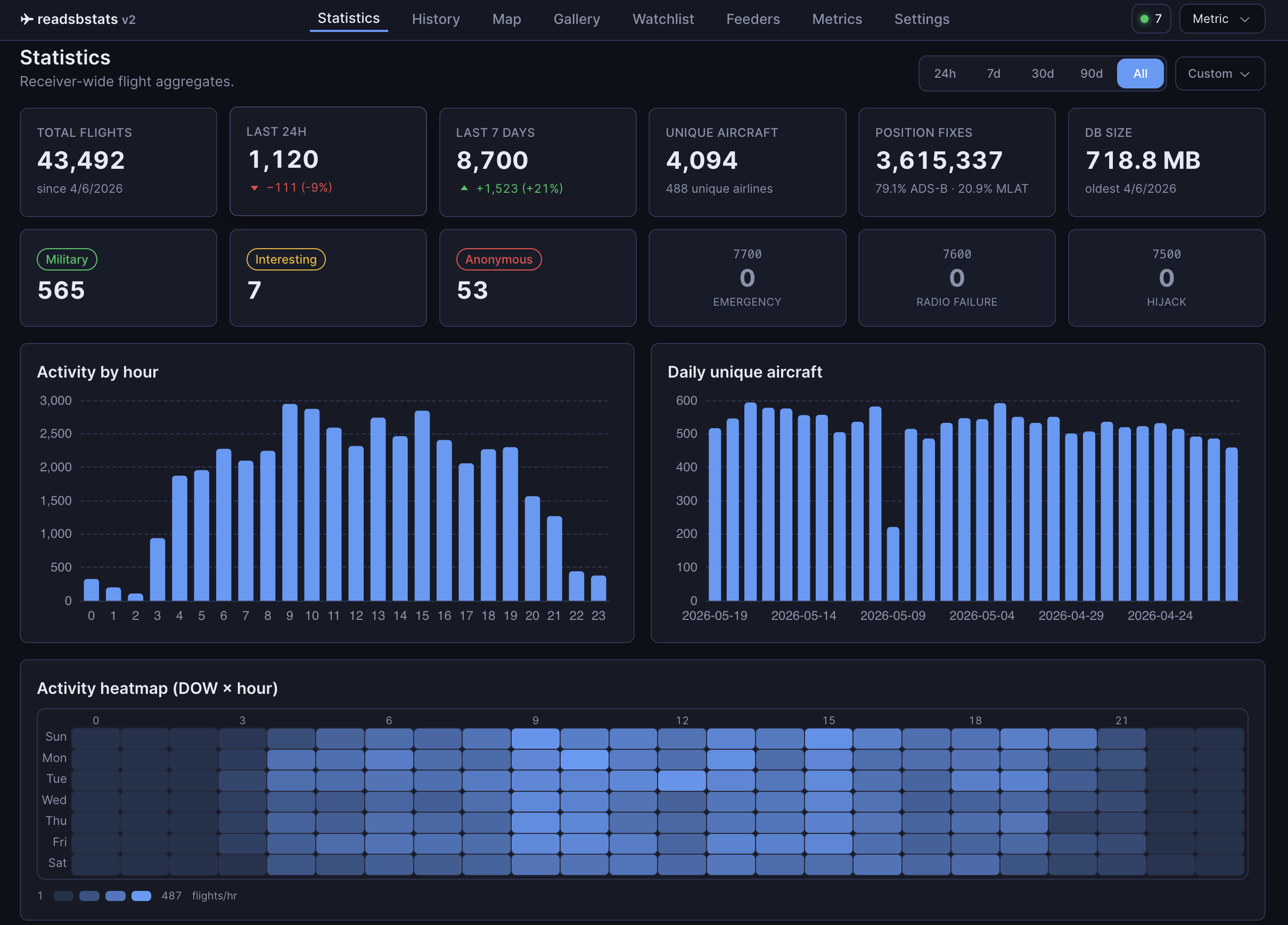

Statistics — summary tiles, hourly activity chart, DOW×hour heatmap, top-N datasets	Flight detail — photo, route, altitude/speed chart, full position log

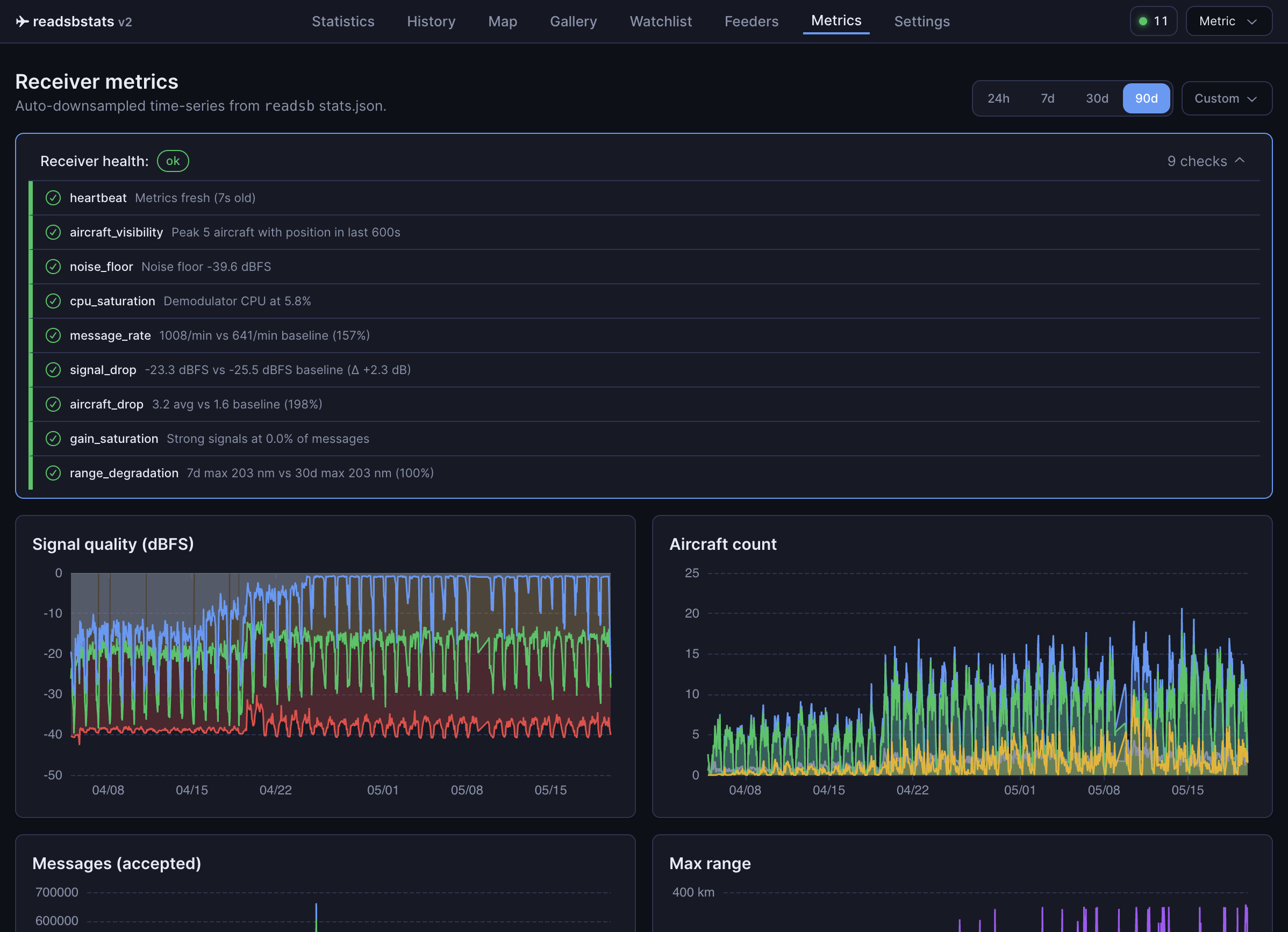

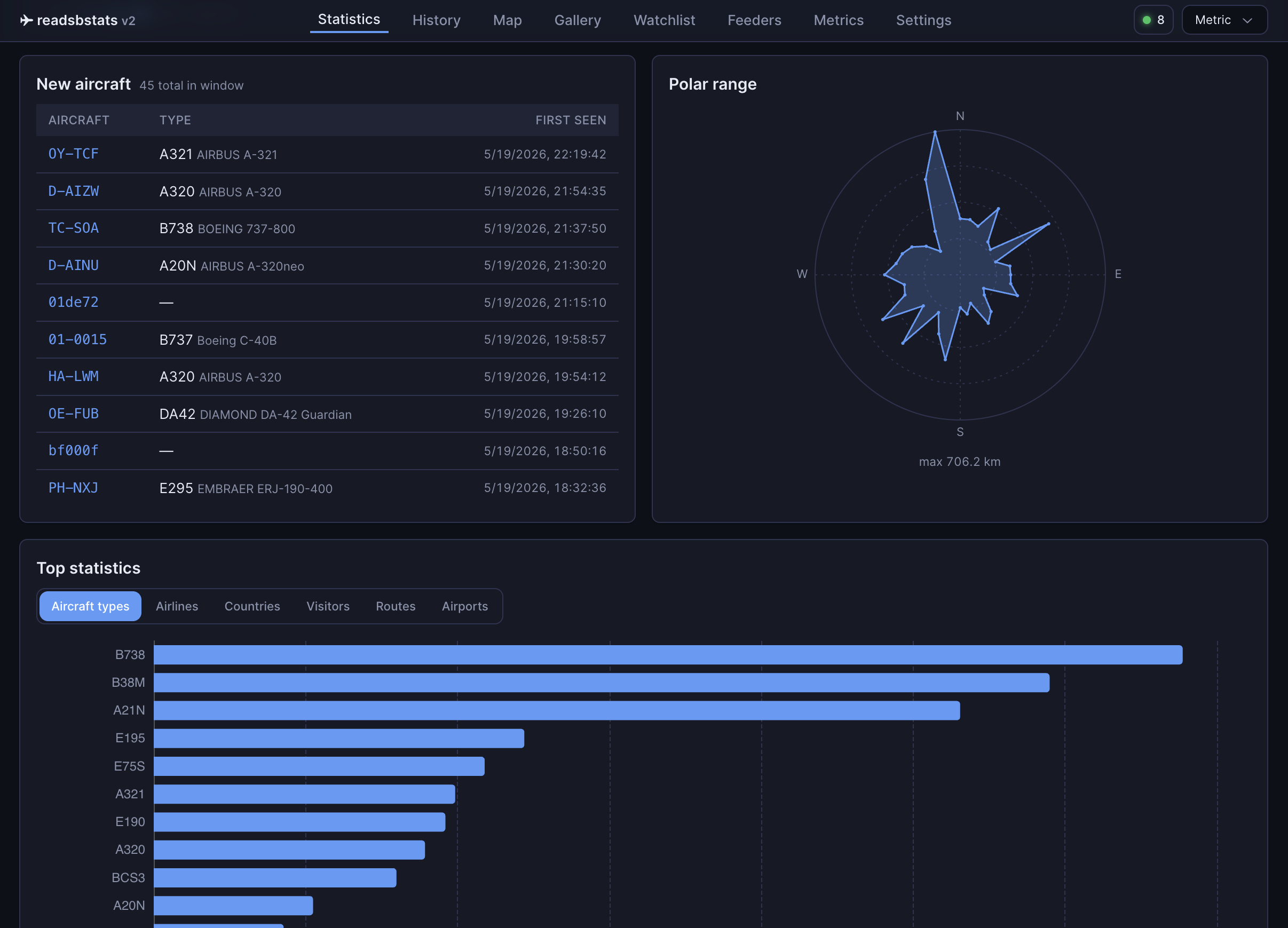

Metrics — 9 health checks (baseline-aware) above 10 time-series charts (ECharts, LTTB)	Statistics — polar coverage range plot and top aircraft types, airlines, routes

• Collects aircraft positions every 5 seconds from readsb's aircraft.json
• Groups positions into flights (30-minute silence gap = new flight); tracks ADS-B vs MLAT per position
• Stores everything in SQLite — no extra database server
• Aircraft enrichment: registration, type, operator from tar1090-db (~620k aircraft)
• Aircraft photos: Planespotters.net → airport-data.com → hexdb.io → Wikipedia type fallback; cached 30 days
• Military, interesting & anonymous (non-ICAO hex) aircraft detection, badges, and gallery
• Route enrichment via adsbdb.com — origin/destination airport per flight
• Live map with Live / Rewind / HIST modes — rewind from "now" or jump to any moment within map_history_hours via a date+time picker; bottom command bar with playback scrubber, range pills, position heatmap, and coverage range overlay; responsive down to iPhone
• Telegram notifications for military/interesting/anonymous/watchlist/emergency-squawk events; interactive bot commands
• Aircraft watchlist — track by ICAO hex, registration, or callsign prefix
• Receiver metrics dashboard with 10 time-series charts (Apache ECharts canvas, cross-panel hover sync, wheel/pinch zoom, LTTB downsampling) and 9 health checks
• Statistics dashboard — receiver-wide aggregates (top aircraft/airlines/routes/airports, hourly & daily activity, DOW×hour heatmap, polar coverage range). Defaults to the last 7 days for fast loads; the all-time view is background-warmed so it stays snappy
• Heatmap and coverage overlays served from collector-maintained daily rollup tables — millisecond responses at any history size, and the all-time views survive raw-position retention
• Optional VDL2 / ACARS integration — ingest VHF Data Link Mode 2 traffic from a separate SDR via vdlm2dec: a Messages tab (live feed, filters, full-text search, human-readable label names) plus an ACARS panel on flight pages with OOOI block times (Out/Off/On/In from Q-series reports) and route confirmation, a "has ACARS" badge/filter in history, and a Stats card. Fully pluggable (RSBS_VDL2_ENABLED), stored in its own database (see Operations)
  • Human-readable decoded ACARS message bodies in the Messages log (client-side @airframes/acars-decoder, lazy-loaded; raw body always retained as fallback)
  • #M1BPOS precise positions added to the map overlay; filed routes (departure/arrival/company route/SID/STAR/approach) surfaced on the message log
  • Each message row is tagged with a category chip (ACMS / engine / maintenance / route / …) so the H1-dominated feed is readable at a glance; RTE route messages also surface their filed departure→arrival
  • Selectable decoder (RSBS_VDL2_DECODER): vdlm2dec (ACARS) or dumpvdl2, which additionally decodes ATN CPDLC controller–pilot messages and reports per-frame signal level, surfaced as per-channel signal (dBFS) and SNR (dB) charts on the Metrics page (the charts self-hide on a vdlm2dec feed, which has no signal field)
• Unit switching: Aeronautical / Metric / Imperial — persisted in browser
• SQLite crash-safety (WAL + synchronous=NORMAL, RSBS_DB_SYNCHRONOUS=FULL for per-commit durability) with dirty-shutdown detection (fail-closed on corruption — see Operations) and weekly/monthly integrity checks via systemd timers

• Raspberry Pi 4 (or any Linux machine) running Ubuntu 22.04 / 24.04
• readsb by wiedehopf writing JSON to /run/readsb/
• Python 3.10+
• nginx (for the /stats/ reverse proxy)

# 1. Sync source to the Pi (from your Mac/PC)
rsync -avz --delete \
  --exclude='.git' --exclude='__pycache__' --exclude='*.pyc' \
  --exclude='.venv' --exclude='*.egg-info' \
  --exclude='docs' --exclude='db' --exclude='.DS_Store' \
  --exclude='*.db' --exclude='*.db-wal' --exclude='*.db-shm' \
  --exclude='frontend/node_modules' --exclude='frontend/.vite' --exclude='frontend/coverage' \
  --exclude='internal_docs' --exclude='.claude' --exclude='CLAUDE.md' \
  /path/to/readsbstats/ pi@your-pi:/tmp/readsbstats/

# 2. SSH into the Pi and run the installer as root
ssh pi@your-pi
sudo bash /tmp/readsbstats/scripts/install.sh

The installer creates a readsbstats system user, sets up /opt/readsbstats/ with a Python virtualenv, creates the SQLite database, and installs systemd services.

After installation, set your receiver coordinates:

systemctl edit readsbstats-collector readsbstats-web

[Service]
Environment="RSBS_LAT=YOUR_LATITUDE"
Environment="RSBS_LON=YOUR_LONGITUDE"

Then restart services and open http://YOUR_PI_IP/stats/.

Add one line to your nginx server {} block:

server {
    include /opt/readsbstats/nginx-readsbstats.conf;
}

The conf file proxies /stats/ to uvicorn at 127.0.0.1:8080 and serves the SPA's hashed asset bundles directly with long-cache headers.

readsbstats has no built-in authentication or authorization by default. It is designed to run bound to 127.0.0.1:8080 behind nginx on a trusted LAN. Anyone who can reach the web port can read all flight data and call every mutating endpoint (watchlist edits, settings).

• The X-Requested-With CSRF header is not authentication. It only blocks cross-site form posts from a browser; it does not identify or authorize a caller. Do not treat it as an access control.
• If you expose the UI beyond a trusted LAN, put an authenticating reverse proxy in front (HTTP basic auth, an OAuth2 proxy, or a VPN/Tailscale). Do not publish 127.0.0.1:8080 directly to the internet.
• RSBS_API_TOKEN — opt-in bearer-token gate for every mutating (POST/DELETE) /api/* endpoint (watchlist, settings, …). When set, every such call must carry Authorization: Bearer <token>. When unset (the default), the web server logs a one-line startup warning so the open posture is never silent. Read endpoints stay open (they were already public on the trusted LAN). Useful as a thin extra layer if the app is reachable from devices you don't fully trust on the LAN; not a substitute for a reverse-proxy auth layer when exposed to the internet.
• Outbound HTTP (photo/route enrichment) is SSRF-guarded (http_safe.py) and provider photo URLs are host-allowlisted before caching (RSBS_PHOTO_HOST_ENFORCE) and at the API response boundary.

See Operations → Deployment security for the full trust model.

Database size: plateaus at ~0.6 GB at steady state with 180-day position retention (RSBS_RETENTION_DAYS=180; recommended), since the schema-v6 scaled-integer position storage. Without retention the DB grows ~20–60 MB/month unbounded.

readsbstats/
├── src/readsbstats/            # Python package
│   ├── collector.py            # Polling daemon, flight detection, writes
│   ├── web.py                  # FastAPI app factory + lifespan + SPA-shell routes
│   ├── cache.py                # Response cache + map-cache prewarmer thread
│   ├── api/                    # Per-domain APIRouter modules
│   │   ├── _deps.py            # DB connection seam, shared SQL/allowlists, _csrf_check
│   │   ├── _photos.py          # Photo-fetch ladder + per-type async locks
│   │   ├── flights.py          # /api/flights*, /api/flights/{id}/*
│   │   ├── aircraft.py         # /api/aircraft/*, /api/airlines/*, /api/types/*
│   │   ├── stats.py            # /api/stats, /api/stats/records, /api/stats/polar
│   │   ├── map.py              # /api/map/*, /api/live
│   │   ├── feeders.py          # /api/feeders + systemd/port checkers
│   │   ├── settings.py         # /api/settings + _settings_* helpers
│   │   ├── watchlist.py        # /api/watchlist GET/POST/DELETE
│   │   ├── airspace.py         # /api/airspace
│   │   ├── health.py           # /api/health, /api/metrics, /api/metrics/health
│   │   ├── dates.py            # /api/dates
│   │   └── vdl2.py             # /api/vdl2/* (opt-in; reads the separate vdl2.db)
│   ├── database.py             # SQLite schema, WAL, migrations
│   ├── config.py               # RSBS_* env vars
│   ├── http_safe.py            # SSRF-safe HTTP helpers (HTTPS-only)
│   ├── photo_sources.py        # Planespotters → airport-data → hexdb → Wikipedia
│   ├── notifier.py             # Telegram notifications
│   ├── rollups.py              # Daily heatmap/coverage rollups (collector-maintained)
│   ├── posenc.py               # Scaled-integer codecs for positions columns (schema v6)
│   ├── health.py               # Receiver health checks
│   ├── geo.py                  # haversine_nm, bearing
│   └── vdl2/                   # Opt-in VDL2/ACARS ingest (separate vdl2.db)
├── scripts/
│   ├── install.sh              # First-time installer
│   ├── update.sh               # Code sync + restart + optional DB update
│   ├── purge_ghosts.py         # One-shot: remove ghost positions
│   ├── purge_bad_gs.py         # One-shot: null implausible gs values
│   └── purge_mlat_gs_spikes.py # One-shot: null MLAT gs spikes
├── frontend/                   # React 19 + Vite 8 SPA (440 Vitest tests)
├── tests/                      # pytest (2106 tests) + Playwright UI (84 tests)
├── static/airspace/            # Bundled airspace GeoJSON
├── systemd/                    # Service + timer unit files
└── docs/                       # Public documentation
    ├── configuration.md        # All RSBS_* environment variables
    ├── api.md                  # API endpoints + database schema
    ├── integrations.md         # Telegram setup + ghost/GS filtering
    ├── operations.md           # Updating, maintenance, useful commands
    ├── development.md          # Local dev, testing, build, deploy
    ├── decisions/              # Architecture Decision Records
    └── screenshots/            # UI screenshots

Full guides live in docs/, grouped by reference / how-to / explanation:

Bug reports and pull requests are welcome — see CONTRIBUTING.md for setup and style guidelines. This project follows the Code of Conduct.

MIT — see LICENSE.

The bundled frontend (frontend/dist/) includes Apache ECharts (Apache-2.0) and other open-source libraries. Required attribution lives in THIRD_PARTY_NOTICES.md.
