A small web browser written from scratch in OCaml, after Google Chrome (2008). It reads the three languages a page is written in -- HTML, CSS and JavaScript, which are most of it -- and, since a browser is also everything a page may point to, it has its own network stack, its own decoders of pictures, video and sound, and a PDF viewer.
 |
 |
 |

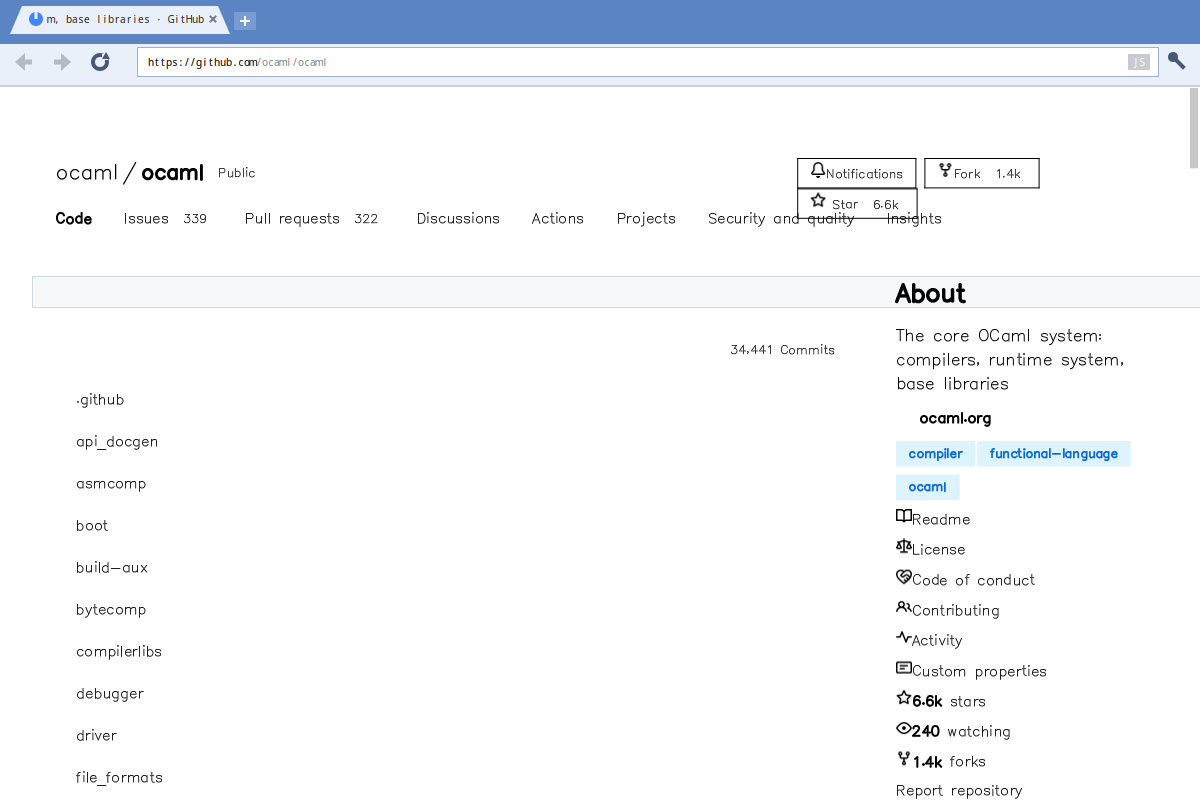

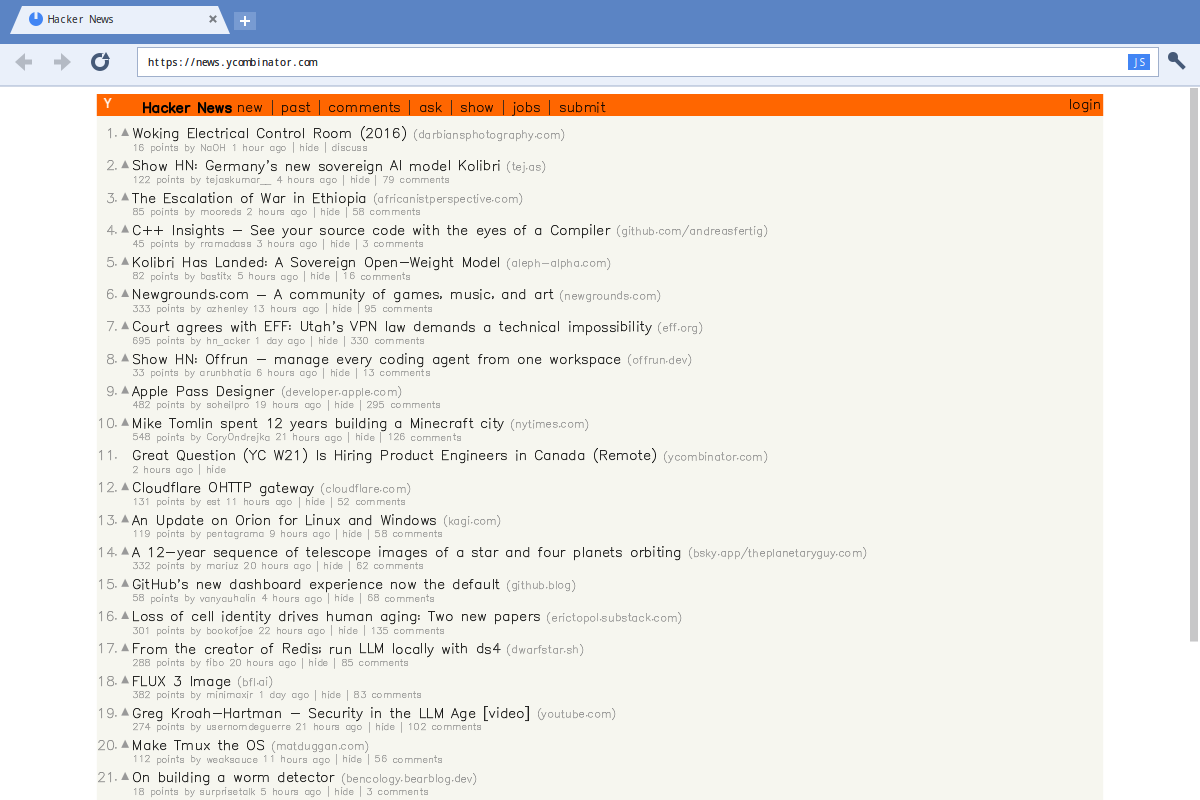

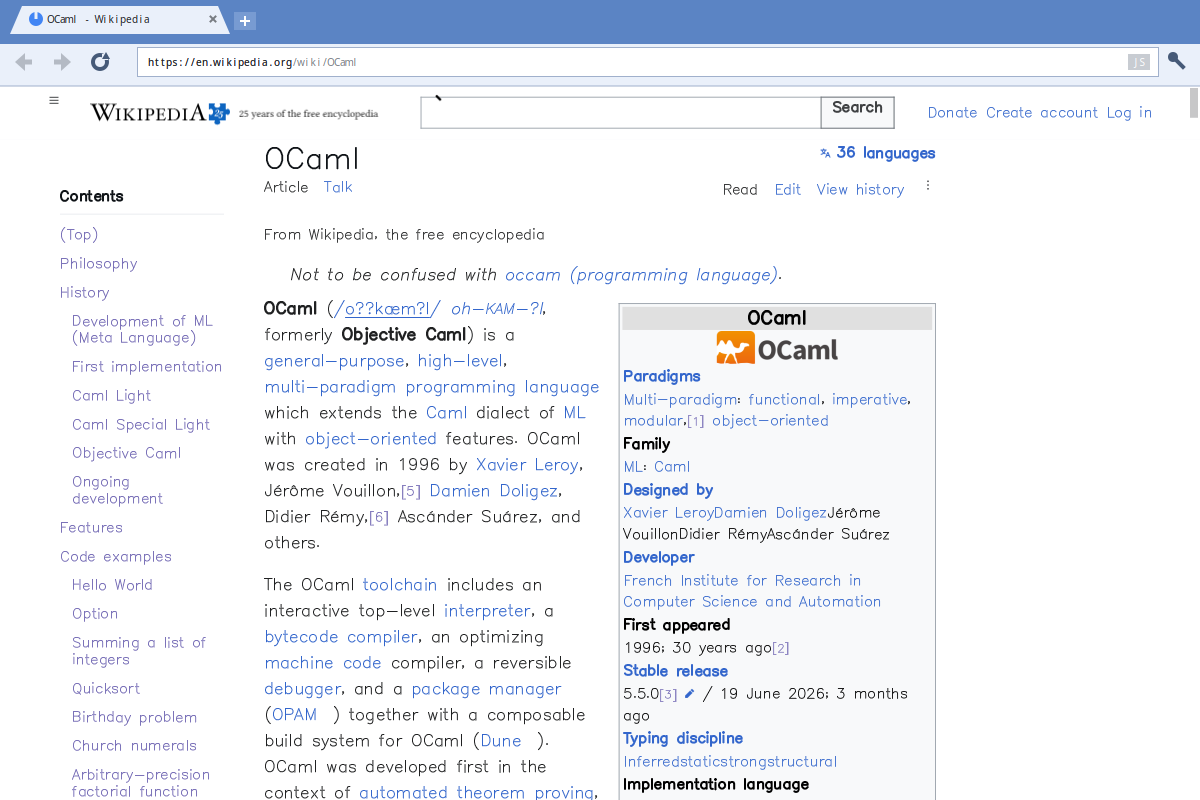

| Hacker News | Wikipedia, an article | GitHub: readable, not yet right |
 |
 |
 |

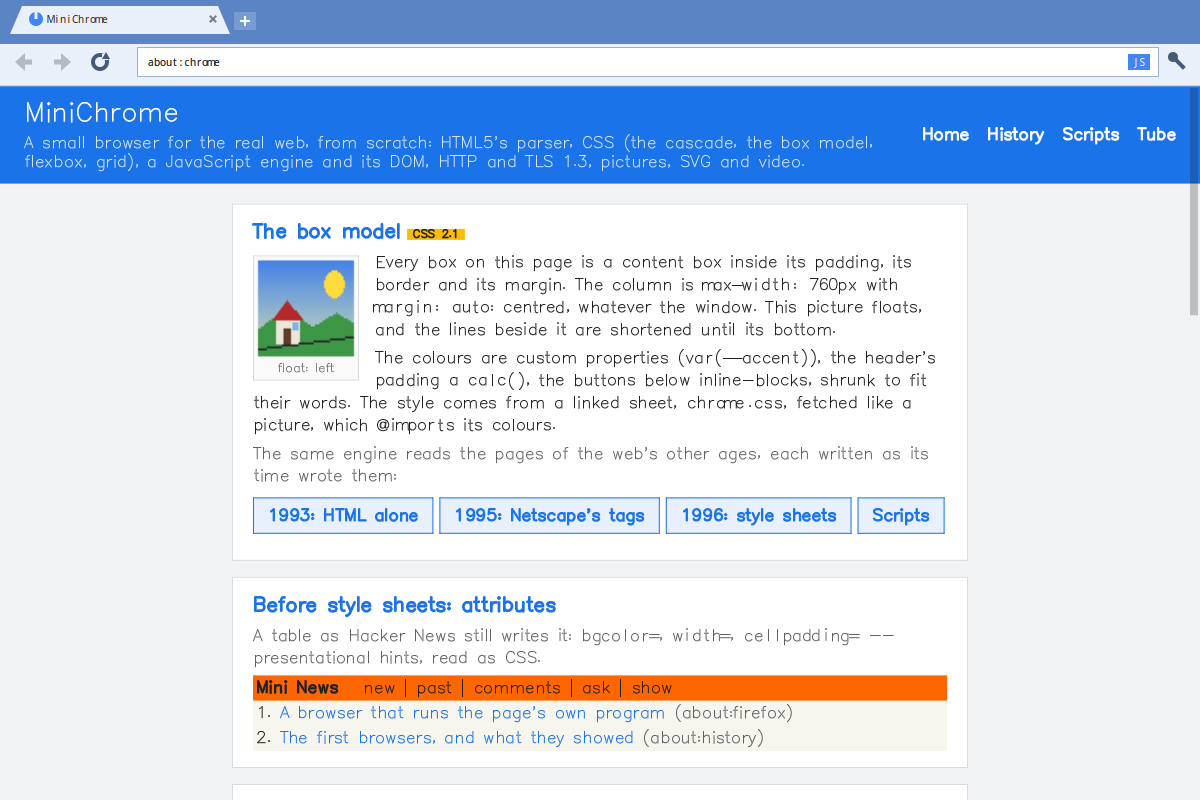

about:chrome: what the engine does, a card each |

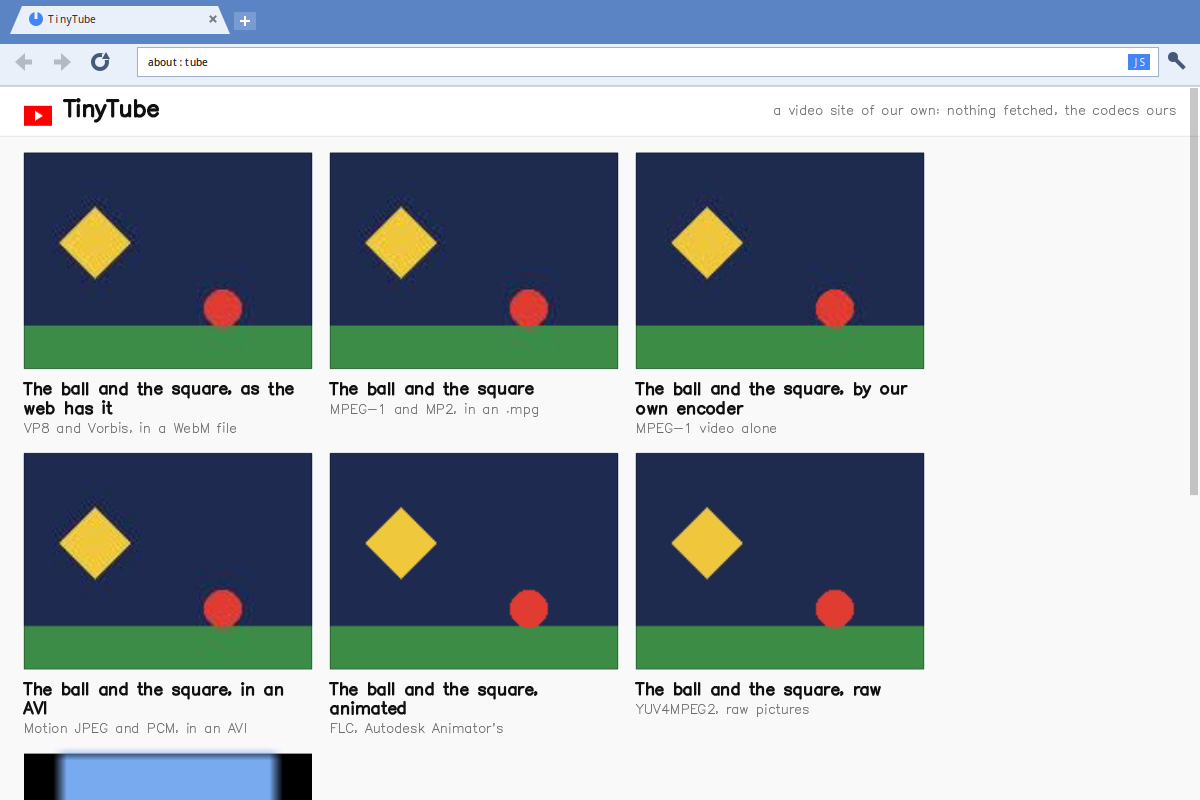

about:tube: every kind of media it plays |

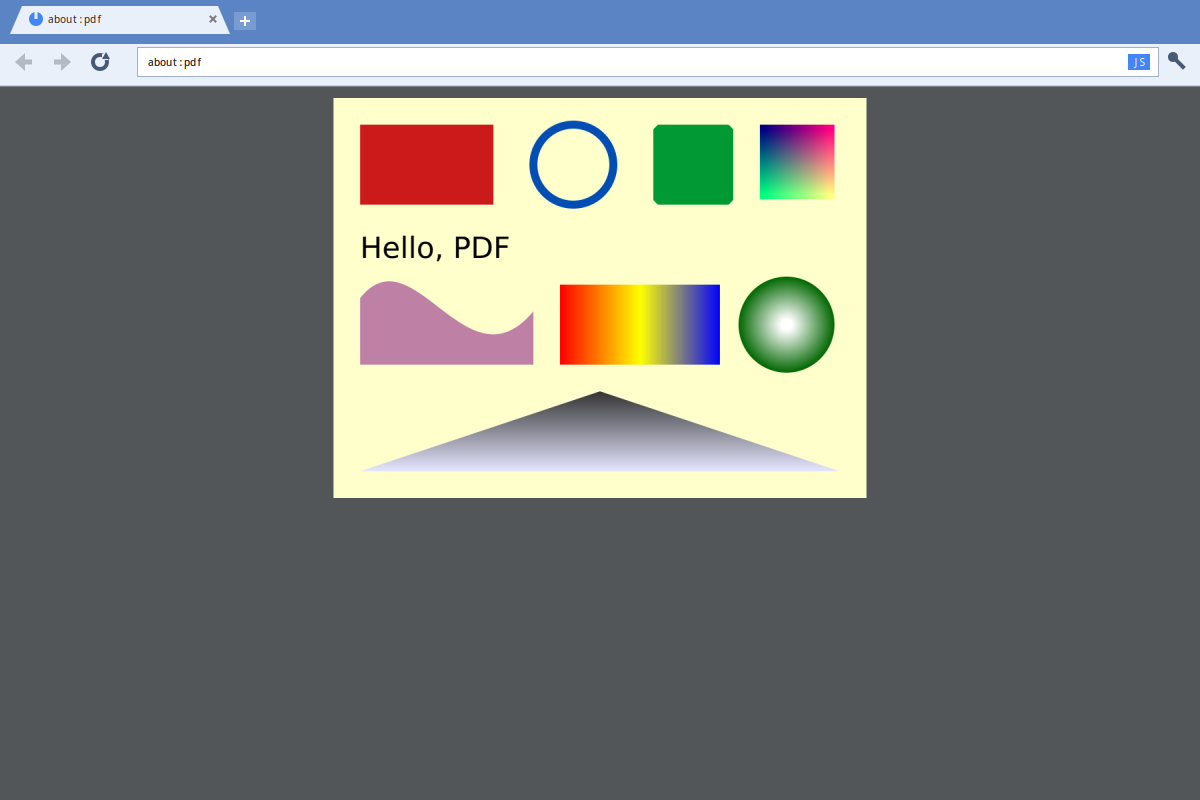

about:pdf: a PDF file in a tab |
(The pictures are the real program's, on the real sites:
scripts/sites/screenshots.sh takes them again.)
What is in it:
- A page. HTML read as browsers read it (tags left open, tables,
forms); CSS: the cascade, the box model, floats, tables, flexbox and
grid; a JavaScript engine (classes, closures, promises and async
functions, modules, regular expressions) with the web APIs a script
expects: the DOM and its events,
fetchandXMLHttpRequestunder the same-origin policy and CORS,WebSocket, timers and the event loop,localStorage. - The network. HTTP/1.1 over its own TLS 1.3 client (X.509 certificates checked), cookies, WebSocket; bodies in gzip, Brotli and Zstandard.
- Pictures. PNG, WebP (lossy and lossless) and SVG, written or kept here as the web's own formats; GIF and JPEG.
- Video and sound.
<video>and<audio>: WebM with VP8, and its sound in Vorbis or Opus; also MPEG-1, MP3, WAV, MIDI and a few older ones.about:tubeplays one of each. - Documents. A PDF file opens in a tab, drawn with the fonts it
carries (TrueType, CFF, Type 1), its pictures and gradients
(
about:pdf). - The browser around the page. Tabs, the omnibox (an address or a search), Back and Forward with the pages kept as they were, zoom by site, a profile and its cookies, a right click's menu, and developer tools: the page's tree and styles, the requests it made.
- Small programs beside it, made of the same libraries:
mini-node(the JavaScript engine in a terminal),mini-curl,mini-httpd,mini-lynx(a page as text), and three older browsers,mini-mosaic,mini-netscapeandmini-firefox, over the first layout engine.
From scratch all the way down. What the web itself brought is written or told here -- the languages, the network and TLS, WebP, PNG, SVG, WebM and VP8, Vorbis, Opus, Brotli, PDF and its fonts. The rest is elm-playground's, written from scratch as well: the window and the drawing (by Cairo, or by its own software rasterizer if you like), the cryptography, JPEG, GIF, MP3 and MPEG-1, the letters (one stroke font). docs/dependencies.md says exactly what comes from where. Of C it needs only SDL, for the window.
Small enough to read: about 33,000 lines of OCaml for the browser
itself, kept under a budget of 40,000 (make loc), not counting what
each module's interface says about itself.
It started as elm-playground's TinyChrome, a toy held to 5,000 lines of its own code; here it grows, towards the web as it is. docs/sites.md says where it stands on real sites, part by part: Hacker News and Wikipedia read well, GitHub and the BBC are readable but not right, and a site that is all scripts (YouTube) does not work yet.
All of the code was written by an AI, Claude Code, under the author's direction (see the AI disclaimer), but it was written for people to read, and checked by tests: each module's interface opens with what it is, where it came from and what to read, the web's history told module by module -- the omnibox, the cascade, CORS, the event loop, Vorbis, the range coder of Opus, a PDF's fonts. Judge it by what it explains, as you would a textbook's.
It stands on elm-playground's packages: the Playground for its window
and drawing, on one of its two native platforms (SDL for the window
either way, and Cairo, elm_playground_native, or the Playground's
own rasterizer, elm_playground_software), and tiny_libs for the
cryptography, the compressions and the decoders that are not the
web's own.
./configure # the opam dependencies, and checks for SDL2 and Cairo
make
make test./configure --software leaves Cairo out altogether, as it does by
itself when Cairo is not found.
Working on both repositories side by side, install elm-playground's packages from its checkout into your switch instead (again whenever mini-chrome should see a change there), then build here:
(cd ../ocaml-elm-playground && make && make install)
./configure
makeThen ./bin/mini-chrome (a symlink into _build, alive after a
make), or make run; with an address, ./bin/mini-chrome news.ycombinator.com, that page (several: a tab each; words that are
not an address are searched): drawn by Cairo when its platform is installed,
else by the Playground's own rasterizer. ./bin/mini-chrome-software
(make run-software) is always the latter, for comparison.
Flags: url= the first page (about:chrome), css=off,
panel=elements or panel=network, search=duckduckgo,
scripts=off (or the hosts whose scripts run), profile=DIR or
profile=off, scale=N, opti=off (the simple code where an
optimized one replaced it), letters=segments (a letter drawn as its
pen's strokes), pdf=strokes (a PDF's text in our own letters;
pdf=plain for its simplest rendering). With -v the terminal shows each
file and URL opened (-debug more, -quiet nothing). Ctrl+Q quits
(with elm-playground after 0.3.1; with 0.3.1 a plain q does, wherever
it is typed).
The omnibox is a line of text as any other: a click selects the address, then a click puts the caret and a drag selects; Ctrl+A, C, X and V, with the desktop's clipboard. The pointer is a hand over a link.
A page longer than the window has a scrollbar at its right: drag its thumb, or click above or below it for a page.
A right click on the page opens a menu: on a link, Open link in new tab; elsewhere Back, Forward, Reload; Inspect in both.
On a screen of many dots everything is drawn bigger, at the desktop's
scale (Xft.dpi, GNOME's setting: twice at 192); Ctrl+Shift and + or
- change it, Ctrl+Shift+0 goes back to the desktop's, scale=N
sets it.
Ctrl and +, - or the wheel zoom the page, Ctrl and 0 back to
100%; each site keeps its zoom, saved with the window's size in the
profile (~/.config/mini-chrome/Preferences, JSON).
After mmm's: the languages a page is written in, general libraries, then the browser by role, each folder a library, in the order they depend on each other:
libs/dom the document as a tree (Dom): what HTML and XML are
read into, what CSS matches on and the rest walks
languages/html HTML read: bytes to text, tokens, the tree
languages/xml XML read into the same tree (Xml): an SVG file
languages/css style sheets read and cascaded, computed styles
languages/javascript a small JavaScript, with modules (Js_module) and
the later library written in itself (Js_prelude)
languages/json JSON read and written, over JavaScript's lexer
libs/gui the chrome's pieces that know no browser, as values
drawn and asked what is under a point: text in
cells (Gui_text), the tabs' strip (Gui_tabs), the
toolbar's buttons (Gui_toolbar), a menu opened at
a point (Gui_menu), a line typed into (Gui_field),
a scrollbar (Gui_scrollbar), the desktop's scale
(Gui_scale)
libs/compression Brotli, the web's own compression (Content-
Encoding: br), decoded, with its dictionary of
the web's words; gzip and Zstandard are
elm-playground's
libs/images the picture formats born of the web. PNG (Png:
filters, DEFLATE, Adam7). WebP, in webp/: the
file's chunks (Webp), the lossless format
(Vp8l), the lossy one, a key frame of the VP8
video codec (Vp8). SVG made pixels (Svg: paths, shapes,
fills and strokes; from an <svg> of a page or a
file, one tree). GIF and JPEG are
elm-playground's
libs/video video as the web has it: a WebM file's frames found
(Webm) and decoded (Vp8_video: VP8's frames
predicted from others, over libs/images' Vp8);
what <video> plays of today's web
libs/audio sound as the web has it: Vorbis decoded (Vorbis:
codebooks, floors, residues), an Ogg file's
packets (Ogg), and Opus where it is music (opus/: Opus;
Celt: each band's energy, then its shape as
pulses; Range_decoder; Mdct, both codecs'
transform): a WebM's sound, and <audio>'s
libs/fonts outline fonts read: a glyph's contours (Outline) from
TrueType, CFF and Type 1 files; glyphs' names, the
standard fonts' widths
libs/pdf a PDF file read (Pdf: objects, the table of where
they are, filters, the page tree) and a page drawn
(Pdf_render: paths, text in the file's own fonts or
in ours, pictures, clips, gradients, transparency)
libs/opti the switch between an optimized function and the
simple one kept beside it (Mini_opti; opti=off)
libs/richtext a look (Style): what the pen drawing a letter is told
libs/network URLs, HTTP/1.1, cookies, TLS 1.3 and the sockets: a
GET that never blocks, stepped each frame
(Http_request); WebSocket, its handshake and
frames (Websocket) and a connection stepped
each frame (Websocket_client)
src/url/ links resolved (Browser_url)
src/layout/ where everything goes: CSS's box model (Box_layout,
over Box_tree, Box_inline and Box_flow), flexbox,
grid (Box_grid, Grid_layout), tables, Mosaic's flow; a point back to a link (Hit)
src/display/ a page drawn as shapes: Hershey's letters (and those
with an accent, put together: Glyph_unicode), pictures,
boxes (Browser_draw, Browser_boxes)
src/www/ the page as a document (Browser_page), its forms
src/webapi/ the web APIs, JavaScript in a browser (in dom/, net/,
window/, run/): the DOM a page's scripts
see (Script_dom, Script_host, Script_element,
Script_events, Script_document), window's globals
(Script_window), a script asking the network
(XMLHttpRequest, Script_fetch, WebSocket), a
page's modules (Script_modules) and their tasks (Browser_script:
the scripts, the events, the timers)
src/viewers/ <video> and <audio> (Browser_media, Media); a PDF
file as a page of pictures (Pdf_viewer)
src/about/ the about: pages, the built-in site and about:tube
src/chrome/ a tab (Browser_tab), its requests in flight (Fetch),
the history, the developer tools, each site's zoom
(Browser_zoom), what the right click's menu offers
(Browser_menu), what is kept between runs
(Browser_profile), what it says it is to each
site (Browser_agent)
src/window/ the window as a Model-View-Update program over
those and libs/gui's pieces: Window_model (the
state, the messages), Window_layout (where each
part is, what is under the pointer), Window_tabs
(a tab changed, opened, closed; scroll, zoom),
Window_update, Window_view
src/main/ the main: the flags, the profile, the capabilities
handed down, the Playground run (MiniChrome.ml)
tools/ small programs beside the browser, made of its
libraries, for teaching:
node mini-node: JavaScript outside a browser, the
same engine with a terminal for host (console,
process, timers and their loop, require, fs)
curl mini-curl: a URL fetched and printed, by our
own HTTP, TLS, gzip and cookies (-v, -i, -L)
httpd mini-httpd: a directory's files served, the
other end of the conversation; a
WebSocket asked for is an echo
lynx mini-lynx: a page as text in the terminal,
its links numbered, a number typed to follow
mosaic mini-mosaic: NCSA Mosaic, 1993 -- and the
web's first layout engine, the browser's
until CSS's replaced it: a look for each
element from a table (Mosaic_looks),
blocks and lines in one pass
(Mosaic_layout), drawn (Mosaic_draw)
netscape mini-netscape: Netscape, 1994-1997: the
same engine with its extensions (fonts,
colours, floats, tables) and CSS1
firefox mini-firefox: 2004: the same again, and
the page's scripts, a console, the tree
typeset lines broken by Knuth and Plass
(mini-mosaic's wrap=pretty)
platform the window the three are linked with
tests/ tools, html, xml, css, js, layout, browser, images, video, audio, pdf, compression, network, network_unix
docs/ architecture.md: the running program's shape (the
loop, the chrome's pieces, its one process and
threads next to Chrome's); dependencies.md: what
it stands on outside this repository, by kind;
history.md: how it came to be; sites.md: the sites it shows, and
what each lacks, by part, in colours; tags.md:
the theme tags of the interfaces' comments
(cs-history:, modern:...)
docs/tutorials/ a browser built stage by stage: notes_browser.md,
notes_css_engine.md, notes_javascript.md,
notes_tls.md
docs/plans/ what is being done: plan_performance.md (where a
load's time goes, what to change); done/: the
plans the tutorials followed (plan_browser_teaching,
plan_tiny_firefox, plan_tiny_chrome: the target
sites)
docs/related-work/ notes_browser_related_work.md: the browsers since
1990, and where this one stands
docs/dev/ notes_debugging_techniques.txt: how a page that
looks wrong, or slow, was looked into
scripts/ perf/: a page's stages timed (Page_bench), a load
in time (load_timeline.sh); sites/: the sites of
docs/sites.md dumped, the README's screenshots taken
data/ what is embedded and is not OCaml (data/README.md):
about/ the built-in site's pages, sheets, scripts,
pictures and a sample PDF; tube/ about:tube's files
made elsewhere (ffmpeg, LAME); css/ua.css the
browser's own style sheet; prelude/ the library
and the small web APIs written in JavaScript
mini-chrome was written by Claude Code: the code, the tests, the
comments and the documents in docs/. I (Pad) chose what to build,
directed it and reviewed it, but wrote almost none of the code myself.
So was TinyChrome, the program of elm-playground it was forked from,
and so are the libraries of elm-playground it stands on (tiny_libs:
the decoders, the cryptography; that repository's README says what
there is Evan Czaplicki's, mine and Claude's).
It is a browser to read and to learn from, not one to trust with your passwords or your bank: its TLS, its cryptography and its JavaScript engine were written for teaching and have had no security review.
LGPL 2.1 (see LICENSE), as elm-playground.
