udp-offload-engine-vhdl

A UDP/IPv4/Ethernet offload engine in VHDL, targeting a Xilinx FPGA behind the XXV Ethernet (10G/25G) MAC.

• Unpacking Ethernet, IPv4 and UDP headers

  ✅ Filtering based on destination MAC address	❌️ Receive broadcast or multicast UDP
  ✅ Checks the IPv4 header: version, fragmentation, protocol, checksum, destination IP	❌️ Check the UDP checksum
  ✅ Drops frames the MAC flagged as bad, whole	❌️ Filter by UDP port (your logic routes by udp_rx_dst_port)
  ✅ Reports the source MAC, IP and port, and the destination port	❌️ Handle backpressure: udp_rx has no tready
  ✅ Frames up to 16 KB, so jumbo frames (MTU 9000)	❌️ Reassemble fragmented IP packets

• Building Ethernet, IPv4 and UDP headers

  ✅ Destination MAC, IP and port chosen per packet, even back to back	❌️ Compute the UDP checksum (always sent as 0)
  ✅ IPv4 header checksum and a per-packet ID	❌️ Fragment a payload larger than the MTU
  ✅ Pads short payloads to Ethernet's 60-byte minimum	❌️ Reply automatically to whoever sent a packet
  ✅ Jumbo frames, measured at 9.71 Gbps on a 10G link

• ARP

  ✅ Answers ARP requests for its own IP	❌️ Send ARP requests, so it cannot find a peer's MAC by itself
  ✅ Replies go out ahead of data, never mid-packet

Measured on hardware over a 10G link in loopback: 9.71 Gbps sustained with jumbo frames (8958-byte payloads, 97.5 % of the theoretical maximum), 9.44 Gbps at 4096 bytes (95.4 %) and 8.59 Gbps at 2048 bytes (87.6 %).

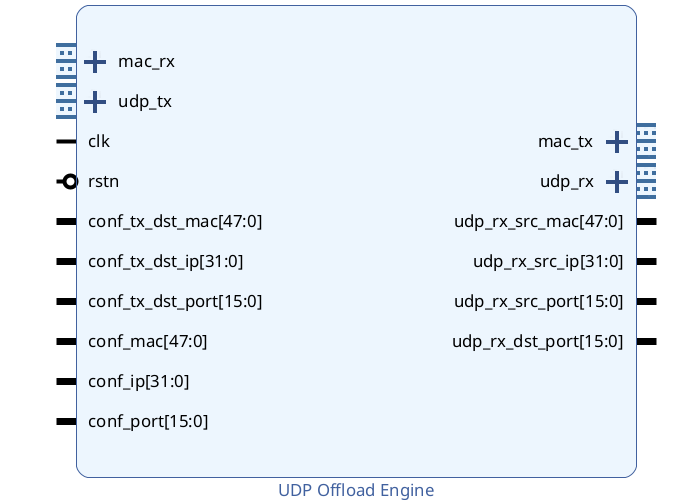

1. Package the UOE as a Vivado IP, for your FPGA part:

   ./scripts/package_uoe.sh --part xczu9eg-ffvb1156-2-e

   --part is the FPGA part of the project the IP is for: Vivado shows it under Project Settings > General > Project device, and the example is the ZCU102's. Any part Vivado accepts works.

   The IP lands in ip/uoe (--out to change that). Add ip/ to your project's IP repositories (Settings > IP > Repository) and it is in the catalog as "UDP Offload Engine".

2. Or add it to a block design, wired to an XXV 10G MAC. With the project closed in Vivado (this packages the IP itself):

   ./scripts/add_uoe.sh --project my_project.xpr --ip 192.168.1.128 \
       --dclk zynq_ultra_ps_e_0/pl_clk0 --resetn zynq_ultra_ps_e_0/pl_resetn0 --sfp 0

   • --project: the Vivado project (.xpr) whose block design gets the UOE.
   • --ip: the board's own IPv4 address on the network (the UOE's conf_ip).
   • --dclk: a free-running clock already in the block design, e.g. 100 MHz from the PS. It clocks the MAC's transceiver control and its register port.
   • --resetn: an active-low reset for that clock; it also holds the MAC in reset.
   • --sfp: ZCU102 only: which SFP+ cage (0..3) the cable is in. Sets the transceiver and writes the pin constraints.

   --dclk and --resetn name a pin as <block>/<pin>, as the block design shows it. Useful optional ones: --mac (the board's MAC, default 00:0A:35:00:00:01), --port (the UDP port it sends from, default 1234) and --axi (an AXI master, e.g. zynq_ultra_ps_e_0/M_AXI_HPM0_FPD, to reach the MAC's registers). On other boards use --gt_quad/--gt_lane instead of --sfp. Then connect your logic to udp_rx/udp_tx and conf_tx_dst_*. The options, and what is left for you, are in Docs/integration.md.

• Written by hand: the hardware design, everything in rtl/, by Yuval Peleg and Aylon Feraru.
• Written by AI (Claude), under our direction: the testbenches (testbenches/), the Python reference model (reference_model/), the scripts (scripts/), the host-side test tool (host_test/) and most of the documentation.
• Made with Claude Design: the explainer video and the logo.

Hope you find this repo useful 🙏 We've tried to make it as readable and accessible as possible.

— Yuval Peleg

MIT, see LICENSE.
