Battery charge limit, fan curves and keyboard backlight for ASUS ROG laptops on Linux. A small GTK3 app that talks to the kernel's own sysfs interfaces.

Built and tested on a ROG Strix G712LU, Debian 13 (trixie), kernel 6.12, Cinnamon. Sample size: one laptop. Mine.

A vibecoded fun project, built for my own laptop with a lot of help from Opus 5. It is not a polished product and does not pretend to be one.

It is, though, genuinely used and genuinely tested. Every claim below about what this hardware does was checked by running it and then staring at the keyboard like a weirdo, not inferred from a datasheet. Where something is untested, it says so, because "should work probably" is how you end up filing a bug against your own EC at 2am.

Edits are most welcome: issues, pull requests, or just a note saying what did or did not work on your model. If you own an ASUS ROG laptop that is not a G712LU, the single most useful thing you can send is your /sys/class/dmi/id/board_name plus the output of strixctl colour list. That is the whole ask. Two commands. Go on.

There are good tools in this space already, such as zhelper (GTK4/libadwaita, ASUS-specific), batctl (TUI/CLI, generic vendor detection), and asusctl (the reference implementation, Rust). strixctl exists because of three gaps:

• Debian. asusctl upstream explicitly does not support it, and building it means a Rust toolchain plus dev headers. Respectfully: no.
• Cinnamon/XFCE/MATE. The tray integration here is XApp, not AppIndicator and not a GNOME Shell extension. If your desktop is not the one everybody writes tray code for, hi, welcome, this one is for us.
• No daemon and no root at runtime. One udev rule hands the sysfs attributes to a group you are already in. After that the app is an unprivileged process writing integers to files. No background service holding privileges, no polkit policy, no D-Bus.

(tl;dr: bro i just wanted to fix the problem i was having instead of trawling through repos that half-work and allat. anyway. moving on.)

Prerequisites first, because a freshly installed Debian or Ubuntu has none of these:

sudo apt install python3-gi python3-gi-cairo gir1.2-gtk-3.0 gir1.2-xapp-1.0

Then:

git clone https://github.com/TheKimi7/strixctl
cd strixctl
sudo ./install.sh

Cannot be bothered with the first step? sudo ./install.sh --with-deps will apt-get the missing ones for you. Either way the installer checks before it touches anything and tells you exactly what is absent, so you cannot end up with an installed app that refuses to start. What each package is for is in Requirements.

If you already hand-rolled a charge-limit unit, disable it first. A common recipe is a oneshot that echoes a hardcoded value into charge_control_end_threshold at boot. strixctl writes the same attribute from strixctl-apply.service, and with no ordering between them the winner is whichever runs last. Two units, one sysfs file, no referee:

sudo systemctl disable --now battery-charge-limit.service   # or whatever you named it

install.sh warns if it finds a unit like that, so you do not have to remember what past you did.

The installer writes a udev rule and a oneshot service that together grant the knobs to the users group (override with STRIXCTL_GROUP=). Both are needed: udev covers the device-backed attributes, and the service covers /sys/firmware/acpi/platform_profile, which is not a udev device on kernels before 6.14, and there is no platform-profile class for a rule to match. Yes, two mechanisms for one job. Take it up with the kernel.

To restore your profile at login:

systemctl --user enable --now strixctl-apply.service

Uninstall with sudo ./install.sh --uninstall. No hard feelings.

Profiles bundle the platform profile, both fan curves, keyboard brightness and a colour, and switch together from the window or the tray. One click, whole vibe changes.

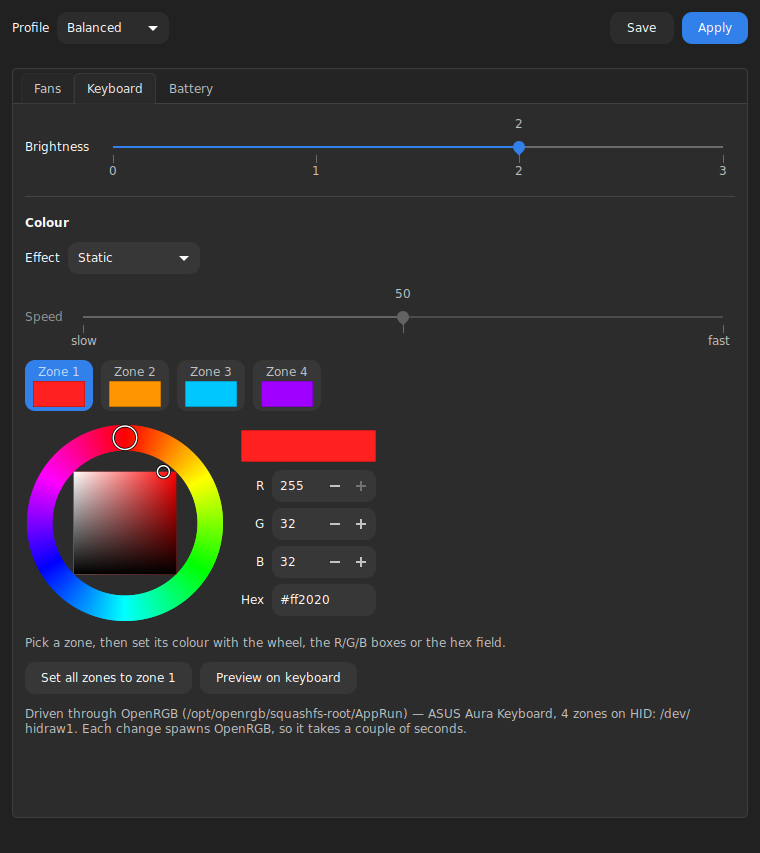

The Keyboard page follows Aura Core's layout: an effect picker, a speed slider, a row of zone swatches, and a hue-ring colour wheel with R/G/B and hex fields, with whatever the chosen effect ignores greyed out. Click a zone to choose what the wheel edits.

Five effects are offered:

Static           colour          zoned entry
Breathing        colour, speed   zoned entry
Flashing         colour, speed   per-key entry
Spectrum Cycle   speed           per-key entry
Rainbow Wave     speed           per-key entry

The list is filtered against what the hardware actually reports, so an effect OpenRGB stops advertising disappears from the UI instead of leaving a button that lies to you.

The per-key entry advertises ten more (Starry Night, Rain, the Reactive family, Comet, Flash N Dash, Keystone, Direct, Off). They are written for per-key boards and have not been checked on a 4-zone one, so they are deliberately not offered rather than offered untested. Shipping a "Starry Night" that does nothing is worse than not shipping it.

The window shows the five. strixctl colour --mode passes any name straight through, so the untested ones are still reachable if you are feeling brave, and a name the hardware does not know fails loudly rather than silently:

strixctl colour ff0000 --mode "Starry Night"    # works, untested here, godspeed
strixctl colour ff0000 --mode "Nonsense"        # Error: Mode not available

There is no sysfs path to colour on this chassis. asus::kbd_backlight is brightness only, and nothing under /sys/class/leds carries a colour attribute. Colour means HID writes to the ASUS N-KEY device (0b05:1866).

strixctl does not reimplement that protocol. It shells out to OpenRGB, which already implements it and is maintained by people who own the hardware. The cost is a subprocess and about two seconds per change; the benefit is that nobody here is guessing bytes at an embedded controller and hoping for the best.

The SDK socket was considered and rejected: decoding the controller-data blob is several hundred lines of variable-length parsing (u16-length-prefixed strings, mode and zone arrays, protocol-version-conditional fields) against a spec that does not state its endianness. For a knob that changes on a profile switch, subprocess.run is the better trade. I am not writing a parser for that. You are not writing a parser for that. Nobody is writing a parser for that.

Device selection is by name, LED count and advertised effect, never by index. Here is the fun part. On the G712LU, OpenRGB reports the one physical keyboard six times, once each on hidraw1 and hidraw2 and four times on hidraw3, plus a seventh entry, a per-key G533ZM one (also on hidraw3), because it has no G712LU profile of its own ([G712LU] device capabilities not found). One keyboard. Seven entries. It also thinks your laptop is a different laptop. It is fine. Everything is fine.

Both kinds drive this chassis. They are the same keyboard seen two ways, and the effect decides which one a write goes to:

• the 4-zone entries take four independent colours, one per zone, but offer only Static, Breathing and Color Cycle;
• the per-key entry offers every effect, but a colour list sent there would paint the first four keys rather than the four zones, so it is used only for effects that need at most one colour.

strixctl colour list shows the whole picture:

z 0: ASUS Aura Keyboard (4 leds, HID: /dev/hidraw1)  per-zone colour, three effects
z 1: ASUS Aura Keyboard (4 leds, HID: /dev/hidraw2)  per-zone colour, three effects
  ...
k 5: G533ZM (83 leds, HID: /dev/hidraw3)  one colour, every effect

./get-openrgb.sh handles installing it; see Requirements. If you would rather do it by hand, strixctl searches PATH and the usual AppImage locations, and openrgb.binary in config.json overrides the search.

You do not need OpenRGB's own udev rules for the keyboard: the rule strixctl installs already grants the N-KEY device to your group, so OpenRGB finds it without root. (Its other device classes, i2c especially, still want root, which is what its warning is about. The scary red text is not about you.)

istg bro this section should be read thoroughly. it is the one that decides whether any of this does anything at all on your machine.

Hardware and kernel. An ASUS ROG laptop whose knobs the kernel already exposes, which on a current kernel means the asus_wmi / asus-nb-wmi drivers. Every one is independent, and strixctl shows a missing one as unavailable rather than refusing to start:

Runtime. Python 3 and the GTK 3 introspection bindings. Nothing from PyPI, no virtualenv, nothing to compile, no node_modules. The code uses no syntax newer than f-strings and is developed on Python 3.13.

sudo apt install python3-gi python3-gi-cairo gir1.2-gtk-3.0 gir1.2-xapp-1.0

GTK 3 rather than GTK 4 because this targets Cinnamon, whose tray API (XApp) is GTK 3 only. Not a hill I chose, just the one I live on.

There is no requirements.txt, on purpose. pip cannot install any of this. python3-gi and python3-cairo do exist on PyPI, but only as source builds wanting a compiler and a pile of -dev headers, and the two typelibs are not Python packages at all: a GObject typelib is a binary description of a C library, and pip has no concept of one. A requirements.txt here would be a file that looks helpful right up until it fails on a fresh machine, which is worse than no file.

The apt line above is the dependency list. You do not have to take my word for it either: install.sh probes for each piece before it installs anything and names exactly what is missing, sudo ./install.sh --with-deps fetches them for you, and running strixctl gui without the bindings tells you what to install rather than throwing a traceback at you. The CLI itself needs nothing but the standard library, so strixctl status works on a box with no GTK at all.

Optional: OpenRGB, needed only for keyboard colour. Everything else works without it. There is a script, so you never have to think about AppImages or fuse:

./get-openrgb.sh

It downloads a pinned OpenRGB release, checks it against a known SHA-256, extracts it (Debian 13 ships no libfuse2, so a type-2 AppImage cannot mount itself) and puts it in ~/.local/share/strixctl/openrgb, which strixctl searches on its own. Pass --here to put it in ./openrgb beside the checkout instead, which is handy when hacking on strixctl; that path is gitignored and also searched.

The script refuses to run as root, and is kept out of install.sh on purpose: that runs with sudo, and downloading a 33 MB binary and unpacking it as root is a worse trade than typing one more command. install.sh only mentions the script if it cannot find OpenRGB.

If you would rather install OpenRGB your own way, strixctl looks on PATH and in the usual AppImage locations, or you can point openrgb.binary in config.json straight at it.

strixctl status          # every knob, its value, and whether it is writable
strixctl gui             # the control window
strixctl tray            # tray icon
strixctl battery 80      # charge limit; 'off' clears it back to 100%
strixctl profile Silent  # switch and apply
strixctl fans reset      # hand both fans back to the firmware curve
strixctl colour ff0000   # all four zones red
strixctl colour ff0000 ff3c00 ff7800 ffb400 --save   # per zone, stored in the profile
strixctl colour list     # what OpenRGB sees

strixctl status is the one to run first, and the one to paste into an issue.

Config lives in ~/.config/strixctl/config.json.

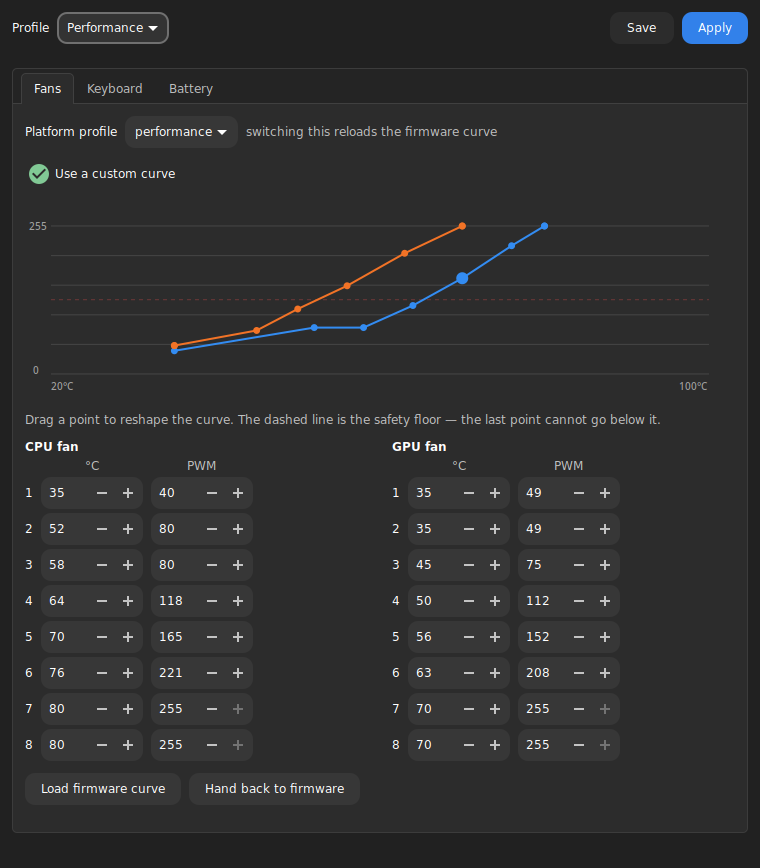

Drag the control points on the graph, or type into the spin buttons. They are two views of the same numbers, so either updates the other. Dragging is constrained to the set of curves that pass validation, so a shape you can draw is always a shape that will apply: each point is held between its neighbours, and the last point cannot fall below the safety floor drawn as a dashed line.

The UI will not let you draw something the validator then rejects, because being told "no" after the fact is deeply annoying.

Custom curves are validated before they are armed: temperatures and PWM values must be non-decreasing, and a curve asking for under 128/255 at 85 °C or above is rejected. Your laptop is not a space heater and I would like it to stay that way.

"Hand back to firmware" (pwm*_enable = 2) is one click away in the window, one item in the tray menu, and strixctl fans reset on the command line. Three escape hatches, because fans are the one thing here that can actually cook something.

Switching the platform profile makes the firmware reload its own curve, so strixctl re-arms a custom curve immediately afterwards. That ordering matters: applying the curve first and the profile second silently loses the curve, which is a genuinely infuriating bug to chase.

• Keyboard colour needs OpenRGB installed. Not a hard dependency, and the UI tells you rather than just greying out and sulking.
• Each colour change spawns OpenRGB (~2s). If that ever matters, OpenRGB's CLI can talk to its own running server with --client localhost:6742.
• No re-apply after suspend/resume. The EC normally keeps its state; if yours does not, run strixctl apply from the tray.
• CPU TDP tuning needs the asus-armoury driver, mainline only from 6.19. So that is a "later" problem.
• Tested on exactly one laptop. The backends probe rather than assume, so other ROG/TUF models should degrade to "not present" rather than misbehave, but "should" is doing heavy lifting in that sentence. Tell me what happens.

MIT. Do whatever you like with it. If your fans get loud, that is between you and your laptop.
