Every line of this repository — client, server, tests and these docs — was written by an AI coding assistant, prompted by a human who did not review it line by line. It is a recreational project, built for fun and for a handful of friends to share screens with. Treat it accordingly.
It does work: it has been run in production for a small group, the test suites are real (they drive two actual Electron clients through a real media server, nothing mocked), and the measurements quoted throughout this README were taken rather than guessed. But working and production-grade are different claims, and only the first one is being made here.
Before you put this anywhere that matters, know what it does not have:
- One shared password at best, and no accounts at all. A server password is optional and off by default; without it, anyone who can reach the server can broadcast or watch. Even with it, the password decides whether you are in, never who you are — everyone who knows it can claim any free username and watch anyone. Do not hand it to people you would not hand a house key.
- No security review, no audit, no fuzzing. Untrusted input reaches a media server and a native Windows audio module. Nobody has attacked this on purpose.
- No rate limiting, no abuse controls, no quotas. A single client can saturate your upload.
- No high availability. One host, no redundancy, no failover, no backups.
- No stability guarantees. No versioning policy, no migration path, no promise that tomorrow's commit will not break your setup.
Use it on a LAN, or among people you trust, and enjoy it. If you need screen sharing that carries real consequences when it fails, use something with an operations team behind it. No warranty — see LICENSE.
Self-hosted screen sharing with sub-second latency, on hardware you already have. Sub-second glass to glass, because nothing is ever transcoded and there is no playback buffer to scrub.
There are no accounts and no passwords. Type a username to start sharing under it. Type a name someone else is already using, and you watch them instead. That is the whole interaction model.

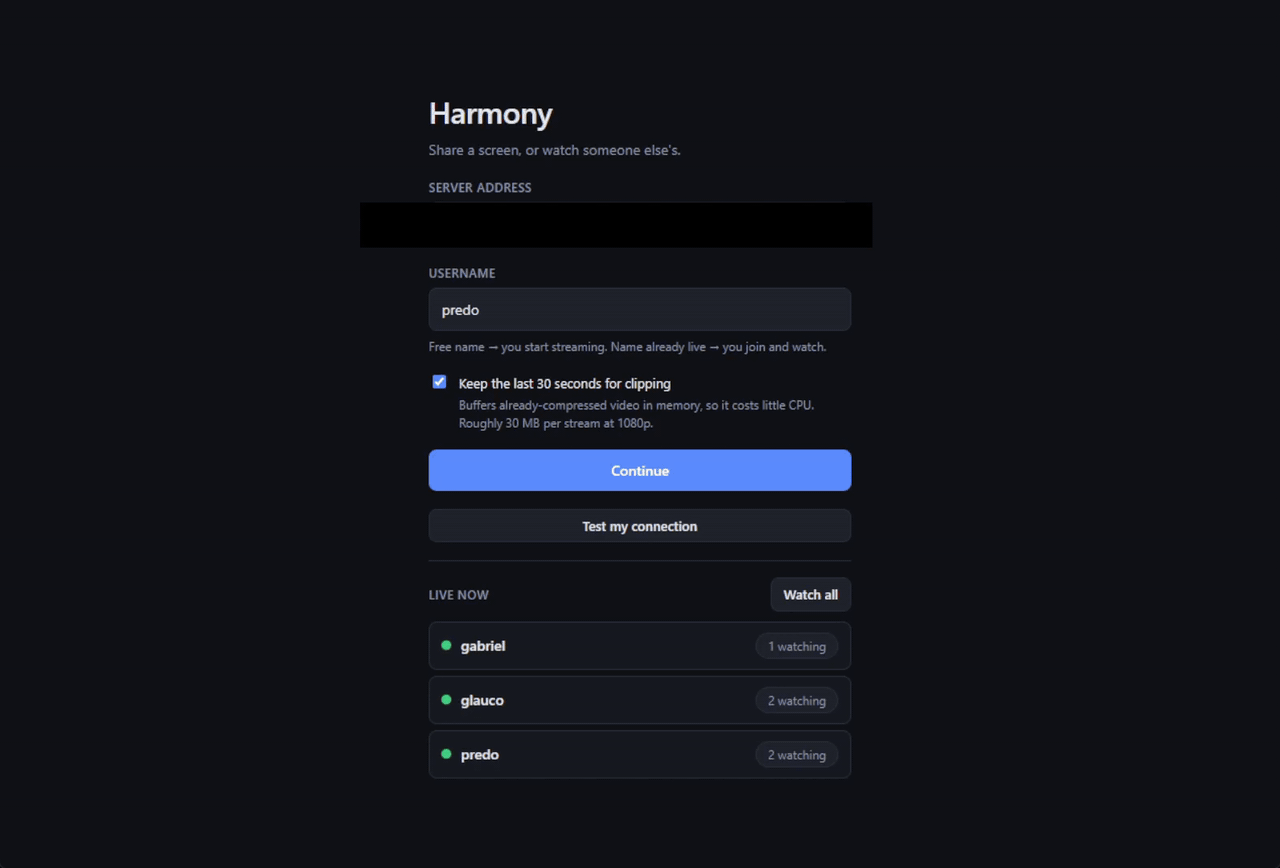

38 seconds, no sound. The same clip at full 1080p60 with audio: preview_video.mp4 (2 MB).

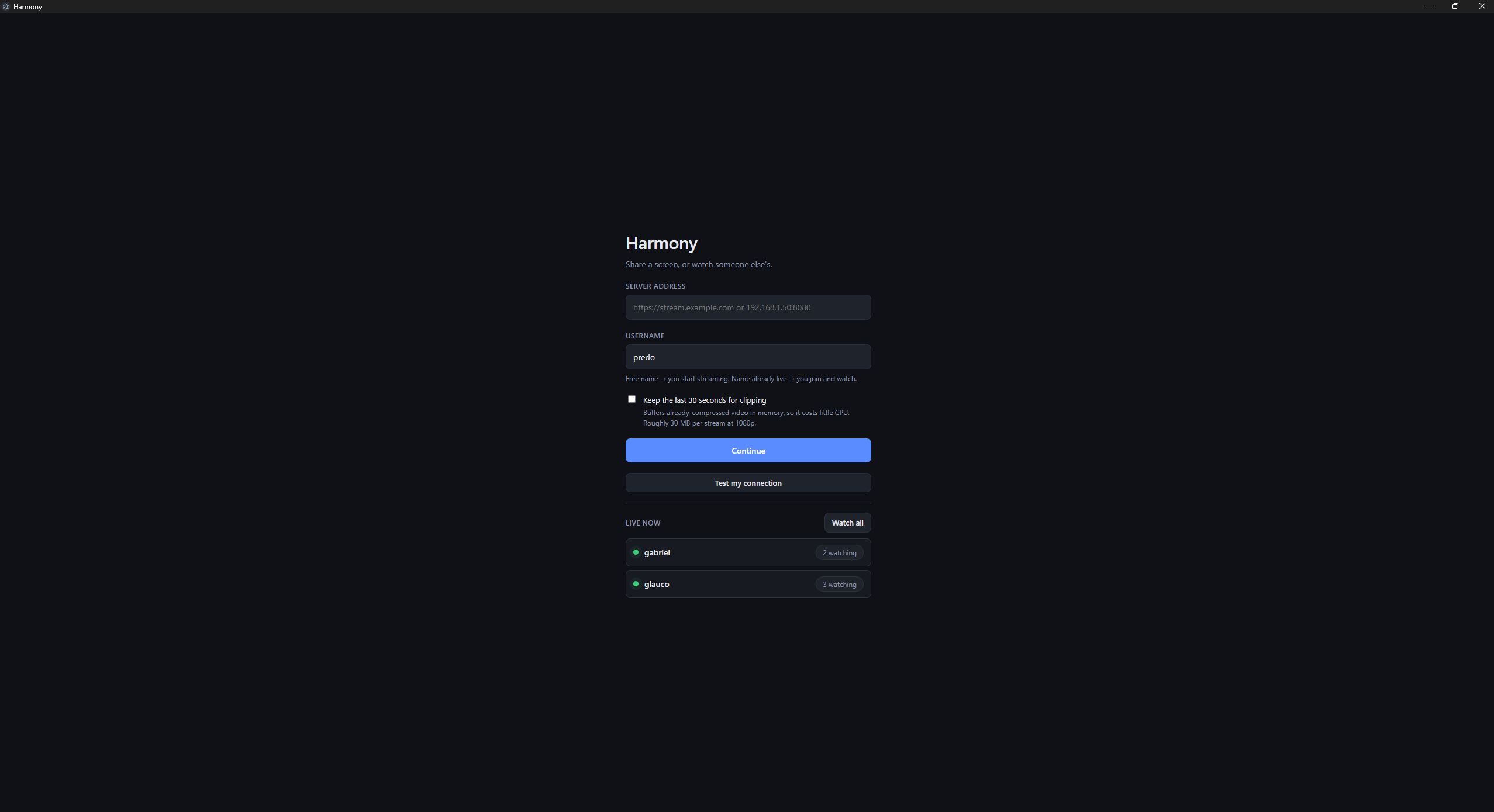

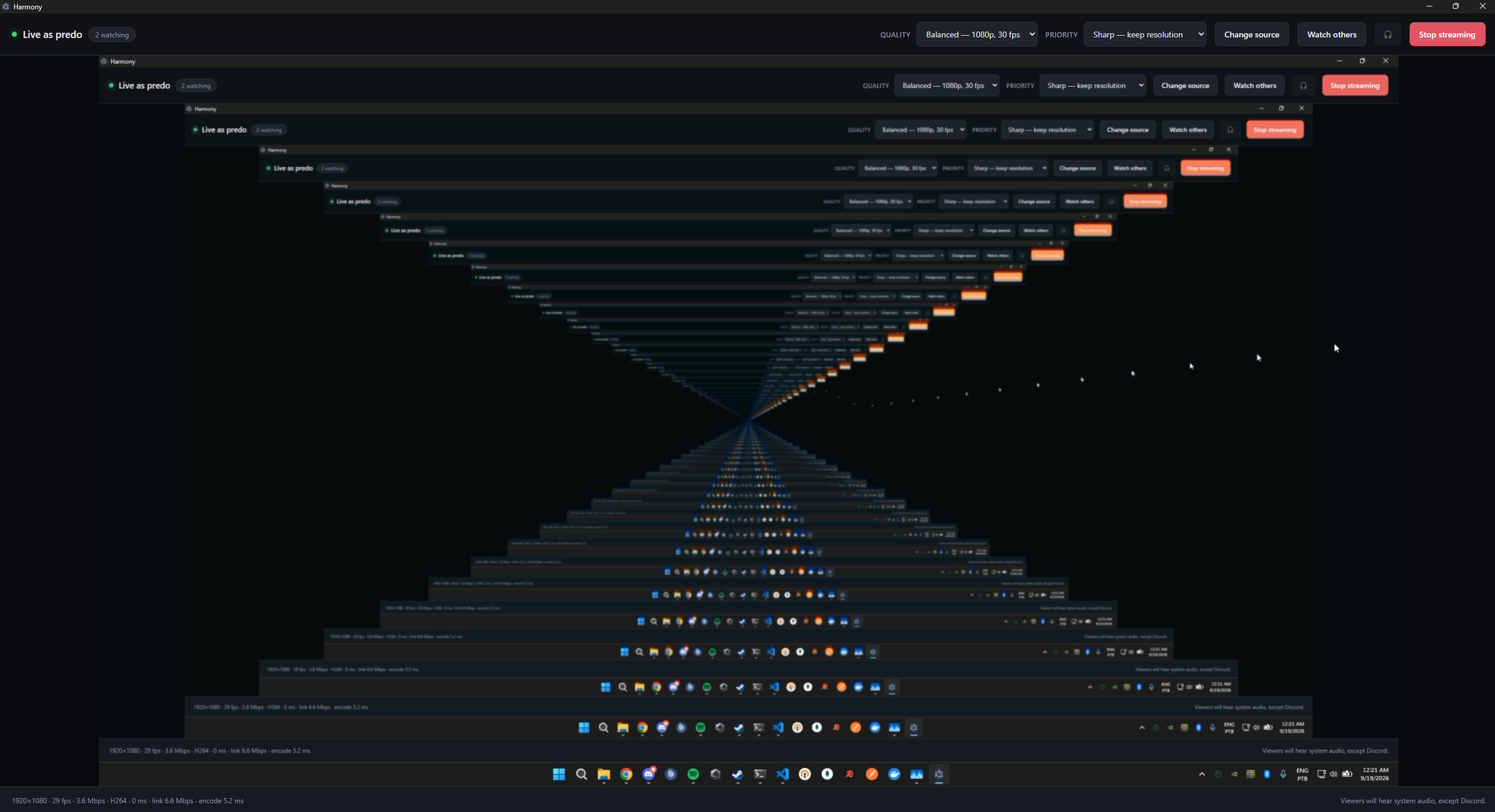

Connect · broadcast with live stats · watch several streams at once
Desktop client (Electron) Server (x86-64 or arm64 Linux)
┌────────────────────────┐ ┌──────────────────────────────┐
│ desktopCapturer │ WHIP over TLS │ Harmony control server :8080 │
│ screen │ window │ ─── signaling ─► │ • username reservation │
│ loopback-capture │ │ • MediaMTX auth hook │
│ system │ per-process │ │ • live stream list │
│ RTCPeerConnection │ SRTP over UDP │ MediaMTX :8889 / :8189 │
│ H.264, GPU encoded │ ═══ media ═════► │ pure packet relay │
└────────────────────────┘ └──────────────────────────────┘
▲ WHEP + SRTP │
└────────────── viewers ─────────────────────────┘
Almost nothing, and that is the whole design. The server never touches a pixel — it does not decode, encode, transcode, re-mux or write to disk. The broadcaster's GPU encodes H.264 and the server forwards the resulting RTP packets untouched, so its cost per stream is a socket and a memcpy rather than a video pipeline.
| CPU | Any 64-bit Linux box. x86-64 and arm64 both work, as do armv7 and armv6. No GPU, no hardware encoder, no AVX. |
| RAM | 512 MB is comfortable. Nothing is buffered server-side. |
| Disk | ~150 MB installed. Nothing is recorded. |
| Real ceiling | Your upload bandwidth. Every viewer of every stream is a separate copy out of the server: one 8 Mbps broadcaster with three viewers is 24 Mbps up. |
Run in production on a Raspberry Pi 5 (8 GB, Ubuntu 26.04 aarch64); the relay and control server also run on x86-64 on every pass of the e2e suite. A mini-PC, an old laptop, a VPS or a NAS will all do — and a VPS with real upload bandwidth is the better choice if your home connection is thin, because bandwidth is the only resource this is ever short of.
The client is where the actual work happens: it encodes on the GPU and decodes one stream per tile you open.
- Screens, windows, and cameras or capture cards — anything the OS exposes as a video input.
- Audio follows what you share. A whole screen sends system audio; a single window sends only that application's audio (Windows); a capture card takes its sound from an audio input you pick beside it.
- Exclude one app from a screen share — typically a voice-chat client, so your friends do not hear themselves.
- Change what you are sharing, mid-stream, without interrupting viewers. Quality and encoder priority are live too.
- Hear your own outgoing audio with the 🎧 button, for capture cards and microphones.
- Hide the preview while staying live. Drawing your own screen back at you is GPU work on top of whatever you are sharing, which is what makes a game feel stuttery at a high frame rate. It also detaches automatically while the window is minimised.
- Five quality presets, from 720p30/3 Mbps through 1080p60/12 Mbps to native-resolution 60 fps at 25 Mbps, and a priority switch deciding what the encoder sacrifices when the budget runs out — Sharp keeps resolution so text stays readable, Smooth keeps frame rate so motion stays fluid.
- GPU encoding and decoding (NVENC, AMF, Quick Sync) is used automatically
where the driver offers it, with software H.264 as the automatic fallback. The
stats line names the encoder actually in use — read from the connection, not
guessed — so
NVENC encodemeans NVENC really is running. - Dual-GPU warning. On a laptop with two GPUs, Harmony checks whether it is in the cross-adapter trap that costs roughly 10% of the machine, and tells you how to get out of it. See DUAL_GPU_WEIRDNESS.md.

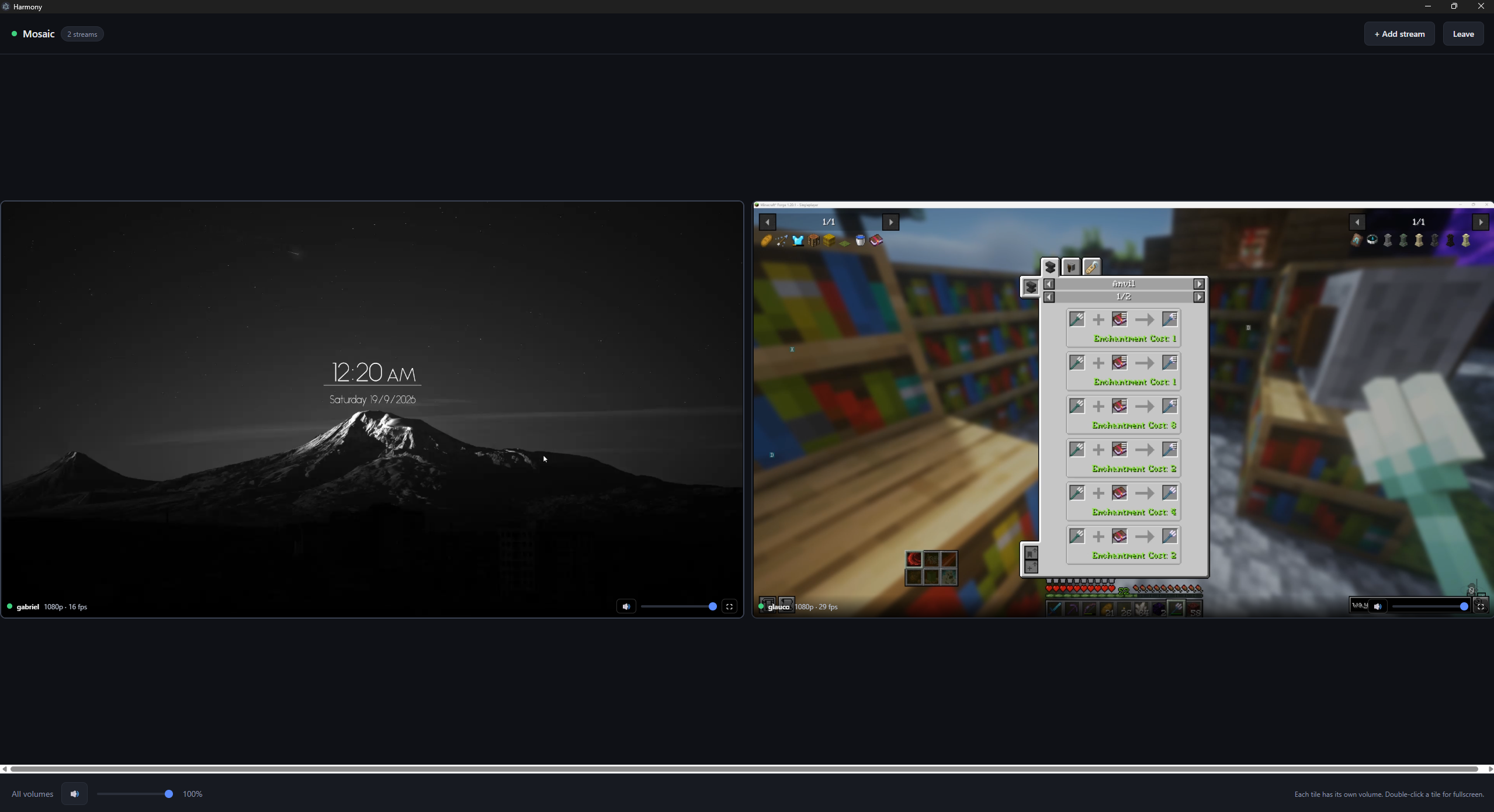

- Mosaic view — watch every live stream at once, or hand-pick a few. The grid fits tiles to the window in both directions and reflows as people come and go.
- Independent audio per tile, each with its own mute and volume, scaled by a master slider in the footer. Nothing is exclusive.
- Maximize one tile (⤢) to fill the grid with a single stream while staying inside the window — so the rest of your desktop is still there. Esc or the same button goes back.
- Fullscreen any tile with the ⛶ button or a double-click; Esc or ✕ to leave. It is the real Fullscreen API, so it covers the taskbar.
- Close a stream (✕) you are not interested in. The connection is torn down rather than hidden, and it stays closed — the grid will not quietly reopen it three seconds later.
- Broadcast and watch at the same time. Your own stream is left out of the grid — the preview already shows it, and pulling it back down would spend the bandwidth twice.
- Add a stream from inside a stream: watching one person, pick another, and they appear beside them.
- Save the last 30 seconds of any feed you are sending or watching, as an
MP4 in
Videos/Harmony Clips. Off by default; one toggle on the connect screen turns it on for every feed. - Nothing is re-encoded. The buffer taps WebRTC's encoded frames, so a clip costs a memcpy rather than a second H.264 encode per feed.
- An optional server password. Off by default. Set one and nothing but the health check answers without it — including the media, since watch URLs then carry a token of their own. Wrong guesses are rate limited on an escalating ladder: three costs 5 minutes, then 10, 30, 60. The client asks the server whether a password is wanted and only shows the box if it is.
- Works on networks that block UDP, via an ICE-TCP fallback on the same port — no TURN relay, no third party, no per-gigabyte bill.
- A connection test on the connect screen walks health → session → STUN → SDP → media and tells you which step failed.
- One portable .exe of about 82 MB, no installer and no admin rights. Enter a server address once and it is remembered.
Server, with Docker:
docker run -d --name harmony \
-p 8080:8080 -p 8889:8889 -p 8189:8189/udp -p 8189:8189/tcp \
-e MTX_WEBRTCADDITIONALHOSTS=stream.example.com \
-e HARMONY_SIGNALING_URL=https://stream.example.com:8444 \
pedrolucasmiguel/harmony-server:0.1.0linux/amd64 and linux/arm64, so the same tag runs on a mini-PC or a
Raspberry Pi. Compose and docker run examples are in docker/ —
read the note there about not remapping the media ports, which negotiate
perfectly and then play nothing.
Server, without Docker: clone the repo onto any Linux box, run
sudo server/install.sh, set two environment variables, forward port 8189 (UDP
and TCP). The installer picks the right MediaMTX build for your
architecture.
Client: cd client && npm install && npm run build gives you
dist/Harmony-1.0.0-portable.exe.
The full procedure — TLS on a line whose ISP blocks 80 and 443, dynamic IPs, packaging, tests and a troubleshooting table — is in DEPLOYMENT.md.
Relay, never transcode. This is not a micro-optimisation, and the constraint that forced it is worth stating plainly: the Raspberry Pi 5 has no hardware H.264 encoder at all (the Pi 4's was dropped), so a design that transcoded would have been capped at a few frames per second there. Building for the weakest plausible host is why it now runs on anything — an arm64 SBC, an x86-64 mini-PC, a cheap VPS — and why adding viewers costs bandwidth rather than CPU.
Two independent locks on a username. A short-lived token claim in the control
server covers the seconds between picking a name and the first packet arriving;
overridePublisher: no in MediaMTX means that even with a valid token, a second
publisher cannot take a live path away from whoever holds it. Neither lock
depends on the other being correct.
One wrinkle worth knowing, because it is measured in the e2e suite: MediaMTX
answers a WHIP offer before it decides whether that publisher may have the
path. A rejected second publisher therefore gets a perfectly successful handshake
and then streams into nothing. So the client does not trust the 201 — after
publishing it waits for the control server to confirm the stream is actually
live, and reports a clear error if it never appears.
Liveness is never tracked, only observed. The control server polls MediaMTX and mirrors what it reports. If a broadcaster's laptop sleeps, the connection drops, MediaMTX forgets the path, and the username frees itself. There is no bookkeeping to leak.
Media and signaling are separated on purpose. Signaling is ordinary HTTP and
goes through a reverse proxy or a Cloudflare Tunnel happily. Media is UDP and
cannot: cloudflared has no public UDP support, so a tunnel alone would give you
a connection that negotiates perfectly and then plays nothing. The media port has
to be forwarded.
Per-application audio is Windows-only. Chromium's loopback capture is
system-wide; capturing a single app needs the Windows WASAPI process-loopback API
through the optional native loopback-capture module. On macOS and Linux a window
share falls back to whatever you pick in the client — silent by default, so other
applications' sound never leaks into a stream by accident.
Things that were surprising, measured rather than assumed, and worth knowing before you change the code.
Chromium throttles a renderer you cannot see — down to 1 fps
A minimised or covered window drags the encoder to a few frames per second, which
looks exactly like a network problem and is not. The client disables it with
backgroundThrottling: false plus three matching command-line switches. If you
fork the client, keep them.
Separately, low frame rates are usually a bitrate ceiling. Measured on a 1080p screen full of motion: Sharp at a 4 Mbps ceiling gives ~31 fps at full resolution, and raising the ceiling to 10 Mbps takes it to ~58 fps still at 1080p. Raise the preset before reaching for Smooth.
encodedInsertableStreams is not free to leave switched on
With the flag set and nothing reading the encoded stream, Chromium keeps encoding and sends nothing at all — measured at 178 frames encoded, 0 bytes sent. So the flag is only set on connections whose frames something will actually read, which is why toggling clips takes effect on the next stream rather than the current one.
Clips carry Opus audio in MP4
Legal, and it plays in Chromium, VLC, ffmpeg and anything browser-based — but a few older Windows players will show video with no sound. Converting to AAC would need a decode/encode pass, which is the one cost this design exists to avoid.
Memory is simply bitrate × 30 s per stream: ~11 MB at the Low preset, ~30 MB at Balanced, ~94 MB at Ultra, with a hard 192 MB ceiling and the oldest frames dropped continuously.
ICE-TCP instead of a TURN relay
MediaMTX leaves its TCP media listener off by default, because TCP carries real-time media badly — one lost packet stalls everything behind it, so a congested link degrades into growing delay rather than dropped frames. That is the right default for a server where everyone can use UDP, and the wrong one for a self-hosted tool whose users sit on corporate and campus networks that drop UDP outright. ICE only falls back to it when UDP fails, so it costs nothing when it is not needed. Verified by stripping every UDP candidate from the server's answer and confirming the session still connected.
The published audio track is created once and never replaced
Everything feeds a Web Audio mixer behind it. That is what lets you switch from a
screen to a webcam mid-stream without renegotiating: replaceTrack() changes the
video sender in place, and the audio change is just the mixer listening to
something else.
WASAPI excludes one process tree per capture
PROCESS_LOOPBACK_MODE_EXCLUDE_TARGET_PROCESS_TREE takes a single target. That
platform limit is why the audio-exclusion picker is single-select rather than a
list of checkboxes — not a simplification.
"My game reports 200 fps but feels like 20" while streaming
High frame rate with bad pacing is a different problem from low frame rate, and on Windows it usually is not the encoder. Three things stack up:
1. Mixed refresh rates are the big one, and it is not Harmony's doing. When a second monitor runs at a different refresh rate, DWM can tie desktop composition to the lower of the two, and anything animating on the slow monitor — a video preview, for instance — drags the game's presentation with it. The frame counter stays high because frames are still being produced; they are just delivered on someone else's schedule. The fixes that actually work are at the OS level: match the refresh rates, run the game borderless rather than exclusive fullscreen, or move the second display to the integrated GPU.
2. Harmony keeps painting when a normal app would stop — deliberately. The three anti-throttling switches that keep the encoder alive while you look at the game (see below) also stop Chromium from backing off when its window is covered or parked on another monitor. So the preview kept being composited at full rate, forever, on the same GPU as the game.
That part is fixed: Hide preview detaches the video element, and the window
detaches it automatically while minimised. Both keep streaming — detaching
srcObject stops the painting, while the sender holds the track independently
of anything displaying it. Verified end to end: the server received
+1220 KB while the preview was hidden. Mosaic tiles pause while minimised
for the same reason.
3. H.264 was being encoded and decoded on the CPU, on a machine with a perfectly good NVENC sitting idle. Chromium offers H.264 constrained baseline first, and NVIDIA's encoder and decoder do not accept baseline at all. One change — preferring High profile — moved an entire stream onto the hardware:
| NVIDIA engine | baseline (before) | High (now) |
|---|---|---|
| videoencode | 0.00% | 19.03% |
| videodecode | 0.00% | 3.67% |
4. On a two-GPU laptop, Chromium cannot composite across GPUs on Windows. If Harmony renders on the discrete GPU while its window sits on a display wired to the integrated one, every frame is copied between adapters — and it shows up as the desktop compositor's cost, not Harmony's. Measured on a hybrid laptop: 25% of a GPU, falling to 1.5% once the panel was wired straight to the discrete GPU. Harmony now warns about this on the connect screen, because no setting inside the app can fix it — it is a MUX / Advanced Optimus switch.
Worth ruling out first: minimise Harmony entirely. If the stutter goes away, it was compositing (1, 2 and 4). If it does not, it is contention.
The full investigation, with the measurement commands, the dead ends and the numbers, is in DUAL_GPU_WEIRDNESS.md.
It is not a canvas. The preview is a <video> element fed the capture
stream directly — the only canvas in the client is a 160×90 test pattern used by
Test my connection.
NVENC, AMF and Quick Sync are already in use — there is nothing to integrate
This gets asked a lot, so it is worth writing down with numbers. On Windows, Chromium already routes WebRTC's H.264 encoding through Media Foundation's VideoEncodeAccelerator, which is a front end for whichever vendor encoder the driver provides: NVENC on NVIDIA, AMF/VCE on AMD, Quick Sync on Intel. There is no flag to switch on and no vendor SDK to link against.
Measured here by running the identical encode twice, once with Chromium's
hardware encoding disabled (1920×1080, H.264, contentHint: 'detail', 8 Mbps
ceiling):
| Source | GPU | CPU only | Difference |
|---|---|---|---|
| Synthetic canvas, heavy motion | 5.3 ms/frame | 9.9 ms/frame | −46% |
| Real screen share | 8.1 ms/frame | 9.9 ms/frame | −18% |
The margin depends on the content — a busy frame is where the GPU pulls ahead. Hardware decoding is on by default for viewers too.
Software H.264 is the automatic fallback. Chromium drops to OpenH264 on the CPU when no hardware encoder exists or it fails to initialise, so a machine with no usable GPU encoder still streams; it just spends more CPU doing it. Verified by forcing the software path and checking it still encodes and sends.
What Chromium will not tell you is which encoder a given stream ended up on.
encoderImplementation is in the WebRTC stats spec, but it is absent from this
Electron build's outbound-rtp — confirmed by dumping every field the stats
object exposes, not by assuming. So the client reports the capability, from
app.getGPUFeatureStatus(), and the broadcast stats line ends in GPU encode or
CPU encode. A capability is an honest thing to report; a guess is not.
One trap, which this project fell into before catching it.
getGPUFeatureStatus() answers disabled_software until the GPU process has
reported, and that takes about 300 ms after the window loads — measured:
17ms app ready video_encode=disabled_software
66ms did-finish-load video_encode=disabled_software <- the UI asks here
170ms +100ms video_encode=disabled_software
382ms +300ms video_encode=enabled
The client asks during start-up, which lands in the middle of that, so reading once and keeping the answer reported "no GPU encoder" for the entire session on a machine that was encoding on its GPU the whole time — Task Manager showing 18% Video Encode while the app insisted there was none. It now waits for the GPU process to report (bounded, since a machine with no hardware encoder never flips), caches the settled answer, and re-checks when a broadcast starts.
If you go measuring this yourself, do not trust a single early read.
Almost all of the 82 MB download is Chromium, not this app
Harmony's own code plus its two runtime dependencies is under a megabyte, so shrinking the build means shrinking what Electron ships. Three measures took the portable .exe from 95.7 MB to 82.2 MB:
| Change | Saved (uncompressed) |
|---|---|
electronLanguages: [en-US] — Chromium ships 55 locale files |
~48 MB |
Dropping dxcompiler.dll + dxil.dll — DirectX shader compilation for WebGPU, which this app has no use for |
27 MB |
compression: maximum |
— |
The 20 MB LICENSES.chromium.html stays: it is a licence-compliance
requirement, and it is text, so it compresses to almost nothing. vk_swiftshader.dll
also stays — it is only 6 MB, and it is what renders on a machine with no usable
GPU driver.
If a removal ever breaks a machine, the list is one array in client/scripts/after-pack.js.
Fit tiles to the window in both dimensions, not just width
The mosaic tries every column count and keeps whichever makes each 16:9 tile largest while still fitting the height. Sizing on width alone — the obvious approach, and the first one here — had a real consequence: four tiles in two columns of a wide window made rows taller than the window, and the bottom row's volume and fullscreen controls sat below the fold where they could not be clicked at all.
server/
mediamtx.yml relay config — annotated, worth reading before changing
src/rooms.js username reservation
src/mediamtx-api.js liveness polling
src/index.js HTTP API + MediaMTX auth hook
install.sh installer (detects architecture)
client/
src/main/ Electron main: capture, native audio, all HTTP
src/preload/ the one bridge into the renderer
src/renderer/ UI, WHIP/WHEP, PCM → WebRTC audio pipeline
test/ smoke (packaged builds), e2e (two real clients)
npm --prefix server test # reservation logic + auth hook
npm --prefix client test # launches the app, drives it over CDP
MEDIAMTX_BIN=/path/to/mediamtx npm --prefix client run test:e2eThe e2e suite starts MediaMTX and the control server, then drives two Electron clients — one publishes its screen over WHIP, the other enters the same username and must end up decoding that video over WHEP. Nothing is mocked.
- One stream per username. That is the design, not a bug.
- No accounts. The optional server password is one shared secret, not identity: anyone who knows it can claim any free username. Without it, so can anyone who can reach the server.
- No recording on the server. MediaMTX can do it without re-encoding
(
record: yesinpathDefaults) but it is off — partly because an SD card is a poor place for video, partly because writing to disk is the one thing that would give the server a cost that scales. Client-side clips cover the common case. - No adaptive simulcast. Every viewer gets the broadcaster's single encoding. Adding simulcast would move work onto the broadcaster rather than the server, so it is feasible — just not done.
- Viewer "pause" freezes on the last frame and resumes at live. There is no buffer to scrub, which is the normal trade for sub-second latency.
- The mouse cursor cannot be excluded from a screen share. Not a decision —
Chromium ignores the
cursorconstraint entirely. Measured on Electron 44:getSupportedConstraints()does not listcursor, andcursor: 'never',{ exact: 'never' }and{ ideal: 'never' }all leavegetSettings().cursorat"always", at capture time and viaapplyConstraints()on a live track. Electron'ssetDisplayMediaRequestHandlerhas no cursor option either. See crbug 41456762. Hiding it would need the native capture path described in DUAL_GPU_WEIRDNESS.md.
MediaMTX · Electron · mp4-muxer · loopback-capture
MIT
0 comments
log in to comment.
