   wizard  ──▶   │            config/tiermodel.json              │   ◀── you edit this
                 │              the source of truth              │
                 └───────────────────────────────────────────────┘
                            │            │            │
                     deploy │      audit │       sync │
                            ▼            ▼            ▼
                     converges     reports the    keeps membership
                    the directory     drift          current

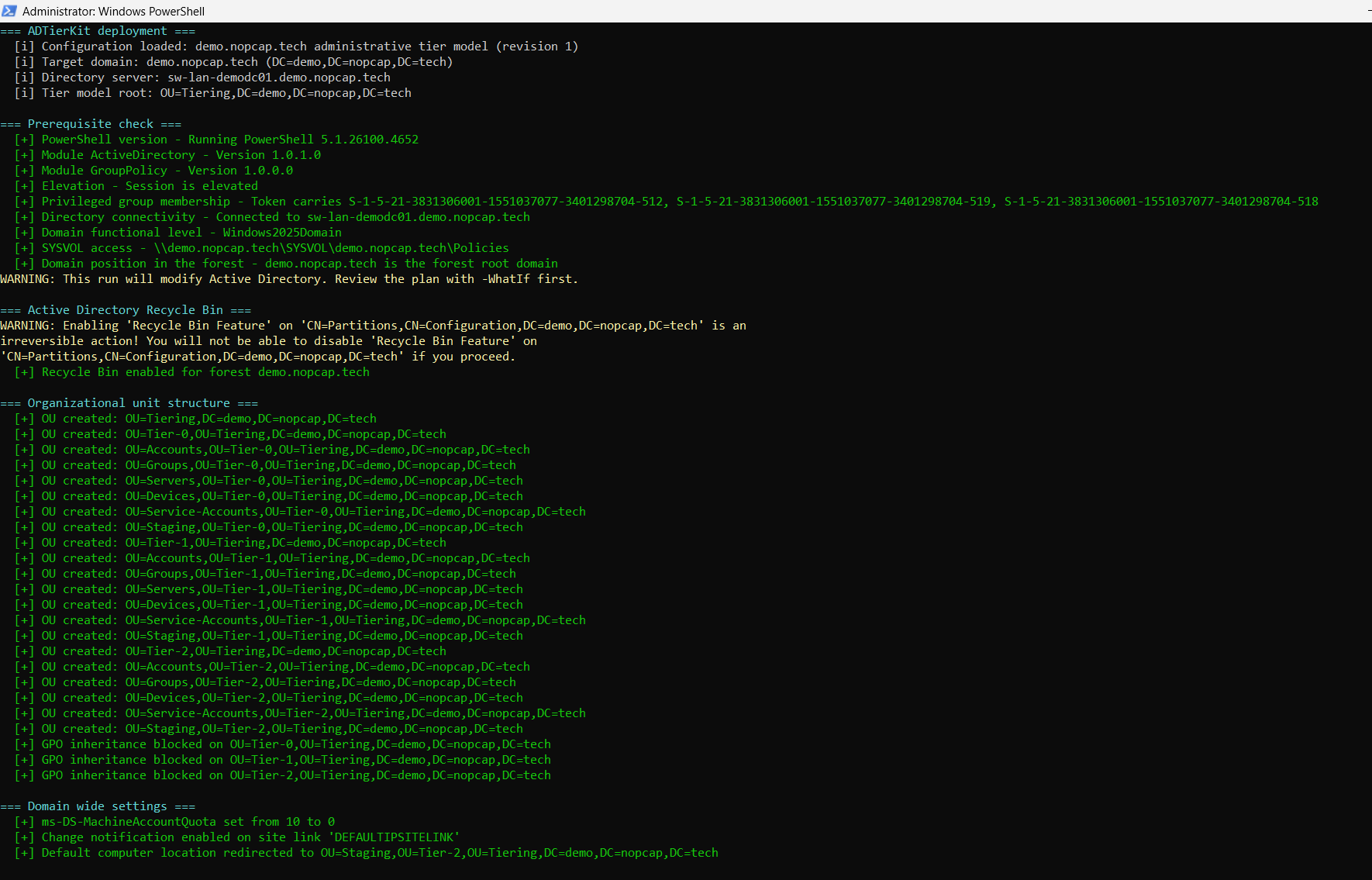

_{A full deployment. Every stage reports what it created, skipped or found compliant.}

Tiering an Active Directory is not hard to understand and very hard to finish. The structure can be built in an afternoon; deciding which of nine hundred existing servers belongs to which tier cannot, and the projects that stall usually stall exactly there. ADTierKit is built around that reality — it automates everything that can be automated, refuses to guess at the rest, and tells you plainly which is which.

A guided wizard asks for your naming convention, previews every object it would create, and writes a single configuration file. From then on that file is the source of truth. Everything is idempotent, and everything plans before it writes.

The whole tool is one PowerShell script plus one JSON configuration file. No module to import, no folder structure to preserve, no build step. Copy two files onto a domain controller and run them.

For the full walkthrough — every setting the tool writes, the day-to-day working model and the complete rollout playbook — see the Operator's Guide.

⚠️ needs -Apply before anything is written · ✅ writes to the directory · — read-only

Exit codes   0 success  ·  1 deploy failures  ·  2 drift found  ·  3 prerequisites failed  ·  4 high severity findings  ·  5 pinned configuration changed

OU=Tiering
├── OU=Staging                    neutral landing zone — new computers, administered by no tier
├── OU=Tier-0                     control plane — domain controllers, PKI, identity
│   ├── OU=Accounts               adm-t0-*, break glass
│   ├── OU=Groups                 G-T0-Admins · G-T0-Operators · DL-T0-* · every tier's DenyLogon / Exempt-Logon
│   ├── OU=Servers                Tier 0 member servers
│   ├── OU=Devices                privileged access workstations
│   ├── OU=Service-Accounts
│   └── OU=Staging                landing zone before production
├── OU=Tier-1                     server plane — applications, databases, file services
│   └── … same shape
└── OU=Tier-2                     workplace plane — clients and their administrators
    └── … same shape

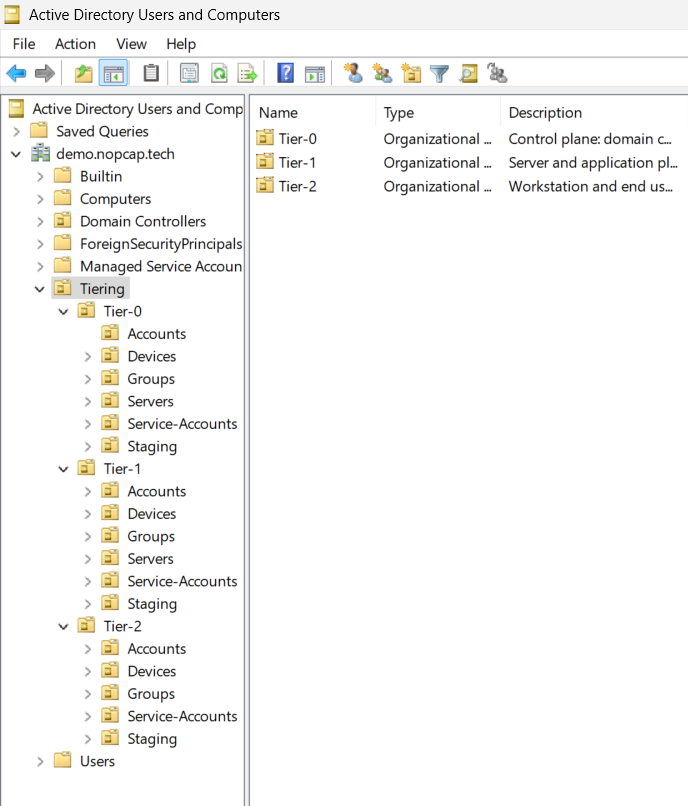

The result in ADUC Three tiers, each with the same six sub-OUs.

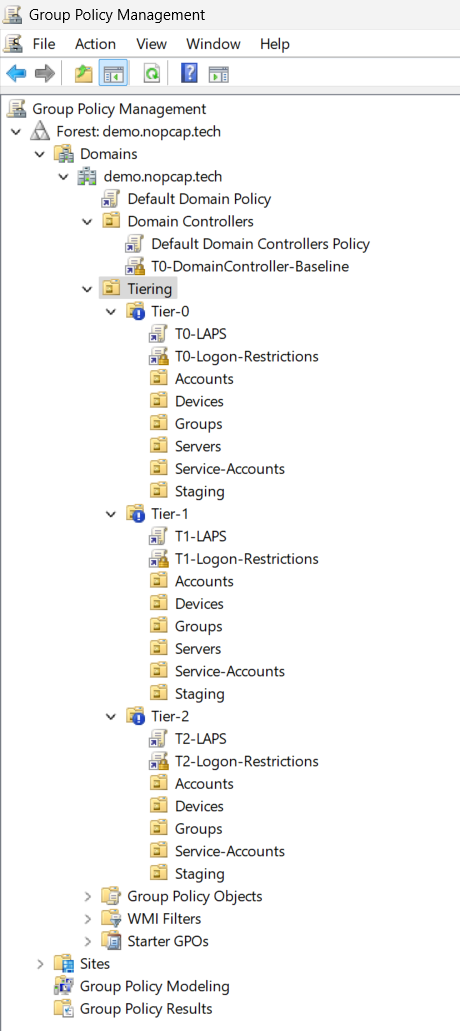

The result in GPMC Logon restrictions and a LAPS policy per tier, plus the domain controller baseline.

The isolation logic is deliberately simple and reviewable: each tier has exactly one deny-logon group, and the GPO denies that single SID the logon types that matter. Changing who is locked out of a tier is a group membership change, not a GPO edit.

DNS zones get created, Group Policy objects get written — jobs somebody has to be allowed to do without being allowed to do everything else.

A role is not one object, which is what makes adding one by hand risky. It is a global group, a disabled template account, a set of ACEs, a membership in the deny logon group of every other tier, and a membership in the tier's authentication silo. Forgetting the deny nesting is the expensive one: the new group can then log on everywhere, and nothing reports it, because from the directory's point of view nothing is wrong. So a role is declared once and expanded into all of it at load time:

"roles": [
  {
    "name": "DNS",
    "tiers": [0],
    "roleGroup": "G-{TOKEN}-DNS-Admins",
    "templateAccount": "adm-{TOKENLC}-dns-template",
    "privilegedGroupNesting": [ { "name": "DnsAdmins" } ],
    "delegations": [ … ]
  }
]

Expansion happens inside Import-TierConfiguration, before validation and before any stage sees the configuration. Deploy, audit and sync therefore need no knowledge of roles at all — the groups and ACEs a role produces are indistinguishable from ones written out by hand, and are audited, synced and reported the same way.

nestIntoForeignDenyGroups defaults to on because the failure mode of forgetting it is silent and the failure mode of over-denying is a logon error somebody notices within the hour.

privilegedGroupNesting produces two things from one declaration, and they are not the same:

• an entry in privilegedGroups, which is what watches the built-in group for members that are not supposed to be there
• an entry in builtInNesting, which is what actually performs the nesting, from the Nesting stage

The split exists because the privileged group stage runs in report mode by default, where an absent declared member is reported rather than added — a DNS role would hold no permissions at all until somebody switched privilegedGroups.mode to Enforce.

The division of labour is strict: Nesting only ever adds what the configuration declares, PrivilegedGroups only ever removes what it does not. They cannot fight, as long as everything nested is also declared. Role expansion writes both from one line; a hand-written builtInNesting entry that gets it wrong is refused rather than left to flap between the two stages.

Two refusals worth knowing:

• A role below the top tier cannot be nested into a privileged built-in group. DnsAdmins members can load a DLL into a service running as SYSTEM on a domain controller. The role group is still created — only the nesting is refused, as a High finding.
• A built-in group that does not exist is a state, not a fault. DnsAdmins appears with the DNS server role; the entry is skipped and reported at Low severity.

In audit mode, a role that exists but is not nested is a Medium finding: configured, not in effect.

Roles reach containers outside the tier model — the DNS server object, the policies container, AdminSDHolder — through seven additional targetOu values listed under OU references.

Both are in config/roles.example.json, and both are Tier 0 where they create objects — creating a DNS zone means being able to create records under _msdcs, and creating a Group Policy object makes you its owner.

DNS. The goal is an empty DnsAdmins. Its members can load a DLL into a service running as SYSTEM on a domain controller, and it is neither covered by AdminSDHolder nor marked with adminCount, so nothing in a standard audit flags it as privileged. The role holds its permissions by being nested into it, and the group is watched so a direct member becomes a finding.

DnsAdmins is also the one group here not addressed by SID: created by the DNS server role rather than the operating system, it has an ordinary RID that differs between domains — but it is not localised either, which is what makes the name lookup safe there and nowhere else.

Group Policy. The interesting part is what the role deliberately cannot do. The GMPC permission called Link GPOs grants write access to both gpLink and gpOptions, and write access to gpOptions is the ability to block inheritance and cancel every policy handed down from the domain — including the baseline. The shipped delegation grants gpLink for writing and gpOptions for reading only. The GPMC displays the inheritance state correctly and refuses to change it.

Edit settings is less satisfying: it maps to write access on all properties, so a delegate can rename a policy and change its WMI filter, and changing the filter changes which machines it applies to. The narrower grant that would prevent it is refused by the GPMC, which will not open a policy it cannot fully write. Auditing is the available mitigation, so $PoliciesContainer carries a SACL and every rename and filter change is recorded.

Creation stays in Tier 0 for a reason the delegation model cannot work around: an owner holds WRITE_DAC implicitly, whatever the DACL says. A policy created by a delegated administrator is permanently re-permissionable by them, and any granular delegation placed on it afterwards is advisory.

Any GPO in the configuration can now declare its owner and its editors:

{
  "name": "T1-Logon-Restrictions",
  "delegation": {
    "editors": ["G-T1-GPO-Admins"],
    "owner": "512"
  }
}

The owner is compared on every run and reported when it has drifted, because a drifted owner means the granular delegation on that object is no longer binding.

The same problem exists for every object a tier administrator creates in their own branch — a sub-OU they own is one they can re-permission and move objects into. That is what the Ownership stage is for.

The delegation model withholds WriteDacl and WriteOwner so that a tier administrator cannot rewrite the permissions that constrain them. Ownership goes around it: an owner holds WRITE_DAC implicitly, whatever the DACL says.

Windows takes the owner of a new object from the creator's token. A member of Domain Admins creates objects owned by Domain Admins; everybody else creates objects owned by themselves. So a delegated administrator owns everything they create — and an owned sub-OU can be re-permissioned, have objects moved into it, and be opened to principals from another tier. The granular delegation is binding right up until somebody creates something.

"ownership": {
  "enabled": true,
  "mode": "Report",
  "owner": "512",
  "acceptableOwners": [],
  "scopes": ["$ModelRoot"],
  "objectClasses": ["user", "group", "computer", "organizationalUnit", "msDS-GroupManagedServiceAccount"],
  "maxObjects": 5000
}

The stage finds nothing at all on a freshly deployed model — the deployment account created everything, so everything is owned correctly. It starts finding things the first time the model is actually used, which is why it runs in Sync as well as in Deploy and Audit.

acceptableOwners exists for the cases that are fine but not the declared owner — objects created by Enterprise Admins during a forest operation, for instance. Listing them stops the same finding appearing every day.

Switch mode to Enforce once the list has been reviewed. Nothing about reassigning an owner is destructive, but it is the kind of change that is easier to explain before it happens than after.

A tool that removes logon rights can lock you out of the domain it is meant to secure. These are the mechanisms that stop that from happening — and every one of them exists in response to a way it actually went wrong.

Before a single logon restriction is written, deployment resolves every deny group recursively and checks it against two identities that must not lose access: the account running the deployment, and the built-in Administrator. If either would be denied, the GPO stage is skipped entirely, and the finding names the policy, the group and the target:

[!] LOCKOUT RISK - the logon restriction stage was not applied
[!]   T0-DomainController-Baseline denies logon to DL-T0-DenyLogon on
      OU=Domain Controllers,DC=... , which contains the account running this deployment

The check is deliberately narrow, and that is the interesting part. Cross-tier denial is the whole point of the model: a Tier 0 account is supposed to lose its logon rights on Tier 1 and Tier 2 systems, and once the top tier group is nested into Domain Admins as the configuration declares, every Tier 0 account is a Domain Admin sitting in the other tiers' deny groups. A guard that flagged that would fire on every correctly configured domain — and a warning that always fires is one nobody reads. So it examines only the policies that reach a machine you would need in order to fix the result: the domain controller, and the host the script runs from.

-Force overrides it. The override is then recorded as a deliberate decision rather than a failure, so the next run's summary stays meaningful. Audit mode reports the same check as a high severity finding, which catches a membership added after deployment.

And if it goes wrong anyway, Repair-TierLockout.ps1 is the way back.

Run .\ADTierKit.ps1 -Mode Check to verify all of it, including whether the target domain is the forest root.

1. Unblock the files after copying them to the server:

Get-ChildItem C:\ADTierKit  Read the rest on GitHub
