Write Stride shaders in C#: typed, checked by the C# compiler, reloaded live. The engine's own SDSL shaders are available as C# classes to inherit, call and modify, and any .sdsl converts to C# and back.

[Shader, Mixin(typeof(Global))]
public partial class DemoRings : ImageEffectShader
{
    [Stage]
    public override float4 Shading()
    {
        float2 p = streams.TexCoord - 0.5f;
        float d = length(p);
        float wave = 0.5f + 0.5f * sin(d * 60.0f - Time * 5.0f);
        float fade = saturate(1.0f - d * 1.6f);
        float3 color = lerp(new float3(0.05f, 0.1f, 0.3f), new float3(1.0f, 0.8f, 0.3f), wave) * fade;
        return new float4(color, 1.0f);
    }
}

is translated at build time, by a Roslyn source generator, to the SDSL the engine compiles:

shader DemoRings : ImageEffectShader, Global
{
    stage override float4 Shading()
    {
        float2 p = streams.TexCoord - 0.5;
        float d = length(p);
        float wave = 0.5 + 0.5 * sin(d * 60.0 - Time * 5.0);
        float fade = saturate(1.0 - d * 1.6);
        float3 color = lerp(float3(0.05, 0.1, 0.3), float3(1.0, 0.8, 0.3), wave) * fade;
        return float4(color, 1.0);
    }
};

• Shaders as C# classes. A partial class marked [Shader], written with HLSL's types (float3, float4x4, Texture2D<T>, swizzles, intrinsics): IntelliSense, go to definition, refactoring, and compile errors before the shader compiler sees anything.
• The whole engine, typed. 476 of Stride's 479 shaders as C# classes (Csl.Engine), so a shader inherits ImageEffectShader, mixes in ColorUtility or calls LuminanceUtils.Luma with checked types.
• Compute wrappers. Each compute shader gets a generated …Effect class: one typed property per parameter, resource checks, Dispatch(width, height).
• SDSL → C#. csl convert turns any .sdsl, the engine's included, into such a class, to read or to modify; the modified shader replaces the engine's under the same name.
• Checked on the whole engine. Every engine shader is converted SDSL → C# → SDSL and both versions are compiled by the engine; the SPIR-V is compared instruction for instruction.
• Live reload in the demo: save a shader, see it redrawn.
• Run and debug on the CPU. The same C# runs on the CPU (Csl.Cpu), engine code included, with the GPU's arithmetic as measured: Ctrl+click a pixel in the demo and step through its shader in the debugger.

Windows, the .NET 10 SDK and a Direct3D 11 GPU (feature level 11_0). Stride 4.4.0-beta8 comes from NuGet on restore (StrideVersion in Directory.Build.props; -p:StrideUseDevPackages=true picks the packages a local Stride checkout packs).

git clone https://github.com/Nicogo1705/StrideCSL
cd StrideCSL
dotnet run --project demo/Csl.Demo

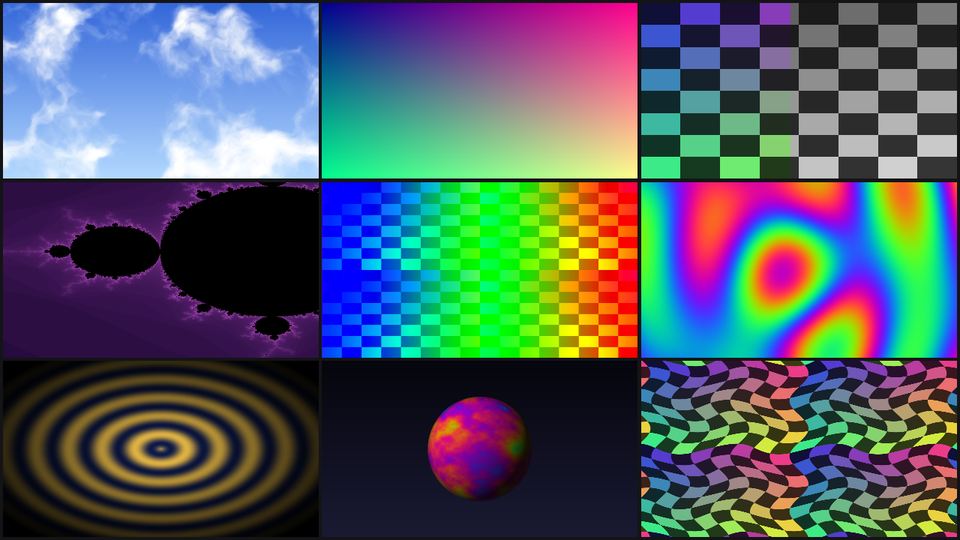

(or Csl.Demo, the first project of StrideCSL.slnx, from Visual Studio). A window shows the shaders of demo/Csl.Demo/Shaders/, all written in C#. Edit one and save while it runs: it is redrawn from the new C#, no restart. C# errors are printed in the console the way the build prints them, and the previous version stays on screen until the file compiles again.

Keys: 1-9 one shader alone, 0 or space all of them, B the blur on and off, + and - its radius; Ctrl+click a tile to run that pixel on the CPU, stopping in the debugger when one is attached (see Running shaders on the CPU).

The demo's launch profiles (Visual Studio's start button list, or dotnet run --project demo/Csl.Demo --launch-profile "..."):

The profiles turn Visual Studio's Hot Reload off: the demo reloads Shaders/ itself on save, and the SDSL constant the generator writes for each shader is a change Hot Reload cannot apply.

Each image effect is an ImageEffectShader with Shading() overridden, directly or through DemoTile; the tiles draw into a texture that DemoBlur blurs into the back buffer. A new non-abstract [Shader] class in the folder gets a new tile; an abstract one is shared code.

The same three ways as in SDSL, the engine's shaders and yours alike:

// Inherit: DemoTile writes Shading once and calls Color, which each tile overrides.
[Shader]
public partial class DemoPlasma : DemoTile
{
    public override float3 Color(float2 p)
    {
        float v = sin(p.x * 8.0f + Time) + sin(length(p * 8.0f) - Time * 1.5f);
        return DemoCommon.Palette(v * 0.25f);   // call: a static function, by name
    }
}

// Mix in: the mixed-in shader's methods become the class's own.
[Shader, Mixin(typeof(BlendUtils))]
public partial class DemoOverlay : DemoTile
{
    public override float3 Color(float2 p)
    {
        float4 checker = Texture0.Sample(LinearRepeatSampler, streams.TexCoord * 2.0f);
        float4 gradient = new float4(DemoCommon.Palette(p.x * 0.4f + Time * 0.2f), 1.0f);
        return Overlay(gradient, checker).rgb;   // BlendUtils.Overlay, from the engine
    }
}

A shader whose only role is to be shared is an abstract partial class: DemoCommon holds static functions, DemoTile a base class with virtual methods.

Saving recompiles the folder the way the build does (Roslyn, the Csl generator, the translator: LiveCompiler), and each shader whose SDSL changed is registered again under a new name (DemoRings_2), so the effect compiler has nothing cached for it. The shaders that use a changed one follow it: editing DemoCommon redraws the four tiles that call it, their SDSL pointing to DemoCommon_2. The keys of each new name (DemoBlur_2.Radius, DemoTile_2.Aspect) are registered as aliases of the ones the build generated, so what the app sets keeps reaching the shaders; a parameter added while the demo runs needs a rebuild.

Csl.Demo --shot FILE.png [--time T] [--blur R] compiles the shaders from their files, draws once, saves the image and exits, the window hidden.

A project that writes shaders in C# references:

<ProjectReference Include="..\StrideCSL\src\Csl.Types\Csl.Types.csproj" />
<ProjectReference Include="..\StrideCSL\src\Csl.Engine\Csl.Engine.csproj" />
<ProjectReference Include="..\StrideCSL\src\Csl.Runtime\Csl.Runtime.csproj" />
<ProjectReference Include="..\StrideCSL\src\Csl.Generators\Csl.Generators.csproj" OutputItemType="Analyzer" ReferenceOutputAssembly="false" />

using Csl; using Csl.Engine; using Csl.Types; using static Csl.Types.Intrinsics;

/// <summary>Output[i] = ToLinear(i / 63): an engine shader mixed in, its method called with types.</summary>
[Shader, NumThreads(64), Mixin(typeof(ColorUtility))]
public partial class CslColorLinear : ComputeShaderBase
{
    [Stage] public RWBuffer<float> Output;

    public override void Compute()
    {
        uint i = streams.DispatchThreadId.x;
        Output[i] = ToLinear(i / 63.0f);
    }
}

The generator writes, next to the class, the SDSL (CslColorLinear.SdslSource, registered at start-up in ShaderSourceRegistry), CslColorLinearKeys in the shape the engine gives a .sdsl, and for a compute shader CslColorLinearEffect, a typed wrapper:

using var output = Csl.Buffers.NewTyped<float>(GraphicsDevice, 64, CslColorLinearEffect.Slots.Output);
using var effect = new CslColorLinearEffect(Services) { Output = output };
effect.Dispatch(64);

A shader of any other kind (a material feature, an image effect) is used by name like any engine shader: new ImageEffectShader(nameof(CslInvert)).

C# has one base class where SDSL has many: the first SDSL base is the C# base, the others are [Mixin(...)]. The generated half of every shader class declares the mixins' members as stubs (so they are in scope, typed) and streams, typed as the class itself, so streams.Position reads as in SDSL and is checked.

Csl.Engine has the engine's shaders as C# classes; inherit one, override its methods:

[Shader]
public partial class CslInvert : ImageEffectShader
{
    [Stage]
    public override float4 Shading()
    {
        float4 color = Texture0.Sample(PointSampler, streams.TexCoord);   // Texturing's, through SpriteBase
        return new float4(1.0f - color.rgb, color.a);
    }
}

A method of a mixin (not of the C# base class) is overridden with [Override]; a mixin's method reached through base is Sdsl.Base(this).Method().

csl convert --engine LuminanceUtils --namespace My.Shaders --out Shaders writes the engine's LuminanceUtils as a full C# class, bodies included. Edit it; it keeps the engine's SDSL name, so once registered (at the first ComputeEffect, or ShaderSourceRegistry.InstallInto(effectSystem)) it replaces the engine's shader in every effect that uses it. tests/Csl.TestApp/Modified does this and the gpu tests check the result.

csl convert Shaders/MyShader.sdsl --out Shaders/Cs              # a project's shaders, bodies included
csl convert --engine ComputeColorTexture --out Shaders/Cs        # an engine shader, to modify
csl convert Shaders/MyShader.sdsl --declarations --out External  # external classes, to extend .sdsl shaders from C#

The converter parses whole files (bodies, the #if structure, comments and doc comments), writes C# from the tree, then compiles it with the generator and makes explicit, error after error, what HLSL does implicitly and C# does not accept. Each fix is a marker the translator leaves out, so the SDSL the C# translates back to is the original: Sdsl.Implicit<float3>(v) is v (a narrowing, an int used as a condition), = default on a local is no initializer, Sdsl.Undefined(out x) is nothing.

Converting ShadingBase gives, for instance:

[Shader]
[Define("STRIDE_RENDER_TARGET_COUNT", "1", If = "!defined(STRIDE_RENDER_TARGET_COUNT)")]
public abstract partial class ShadingBase : ShaderBase
{
    [Compose] public ComputeColor ShadingColor0;
    [If("STRIDE_RENDER_TARGET_COUNT > 1"), Compose] public ComputeColor ShadingColor1;
    ...
    [Stage]
    public override void PSMain()
    {
        base.PSMain();
        streams.ColorTarget = this.Shading();

        if (Sdsl.If("STRIDE_RENDER_TARGET_COUNT > 1"))
        {
            streams.ColorTarget1 = ShadingColor1.Compute();
        }
        ...

and back exactly the SDSL it came from.
