A privacy-first fall detector for senior-care rooms, built on a Jetson Orin Nano. A 2D LIDAR on the floor finds a person lying down from geometry alone, with no images. Two webcams with a stock RF-DETR detector, run locally on the device, were shown in an offline evaluation to see the poses a single scan plane misses. A proprietary V-JEPA stage (not in this repository) is where a fall gets confirmed. This repository holds the LIDAR detector, the tools that test it against real recordings, and the field evidence behind its design decisions, including the results that failed.

Status: research prototype, measured on one subject in one room. Not a medical device, not cleared by any regulator, and not to be relied on to detect falls. Apache-2.0, patent pending (see NOTICE).

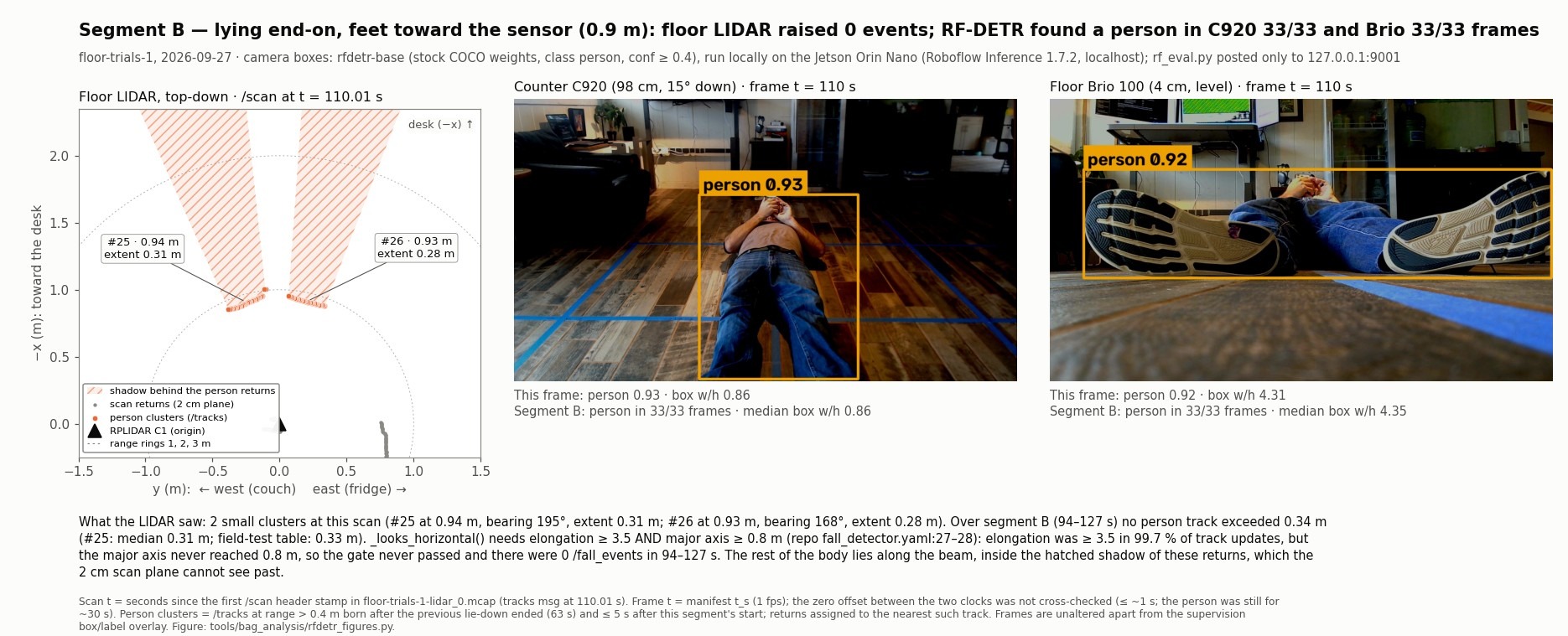

Lying end-on with the feet toward the sensor, a person is two 0.3 m clusters to a floor-level LIDAR: the detector raised 0 events in 33 s. Stock RF-DETR, running on the Jetson, found the person in 33 of 33 frames on each camera. From the RF-DETR results; every number on the figure is printed by rfdetr_figures.py.

A fall detector in a resident's room has to notice a person on the floor, and images of them should not leave the room. A 2D LIDAR sees shapes, not faces: a person standing is a small round slice, a person on the floor is a long thin one. The open questions were whether that signal survives a real room, and what to add where it does not. Three days of field tests answered part of it:

• Height decides everything. At counter height (121 cm) a level scan plane never touches a person on the floor: it lost one for 39 s while both cameras saw them (capture night). With the sensor on the floor (about 2 cm), lying across or diagonal to the beam is detected within a second.
• End-on is a blind spot. Lying along the beam, the plane sees only the soles or the head (0.22 to 0.33 m), and both such trials were missed (floor trials). That is what the cameras are for.
• Escalation failed live; offline, the fixed config reaches WARN. Stillness never accumulated past 3.4 s, and one track went silent after its single WARN. Both have fixes behind default-off configuration keys. Replayed on floor-trials-1 with them on, all four lie-downs the LIDAR can see reach WARN 0.7 to 4.0 s after onset (3.3 to 6.5 s on stillness alone), and walking and standing raise nothing (fixed-config replay). The pre-declared bars that decide the switch (plan v4 step 9) have not been run, and the device still runs the legacy detector.

Solid lines run live on the Jetson; dotted lines are offline evaluation or planned. Details and the parameter tables: docs/ARCHITECTURE.md.

flowchart TB
  lidar["RPLIDAR C1<br/>2D, 10 Hz, floor mount"] --> drv["sllidar_ros2 → /scan"]
  cams["Logitech C920 (counter) + Brio 100 (floor)"] --> uc["usb_cam → recorded in bags (mcap)"]
  subgraph core["DetectorCore · prevera_perception · ROS-free · live on the Jetson"]
    direction LR
    bg["Background model<br/>rolling median +<br/>foreground hold"] --> clu["DBSCAN clustering<br/>PCA shape"]
    clu --> trk["Tracker<br/>nearest centroid"]
    trk --> fall{"Fall heuristic<br/>elongated + person-sized,<br/>spike then still<br/>or sustained down"}
  end
  drv --> bg
  fixes["Fixes behind default-off keys:<br/>windowed stillness · incident hold ·<br/>speed gate · min_range 0.3"] -.-> core
  trk --> tracks["/tracks"]
  fall -->|"OBSERVE · WARN"| events["/fall_events"]
  uc -. "frames, offline so far" .-> rf["RF-DETR, stock COCO<br/>Roboflow Inference on the Jetson,<br/>localhost only"]
  events -. "WARN" .-> fusion["LIDAR + camera fusion<br/>D0: where it runs is open"]
  rf -.-> fusion
  events -. "WARN" .-> vjepa[["V-JEPA verification<br/>proprietary · not included"]]
  vjepa -.-> confirmed["ALERT / CRITICAL<br/>not emitted here"]

Every evaluation is written down before it runs, analysed with code that replays the recording, attacked by an independent audit, and closed with a decision record. Failures stay in the record. More in docs/PROCESS.md.

flowchart LR
  q["Question"] --> plan["Pre-declared plan<br/>bars fixed, committed<br/>before any result"]
  plan --> trial["Field trial<br/>runbook, mcap bag"]
  trial --> replay["Offline replay<br/>goldens, parity"]
  replay --> audit["Adversarial<br/>audit"]
  audit --> results["Results<br/>gaps stated"]
  results --> dr["Decision<br/>record"]
  dr --> q

All numbers link to the document that reports them. One subject, one room, one session each: these are feasibility results, not recall estimates.

1,131 of the 1,132 events were OBSERVE; the one WARN is segment C's. Stillness never exceeded 3.4 s although each lie-down was held for about 30 s, so the WARN rules almost never fired. (The field document says 1,129; its erratum gives the recount.)

That replay is not the step-9 scoring that decides the switch (WARN in every lying segment, 0 WARN in every empty-room segment, scored against label files that do not exist yet). Its early WARNs come from the spike rule, which fires once the 1.5 s stillness window has filled, in three of the four lie-downs on centroid jitter, and a known false WARN (sitting in a chair, 09-26) persists. An earlier version of this README said that rule could not fire without spike memory (plan v4 step 8); the replay disproves it (caveats).

C2's walking boxes are hips and legs only (the counter camera cuts off heads), so it passes as a detection, not as a view of a standing person. C3's failure was the pre-declared trigger for keypoints; the first keypoint run was invalid under its own validity rule (the person class came back as id 1, not 0) and was not scored (status). C4 is the median serial HTTP round trip on the device; the lowest MemAvailable seen was 2,584 MB with two models resident and the cameras off, and whether inference disturbs /scan under load was not measured. Everything above, with the audit's caveats, is in the results.

Eighteen decision records (DR-00 to DR-17), each with its status, the options on record (or a note that none were written down) and its evidence; the open ones say what comes next: docs/DECISIONS.md. DR-00 lists what was inherited from the 2026-04 snapshot without a recorded rationale. The ones that shape the system:

.
├── src/                          ROS 2 Humble workspace
│   ├── prevera_msgs/             FallEvent, PersonTrack, PersonTrackArray
│   ├── prevera_perception/       background, clustering, tracker, DetectorCore (ROS-free),
│   │   │                         rclpy node, synthetic scene, vjepa_bridge.py (interface stub)
│   │   └── test/                 71 tests, goldens, legacy reference
│   ├── prevera_bringup/          launch files, fall_detector.yaml (the config on the Jetson), udev, RViz
│   └── prevera_description/      sentinel URDF
├── tools/bag_analysis/           replay harness, bag timelines and frames, RF-DETR scorer and figures
├── tools/git-hooks/pre-push      the structural push gate
├── jetson/                       bring-up and run scripts, camera views, scan and track probes
├── foxglove/guardian.json        Foxglove layout used during capture
├── demos/                        mobile-app UI concept (fictional data)
├── docs/
│   ├── DECISIONS.md              18 decision records (DR-00 to DR-17)
│   ├── ARCHITECTURE.md           components, data flow, topics, parameters, exposure
│   ├── PROCESS.md                how evaluations are run
│   ├── DEVELOPMENT-LOG.md        commit-by-commit evidence from the private history
│   ├── field-tests/              protocols, results, figures, handoffs, per-recording timelines
│   ├── hardware/                 rig documentation and photos
│   └── plans/                    replay-harness plan v4 and its open findings
├── setup_jetson.sh               workspace setup and build on the Jetson
├── LICENSE                       Apache-2.0
└── NOTICE                        copyright, patent notice, third-party components

Documents published from the private development history end with a publication note that lists what was replaced (hosts, addresses, local paths, unpublished planning references). The notes sit at the end so that line numbers cited between documents still hold.

The suite is pinned to the Jetson's Python floor: Python 3.10 and numpy 1.x.

git clone https://github.com/JeremyGracey-AI/prevera-guardian-lidar.git
cd prevera-guardian-lidar
uv venv --python 3.10 .venv310
uv pip install --python .venv310/bin/python -r tools/bag_analysis/requirements.txt pytest
cd src/prevera_perception
PYTHONPATH=. ../../.venv310/bin/python -m pytest test/ -q
# 70 passed, 1 skipped   (the skip is test_node_adapter.py, which needs rclpy)

Field recordings are not published, so start with the synthetic fixture bag the tests use (from the repository root):

PY=.venv310/bin/python; H=tools/bag_analysis
$PY -c "import sys; sys.path.insert(0, '$H'); import mcap_fixture; mcap_fixture.write_scene_bag('/tmp/fixture.mcap')"
$PY $H/replay_detector.py schemas /tmp/fixture.mcap
$PY $H/replay_detector.py sanity  /tmp/fixture.mcap
# legacy detector: prints each event, ends with "totals: {1: 46, 2: 2}" (46 OBSERVE, 2 WARN)
$PY $H/replay_detector.py replay  /tmp/fixture.mcap --params $H/params/2026-09-25-live.yaml
# the fixes, switched on for this run only
$PY $H/replay_detector.py replay  /tmp/fixture.mcap \
    --set fall.hold_incident=true --set tracker.still_window_s=1.5 --set min_range_m=0.3
# ends with "totals: {1: 78, 2: 118}"

Track #2 in both runs is the fixture's deliberate 6 cm collinear line (ext=0.06 el=1000000.0, synthetic_scene.py:148). Its minor axis is zero, and a degenerate cluster counts as horizontal with no size check while fall.degenerate_requires_extent is false, the default (ARCHITECTURE.md, section 2). It raises the legacy run's WARN at 8.0 s and 80 of the 118 WARN lines with the fixes on, because the incident hold re-emits a held WARN on every horizontal scan. The person (#1) warns at 9.0 s in the legacy run (spike path) and from 12.2 s with the fixes on (sustained path; spike memory is not implemented).

The same commands take a real ros2 bag record -s mcap directory. The other verbs (extract, diff, divergence, transitions) compare a replay with what the live node published: tools/bag_analysis/README.md.

git clone https://github.com/JeremyGracey-AI/prevera-guardian-lidar.git ~/prevera-guardian-lidar
cd ~/prevera-guardian-lidar
sudo ./jetson/09-ros2-humble.sh         # ROS 2 Humble, bridges, udev rule, dialout (once)
./setup_jetson.sh                       # sllidar_ros2, deps, colcon build
source install/setup.bash
ros2 launch prevera_bringup perception.launch.py     # RPLIDAR C1 + fall detector
ros2 topic echo /fall_events

Without a LIDAR attached, ros2 launch prevera_perception synthetic_dev.launch.py runs the detector on a simulated room: 3.5 s empty (background warm-up), a walk until 8 s, a fall with a 1.5 m/s spike, then the person lying still (synthetic_scene.py); expect OBSERVE while the person lies there and one WARN about a second after the fall. For unattended runs with Foxglove (:8765) and rosbridge (:9090), copy jetson/guardian-*.sh to the home directory and use guardian-up.sh, guardian-status.sh and guardian-down.sh; they read the workspace path from GUARDIAN_WS (default ~/prevera-guardian-lidar).

Under the documented hardened --read-only container command, Roboflow's JetPack 6.2.0 Inference image returns HTTP 500 for every RF-DETR request, because Triton's kernel cache defaults to a read-only path. roboflow/inference#3072 sets TRITON_CACHE_DIR in that image (one line, matching the JetPack 7.2.0 image). It was verified on this Jetson with the variable set at runtime: HTTP 500 before, predictions from all three RF-DETR sizes after. The PR is open. See DR-12.

• One subject, one room, one session per result. Frames within a segment are near-duplicates; treat each segment as roughly one trial.
• The Jetson runs the legacy detector. The fixes are tested offline only (unit tests, and replays of seven bags); enabling them (plan v4 step 9) needs the pre-declared bars: WARN in every lying segment, and 0 WARN in every empty-room segment. The fixed config's fastest WARNs mostly depend on centroid jitter; on stillness alone, WARN comes 3.3 to 6.5 s after onset.
• A single 2D plane cannot see a person lying end-on. The cameras cover it in the trials above; fusion is not built.
• Furniture feet look like a lying person at floor level (elongated and still). It raised no alarm so far, but it is the main false-alarm risk once stillness works.
• Camera privacy is not fully verified. Inference runs on the device and the client posts only to localhost, but whether the server's active learning and telemetry were off is reported, not verified.
• The camera views are unauthenticated and bind every interface (guardian-cams-up.sh, mjpeg_server.py): a bench tool for a trusted network only.
• Not in this repository: the V-JEPA verification stage, the RF-DETR runner used on the Jetson (rf_eval.py), raw recordings, extracted frames and model outputs. The URDF still describes the old 0.65 m scan plane.

1. Finish plan v4: spot memory across a re-spawn, time-based spike memory, then the config flip against the pre-declared R4/R5 bars, then deployment with a rollback tag (plan).
2. D1: a new pre-declared keypoint plan that fixes the class rule, and a counter-camera view that shows the whole body.
3. D0: measure the chosen fusion placement against the direct-call baseline on the device, with a bag recording /scan during the run.
4. Close the privacy gap structurally: disable active learning in the request, record the container environment, capture egress.
5. Measure the LIDAR-to-camera extrinsics and update the URDF; labelled trials with more subjects, ranges and rooms.
6. Revisit the 3D-sensor question with those numbers.
7. The goal after detection: fall-risk prediction, flagging rising risk before a fall. Not built; nothing in this repository predicts falls.
