tinygrad on the Google Coral USB Accelerator (Edge TPU), with a reverse-engineered instruction set, our own code generator and our own USB driver. A tinygrad model runs on the stick with DEV=CORAL: no libedgetpu, no TFLite and no edgetpu_compiler at run time. Google's compiler is used only offline, as the reference our generated programs are checked against byte for byte.

Everything here was written by Claude (Anthropic's model), as agents in Claude Code: the driver, the decoded instruction set, the code generator and the tinygrad backend. A human set the goal, made the calls and replugged the stick when it hung. STORY.md tells how it went.

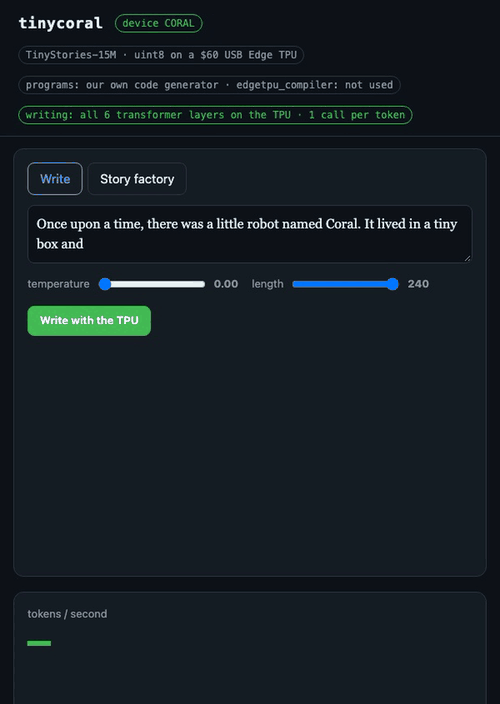

The web app (DEV=CORAL CHIP=1 python examples/server.py) writing with the whole transformer on the stick, at real speed. The 47 s video: YouTube · X.

TinyStories-15M in tinygrad, tokens/s:

• A MacBook (M1 Pro-class) with the Coral on USB 3; details and how to reproduce every number in bench/RESULTS.md.
• The Coral is for weak hosts. On this laptop numpy with Accelerate on all cores does 5 435 tok/s at batch 256, and Google's stack runs the MNIST CNN at 26 127 img/s when it gets the same trick (images stacked into one tall image, tools/export.py).

DEV=CORAL python examples/mnist.py                        # tinygrad's beautiful_mnist, quantized, as one Edge TPU program (train it first: examples/mnist.py train)
DEV=CORAL python examples/stories_batch.py --batch 256    # 256 TinyStories at once, every matmul on the Edge TPU
DEV=CORAL python examples/stories.py                      # one story, batch 1
python examples/stories_chip.py                           # one story, batch 1, all 6 layers in one Edge TPU program per token
DEV=CORAL python examples/server.py                       # a web app: write with the model, or watch 256 stories grow at once
DEV=CORAL CHIP=1 python examples/server.py                # the same, writing with all 6 layers on the chip (one TPU call per token)
MOCKCORAL=1 DEV=CORAL python examples/stories.py          # without the stick: the TPU's arithmetic in numpy
MOCKCORAL=1 DEV=CORAL CHIP=1 python examples/server.py    # the web app without the stick: the whole-chip program's bit model in numpy

The model is plain tinygrad. Everything is decided while tinygrad compiles; the runtime only executes.

1. coral.quantize(model, calibration_inputs) works like TFLite's converter: it folds batch norms, shares quantizations across ReLU and max pool, and swaps every nn.Conv2d / nn.Linear for a uint8 layer written in plain tinygrad ops (coral/qops.py). Every rewrite is checked on the calibration data.
2. tinygrad's scheduler cuts the forward pass into kernels, as for any device.
3. Kernel selection (coral/select.py, hooked into tinygrad's codegen) proves from a kernel's AST that it is exactly a quantized matmul or conv and turns it into an Edge TPU program. Everything else compiles with clang and runs on the host. On any other device the same code runs as ordinary kernels, with bit-identical results.
4. Chain fusion (coral/chain.py, hooked into TinyJit) replaces runs of TPU kernels joined by exact uint8 max pools or copies with one TPU call, so the activations stay on the chip.
5. The code generator (coral/codegen/) writes the instructions. Where edgetpu_compiler has an equivalent, the program is byte-identical to its.
6. The runtime (coral/tpu.py, coral/runtime.py, the USB driver) keeps the weights resident in the tiles' memory, moves bytes over USB and collects the results.

git clone https://github.com/tinygrad/tinygrad tinygrad-src && git -C tinygrad-src checkout d2892164e20e9c53350abaa7e7a8cc7b7376f8d4
python3.12 -m venv .venv && .venv/bin/pip install -e tinygrad-src -e .   # tinygrad at the commit tinycoral was developed against
.venv/bin/python -m coral.install                                        # links the CORAL backend into tinygrad
brew install libusb                                                      # or your distro's libusb
git clone https://github.com/google-coral/libedgetpu ref/libedgetpu      # the USB firmware the driver uploads, and the register map

• Models: models/stories15M.bin and models/tokenizer.bin from karpathy/llama2.c. MNIST and CIFAR-10 train with tinygrad: python examples/mnist.py train, python examples/cifar.py train.
• Offline tests: python -m coral.codegen.fc (.conv, .conv2d, .chain, .eltops, .fused, .attention, .attention_block, .layer) compare our programs byte for byte with edgetpu_compiler's, MOCKCORAL=1 python test/test_select.py (and test_select_conv.py, test_select_glue.py) run the backend against the numpy model, python test/test_isa.py and test/test_eltwise.py check the decoded instructions. They need pip install -e .[tools], git clone https://github.com/google-coral/edgetpu ref/edgetpu (the compiler) and Docker, which runs the x86-64 compiler; results are cached in .compile/. Docker is needed for nothing else.
• On the device: the test/test_hw_*.py files, or python bench/hw_session.py for the tests and benchmarks one by one. MOCKCORAL=1 swaps the device for numpy models (bit-exact for matmuls and convs, float math for the fused blocks).

• Through tinygrad (DEV=CORAL): quantized matmuls and convolutions, fused FFN and classifier blocks, and whole CNNs as one program. Activations, attention, norms and RoPE run on the host. The whole-transformer program (examples/stories_chip.py) runs outside tinygrad's scheduler for now.
• Whole-network programs cover chains of VALID stride-1 convolutions (odd kernels up to 5x5), 2x2 max pools and a final linear layer. Other chains run layer by layer.
• At batch 1 the matmul path is bound by USB round trips and host overhead: about tinygrad's single-core CPU speed. Device→host USB is ~55 MB/s, so designs that keep data on chip win.
• Developed and measured on macOS with one Coral USB Accelerator. The device is used by one process at a time; after a stalled program the driver re-initializes the chip and checks it with a canary program.

• geohot's edgetpuxray and streams: the first map of this territory.
• libedgetpu (Apache 2.0): the register names (coral/regs.py is generated from its headers), the USB firmware the driver uploads (cloned with libedgetpu, not part of this repository), and one crucial comment about USB deadlocks.
• karpathy's llama2.c: the TinyStories models and tokenizer.
• tinygrad.

Written by AI agents (Claude, in Claude Code): the reverse engineering, the driver, the code generator and the tinygrad backend. A human plugged the stick in, replugged it whenever an agent wedged it, and steered. STORY.md tells how it went.

Not affiliated with or endorsed by Google or tiny corp. MIT license (LICENSE).
