An Android app that checks links and QR codes for phishing before you open them.
On-device neural network + Google Safe Browsing, with a redesigned "autumn arcade" interface.

Version 1 (on the main branch) was a working prototype: type or scan a URL and get Safe / Phishing from an on-device FNN. Version 2 keeps the same model and rebuilds everything around it.

Each image shows the screen in light and dark mode.

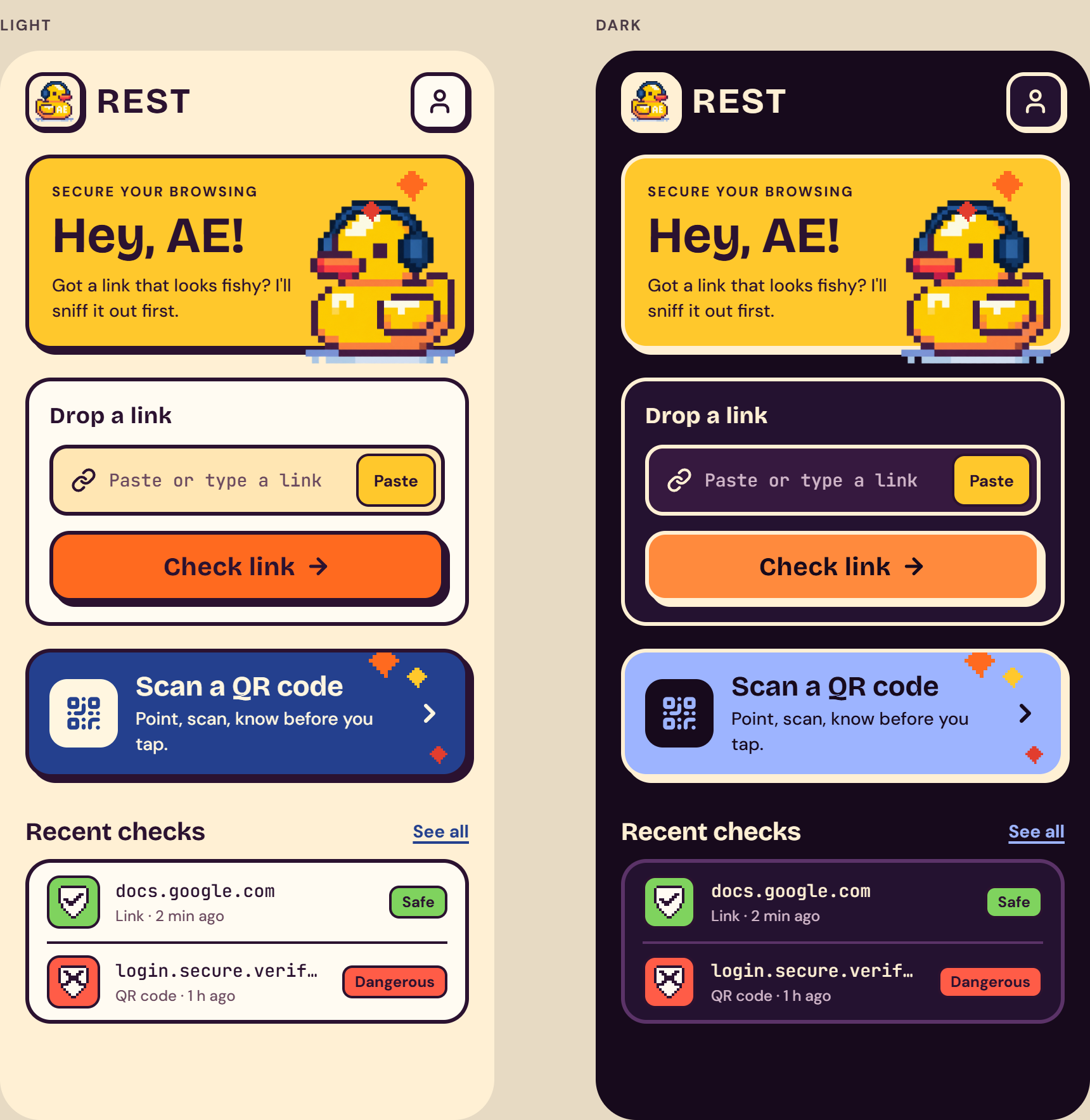

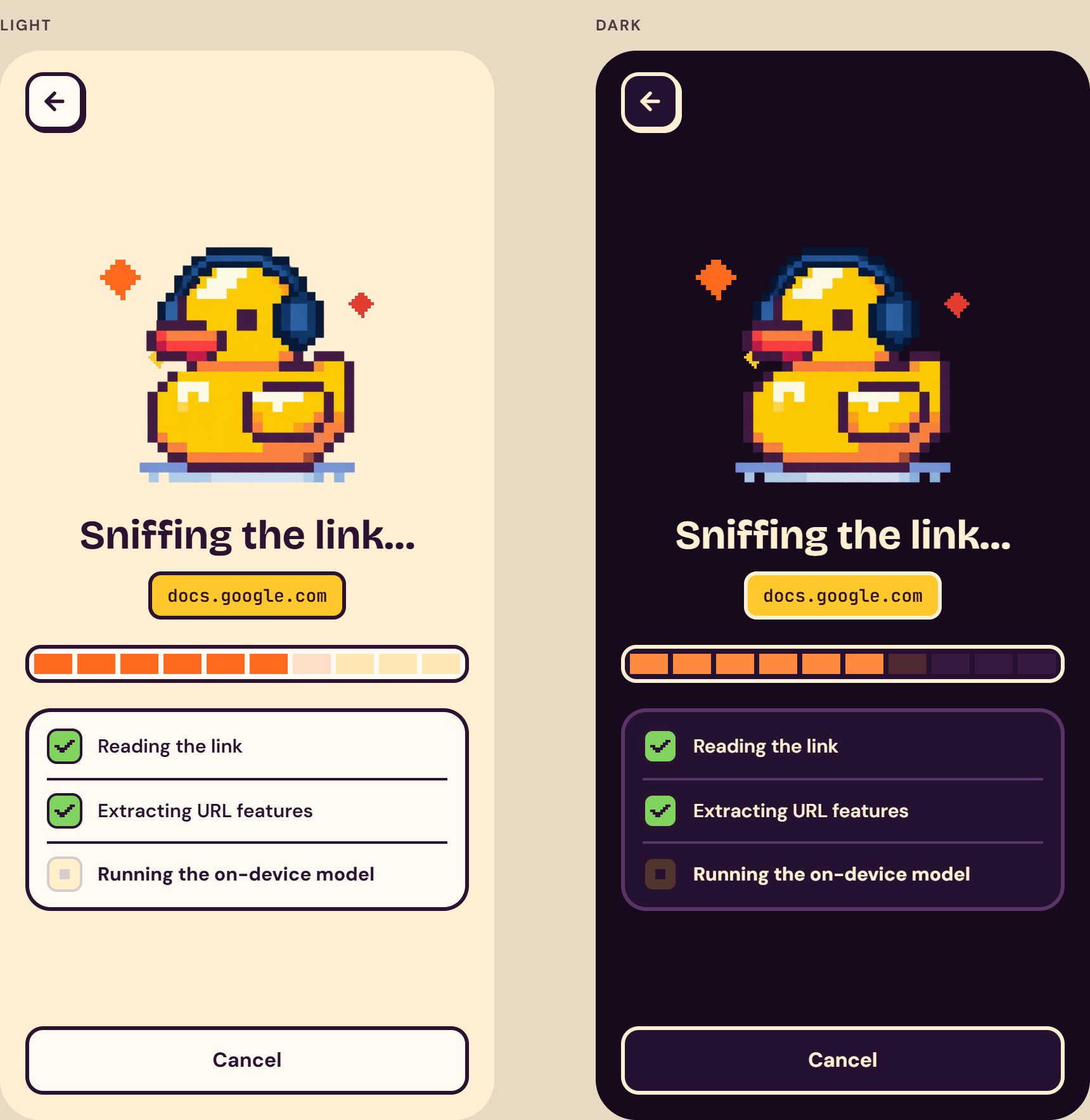

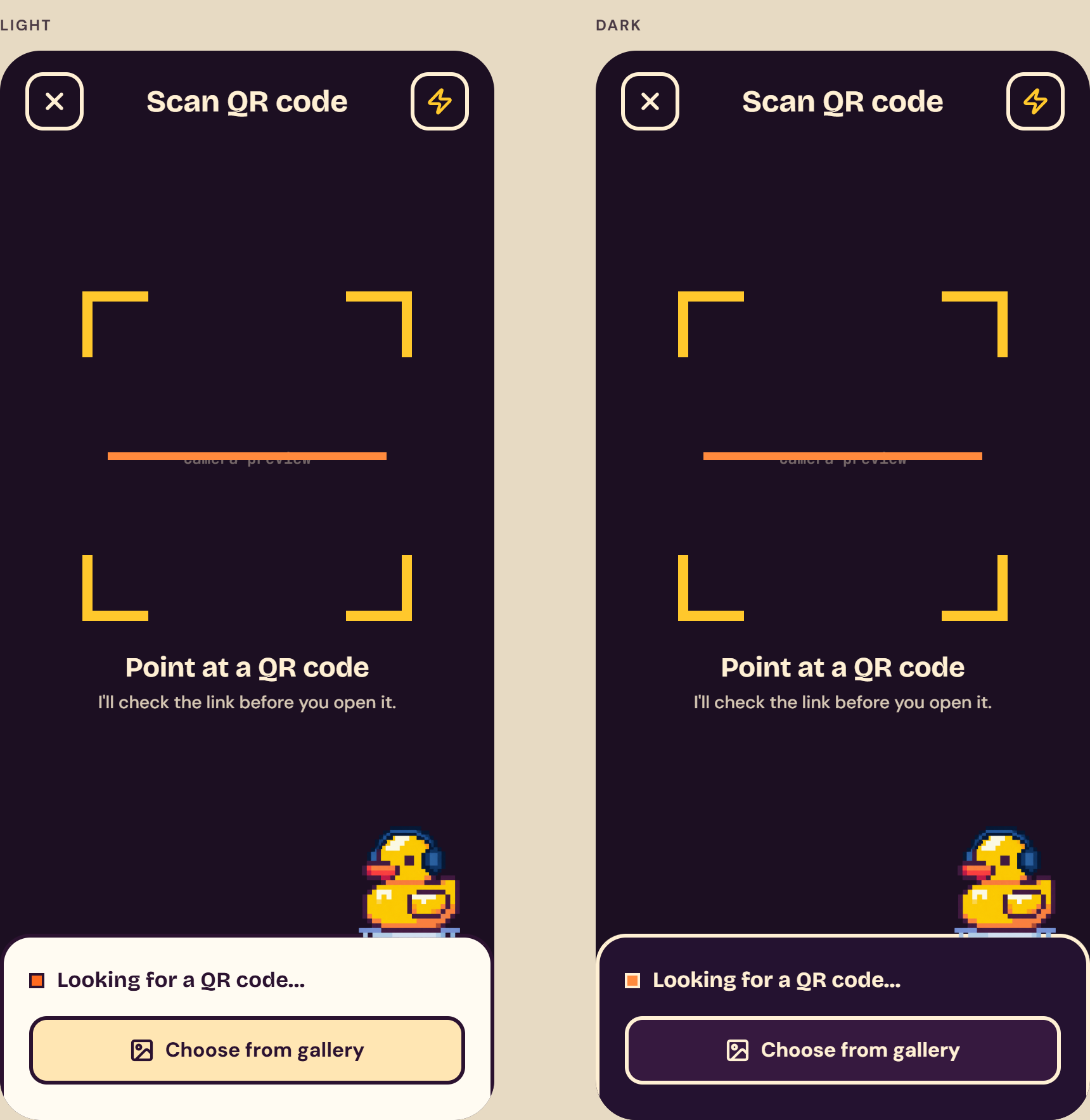

Home	Scan QR code	Analyzing

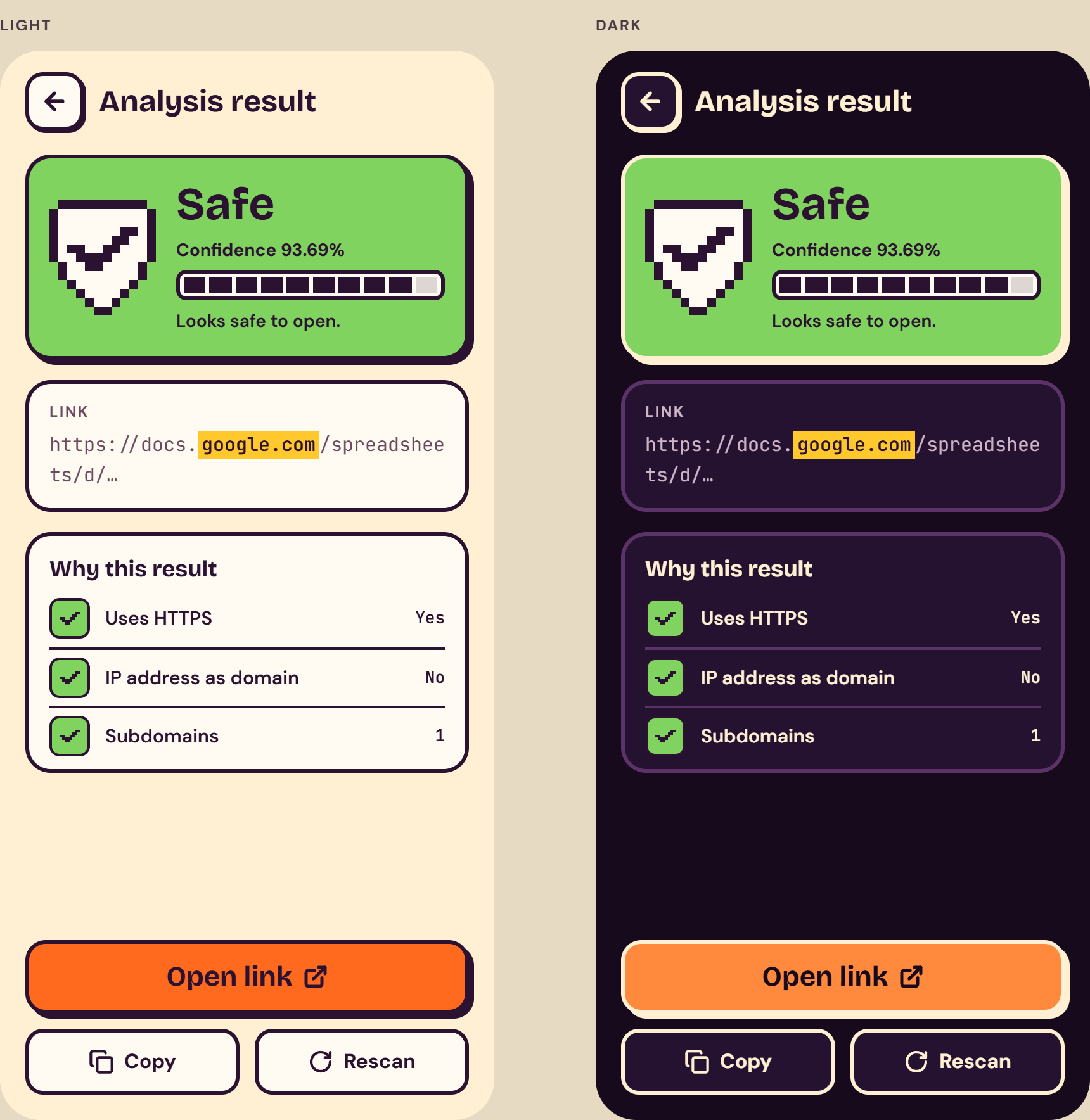

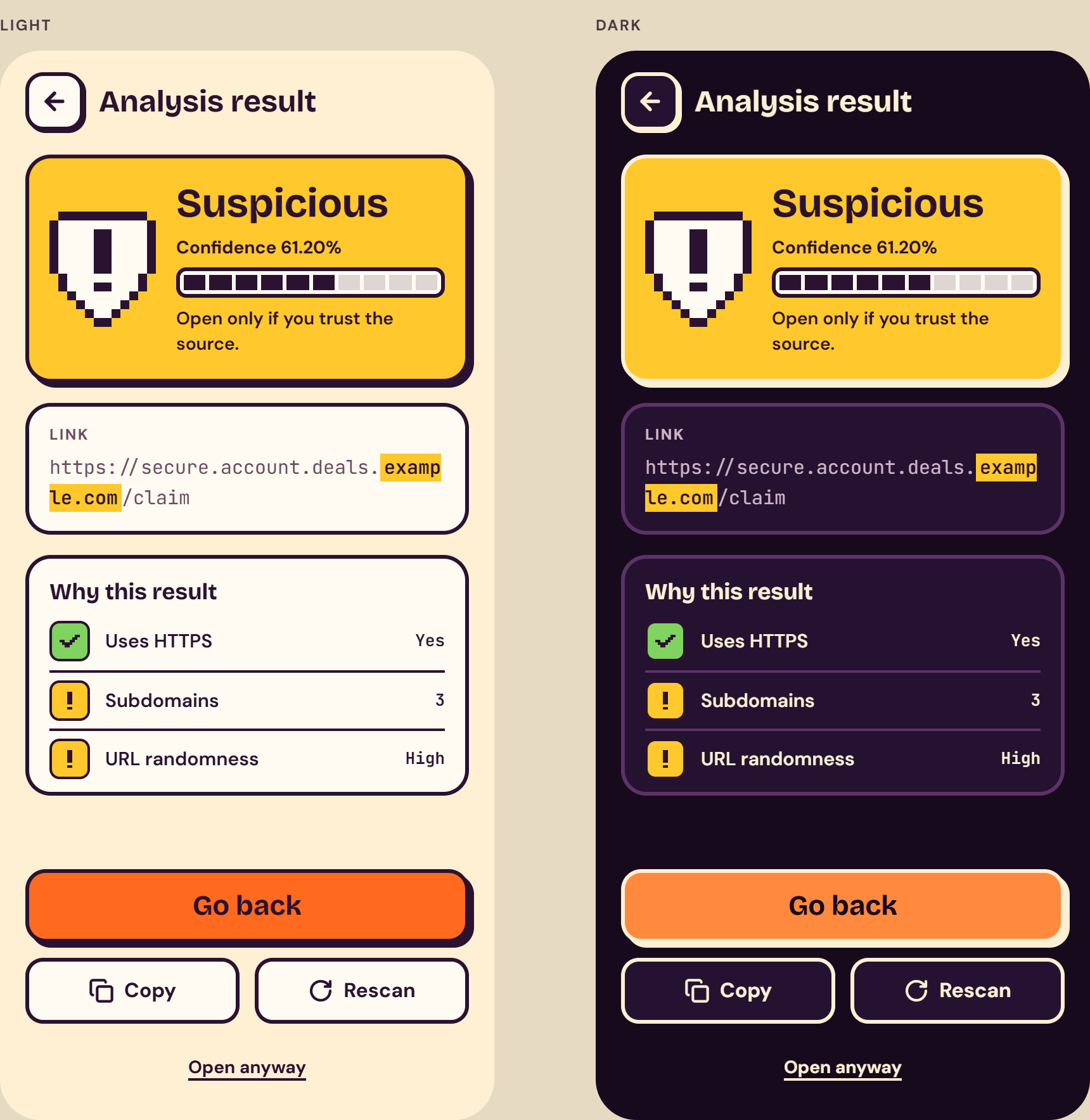

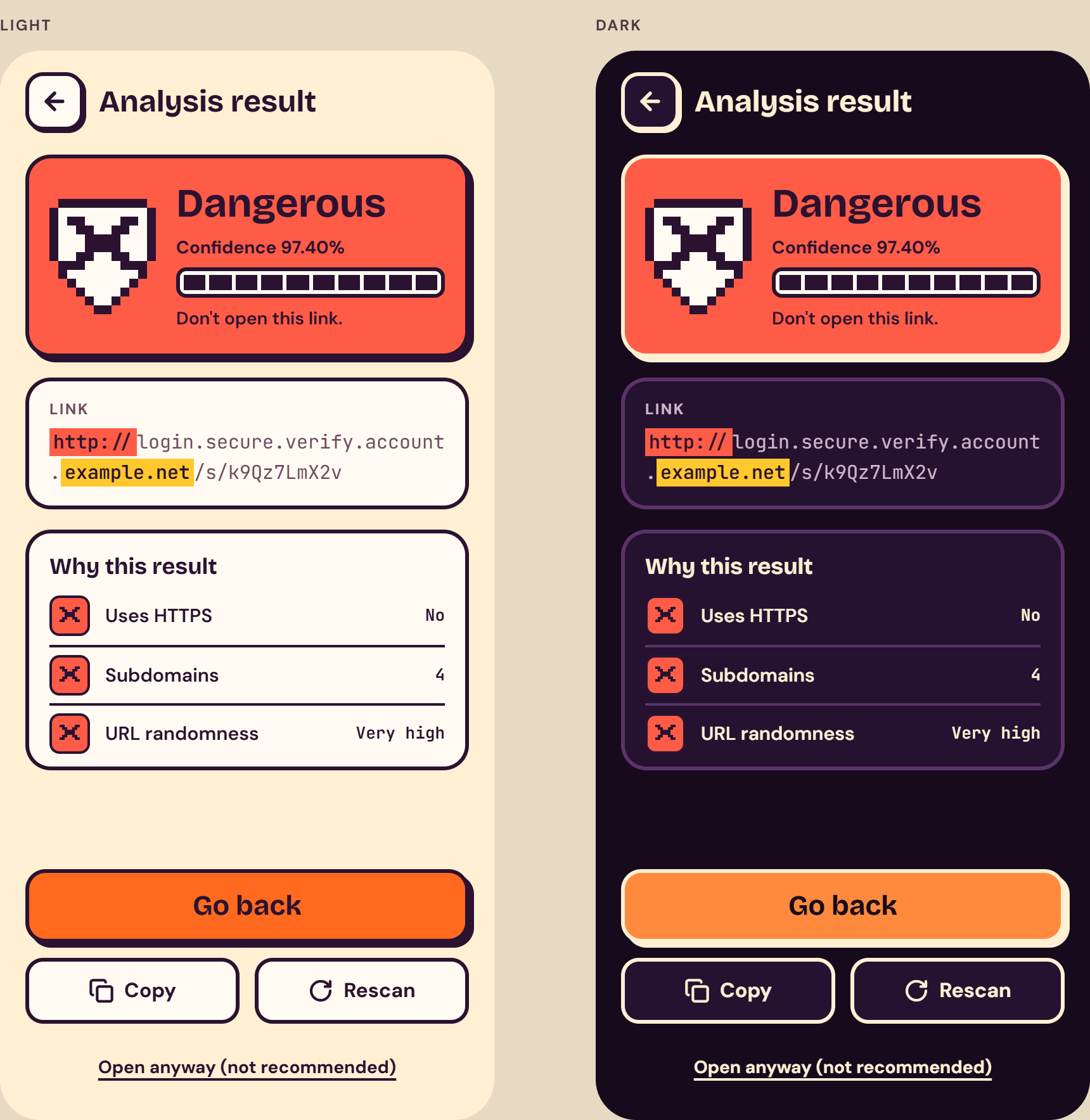

Result: Safe	Result: Suspicious	Result: Dangerous

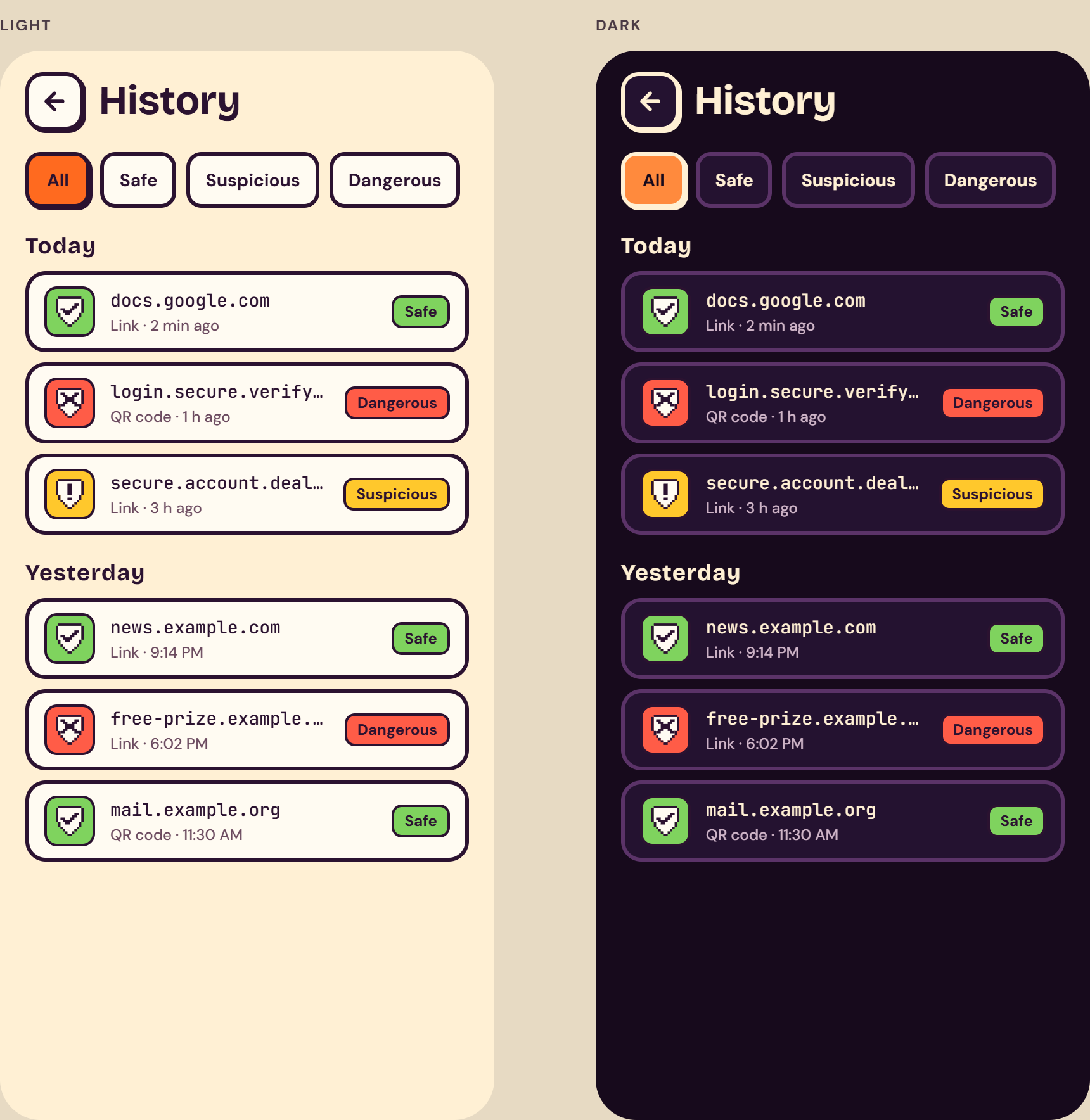

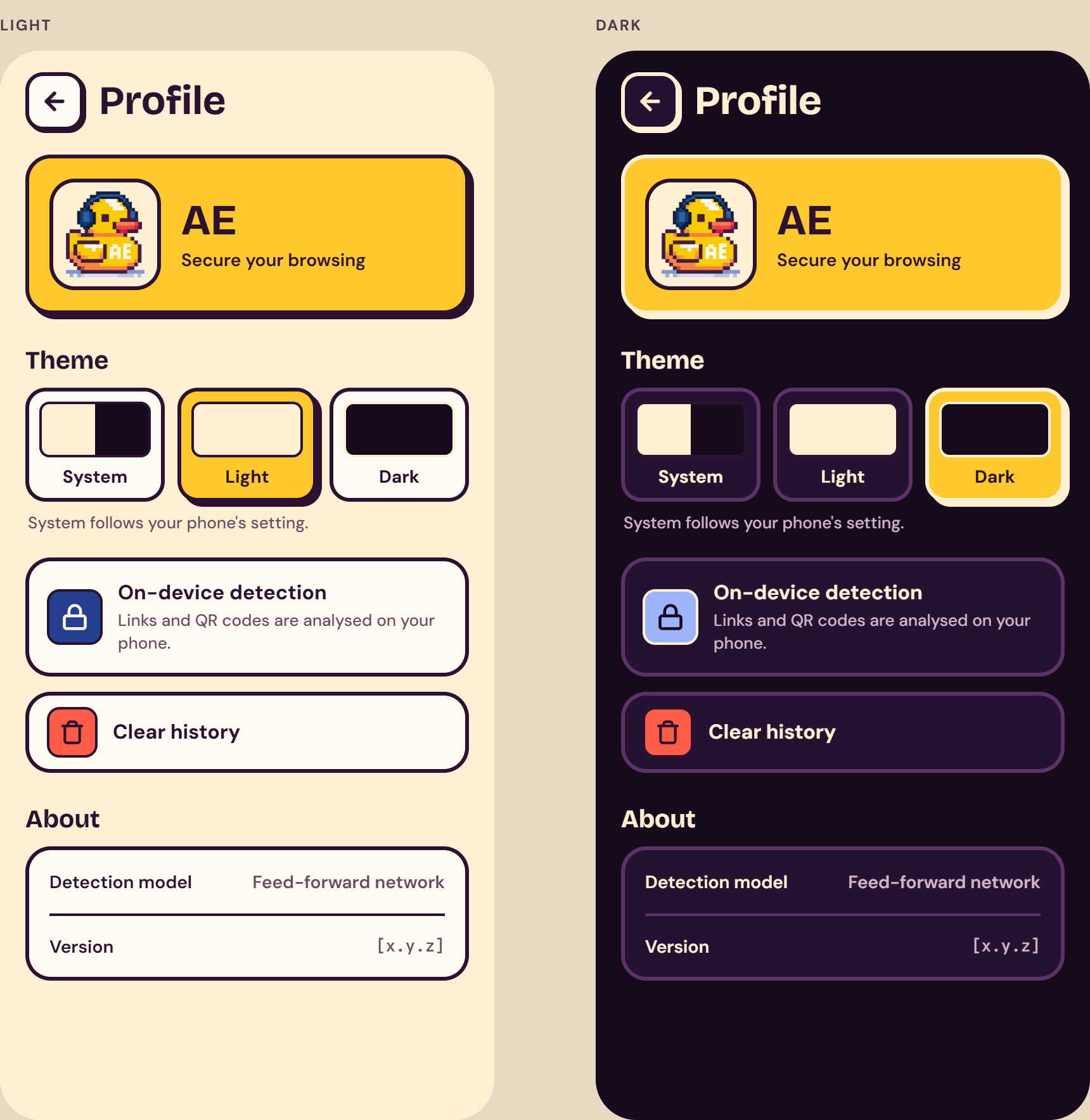

History	Profile and theme

v1 interface, for comparison

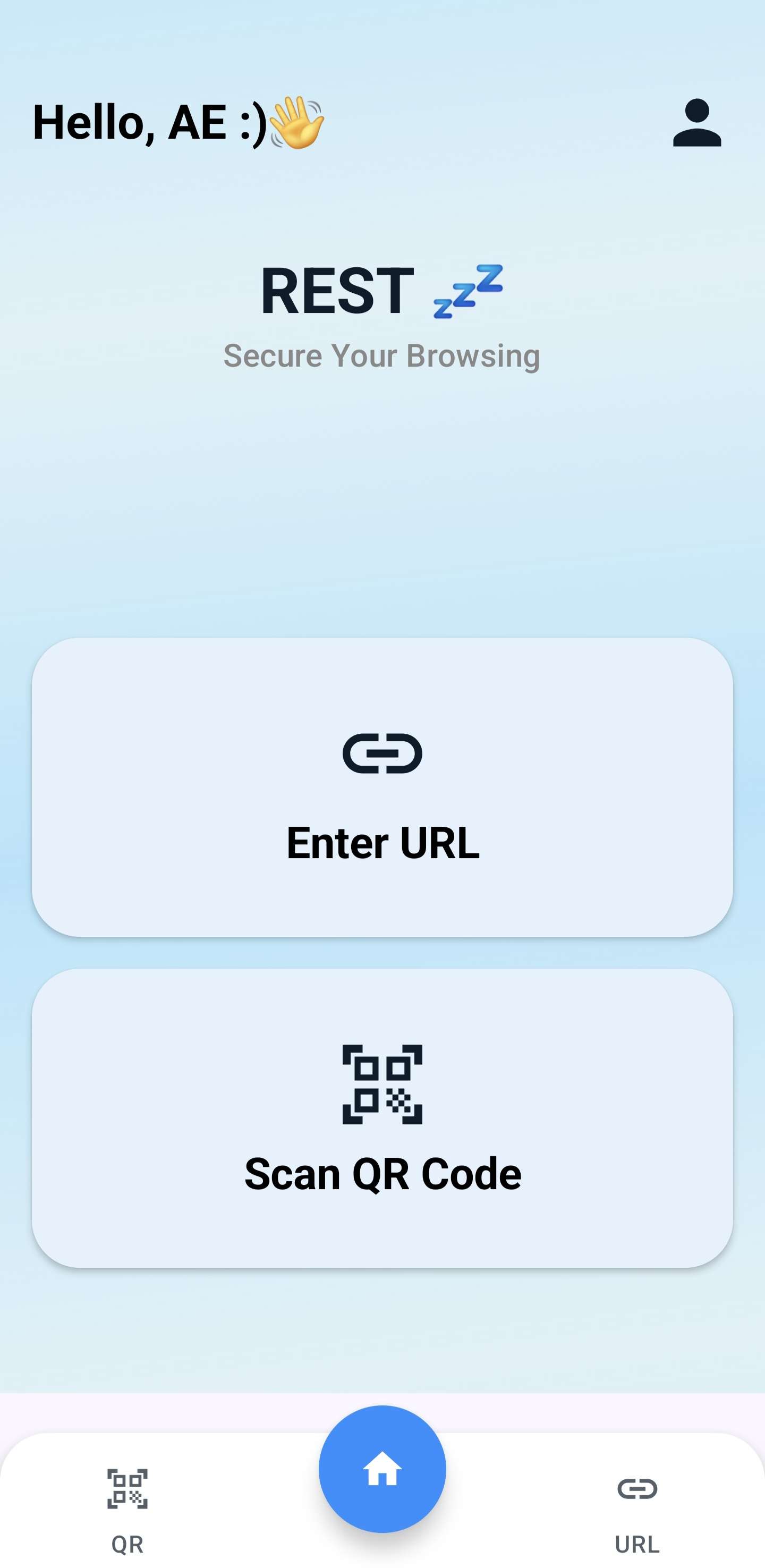

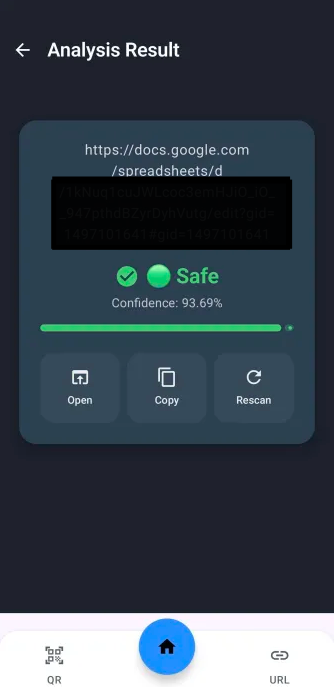

Main page	Result page

• Two ways to check a link: paste or type a URL, or scan a QR code with the camera (CameraX + ZXing).
• On-device detection: a TensorFlow Lite feed-forward neural network scores every link on the phone. It works offline.
• Google Safe Browsing (dynamic detection): when the online check is on, the link is also looked up against Google's live lists of malware, phishing, unwanted software and harmful apps.
• Three-level verdict with a confidence percentage and a 10-block confidence bar.
• Link anatomy: the scheme, subdomains and registrable domain are highlighted, so look-alike domains like paypal.com.secure-login.example.net are easy to spot.
• Why this result: plain-language signals read from the link.
• Safe opening: Suspicious and Dangerous links never open directly. You have to confirm first.
• History: every check is saved on the device and can be reopened or cleared from Profile.
• Light / dark / system theme, fonts bundled with the app (works offline).

flowchart LR
    A[URL typed or<br>QR code scanned] --> B[TF-IDF<br>vectorizer]
    B --> C[FNN<br>TensorFlow Lite]
    C --> D{p malicious}
    A --> E[Google Safe Browsing<br>v5 urls:search]
    E --> F{On a<br>threat list?}
    D --> G[Final verdict]
    F --> G
    G --> H[Result screen<br>+ saved to history]

The FNN outputs the probability that the link is malicious. It is mapped to a verdict:

The cut-offs live in Verdict.kt.

The model only sees the text of the URL. Google Safe Browsing adds live threat intelligence for links that are already known to be bad.

The two are combined with one rule: Safe Browsing can only make the verdict stricter.

• A Safe Browsing match → Dangerous, whatever the model says.
• No match, no network, or online check turned off → the model's verdict stands. New phishing links often aren't on Google's lists yet, so "no match" never overrides the model.

Details:

• Uses the v5 urls:search endpoint. It answers in protobuf only, so the app decodes the response itself (SafeBrowsing.kt).
• Results are cached in memory and the call has a short timeout. Any error falls back to the on-device verdict, so the app never fails because of the network.
• Privacy: with the online check on, the full URL you check is sent to Google. You can turn the online check off in Profile. Everything else, including history, stays on the device.

The detection model is a Feed-Forward Neural Network (FNN) built with Keras and converted to TensorFlow Lite for on-device inference.

Each URL is turned into a vector with TF-IDF over character 3- to 5-grams. The vocabulary has 5,000 n-grams (tfidf_data.json). Character n-grams pick up the small tricks used in phishing URLs, such as paypa1 instead of paypal.

Trained with binary cross-entropy, the Adam optimizer and early stopping.

Following the dataset methodology in DOI: 10.17632/hx4m73v2sf.2, v1 described 16 static URL features (URL length, IP address, dot count, HTTPS, entropy, subdomain count, and others). In v2, four of them are computed in the app and shown on the Why this result card: HTTPS, IP address as domain, subdomain count and URL randomness (Shannon entropy). These are for explanation only. The TF-IDF vector is the model's input.

Grambeddings Dataset, a balanced set of benign and phishing URLs.

5-fold cross-validation

Final model (trained on the full dataset), best epoch 3: validation accuracy 0.9622, F1 ≈ 0.962, loss 0.1015.

app/src/main/
├── assets/
│   ├── Keras_NN_Traditional_Dataset_final_mem_safe.tflite   # FNN model
│   └── tfidf_data.json                                      # TF-IDF vocabulary + IDF weights
├── java/com/example/url_detection/
│   ├── MainActivity.kt          # Navigation and check flow
│   ├── UrlPredictor.kt          # TF-IDF + TFLite inference
│   ├── data/
│   │   ├── Verdict.kt           # Thresholds and the final-verdict rule
│   │   ├── SafeBrowsing.kt      # Google Safe Browsing v5 client
│   │   ├── UrlSignals.kt        # Link anatomy and "Why this result" signals
│   │   ├── History.kt           # Room database for past checks
│   │   └── AppSettings.kt       # Theme and online-check preference
│   └── ui/
│       ├── screens/             # Home, QR scanner, Analyzing, Result, History, Profile
│       ├── components/          # Arcade-style buttons, cards, pixel art, icons
│       └── theme/               # REST colors, type and theme
└── res/font/                    # Bricolage Grotesque, DM Sans, JetBrains Mono

• Android Studio (recent stable version)
• JDK 11 or newer
• An Android device or emulator running Android 8.0 (API 26) or newer

git clone -b v2-rest-redesign https://github.com/Elmeralex/URL-Detection-Applciation---Machine-Learning-FNN-.git

Open the folder in Android Studio and let Gradle sync.

The app works without a key. Only the on-device model is used, and the Safe Browsing row shows Unreachable.

To turn on the online check:

1. In Google Cloud Console, create a project and enable the Safe Browsing API.
2. Create an API key. Restrict it to the Safe Browsing API and to the Android app com.example.url_detection with your signing certificate's SHA-1. The app sends X-Android-Package and X-Android-Cert headers so the restriction works.
3. Add the key to local.properties in the project root. This file is git-ignored, so don't commit it.

SAFE_BROWSING_API_KEY=your_api_key_here

The key is read into BuildConfig.SAFE_BROWSING_API_KEY at build time.

Google Safe Browsing is free for non-commercial use. Commercial apps should use Google's Web Risk API instead.

Press Run in Android Studio, or from the command line:

./gradlew installDebug

./gradlew test

Unit tests cover the Safe Browsing protobuf decoding and the stricter-only verdict rule.

• The model looks at the URL text only. It does not visit the page, so a clean-looking URL hosting phishing content can still score as Safe. Google Safe Browsing covers part of that gap for known threats.
• Safe Browsing only knows about threats Google has already listed, so brand-new phishing links depend on the model.
• The Suspicious/Dangerous thresholds (0.30 / 0.70) are starting values and can be tuned against the validation set.

• Dataset: Grambeddings, Hacettepe University
• Feature methodology: Mendeley Data, DOI 10.17632/hx4m73v2sf.2
• Threat intelligence: Google Safe Browsing
• UI design: made with Claude Design; implementation and Safe Browsing integration with Claude Code

MIT
