Per-device bandwidth graphs for OpenWrt, under Services → Bandwidth History, with a History tab, a Live tab and a Settings tab.

It measures nothing itself. History samples the counters nlbwmon already keeps and stores the difference; the Live tab reads conntrack directly and stores nothing. No packet inspection, no firewall rules, and no effect on software or hardware flow offloading.

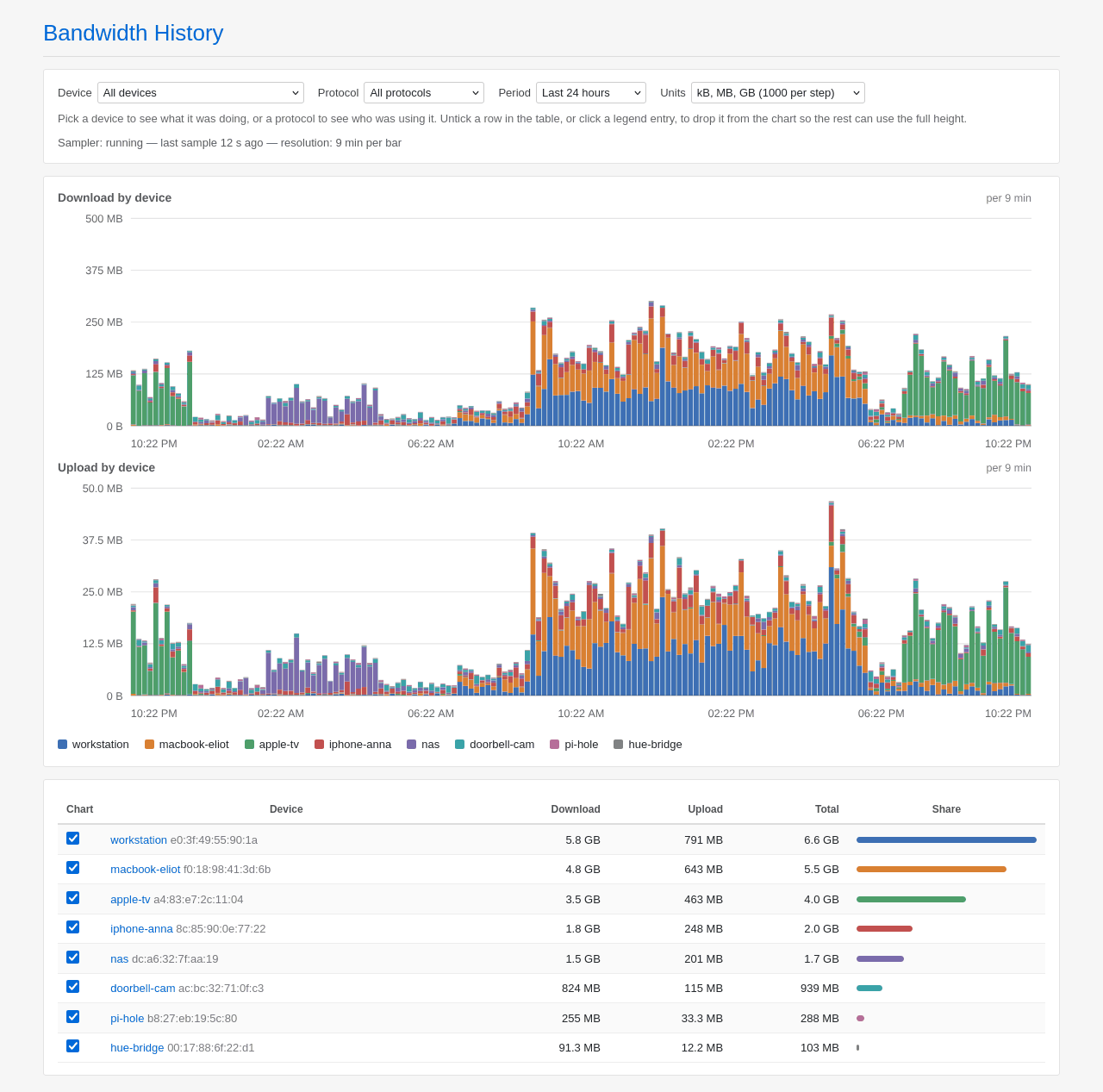

Every device stacked, so you can see who was using the line at any moment. Two dropdowns change what is stacked, and clicking a name in the table sets the same filter:

• nothing selected: one band per device

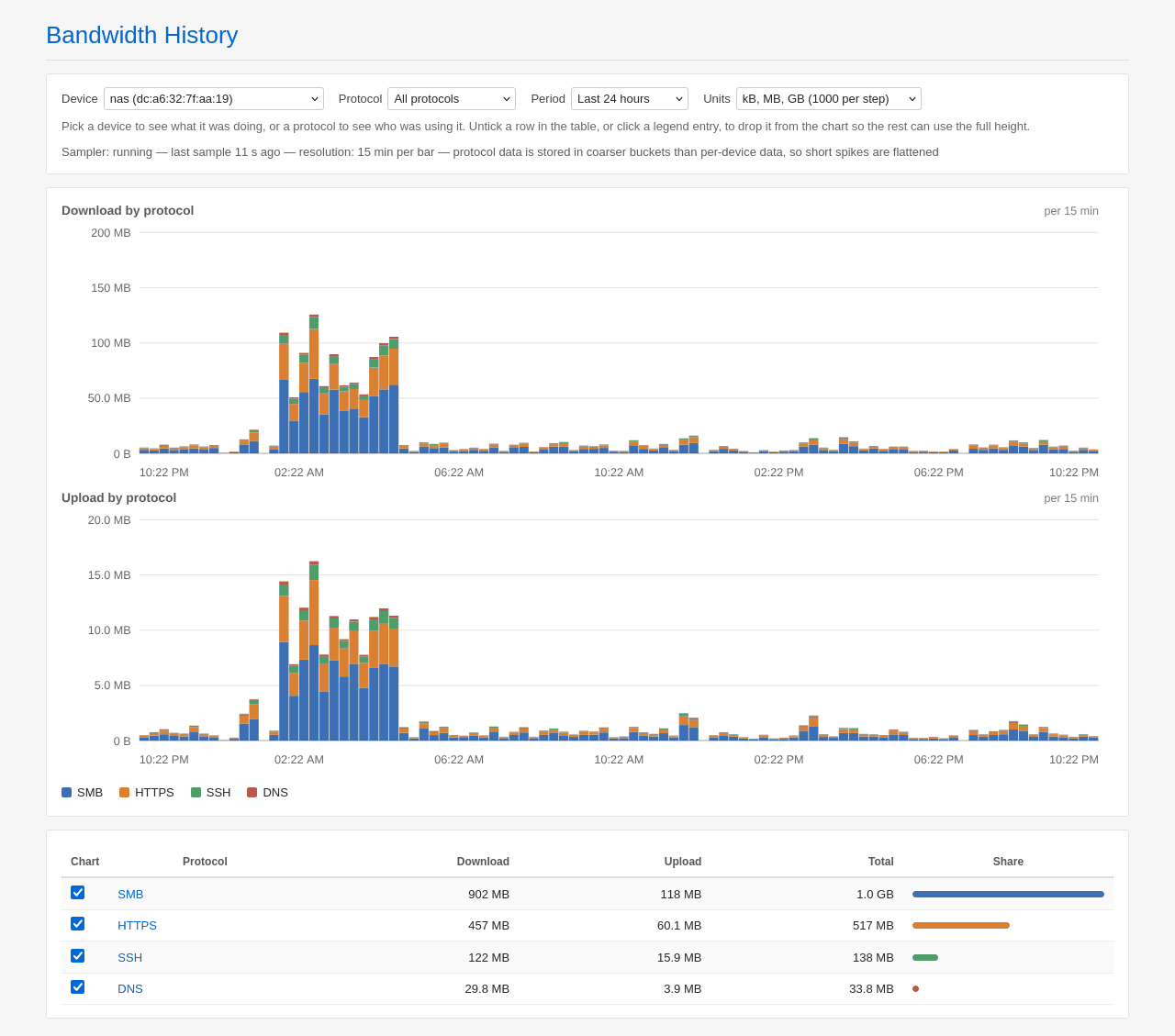

• a device selected: one band per protocol, so you can see what it was doing
• a protocol selected: one band per device, so you can see who was using it

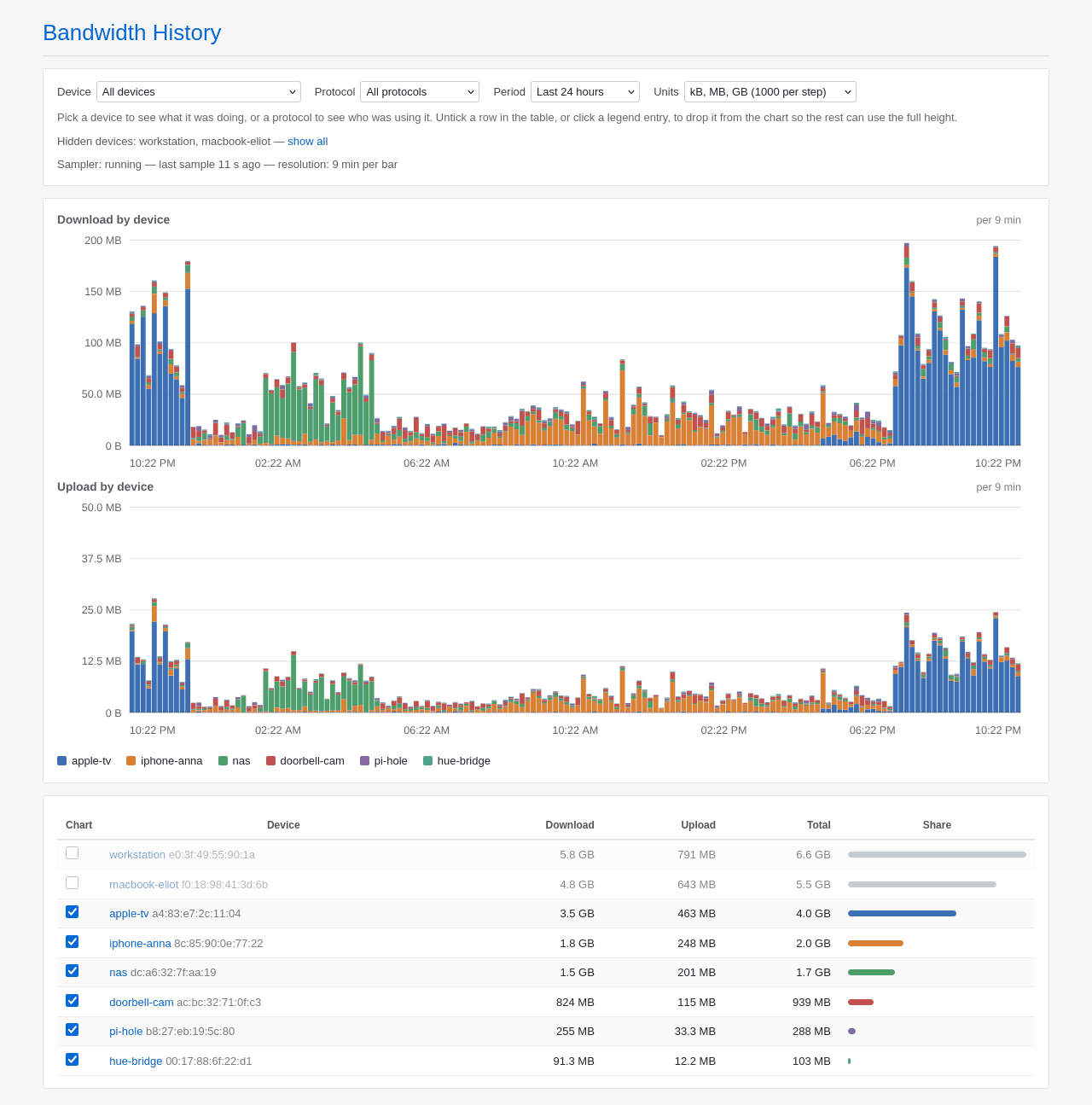

One device can pull a hundred times what the rest of the house does, which flattens everything else onto the baseline. Untick it in the Chart column, or click its legend entry, and it drops out so the rest can use the full height. The table keeps listing it, greyed out, with its real totals. The choice is remembered in the browser; show all clears it.

The period dropdown holds relative windows up to 30 days, then one entry per calendar month that retention can still reach.

What is moving right now. Reads conntrack instead of nlbwmon, stores nothing, and samples only while the page is open.

The same two filters work here, plus a Units dropdown that switches the rates between bits and bytes per second. Protocols are named by destination port, so anything on 443 reads as HTTPS no matter what is actually inside it.

Bars default to 3 seconds because that is roughly how often the kernel folds hardware-offloaded counters back into conntrack. Finer bars need that made faster too:

sysctl -w net.netfilter.nf_conntrack_tcp_timeout_offload=10

It also needs byte counters in conntrack, which the page tells you about if they are missing:

sysctl -w net.netfilter.nf_conntrack_acct=1

This tab is not accounting. A connection that opens and closes between two samples is never seen, which is why History keeps using nlbwmon.

Both tabs count the traffic nlbwmon is configured to count, and nothing in Settings here changes that:

• Which traffic. A flow counts only when exactly one end is inside nlbwmon's local_network list. LAN to LAN, and anything to the router itself, never appear. A device that never shows up is usually on a network nlbwmon was not told about.
• Protocol names. HTTPS, QUIC and SMB come from nlbwmon's protocol list, so a name you expect but do not see, or an unknown you do not expect, is a question for nlbwmon.
• Counter resets. nlbwmon rolls over to a new accounting period; stored history is unaffected and survives the rollover.

Change it in /etc/config/nlbwmon, or through luci-app-nlbwmon if you have it, then /etc/init.d/nlbwmon restart. It applies from the next sample on and does not rewrite history, so a graph can straddle the change.

nlbwmon and rpcd-mod-ucode:

apk add nlbwmon rpcd-mod-ucode      # OpenWrt 25.12 and newer
opkg install nlbwmon rpcd-mod-ucode # 24.10 and older

Developed and verified on 24.10. Nothing here is version specific, but it has not been run on 25.12 hardware.

From the package feed (recommended). The package is published in a signed OpenWrt feed. Add it once, and the package installs from System → Software like any other, and new releases show up there as upgrades on their own.

# OpenWrt 25.12 and newer
wget -O /etc/apk/keys/openwrt-feed.pem \
    https://eliotferragni.github.io/openwrt-feed/keys/openwrt-feed.pem
echo "https://eliotferragni.github.io/openwrt-feed/apk/packages.adb" \
    >> /etc/apk/repositories.d/customfeeds.list
apk update
apk add luci-app-nlbw-history

# 24.10 and older
wget -O /tmp/feed.pub https://eliotferragni.github.io/openwrt-feed/keys/usign.pub
opkg-key add /tmp/feed.pub
echo "src/gz eliotferragni https://eliotferragni.github.io/openwrt-feed/opkg" \
    >> /etc/opkg/customfeeds.conf
opkg update
opkg install luci-app-nlbw-history

Read the feed's README for more info.

The prebuilt packages, from Releases. Both are architecture independent, so the same file works on any target. Installed this way, upgrades are up to you:

# OpenWrt 25.12 and newer
scp luci-app-nlbw-history-1.1.0-r1.apk root@192.168.1.1:/tmp/
ssh root@192.168.1.1 'apk add --allow-untrusted /tmp/luci-app-nlbw-history-1.1.0-r1.apk'

# 24.10 and older
scp luci-app-nlbw-history_1.1.0-1_all.ipk root@192.168.1.1:/tmp/
ssh root@192.168.1.1 'opkg install /tmp/luci-app-nlbw-history_1.1.0-1_all.ipk'

Without a package manager, copy the source tree to the router and run install.sh on it; install.sh --remove undoes it:

scp -r luci-app-nlbw-history-src root@192.168.1.1:/tmp/
ssh root@192.168.1.1 'sh /tmp/luci-app-nlbw-history-src/install.sh'

With the OpenWrt SDK, copy package/luci-app-nlbw-history in, select it under LuCI → Applications, then make package/luci-app-nlbw-history/compile.

Whichever way, check it came up:

nlbw-history-collect --status

Everything is under Services → Bandwidth History → Settings, which also shows whether the sampler is alive, when it last ran, how much history is on disk and which local networks are counted. The same options live in /etc/config/nlbw-history:

uci set nlbw-history.main.period='30'
uci commit nlbw-history
/etc/init.d/nlbw-history reload

Expect roughly 5–10 MB per month at period=60 with 20 busy devices, and about the same again for protocol data. Point data_dir at an NVMe or USB disk if you have one. Samples are buffered in /tmp and written out every flush_interval, so a hard power cut loses at most that much.

Full diagnostics in Settings shows everything both samplers report, which is the same as running nlbw-history-collect --status and nlbw-history-live --status on the router.

The sampler is not running

/etc/init.d/nlbw-history status
logread -e nlbw-history
ubus call service list '{"name":"nlbw-history"}'

If procd does not know the service, the init script is not enabled. If it starts and dies, run one sample by hand: sh -x /usr/bin/nlbw-history-collect 2>&1 | tail -30.

nlbwmon returns nothing

/etc/init.d/nlbwmon status
nlbw -c csv -g mac -q -n | head

That must print a header and one row per device. A device missing there is missing from nlbwmon's accounting, not from this package.

A bar is impossibly tall

A bar claiming more than the link could carry is a counter glitch, not traffic. New samples are checked against max_rate; history recorded before that is checked on demand, or with Check for implausible rows in Settings:

nlbw-history-collect --scrub             # report, change nothing
nlbw-history-collect --scrub --apply     # move those rows out

Rejected rows move to <data_dir>/YYYY-MM-DD.suspect.tsv rather than being deleted, and the graphs say how many samples are missing and when.

The LuCI page is missing from the menu

rm -rf /tmp/luci-indexcache /tmp/luci-indexcache.* /tmp/luci-modulecache
/etc/init.d/rpcd restart

Then log out of LuCI and back in: a stale session hides a freshly installed page.

The page is there but empty or erroring

ls /usr/lib/rpcd/ucode.so                 # rpcd-mod-ucode installed?
ubus list | grep luci_nlbw                # backend registered?
ubus call luci_nlbw_history status '{}'
logread -e rpcd

If ubus works but the browser does not, open the browser console: a LuCI view that throws leaves the page blank. The two backends also run on their own, which separates a data problem from a display one:

nlbw-history-query 24 20
nlbw-history-live --status

/etc/config/nlbw-history                                 configuration
/etc/init.d/nlbw-history                                 procd service
/usr/bin/nlbw-history-loop                               sampling loop
/usr/bin/nlbw-history-collect                            one sample, flush, status, scrub
/usr/bin/nlbw-history-query                              aggregation into JSON
/usr/bin/nlbw-history-live                               live view, reads conntrack
/usr/share/rpcd/ucode/luci.nlbw_history.uc               ubus backend
/usr/share/rpcd/acl.d/luci-app-nlbw-history.json         ACL
/usr/share/luci/menu.d/luci-app-nlbw-history.json        menu entry
/www/luci-static/resources/nlbw-history/chart.js         palette, formatting, the chart
/www/luci-static/resources/view/nlbw-history/history.js  the history page
/www/luci-static/resources/view/nlbw-history/live.js     the live page
/www/luci-static/resources/view/nlbw-history/settings.js the settings page
<data_dir>/YYYY-MM-DD.tsv                                epoch, mac, rx, tx
<data_dir>/YYYY-MM-DD.proto.tsv                          epoch, mac, protocol, rx, tx
<data_dir>/YYYY-MM-DD.suspect.tsv                        rejected rows

Working on it rather than running it? DEVELOPMENT.md has the build, the CI, the release procedure and why the code is shaped the way it is.

This package was written by Claude Code; see DEVELOPMENT.md. The screenshots are the real page drawn against synthetic traffic, so the device names and numbers in them are invented.

Before installing a package from a stranger on a router you care about, read the scripts. They are deliberately short, and there are only five of them.
