A visual desktop IDE where your code lives on a canvas — not just in a file.

Litria is developed by a sole dev, with all application code written by Claude. The ideas, patterns, architecture, and scope are the dev's. Contributors are welcome — see CONTRIBUTING.md.

Litria gives your project structure a shape. Files are nodes. Folders are real groups on disk. Imports are routed wires drawn from the code itself.

Structure and relationships are first-class here — the canvas is a living architecture view, not a side-panel graph generated after the fact. Drag a node into a folder group and the file moves on disk. And the code inside each node is exactly what it looks like: ordinary, exportable, editable source.

This isn't a no-code tool or a diagram maker. It's a native desktop IDE built for people who think visually and code seriously. Whether you're mapping out a new project, teaching someone how programs connect, or just tired of losing the big picture inside a file tree.

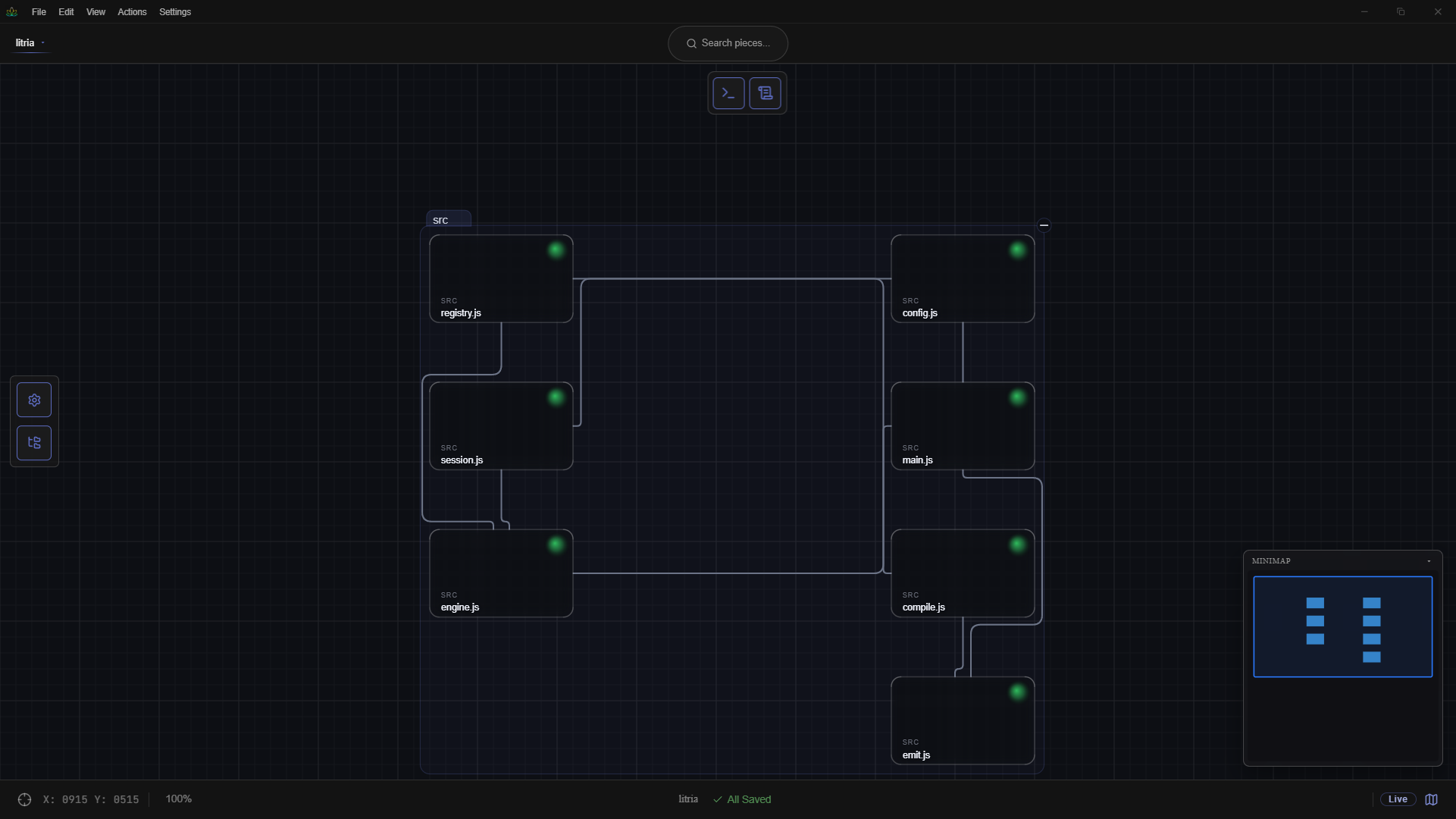

Every node is a real file. The dashed group is a real folder. Every wire was read out of an actual import — nothing here is drawn by hand.

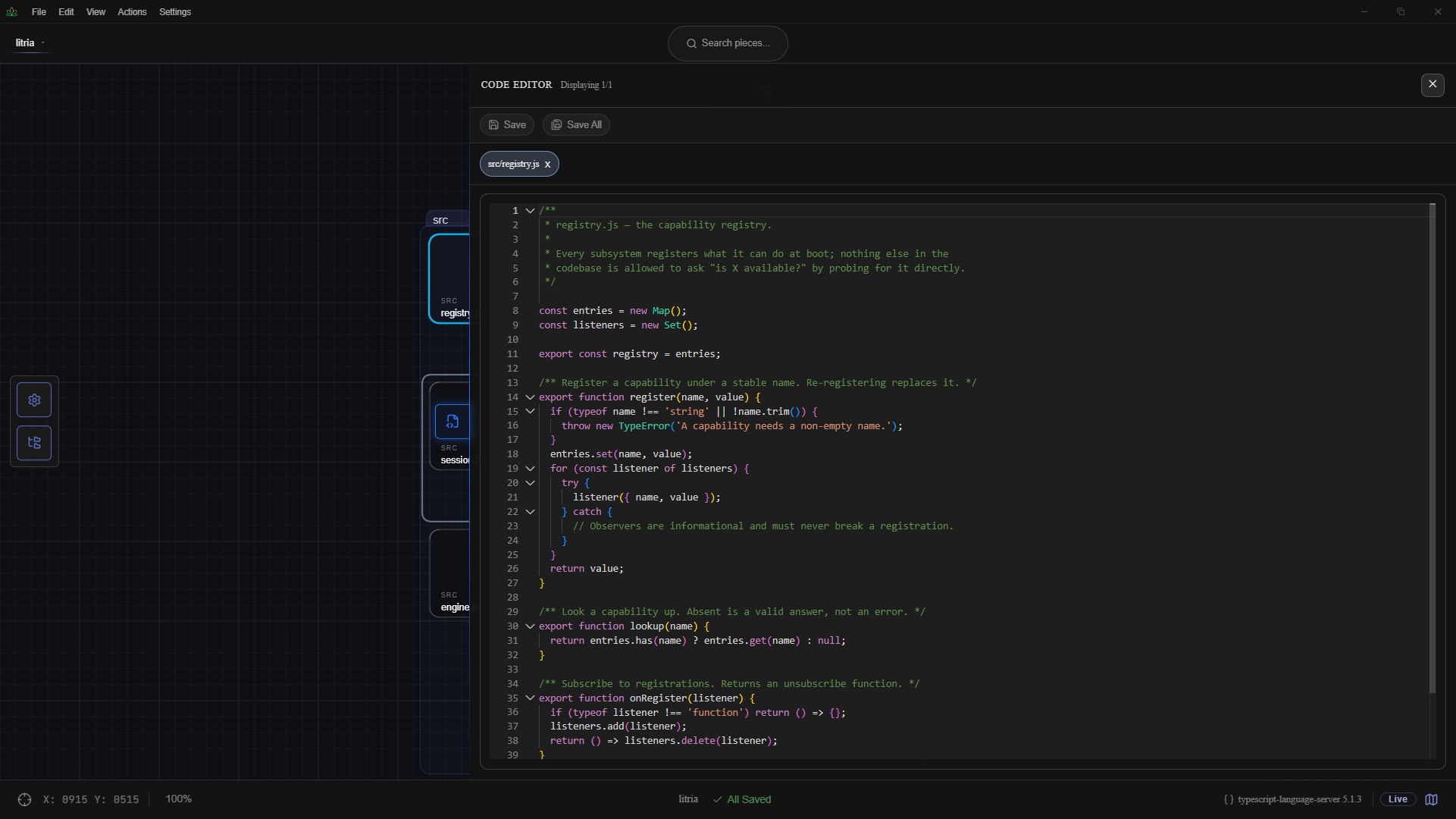

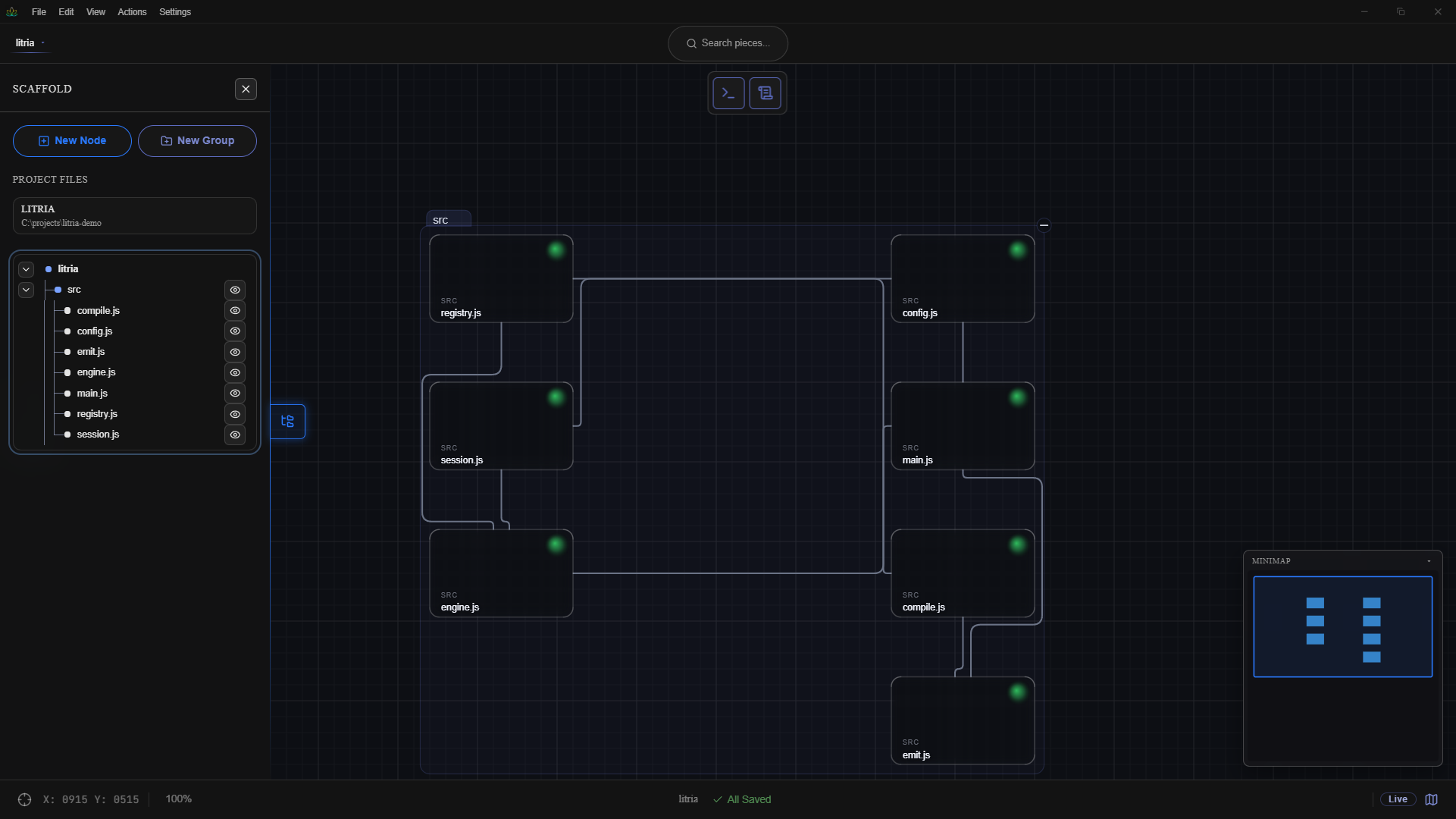

Open a node and it's just code. A full editor with language-server support — the canvas keeps the file you are editing in view.	The file tree is still there. Add nodes and groups, or hide files from the canvas without touching disk.

Builds are unsigned, so your OS will object the first time:

• Windows — SmartScreen warns: More info → Run anyway.
• macOS — unsigned and un-notarized, so macOS often claims the app is "damaged". It isn't. After dragging Litria to Applications:

  xattr -dr com.apple.quarantine /Applications/litria.app

  That strips the download-quarantine flag. It does not disable Gatekeeper.
• Linux (AppImage) — chmod +x litria_<version>_amd64.AppImage then run it.

Windows is the build that gets used daily. macOS has been launched and run by a tester — briefly, on one machine, which is enough to say it works and not enough to call it proven. Linux passed the source-build parity checklist on Fedora 44 (2026-07-31); the packaged AppImage, deb, and rpm have not yet been launched by a human. Please tell us when a platform build does not work.

Platform evidence corrected 2026-09-15 under ADR-027.

Prefer to build it yourself? Jump to Getting into it.

• Infinite canvas where every node is a real file on disk
• Folder groups that mirror your real project structure — nesting, collapse, and drag all operate on the whole subtree, and every group is a real folder on disk
• Routed wires drawn from your real imports — obstacle avoidance, corridor lanes, and legible separation. Wires are first-class citizens, not decoration
• Monaco editor with full LSP language intelligence: Python and TypeScript/JavaScript bundled and working on first launch; rust-analyzer and clangd installable from the managed server directory; Go via your own toolchain. A server already on your PATH always takes precedence over the bundled one
• Progressive disclosure for large projects: hide nodes you aren't working on, and the imports they carried surface as a count badge on the importing node — click it to bring a file back and rewire it instantly
• Canvas layout is project state: node positions, scale, and viewport persist with the project rather than resetting between sessions
• Split editor panes, multi-tab workflows, crash-safe unsaved-work recovery
• Visual groups, connections, and undo/redo
• Embedded terminal (with hide-don't-kill) and project scaffolding wizard
• Preferences system with global + per-project layers
• Crash logging with local records and assisted reporting
• Native desktop app: macOS, Windows, Linux
• Glass theme with material presets and customizable accent colors

This is a real beta. Things will break. Here's what matters most right now:

1. Use it: open a real project. See how far you get.
2. File issues: bugs, rough edges, confusing moments. All of it helps.
3. Share it: if it resonates, point someone else at it.
4. Contribute: read CONTRIBUTING.md. The architecture is documented and guarded.

Roadmap feedback is welcome in Discussions. We want to know what you'd build with this.

Here's everything you need to build, run, and understand the codebase.

• React 19
• Vite
• Tauri v2 (Rust backend shell)
• Monaco Editor (@monaco-editor/react)
• Konva / React Konva (infinite canvas)
• Tailwind CSS v4 (utility layer, no preflight)
• shadcn/ui (Radix primitives: Dialog, AlertDialog, DropdownMenu, Popover)

Version note: These are the exact versions Litria is developed and tested against. Older versions may work but are not guaranteed. When in doubt, match these.

Litria bundles Node.js, Pyright, and TypeScript Language Server inside the installer. Language intelligence for Python and JS/TS works on first launch with no additional setup.

Python (.py) — powered by Pyright. Requires Python 3.8+ on PATH for full type inference (Pyright needs to see your Python environment for import resolution).

TypeScript / JavaScript — powered by typescript-language-server. No prerequisites.

Power users: If you have your own global pyright, typescript-language-server, or node installed, Litria will use those instead of the bundled versions. Global installs always take precedence.

npm install
npm run dev

To run as a Tauri desktop app during development:

npm run tauri dev

Web build:

npm run build

Release build (bundles Node.js + language servers into installer):

npm run bundle         # stage bundled runtimes (idempotent)
npx tauri build        # compile + package installer

• npm run dev: Start Vite development server.
• npm run build: Build frontend assets into dist/.
• npm run preview: Preview the built frontend locally.
• npm run bundle: Download Node.js + install pinned language servers + stage the ConPTY pair into src-tauri/resources/ for release builds.
• npm run bundle:servers: Bundle language servers only (pyright + tsserver).
• npm run bundle:node: Download platform-specific Node.js binary only.
• npm run bundle:conpty: Stage the sideloaded Microsoft ConPTY pair (terminal support on Windows 10).
• npm run bundle:check: Verify the staged bundle.
• npm run build:release: Bundle runtimes + build frontend (shorthand for CI).
• npm run check:architecture: Run all 6 architecture guards (import boundaries, app shell, protected zones, domain contracts, settings keys, editor engine).
• npm run test:domains: Run domain-level unit tests.
• npm run check: Run architecture guards + build (CI shorthand).
• npm run tauri: Run Tauri CLI commands.
• npm run tauri:clean: Clean Rust build artifacts in src-tauri/.

• src/: Frontend application code.
  • src/app/: Domain logic (pure JS, no React/Monaco imports).
  • src/components/: React components.
  • src/components/ui/: shadcn/ui primitives (owned source).
  • src/editor/: Monaco editor integration, language intelligence.
  • src/preferences/: Settings registry + preferences domain (ADR-019).
  • src/crash/: Crash capture, local logs, assisted reporting.
  • src/styles/: CSS (BEM conventions + Tailwind utilities).
  • src/lib/: Shared helpers (cn() utility).
• src-tauri/: Tauri/Rust application shell and config.
• public/: Static assets copied by Vite.
• test/: Domain-level unit tests.
• scripts/: Architecture guards and tooling.
• docs/: Development documentation (not bundled into builds).
  • docs/prds/: Product requirements documents.
  • docs/plans/: Implementation plans and build checklists (idea captures live in docs/plans/ideas/).
  • docs/adrs/: Architecture decision records.
  • docs/rfcs/: Design proposals.

• docs/ is development documentation and is not bundled into app build output by default.
• Future/experimental directions are intentionally not documented here.

All Ctrl shortcuts map to Cmd on macOS.

We welcome contributions. Please read CONTRIBUTING.md before opening a PR. It covers the tech stack, architecture rules, styling policy, and our five governance pillars.

MIT License
