OpenScan is a personal scanner for one USB camera pair. It was vibe-coded for one job. It is not maintained, and it is not a product. Change it with your own assistant.

Plug the scanner in. Your user has to be in the video group. Copy your calibration to ~/.local/share/openscan/calib/ and name it with the serial and .txt. The download does not include that file. On the desktop, a local lookup key downloads a missing file instead. See Factory lookup.

Day to day use is in docs/usage.md. Notes are in CHANGELOG.md. The license is MIT. See LICENSE.

Each download is one file. The * below is the version in the name, so the same commands work next time too.

Linux

chmod +x OpenScan-*-linux-x86_64
./OpenScan-*-linux-x86_64

The window opens. A normal desktop already has the X11 library this file uses.

The AppImage is the same program, with that library included:

chmod +x OpenScan-*.AppImage
./OpenScan-*.AppImage

If Linux cannot mount the AppImage, add --appimage-extract-and-run before any command.

Windows. Open the .exe.

Android. Install the .apk. Android warns that the file is signed with a debug key. That warning is expected.

There is no macOS download.

./OpenScan-*-linux-x86_64 help
./OpenScan-*-linux-x86_64 devices

help lists the commands. devices prints the cameras when both belong to one scanner.

The window opens idle, so you can frame the object before anything is kept.

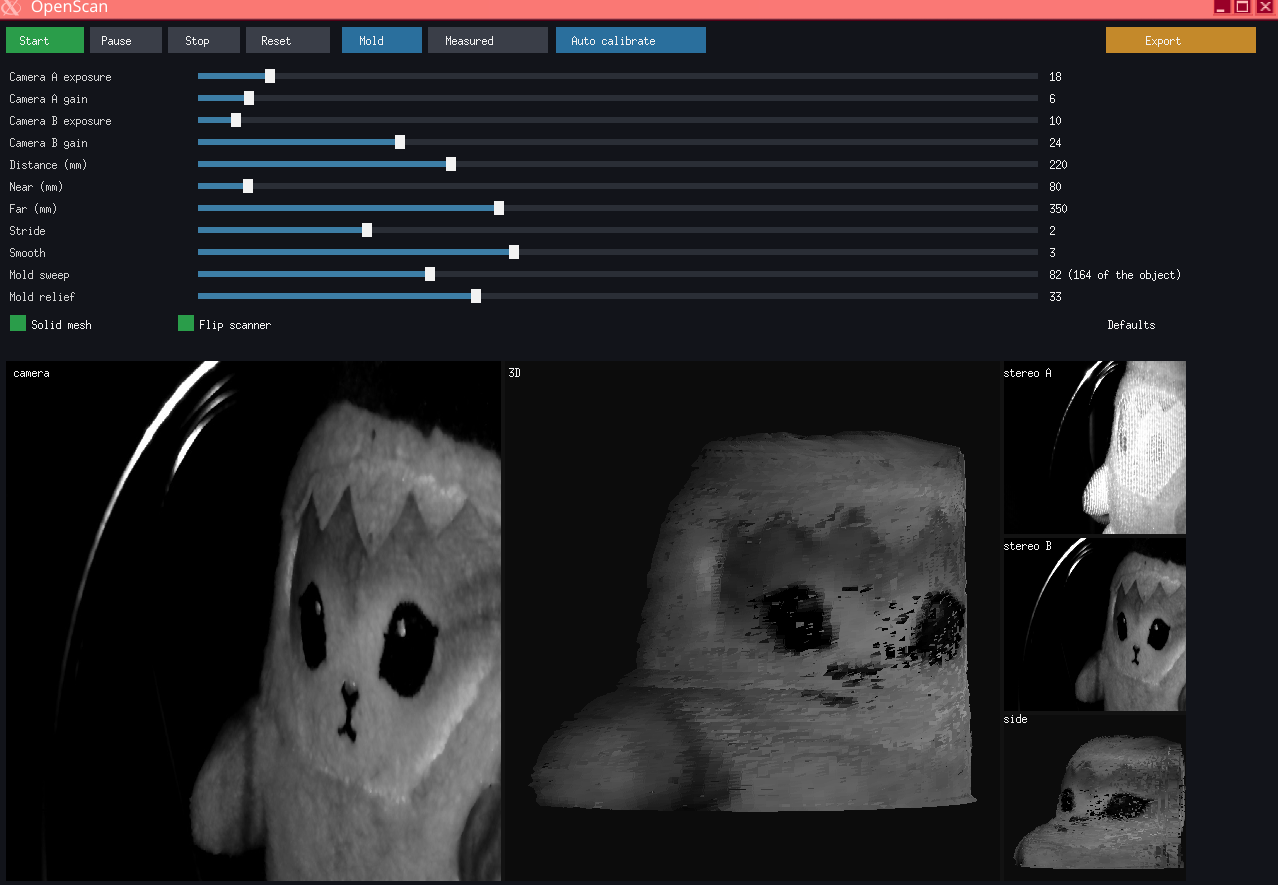

The top row is Start, Pause, Stop, Reset, Mold, Measured, Auto calibrate, and Export. The sliders under it are exposure and gain for each camera, distance, near, far, stride, smooth, mold sweep, and mold relief. Solid mesh keeps the triangles. Flip scanner turns the camera picture upside down. Defaults puts the sliders back.

The camera is on the left, the 3D view is in the middle, and stereo A, stereo B, and the side view are on the right. Drag the 3D view to turn it.

Press Start and turn the object. With Mold selected, Start reads Molding. The status line shows triangles and degrees. Stop holds the model. Pause holds it and keeps the turn. Reset drops it. Export opens the system save dialog. The file ending chooses STL, OBJ, or PLY. Quit with q or Esc. A model is then written as openscan-last.stl, openscan-last.obj, and openscan-last.ply.

Mold builds from projector points that have been seen twice. The shapes of those points locate the object, so the scanner can move around it. A single glance is stored and does not mold. Measured is the projector surface in front of the scanner. When the object turns, a new view is kept where it meets that surface. Switching Mold, Measured, and Cloud clears the model.

A still picture stays where it is. The turn comes from the stored shapes, so the scanner can move around the object. One camera pair was used. Other scanners are untested.

OpenScan is not affiliated with any scanner maker. Their names stay theirs, and their installers are not part of this project. The cameras are ordinary USB video devices on the uvcvideo driver. This project does not install a kernel module. The NIR lamp has no USB command of its own. It lights while camera A is streaming, and that path is docs/projector.md.

openscan                         window
openscan devices                 the camera pair
openscan grab -o DIR             camA.pgm and camB.pgm
openscan scan -o object.stl --seconds 8
openscan turn-test
openscan help

From a source build the program is ./build/openscan. openscan version prints the version and the host (linux, windows, or mac).

scan records without a window. --shape mold is the confirmed projector solid. --shape measured is the projector surface, and a later view is kept where it meets that surface. --distance is 100–500 mm and is the depth of the center column. Exposure flags are --exposure-a, --gain-a, --exposure-b, and --gain-b.

Exposure is in steps of 100 microseconds. Gain is 0..100, the value written to the camera. A starting point that worked here is camera A exposure 12 gain 4, and camera B exposure 16 gain 4. If the camera stays on auto, the status line says the sliders were not applied. On Android, when the sensor's ISO range is wider than 0..100, 0 is the bottom of that range and 100 is the top.

Each scanner has its own file, calib/<serial>.txt. The serial is read from the cameras. Both cameras have to carry the same serial, or the pair is not opened. This repository does not include a calibration file.

Search order:

1. calib/<serial>.txt in the current directory, then openscan/calib/<serial>.txt
2. calib/<serial>.txt next to the sources
3. Beside an installed program, ../share/openscan/calib/<serial>.txt
4. $XDG_DATA_HOME/openscan/calib/<serial>.txt, or ~/.local/share/openscan/calib/<serial>.txt
5. On Windows, %APPDATA%/openscan/calib/<serial>.txt
6. On macOS, ~/Library/Application Support/openscan/calib/<serial>.txt

The saved mesh does not contain the serial or the calibration text.

When none of the files above exist, desktop OpenScan can download this scanner's calibration. Put the lookup key in OPENSCAN_CALIB_SIGN, or as one line in calib/sign.local. That key is not in the source tree, and both names are gitignored.

The request goes out through the curl program. It asks the factory server for this serial only. The calibration text is not uploaded. The download is saved in the home-folder location above, and it is kept only when its DevID is this serial. Without the key, nothing is requested and you place the file yourself. The window still opens.

The Android app does not send that request. No key is built into it, so a missing file on the phone stays missing. It uses a file already stored for the serial, then a shipped asset of that name.

On Android the pair is kept only when both cameras share that serial. Swap exchanges the two cameras, the button reads Swapped, and that exchange stays on the next time the app opens. The status line names the serial. The camera rules below are the rest of that behavior.

• The serial is read from the KYT Camera A/B name. When that name is hidden, the USB serial on the same two cameras is used, and both still have to match.
• A connected unit is not scanned with a different serial's file. With no scanner plugged in, other cameras stay closed.
• If those video devices are blocked, the camera API is used only when both USB cameras share the loaded serial.
• A camera id that names a scanner video node is that camera, even when another camera is also connected. That pair uses camera A as the pattern camera unless Swap is on.
• Opaque ids are used only when they are the only pair and no other USB camera is plugged in. Those choose the pattern by which picture has more contrast, then Swap.
• The camera API streams at the calibration size. A different size is not stretched over the intrinsics, and a different picture is not scaled. Both images are required.
• A pair is measured only after that scanner's calibration is loaded. A shipped file is not used to measure pictures while no scanner has been seen.
• A device that streams isochronous video without the video class still counts as another camera.

The udev rule is optional. It names the nodes /dev/openscan-a and /dev/openscan-b and lets the video group open them.

sudo install -m 0644 udev/99-openscan.rules /etc/udev/rules.d/99-openscan.rules
sudo udevadm control --reload
sudo udevadm trigger --subsystem-match=usb --attr-match=idVendor=0c45
sudo udevadm trigger --subsystem-match=video4linux

build/ and dist/ are generated. They are gitignored.

The Linux build was tried on CachyOS with CMake 4.4.3 and GCC 16.2.1. CMake 3.16 is enough. The program is C11 and links libX11 and libjpeg. Windows uses Win32, Media Foundation, and WIC. macOS uses Cocoa, AVFoundation, and ImageIO. Headers for Video4Linux come with the C library. On Arch and CachyOS:

sudo pacman -S cmake gcc libx11 libjpeg-turbo
cmake -S . -B build
cmake --build build
./build/openscan

The engine is build/libopenscan.a. Another program includes openscan/openscan.h and links that library.

./build/openscan help
./build/openscan devices
./build/openscan turn-test
./packaging/appimage.sh

packaging/appimage.sh writes two files in dist/:

• OpenScan-<version>-linux-x86_64 is one program. When libjpeg.a is installed, or OPENSCAN_LIBJPEG_A points at that archive, JPEG is built into the file and it needs libX11 only. Otherwise it also needs libjpeg.so.8.
• OpenScan-<version>-x86_64.AppImage is the same program with its libraries packed in, apart from the C library. This step needs appimagetool on PATH, or APPIMAGETOOL set to that program.

Neither file contains a calibration.

Windows, from Linux, with the MinGW cross compiler installed:

cmake -S . -B build-win -DCMAKE_TOOLCHAIN_FILE=packaging/mingw-w64.cmake
cmake --build build-win

On Windows itself, the same cmake -S . -B build with MinGW or MSVC. macOS uses that command too. The Windows download is build-win/openscan.exe.

No vendor installer, account, or browser cookie is required to build or run OpenScan. A missing calibration can call the curl program. That happens only when the local key above is set.

The Android app is android/. It compiles the same C sources. The native library links log and android.

You need JDK 17, the Android SDK, NDK 28.2.13676358, and CMake 3.22.1. android/local.properties is not committed. It only needs:

sdk.dir=/path/to/Android/Sdk

From android/:

export JAVA_HOME=/path/to/jdk-17
./gradlew :app:assembleDebug
adb install -r app/build/outputs/apk/debug/app-debug.apk

The application id is dev.lab.openscan. Copy the APK to dist/OpenScan-<version>.apk when you are packing a release. That directory is gitignored.
