Matrix Hub

Matrix Hub is a Rust-based, dual-core embedded application designed for the ESP32 (using ESP-IDF) to drive a HUB75 LED matrix display. It acts as a smart display hub featuring various built-in apps, web-based configuration, and hardware gesture controls.

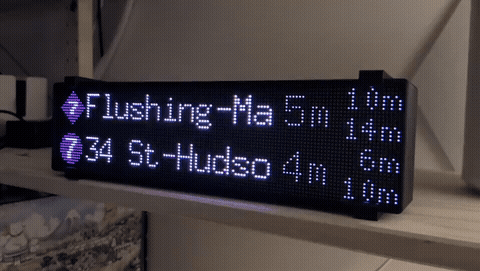

Demo

Features

  • High-Performance Rendering: Utilizes ESP32's dual cores. Core 1 is dedicated entirely to high-priority display driving and DMA memory management, ensuring smooth, flicker-free rendering. Core 0 handles application logic, networking, and asynchronous tasks.
  • Built-in Apps:
    • MTA: Real-time subway arrivals and transit information.
    • Plasma: A mesmerizing, math-based plasma visualizer.
    • Particles: A physics-based particle system.
    • Settings: Device information and configuration.
  • Hardware Controls:
    • Gesture Support: Integrated LIS3DH accelerometer for swipe and tilt gesture detection.
    • Physical Buttons: Up/Down GPIO buttons for manual navigation.
  • Network & Configuration:
    • Built-in WiFi management with a Captive Portal for easy network setup.
    • A modern, responsive web frontend built with Preact and Vite for device configuration.
    • Protocol Buffers (protobuf) used for efficient communication.

Hardware Requirements

  • Microcontroller: ESP32 / ESP32-S3
  • Display: HUB75 LED Matrix Display
  • Sensors: LIS3DH Accelerometer (I2C)
  • Input: Tactile buttons (GPIO)

Default Pinout

Component Pin(s)
I2C (LIS3DH) SDA: GPIO16, SCL: GPIO17
Buttons Up: GPIO6, Down: GPIO7

(Refer to src/config.rs for the HUB75 display pin configuration).

Software Requirements

  • Rust (v1.82+)
  • esp-idf toolchain (installed via esp-idf-sys / embuild)
  • Node.js & npm (for building the Preact frontend)

Project Structure

  • src/: The core Rust application.
    • src/apps/: Individual applications (MTA, Plasma, Particles, etc.).
    • src/display/: HUB75 matrix driver and framebuffer logic.
    • src/input/: Gesture and button handling.
    • src/network/: WiFi, DNS (Captive Portal), and HTTP server logic.
  • frontend/: Preact/Vite based web application for device configuration.
  • proto/: Protocol Buffer definitions for data exchange.
  • components/: ESP-IDF native components (e.g., HUB75 wrapper).

Building and Running

  1. Build the Frontend: Before compiling the Rust code, you need to build the Preact frontend so its assets can be embedded or served by the device.

    cd frontend
npm install
npm run build
cd ..

  2. Build and Flash the ESP32: Ensure you have the Rust ESP toolchain set up.

    cargo build --release
cargo run --release

License

This project is licensed under the MIT License - see the LICENSE file for details.
