A Tesla-app-style card for your Home Assistant dashboard. One card shows your whole fleet - battery, range, charging, climate, locks, location - looking and behaving like the official Tesla app, and switching between cars in one click.

Works with both Tesla integrations, automatically: tesla_custom (HACS) and the official tesla_fleet integration.

⚡ Fully vibecoded. Not a single line of this was typed by a human. It was built conversationally with Claude (Anthropic), iterating against screenshots and screen recordings of the real Tesla app until the two were hard to tell apart. Bugs are the AI's fault; the good ideas were Nick's. 🙂

Home	Charging	Controls	Climate

Via HACS (recommended):

1. HACS → three-dots menu (top right) → Custom repositories.
2. Paste this repository's URL, choose category Dashboard, click Add.
3. Find Tesla Fleet Card in HACS and click Download.
4. Hard-refresh your browser (Ctrl+F5 / Cmd+Shift+R). HACS registers the dashboard resource automatically; if the card still says "Custom element doesn't exist", check Settings → Dashboards → three-dots → Resources for /hacsfiles/tesla-fleet-homeassistant/tesla-fleet-card.js (type module) and add it if missing.

Manual install: copy tesla-fleet-card.js to /config/www/, add a dashboard resource /local/tesla-fleet-card.js (type module), and bump a ?v= query string on that URL every time you update the file.

1. Edit your dashboard → Add card → search Tesla Fleet Card.
2. Fill in the four fields:
   • Name - whatever you call the car.
   • Model - Model 3 or Model Y (picks the built-in artwork).
   • Paint - red, grey, … (picks the image pack and artwork colour).
   • Entity prefix - how your car's entities are named. Look at your battery entity: sensor.battery → leave empty; sensor.saoirse_battery → enter saoirse_. Works for both integrations; the card detects which one you're on.
3. Save. Add more cars with + Add car - a dropdown on the car's name switches between them.

The same config in YAML:

type: custom:tesla-fleet-card
cars:
  - name: Patsy
    model: Model Y
    paint: red
    prefix: ""

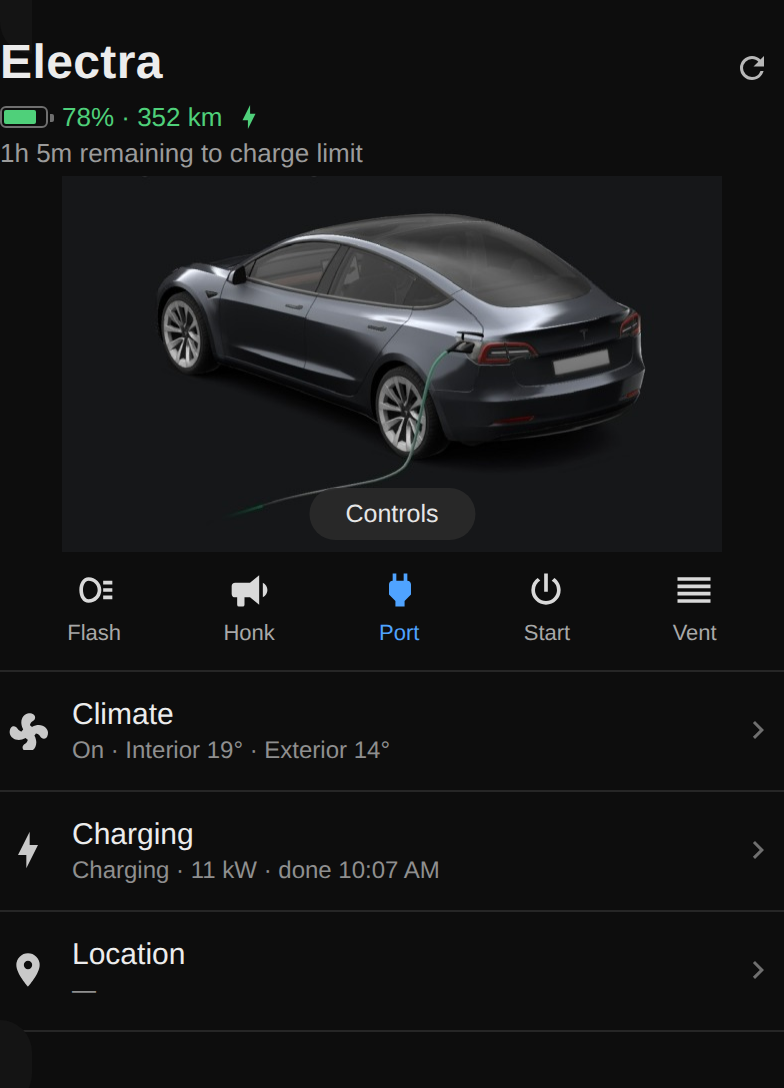

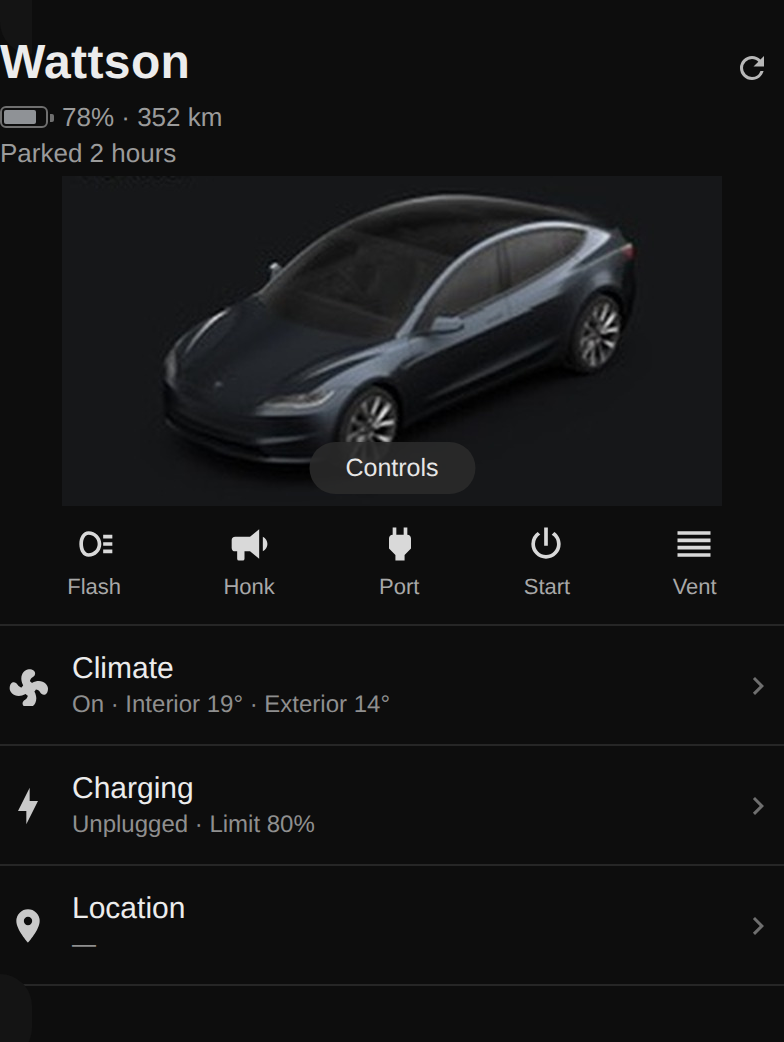

• Home view - your car resting, like the app's opening screen. Plugging in swaps to the cable shot; charging animates a green pulse along the cable (timing measured from the real app, frame by frame). Tap the car for Controls.

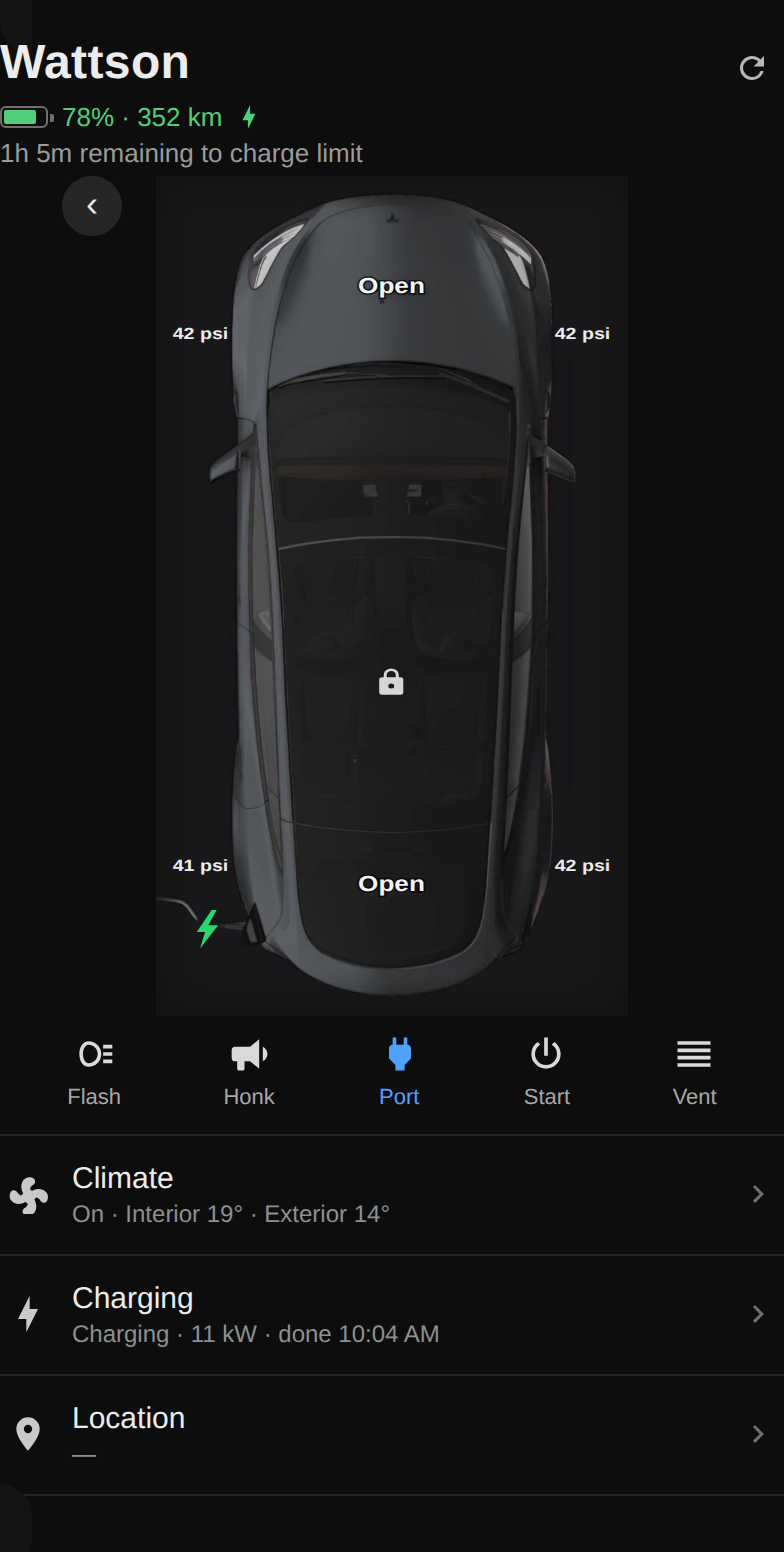

• Controls view - top-down car with tappable frunk/boot Open labels (two-tap confirm), lock/unlock on the roof, tyre pressures at the corners (psi or bar, whatever your integration reports), and a breathing charge bolt while charging.

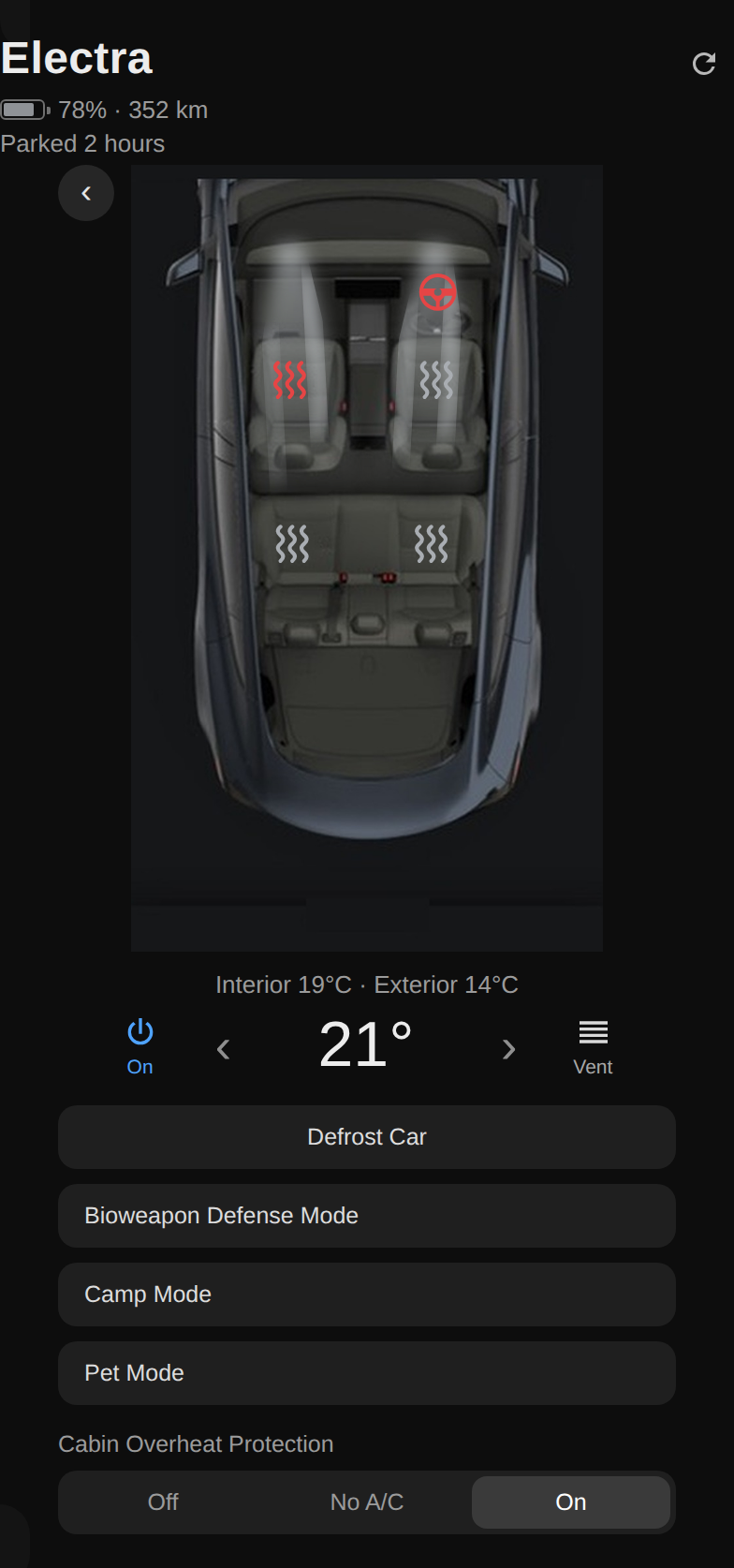

• Climate view - the interior. Tap any seat to cycle its heater (uses whichever heat levels your car offers - ventilated-seat cars included), tap the steering wheel for its heater, set the temperature, Vent, Defrost Car - plus Bioweapon Defence, Camp and Pet modes and Cabin Overheat Protection where your car supports them.
• Charging panel - charge-limit slider with a click-stop at 80 %, live kW · +kWh · A/maxA · V stats, "1h 5m remaining to charge limit" in the header, amps stepper, Stop Charging / Unlock Charge Port as applicable.
• Action row - Flash, Honk, Port, Start, Vent (destructive ones need a second tap).
• No images needed - everything above works out of the box with built-in drawn artwork in your paint colour. Real photos make it beautiful; see below.

The card looks for images in this order - first hit wins. Generation is part of the match; see Body generations below.

1. Per-car options in YAML - image, image_side, image_charging, image_climate and friends, each a /local/... path or full URL.
2. A per-car pack folder - images: /local/my-pack (or any URL base, e.g. a CDN or GitHub raw path).
3. The shared pack folder - /config/www/tesla-fleet-card/images/ using the layout models/<3|y>/<paint>/app/. Drop packs here once; the card finds them from each car's Model + Paint with zero config, and HACS updates never touch this folder.
4. The packs published in this repository - fetched automatically over GitHub raw for your car's Model + Paint. Zero config, and pack updates arrive on their own without a card update.
5. Nothing found → built-in drawn artwork.

Pack photos are treated as complete: the card draws no cable overlay on them - a charging photo's own cable shows the state.

A pack is seven JPEGs with these names and sizes:

Those side sizes are for a new pack. Two of the four bundled packs are 660 × 330 instead, which is fine: the measurements are per pack, so what matters is that a pack's own three side photos agree with each other, not which canvas it uses. | climate.jpg | 720 × 1200 | Interior top-down: dash ~10 % down, front seats ~27 %, rear bench ~48 %. |

Make your own from your own Tesla app: screenshot the app's home screen (parked, plugged, charging), Controls and Climate pages full-screen on the biggest display you have, crop to the car, patch out the baked-in UI labels (the card draws live ones), save to the sizes above on #141414.

The three side photos must show the car at the same size in the same place. Everything the card draws over them - the cable's travelling dashes, the spinning wheels, the road marking - is measured once against the photographs, so a frame that disagrees with its siblings makes the car appear to change size the moment it starts charging and puts the overlays beside the thing they are meant to sit on. Crop the three together, and check by measurement rather than by eye: docs/pack-images.md has the rule, the check, and how to rescue photos that already disagree.

Tesla has refreshed both cars, and a refresh changes the bodywork enough that the photos do not transfer. So a pack has a generation as well as a model and a paint:

The card works out which generation your car is from the model year, which it reads from the tenth character of the VIN. Model Y is unambiguous, because Tesla brands the 2025-built Juniper as a 2026 model: T or later is Juniper, S or earlier is pre-refresh. Model 3 is not, because Highland reached North America in January 2024, so 2024 and later is Highland, 2022 and earlier is not, and a 2023 could be either. The card does not guess at a 2023; set generation: highland or generation: classic on the car if you want to be sure.

A pack at a generation-qualified path wins if one exists, so models/y-juniper/red/app in this repository or in your own /config/www/tesla-fleet-card/images/ is all it takes to serve a Juniper red Model Y properly. Contributions of the missing combinations are very welcome - see below.

If the only pack in your paint is the other generation's, the card will not use it. It knows which generation each pack in this repository is, so serving a pre-refresh Model 3 the Highland photos would just be showing you a photograph of a different car. You get the no-pack panel instead, naming the folder somebody needs to fill. Earlier versions did borrow the other generation's bodywork, on the grounds that the colour was at least right; that turned out to be a good way to make wrong artwork look official and to remove any reason to fix it.

If you would rather have a picture of nearly your car than no picture, set allow_other_generation: true on the car and the old behaviour comes back. The card is not quiet about it either way: hover the car photo and it tells you which generation you are looking at.

A pack of your own under /config/www/tesla-fleet-card/images/ is never refused, whatever folder you put it in. The card has no idea which generation your photos are of, so it does not presume to judge them.

If you copied this repository's packs into your own www folder, name the folder for the generation. /local is checked first, so a copy sitting at models/3/grey/app wins before the card ever reaches the one it would have refused, and you get the wrong bodywork with no warning. Rename it to models/3-highland/grey/app (or whichever it actually is) and it behaves.

Controls not lining up on your images? Set calibrate: true on the car, tap the image where each control sits, read the coordinates off the badge, and put them in climate_anchors: / top_anchors: (then remove calibrate). Images made to the spec table need none of this.

Per car:

Card level: default_car, show_tpms, tpms_min (psi; auto-converted for bar), accent, drive_speed, show_vin, map_zoom, location_tap.

The footer shows the model year, which is decoded from the tenth character of the VIN. The card reads the VIN from the car's own entity attributes, so there is nothing to configure.

Tesla Custom reports the same fan_modes list for every car, so it cannot be used to tell a car that has Bioweapon Defense Mode from one that does not. The card falls back to the model instead: the mode needs a HEPA filter, which Model S, X and Y carry and Model 3 does not, so the button is hidden on a Model 3.

The year matters too, and the card can see it. Model Y was built without the filter until Tesla added it to the production line in June 2021, and Model S and X only got it from 2016, so the card reads the model year from the VIN and hides the button on a car too old to have had one. The VIN comes from the car's own entity attributes; there is nothing to configure.

Both are retrofittable and the card cannot know that, so a car with a retrofitted filter wants show_climate: [bio]. hide_climate: [bio] still removes the button from any car.

Put the car in gear and the resting photo gets a road: a lane marking sliding underneath, the wheels turning, and the car's speed where the "Parked 2h" timer usually sits.

It is all measured off a screen recording of the Tesla app rather than invented. The markings run parallel to the car's own wheelbase, which is why each image pack carries the angle its photo was shot at. The wheels turn by rotating the photograph's own pixels, clipped to each hub and un-squashed to a circle first, so the spokes that move are the real ones. The rear wheel borrows the front's pixels, because it is the same wheel and is drawn too small to resample well on its own.

The animation is proportional to the car's actual speed: double the speed and the road and wheels both double. drive_speed scales the overall pace if it feels wrong on your screen. At a standstill in gear the road and wheels stay drawn and stop moving, and the wheels render sharp, because the motion blur only exists to smear motion. drive_motion: off on a car turns the whole thing off.

Wheel geometry was measured for the bundled packs only. A pack we have not measured gets a road but still wheels, because a wrong ellipse wobbles and that looks worse than not moving. wheels: and road: let you supply your own.

Speed comes from the device_tracker entity's speed attribute, in whatever units the car itself displays, so the card does no conversion and labels it from the range sensor. Tesla Custom reports it as null rather than 0 on a parked car.

The speed is only as fresh as your polling. Tesla Custom polls every scan_interval seconds while a car is in Drive or Reverse, so at the default of 60 the number on the card can be a minute old. Lowering scan_interval globally is a bad trade, because a parked car with sentry mode on then gets polled just as hard and that costs range. Better is an automation that calls tesla_custom.polling_interval with the driving car's VIN and a shorter interval, and restores it when the car parks.

Tapping Location opens a map of that car inside the card, zoomed to it, with a Back button bottom left. map_zoom sets the zoom, 15 by default.

It is Home Assistant's own map card, built by the card with a single entity, so it looks and behaves like every other map on your dashboard and follows the car as it moves. It is done that way because there is nothing to link to: the Map dashboard is a strategy dashboard, generated at runtime from every entity that has coordinates, so no URL centres it on one car and none carries a zoom.

Nesting a built-in card means using loadCardHelpers(), which is how custom cards have always done it but is not a documented API. Every failure path ends in a sentence explaining itself and the entity dialog, which is what this row opened before. A car with no coordinates says so rather than showing an empty box: a sleeping car keeps its last known position, and one that has never reported a position has nothing to show.

Prefer the old dialog? location_tap: more-info, on the card or on one car.

HACS shows updates as versioned releases. After updating, hard-refresh the browser. The running version prints in the browser console when the card loads.

Home Assistant with the tesla_custom HACS integration or the official tesla_fleet integration - and a Tesla. 🚗

Designed by mimicking the official Tesla app. Built end-to-end by Claude in conversation with MrNickIE, who supplied the screenshots, the screen recordings, the opinions, and the phrase "you have drawn a SPACESHIP". Shared under the MIT licence - enjoy.

Image packs. The pre-refresh Model Y and the Highland Model 3 come from MrNickIE's own cars. The Juniper Model Y in white came from @panka403 in PR #2. The Juniper Model Y in blue was contributed by one of MrNickIE's neighbours, from photographs of their own car and shared with their permission.

Tesla stores a mode and a level, not a single number: Auto, or Heat or Cool at Low, Medium or High. Setting a level by hand moves the car out of Auto, which is what the app's Heat / Auto control is doing.

The card follows that:

• Off - grey waves
• Heat - one, two or three red waves
• Cool - the same in blue, on cars with ventilated seats
• Auto - waves plus the word Auto, the way the app labels it, so Auto is never mistaken for maximum heat

The steering wheel gets the same treatment with two steps rather than three, matching the car. On models that expose only a plain on/off switch the card falls back to that automatically.

The card is one dependency-free file, so the only tooling here is the test suite. It drives the real card in a real browser, because the bugs worth catching in a custom card are the ones that only appear with genuine DOM behaviour.

npm install
npm test

123 checks covering entity detection on both integrations, the per-car entity overrides, the editor, the seat and wheel heat vocabularies, Bioweapon by model and year, and the driving view including the geometry that keeps the wheels rolling at the same speed as the road. It exits non-zero on failure.

It is worth knowing why it exists. In v1.1.0 a reported bug ("the editor keeps reverting to the first vehicle") was diagnosed by reading the code, declared fixed, and shipped still broken, because the real fault was a shadow-root teardown that only shows up when a browser is actually running. Run against v1.1.1 this suite fails on exactly the five things v1.1.2 fixed. If you are changing detection or the editor, run it.

A pack is seven photos from the Tesla app:

topdown.jpg · topdown-plugged.jpg · topdown-charging.jpg · side.jpg · side-plugged.jpg · side-charging.jpg · climate.jpg

Partial packs are fine - the card probes each slot and uses what it finds.

Read docs/pack-images.md before you crop anything. The one rule that matters is that a pack's three side photos share a canvas and put the car in the same place on it; a pack that gets that wrong looks fine as three pictures and wrong as a card.

Name the folder after your car's body generation, not just its model. A refresh changes the bodywork, so photos of a Juniper Model Y do not stand in for a pre-refresh one, and the unqualified folder is served to both. Contributing to the unqualified folder is how a pre-refresh car ends up showing refreshed bodywork, which is the one problem this is all here to avoid.

The three generation slugs are classic, juniper and highland. <paint> is lower case with anything that is not a letter removed, so Deep Blue Metallic is blue and Pearl White Multi-Coat is white. If you are unsure which generation you have, open the card, hover the car photo, and it tells you. See Body generations for how the card works it out.

images/models/<3|y>/<paint>/app/ without a generation still works and is what the three packs bundled today use, for historical reasons. Do not add new packs there.

A new pack must also be added to PACKS_SHIPPED in tesla-fleet-card.js, with its gen:

const PACKS_SHIPPED = [
  { model: "Model Y", paint: "red", dir: "models/y/red/app", gen: "classic" },
  { model: "Model 3", paint: "blue", dir: "models/3-highland/blue/app", gen: "highland" }
];

That list is what the card shows a user whose model and paint have no artwork yet, so it going stale is worse than useless: it either hides a pack that exists, or sends someone to one that does not. A pack with no gen is treated as matching any generation, which is almost never what you want.

Packs are served from main, so a merged pack is live for every user straight away whatever card version they are running. No release needed.
